Auxiliary Lamp Series FF 50 and FF 75. There are vehicles whose small dimensions or lack of Mounting options make it difficult to use conventional auxiliary lamps. This is why HELLA engineers expanded the FF series to include several high-performance compact models. To ensure that your Light is always where you need it. The FF series is available in 2 model variants: the FF 50 with an oval design and the FF 75 with a flat design. Both variants are available as highbeam headlamps and fog lamps. Thanks to the metal bracket, universal assembly is possible either in the upright or suspended positions.

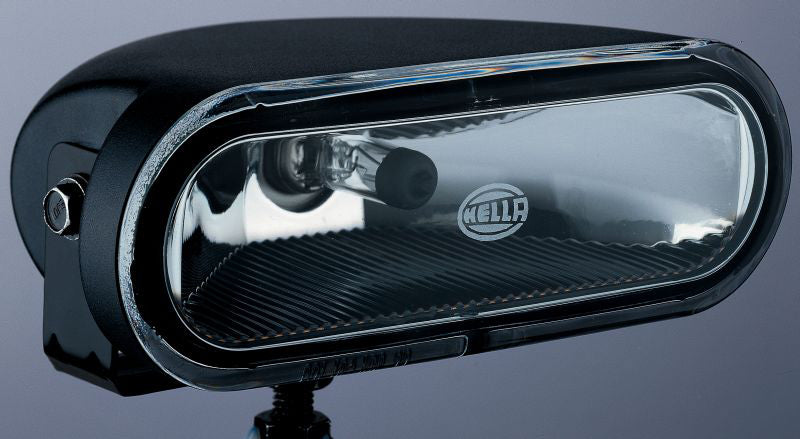

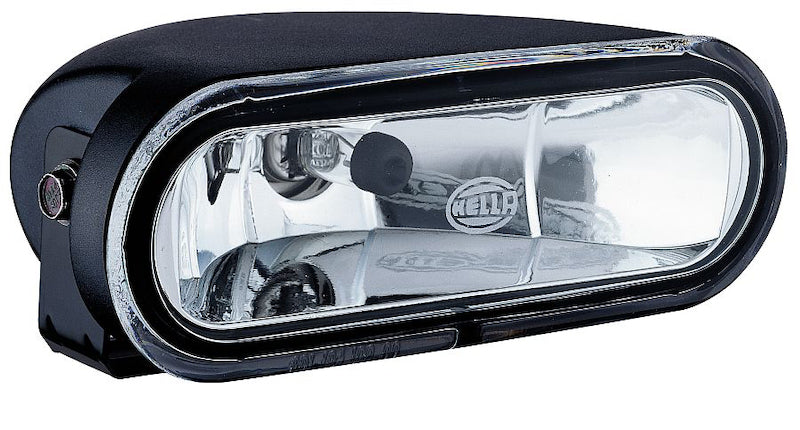

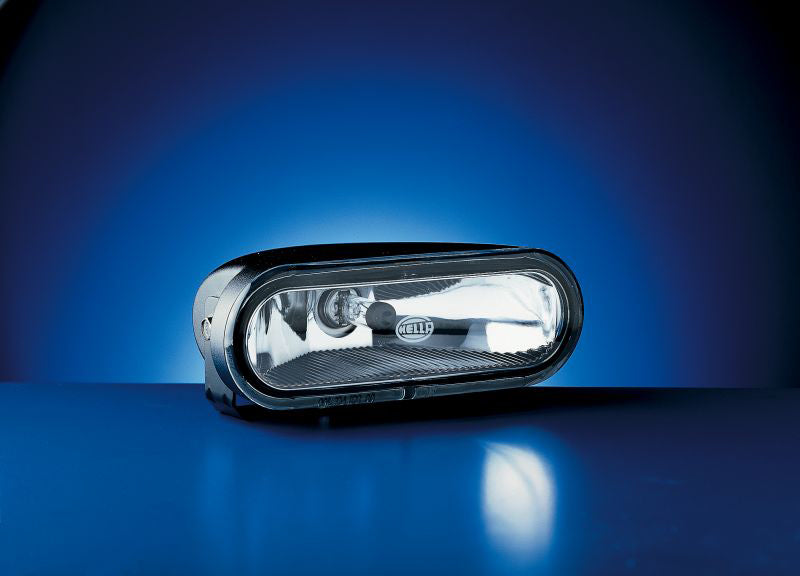

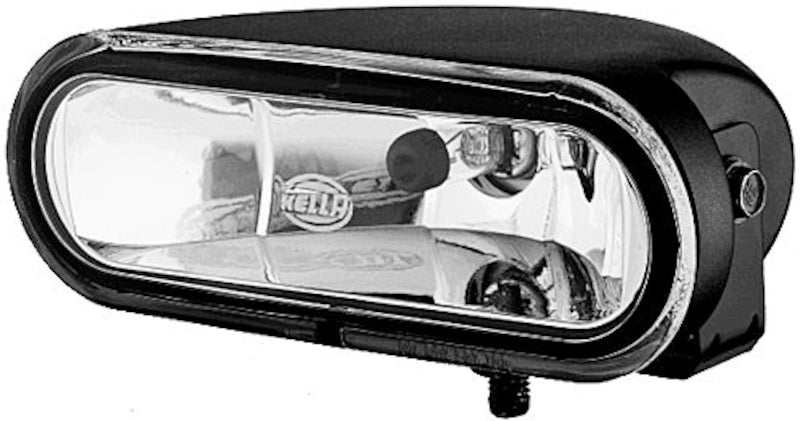

Hella FF 75 Single Driving Lamp 008284011
Specifications:
| Test Mark | ECE-R8 |
| Fulfils ECE norm | R8 |
| Registration Type | CCC approved |
| Reference number | 12.5 |
| Housing Color | black |
| Lens Color | Crystal clear |
| Shape | Oval |
| Housing Type | Synthetic Material Housing |
| Diffusing Lens Type | Clear Diffusing Lens |
| Supplementary Article/Info 2 | without Cap |
| Supplementary Article/Supplementary Info | with Holder |
| Assy./disassy. by qualified personnel required! | . |
| 1272 | Clear |
| 975 | 55.0 |
| Mounting Type | Bolted |
| Fastening Type | Swivelling Mounting Bracket |
| Light Design | Halogen |
| Lamp Type | H7 |
| Voltage [V] | 12 |
| Fitting Position | Right |

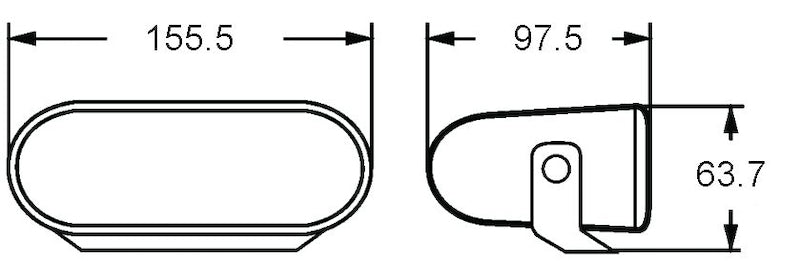

| Height [in] | 2.13 |
| Height [mm] | 54 |
| Overall Height [in] | 2.52 |
| Overall Height [mm] | 64 |
| Width [mm] | 156 |
| Width [in] | 6.14 |
| Depth [mm] | 98 |
| Depth [in] | 3.86 |
| Fitting Depth [mm] | 70 |
| Fitting Depth [in] | 2.76 |
| Light Function | with High Beam |
| Number of light functions | 1 |
| Description_DES | FF 75 Single Driving Lamp |
| Description_MKT | Auxiliary Lamp Series FF 50 and FF 75. There are vehicles whose small dimensions or lack of Mounting options make it difficult to use conventional auxiliary lamps. This is why HELLA engineers expanded the FF series to include several high-performance compact models. To ensure that your Light is always where you need it. The FF series is available in 2 model variants: the FF 50 with an oval design and the FF 75 with a flat design. Both variants are available as highbeam headlamps and fog lamps. Thanks to the metal bracket, universal assembly is possible either in the upright or suspended positions. |
| Description_FAB | The compact design of the headlamp enables the auxiliary headlamp to be mounted even where space is limited |
| Description_DEF | Auxiliary Light |
