The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise with the successful transfer of its OE know-how. HELLA offers a leading Range of top-quality products for almost every application.

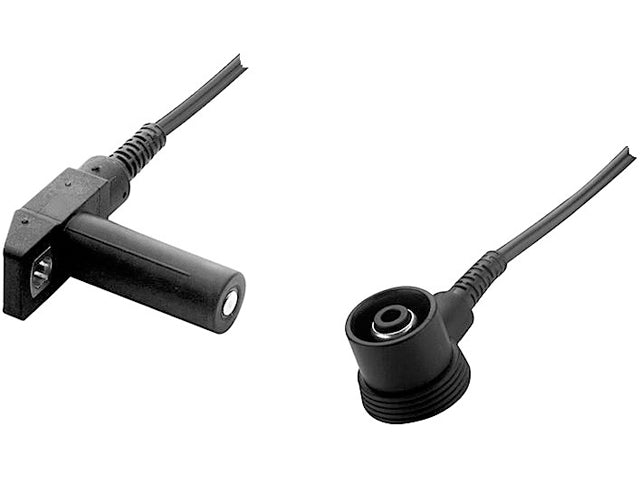

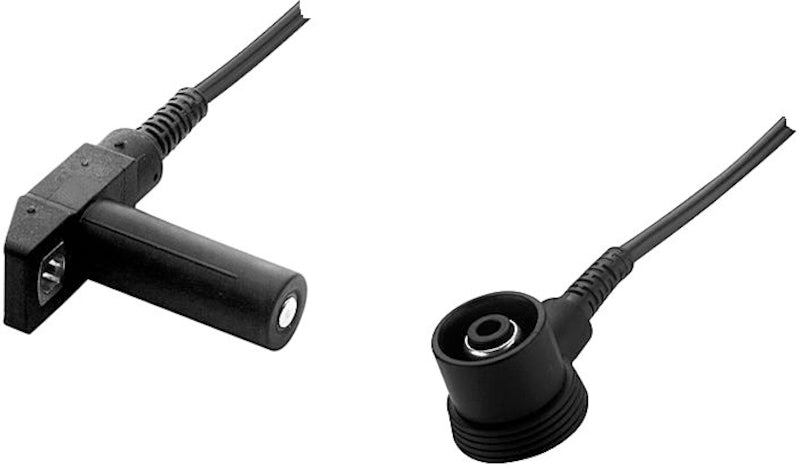

Hella Engine Crankshaft Position Sensor 009110471
Specifications:
| Voltage [V] | 12 |
| Resistor [Ohm] | 830 |
| Tolerance [%] | 10 |
| Cable Length [mm] | 1100 |
| Cable Length [in] | 43.31 |
| Sensor Type | Inductive Sensor |
| Number of pins | 2 |
| Fitting Position | Flywheel Side |
| Assy./disassy. by qualified personnel required! | . |
| Description_INV | SENSOR CRANKSHAFT MB |
| Description_DES | Crankshaft Position Sensor |
| Description_MKT | The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise with the successful transfer of its OE know-how. HELLA offers a leading Range of top-quality products for almost every application. |
| Description_FAB | Highest Measuring precision in a wide ambient Temperature Range |
| Description_DEF | Engine Crankshaft Position Sensor |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1993 | Mercedes-Benz | 400E | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Late; Standard |
| 1993 | Mercedes-Benz | 500E | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Late; Standard |
| 1994 | Mercedes-Benz | C220 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1995 | Mercedes-Benz | C220 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1994 | Mercedes-Benz | C280 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1995 | Mercedes-Benz | C280 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1996 | Mercedes-Benz | C280 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1995 | Mercedes-Benz | C36 AMG | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional |
| 1996 | Mercedes-Benz | C36 AMG | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional,12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional |
| 1994 | Mercedes-Benz | E420 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm |
| 1995 | Mercedes-Benz | E420 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm |
| 1994 | Mercedes-Benz | E500 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm |
| 1996 | Mercedes-Benz | S320 | LWB | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional |
| 1996 | Mercedes-Benz | S320 | SWB | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Standard |
| 1994 | Mercedes-Benz | S500 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm |
| 1996 | Mercedes-Benz | SL320 | Base | 12V - 2-Pin Connector - Flywheel Side - Cable: 1100mm; Optional |
