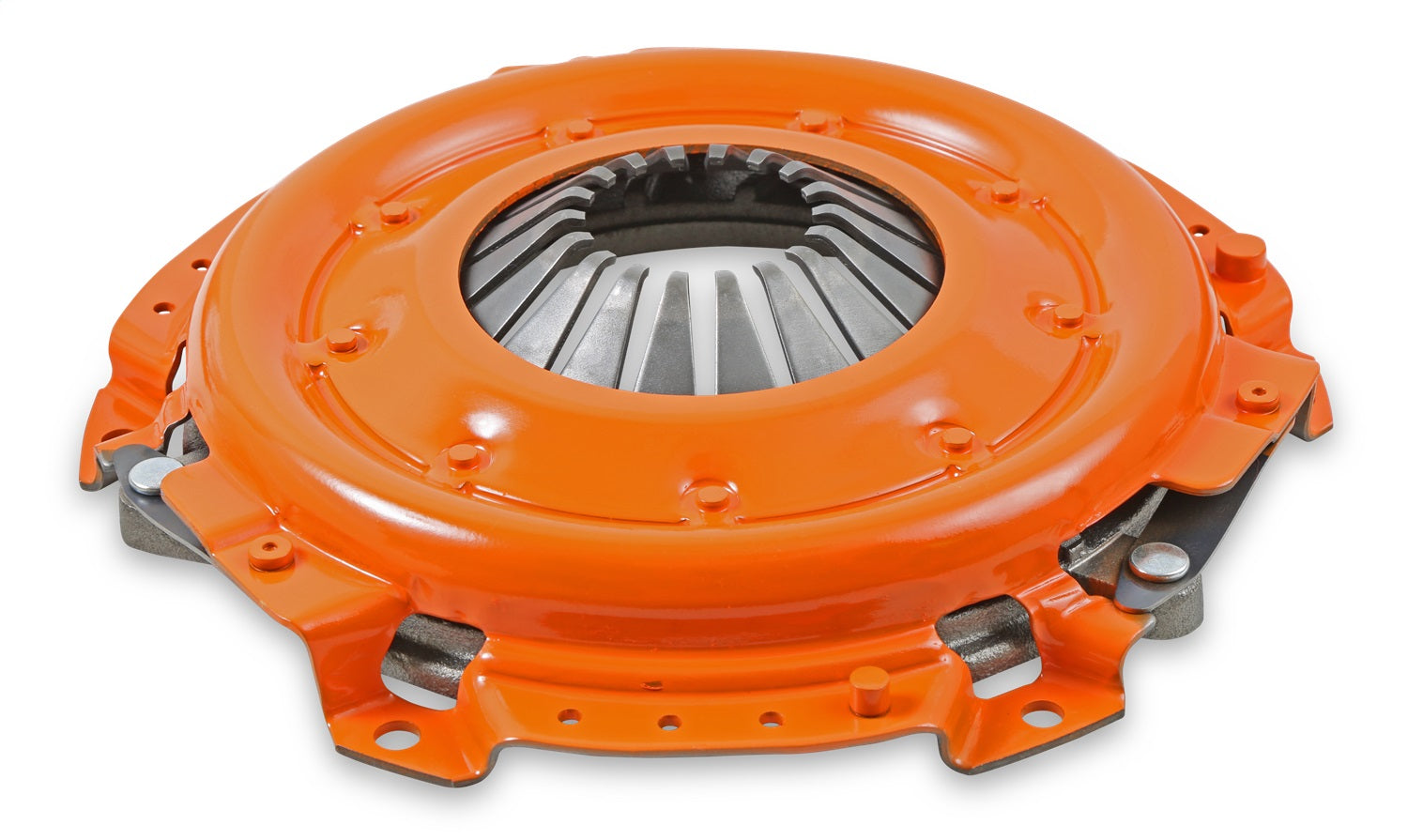

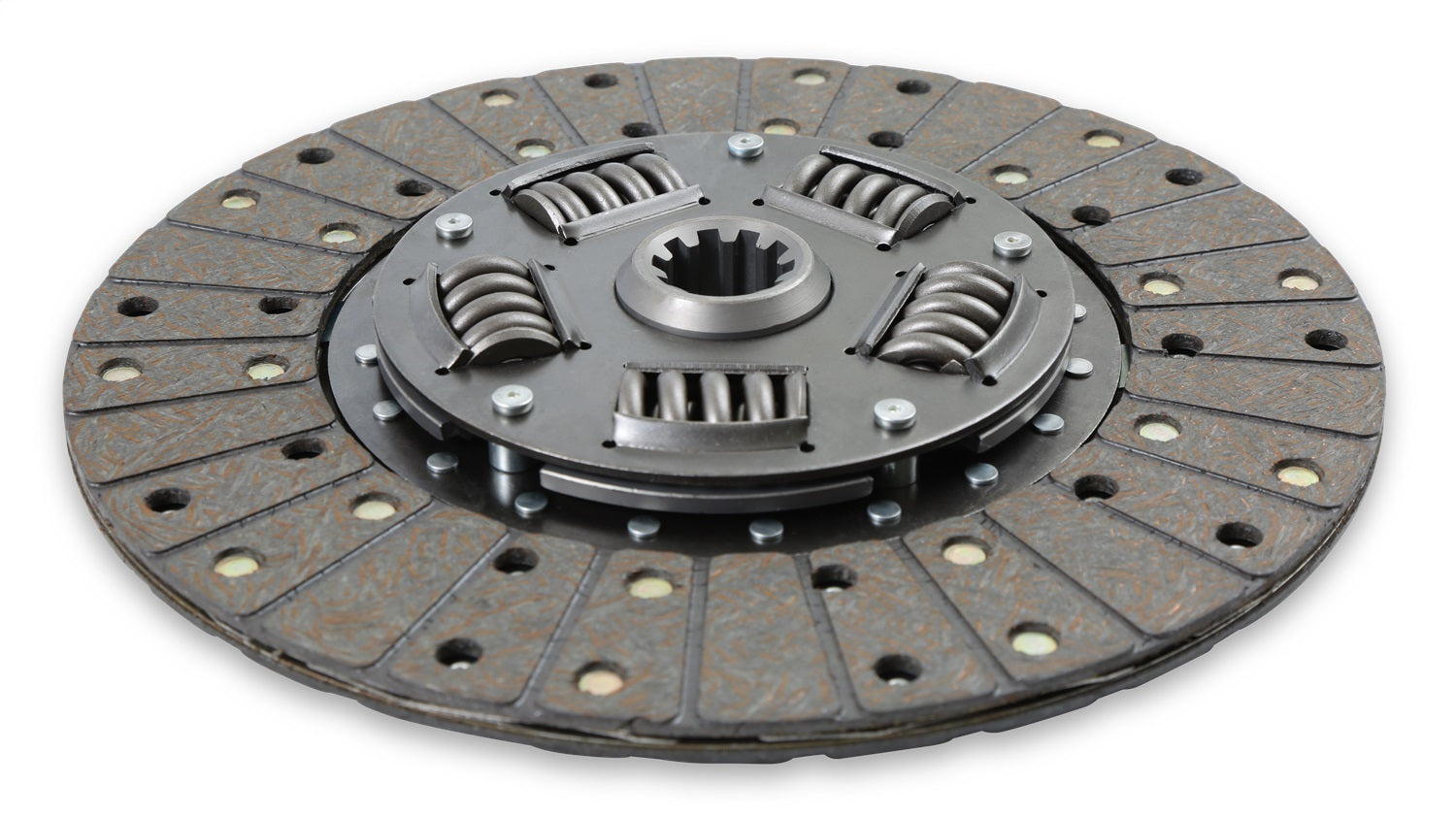

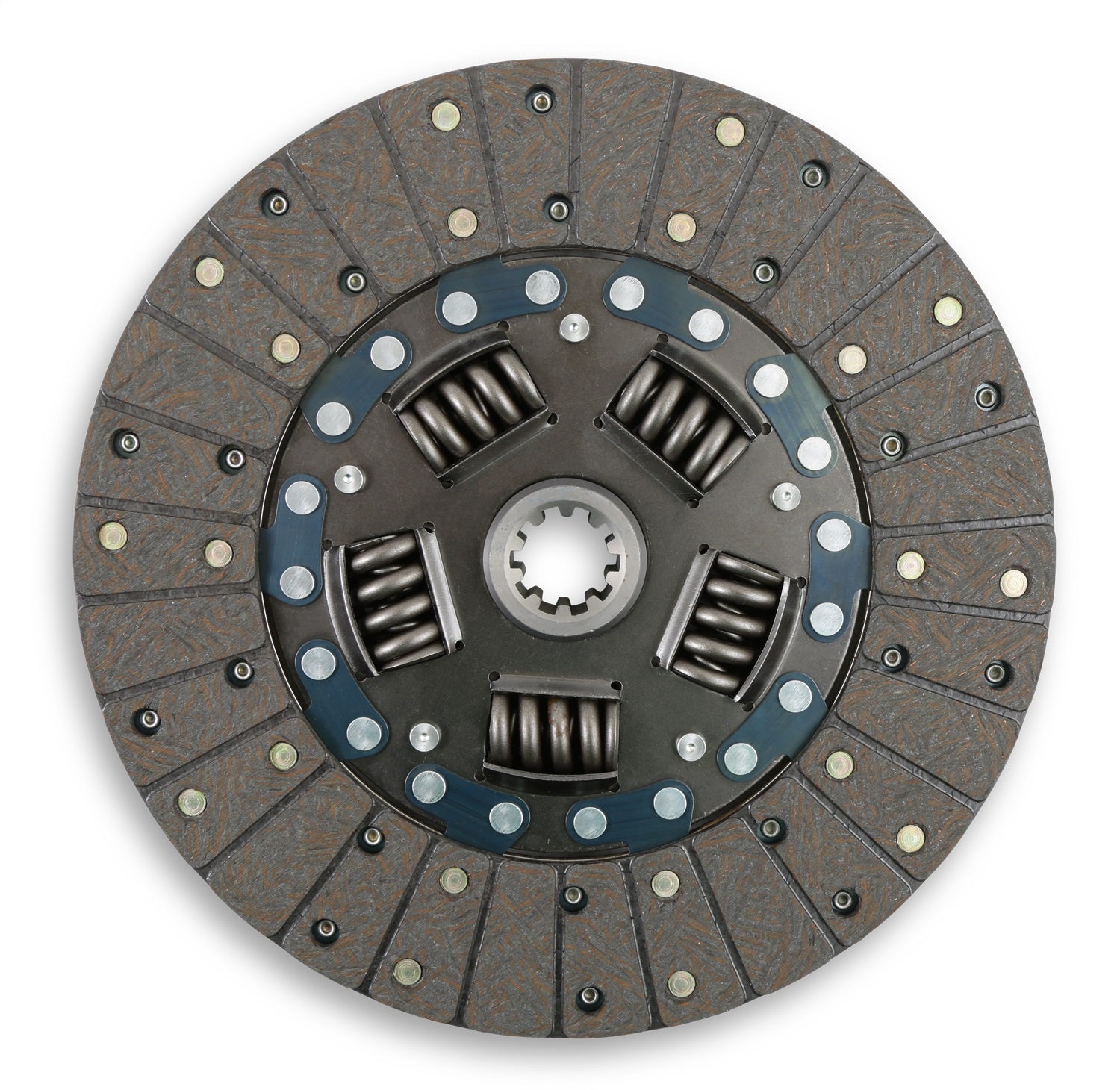

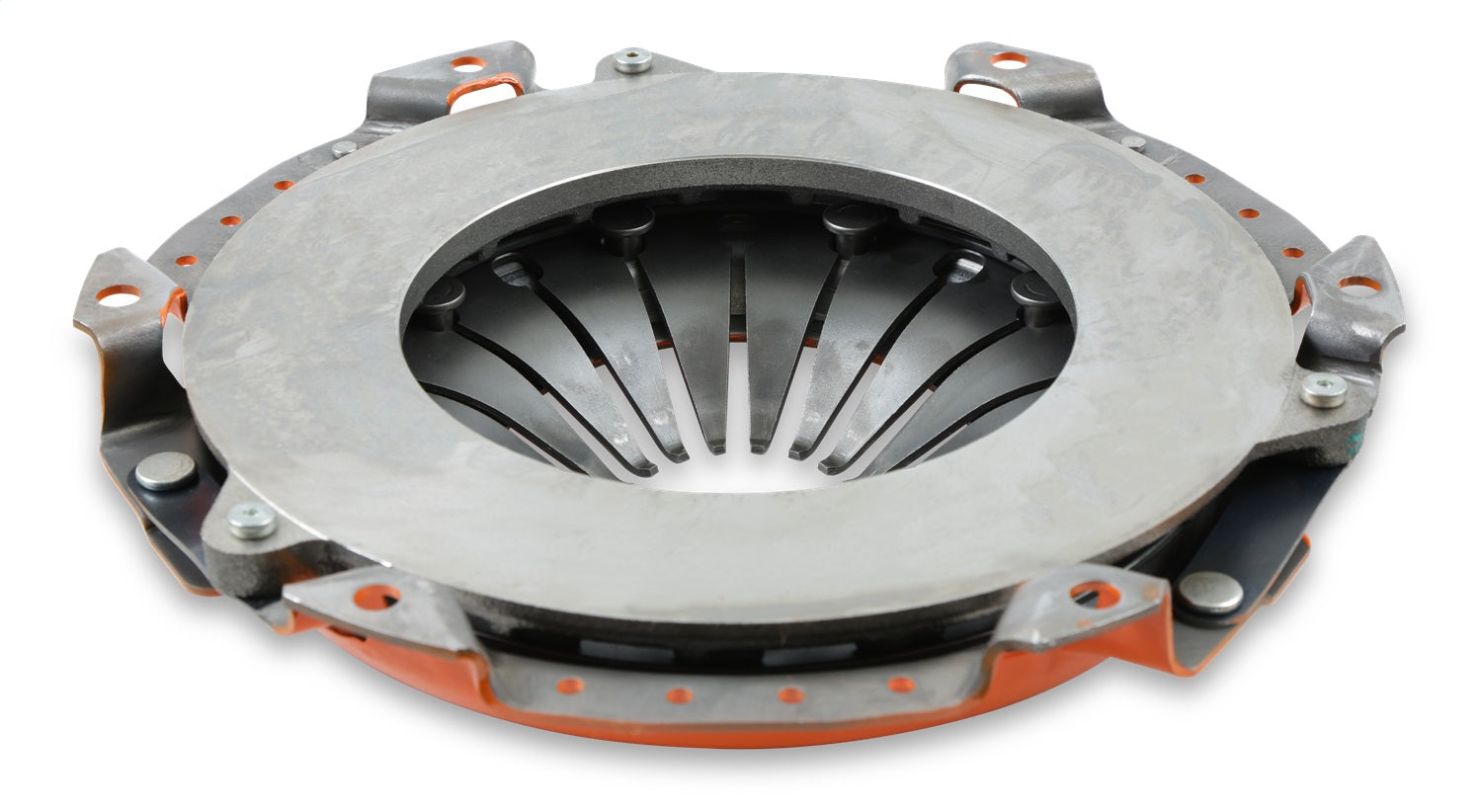

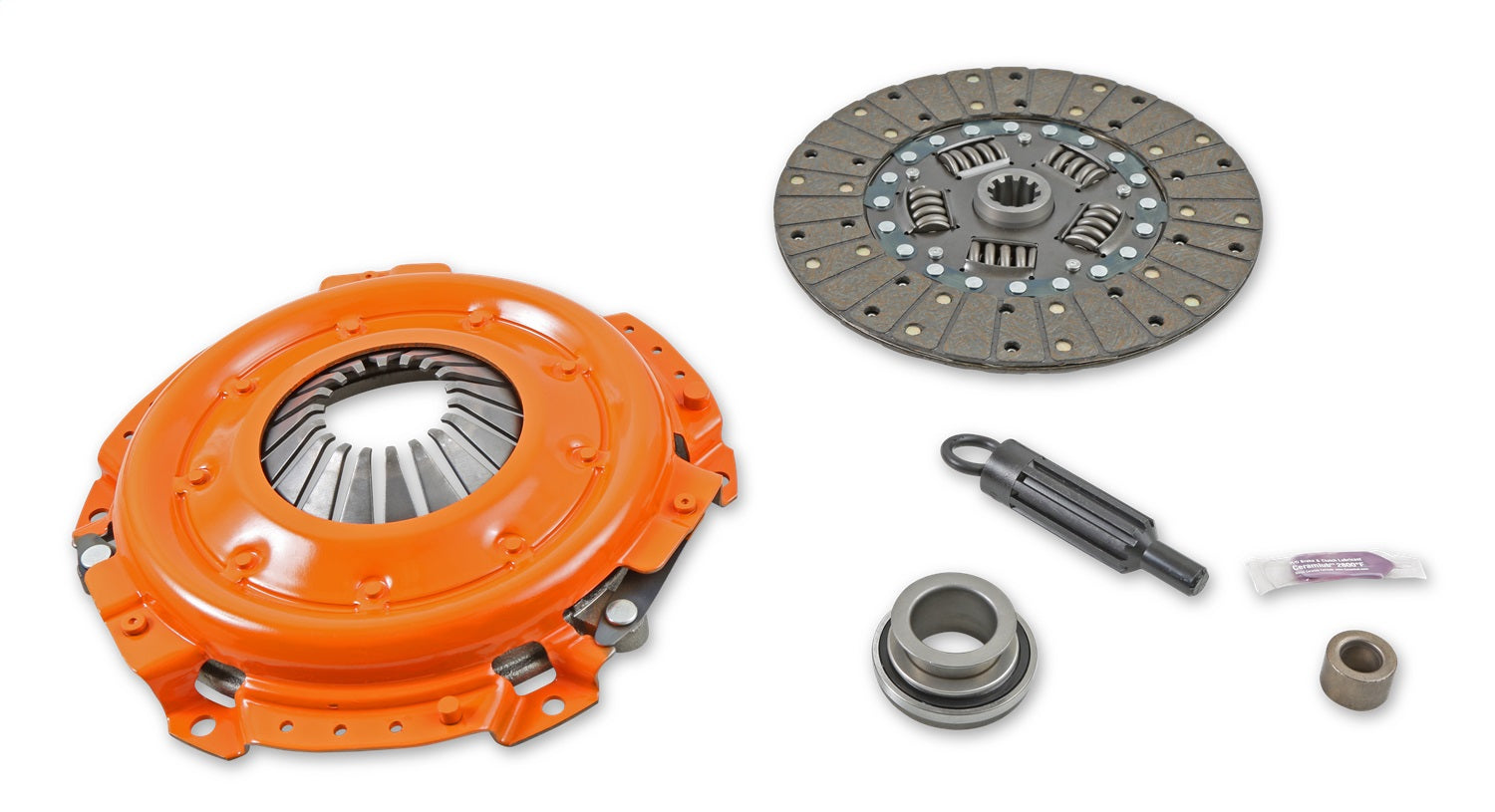

Hays street/strip clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This clutch features a heavy duty cover to minimize flex and ensure strength and stability. The kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 10 spline input shaft. The pressure plate is a diaphragm style with light pedal pressure and a quick clean release for precise gear changes with positive engagement to handle high horsepower. The clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available.
Resources
Installation InstructionsSpecifications:
| Alignment Tool Included | Yes |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Transmission Clutch Kit |
| Description_DES | Street/Strip Clutch Kit |
| Description_EXT | Street/Strip Clutch Kit; Diaphragm; Incl. Pressure Plate/Disc/Throwout Bearing/Alignment Tool; For GM Apps w/10.5 in. Dia.; 10 Spline By 1 1/8 in. Specs; |
| Description_FAB | 1 1/8 in. Input Shaft Diameter |
| Description_FAB | 573 ft.-lbs. Max Torque Rating |
| Description_FAB | 600 Max Horsepower Rating |
| Description_FAB | Diaphragm Pressure Plate Style |
| Description_FAB | Exceptional Performance And Durability |
| Description_FAB | Great For Street or Strip |
| Description_FAB | Limited 90 Day Warranty |
| Description_FAB | Organic Disc Material |
| Description_FAB | Spring Hub Disc Style |
| Description_INV | COMP/TRUCK CLUTCH KIT 10.5 GM |
| Description_MKT | Hays street/strip clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This clutch features a heavy duty cover to minimize flex and ensure strength and stability. The kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 10 spline input shaft. The pressure plate is a diaphragm style with light pedal pressure and a quick clean release for precise gear changes with positive engagement to handle high horsepower. The clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available. |
| Description_SHO | Clutch Kit |
| Disc Diameter | 10.500 in. |
| Disc Material | Organic |
| Disc Type | Spring Hub |
| height | 5.2 |
| Input Shaft Diameter | 1.125 in. |
| Input Shaft Spline Quantity | 10 |
| length | 16.9 |
| LTL | N |
| Material | Steel |
| Maximum Horsepower | 600 |
| Pressure Plate Type | Diaphram |
| Throwout Bearing Included | Yes |
| Torque Capacity | 573 ft/lbs. |
| WARNING CA Proposition 65 | No |
| weight | 21.45 |
| width | 15.6 |
