*item may differ from images

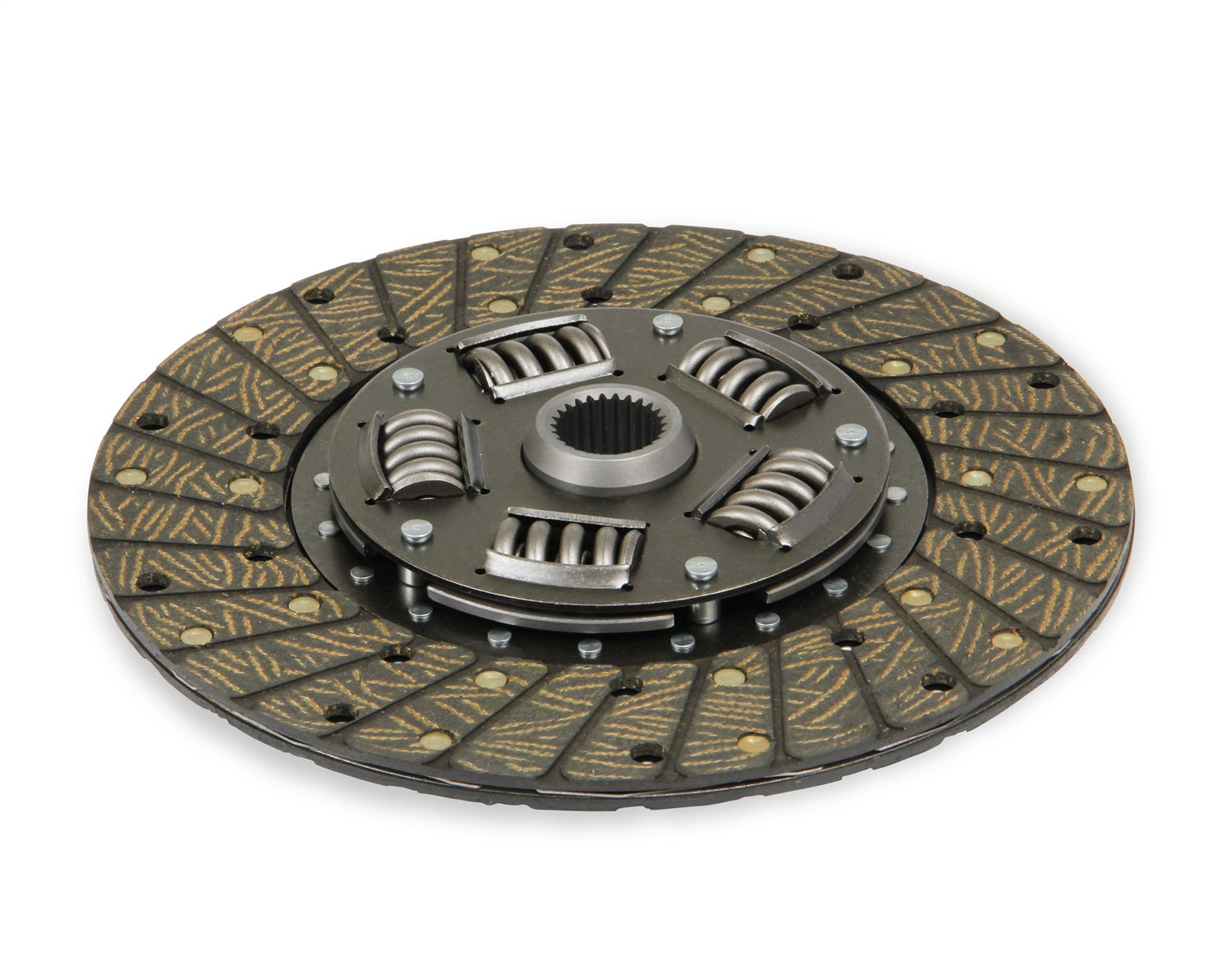

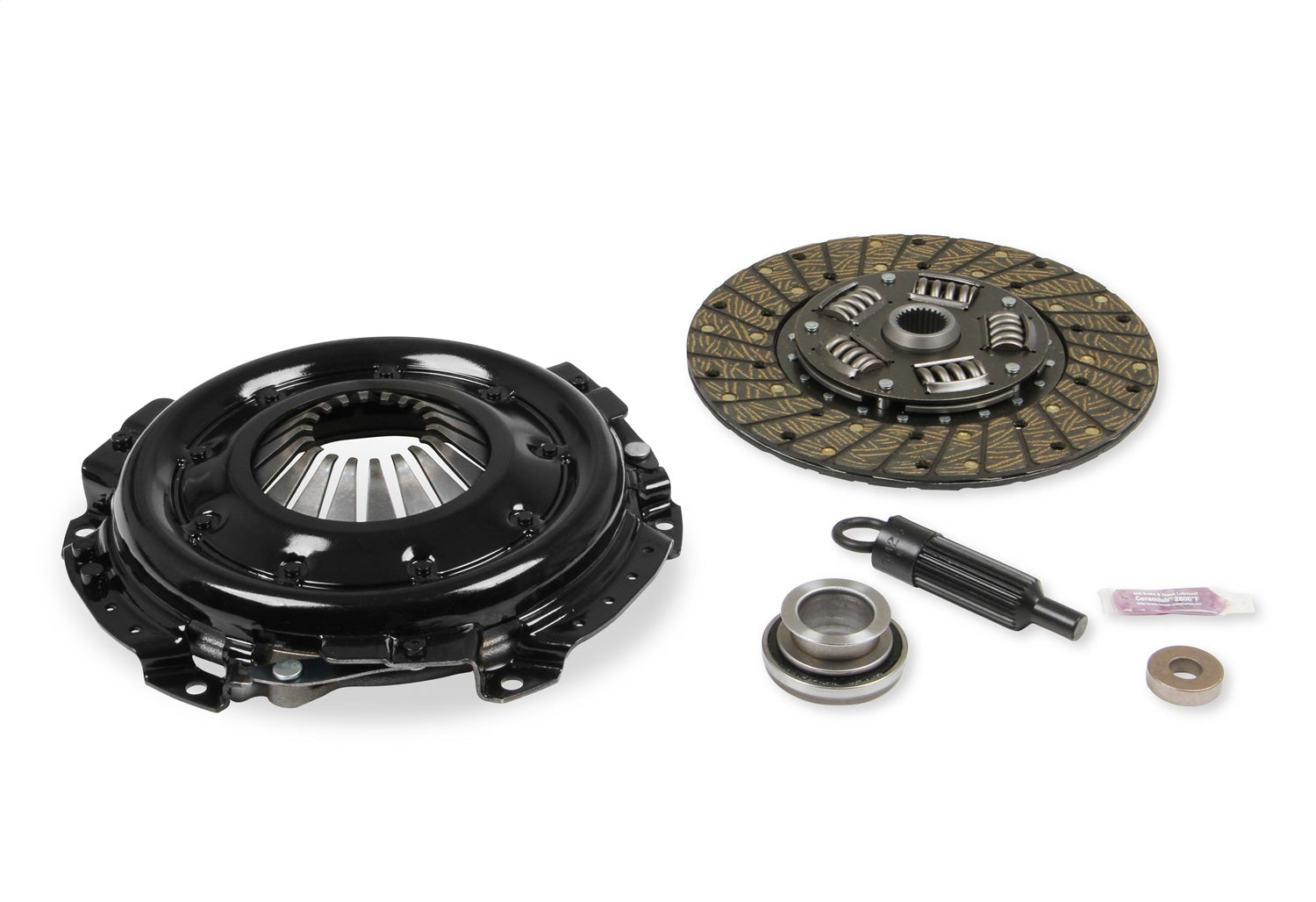

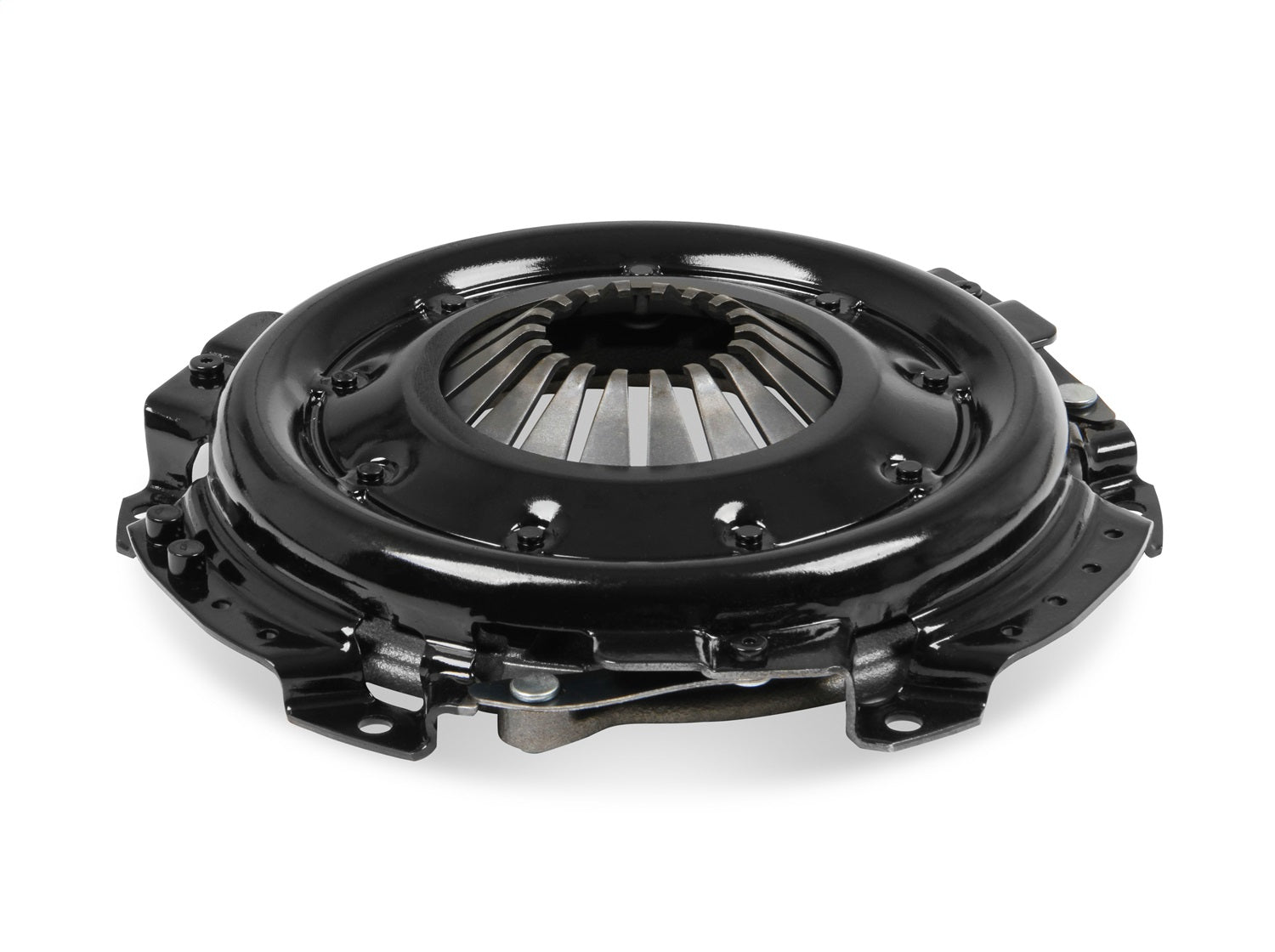

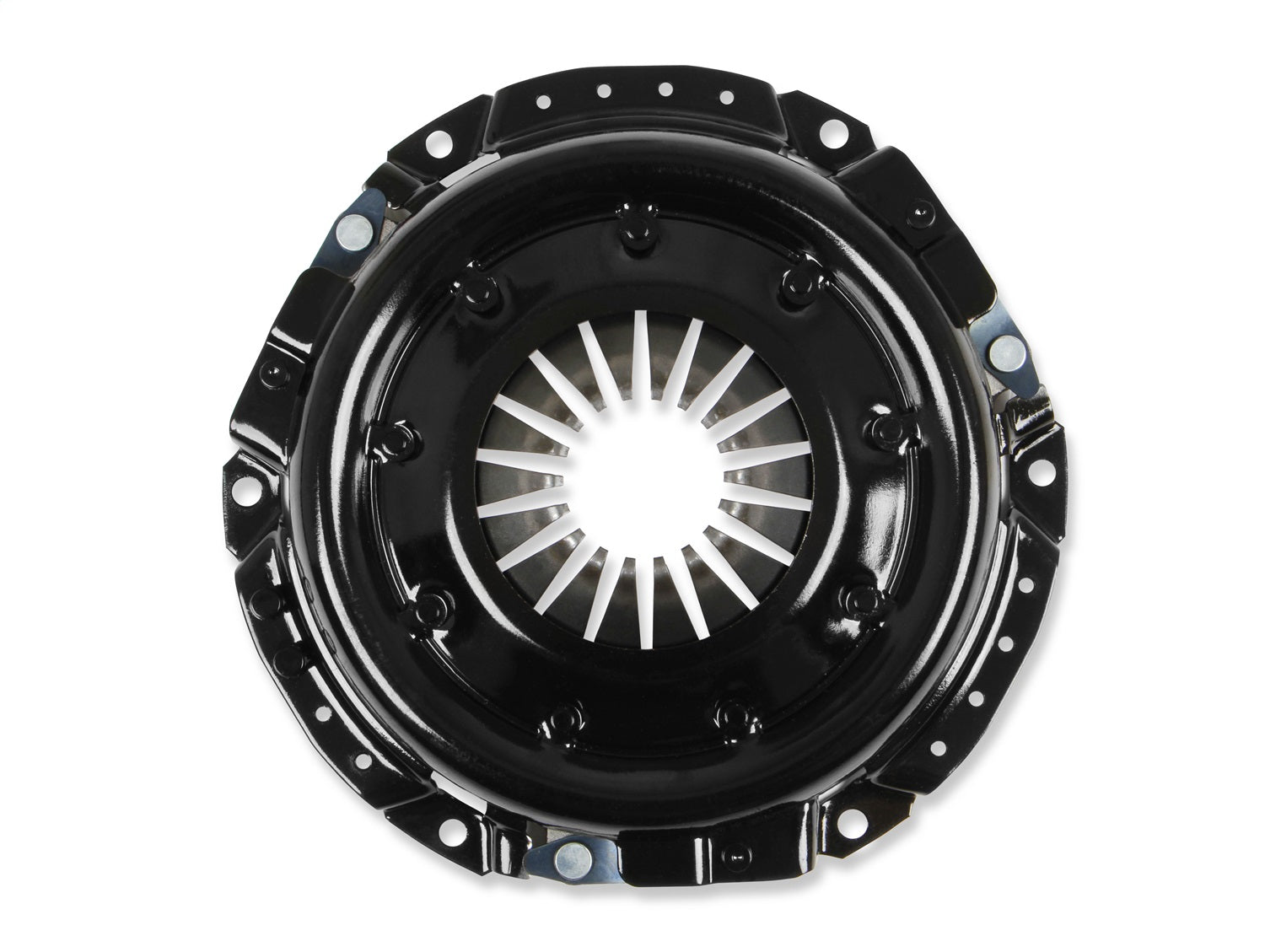

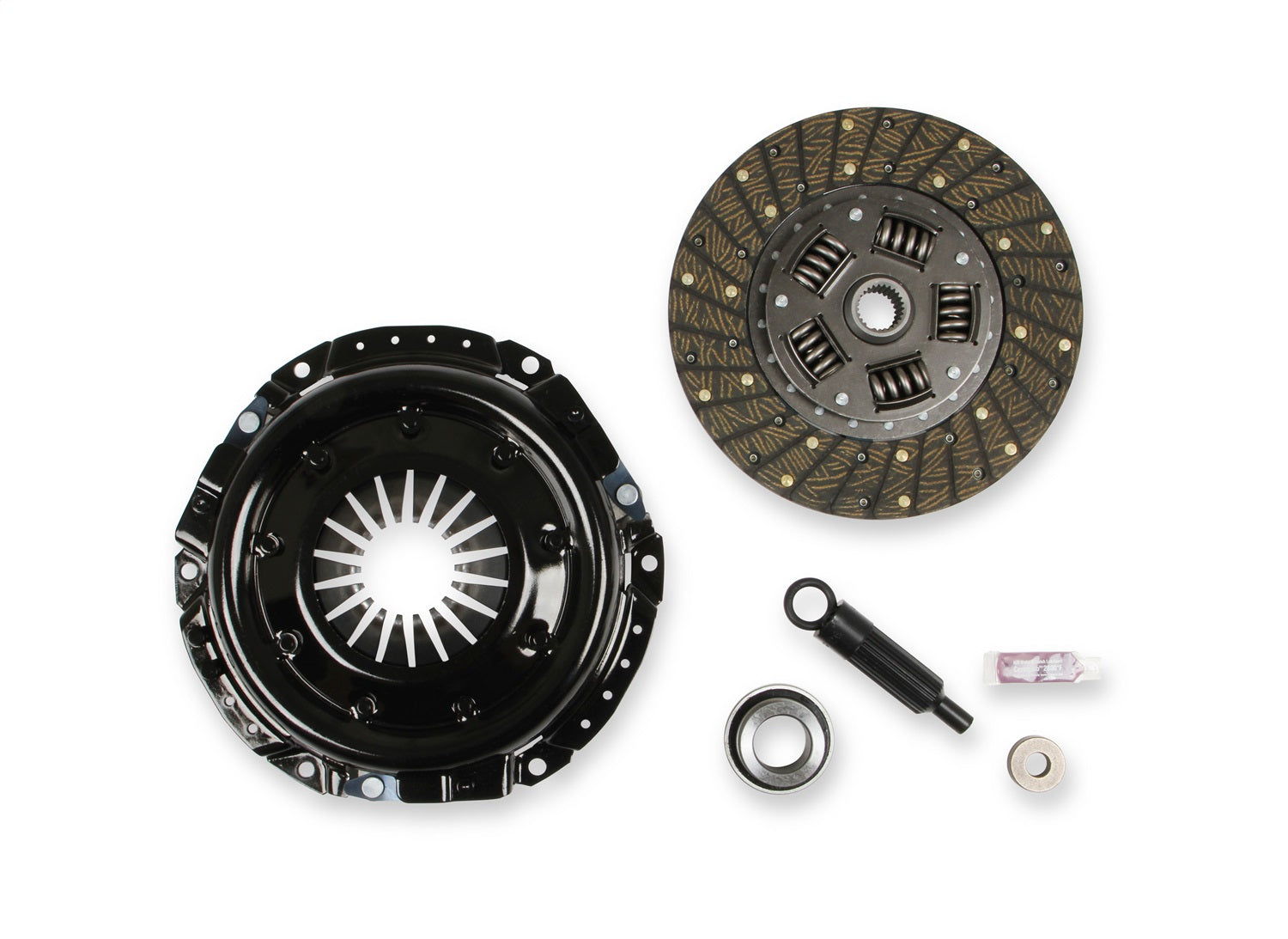

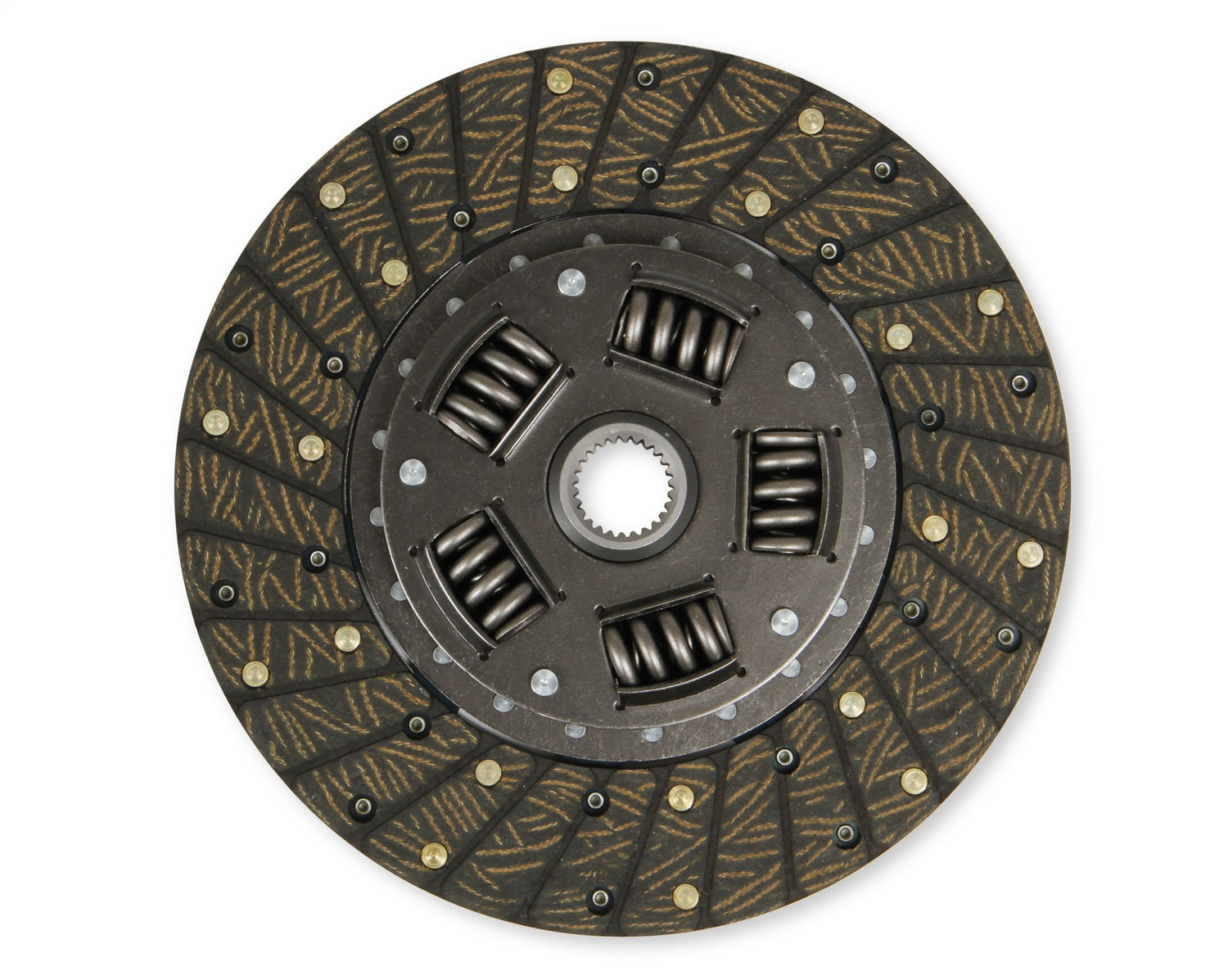

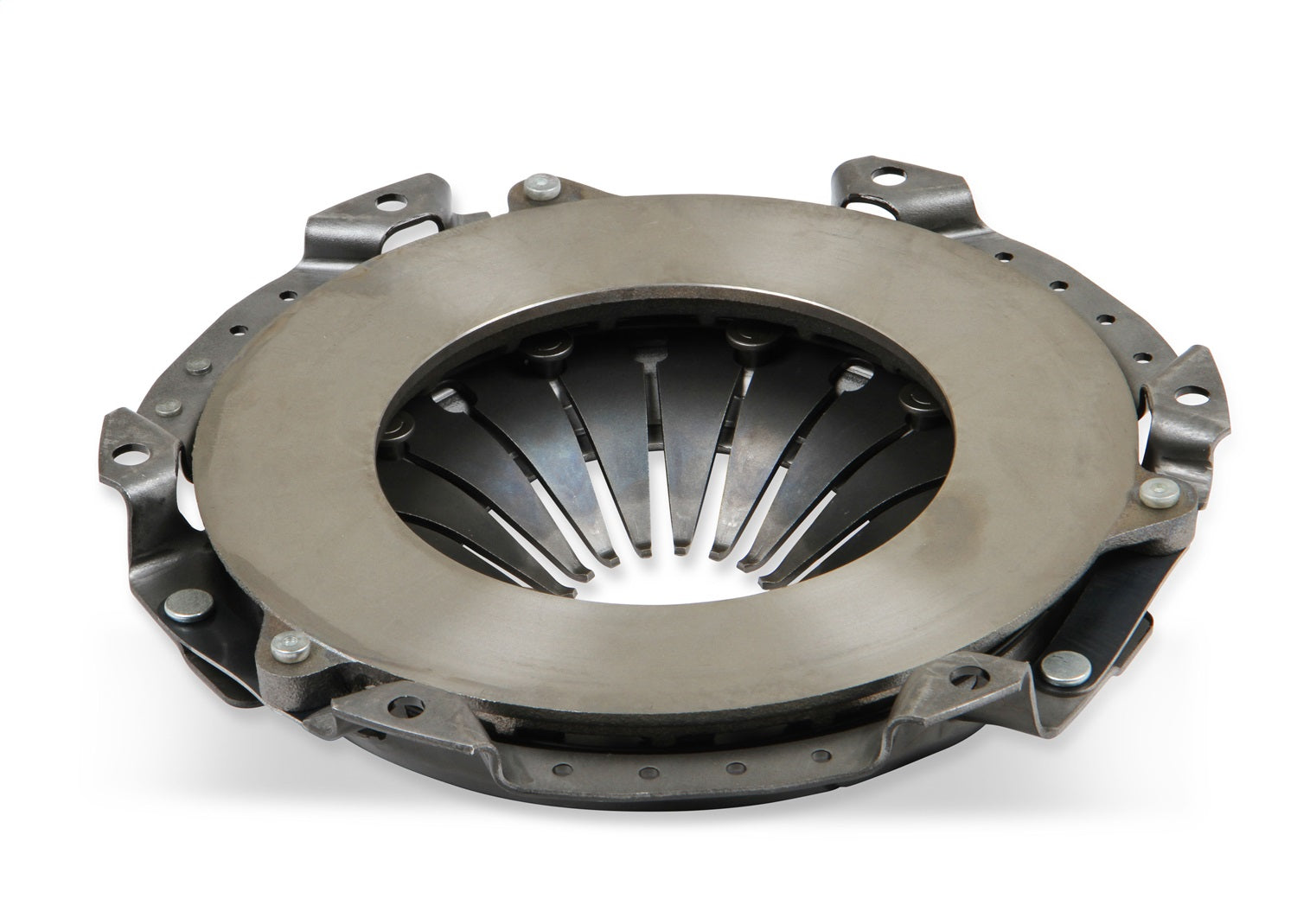

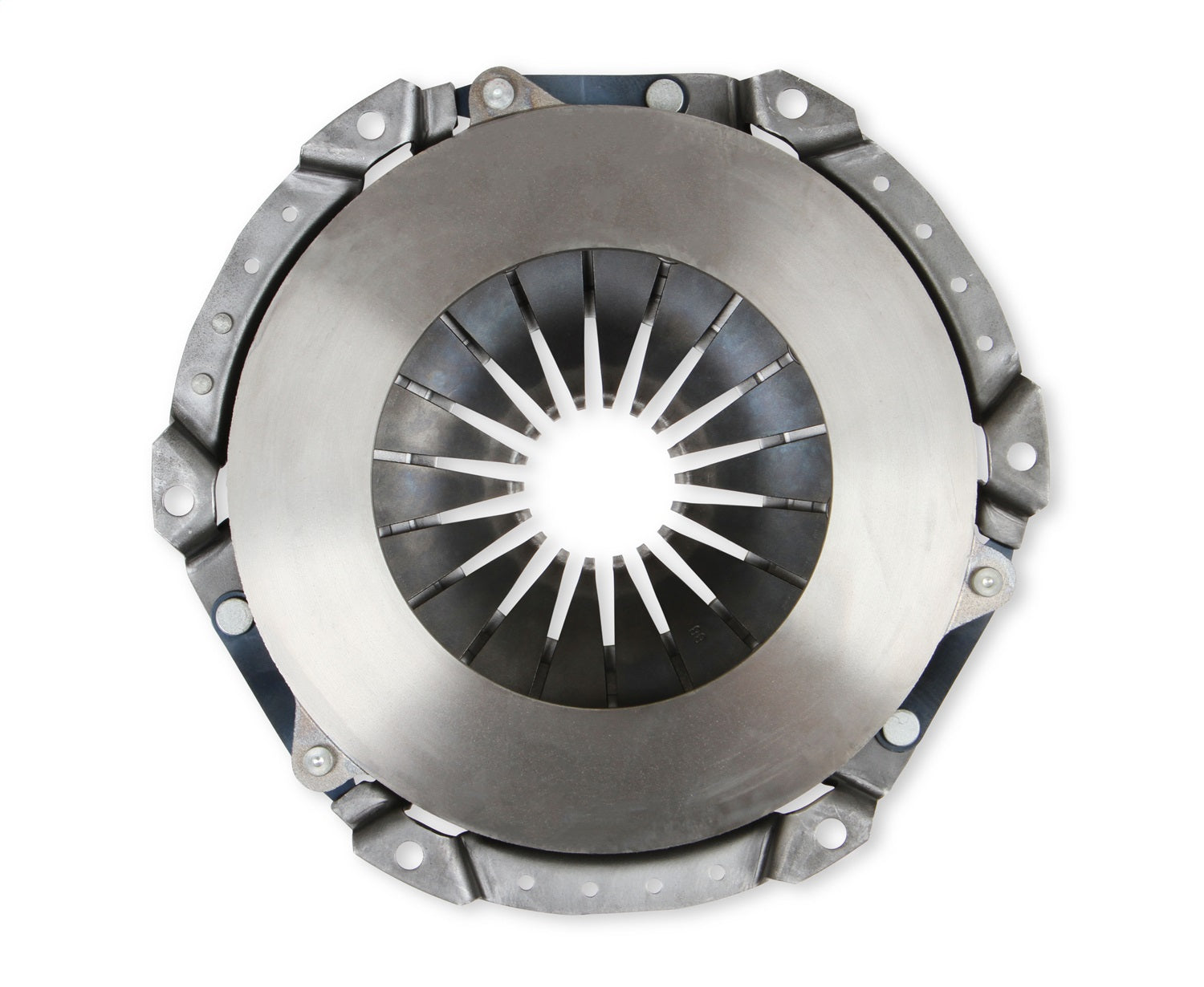

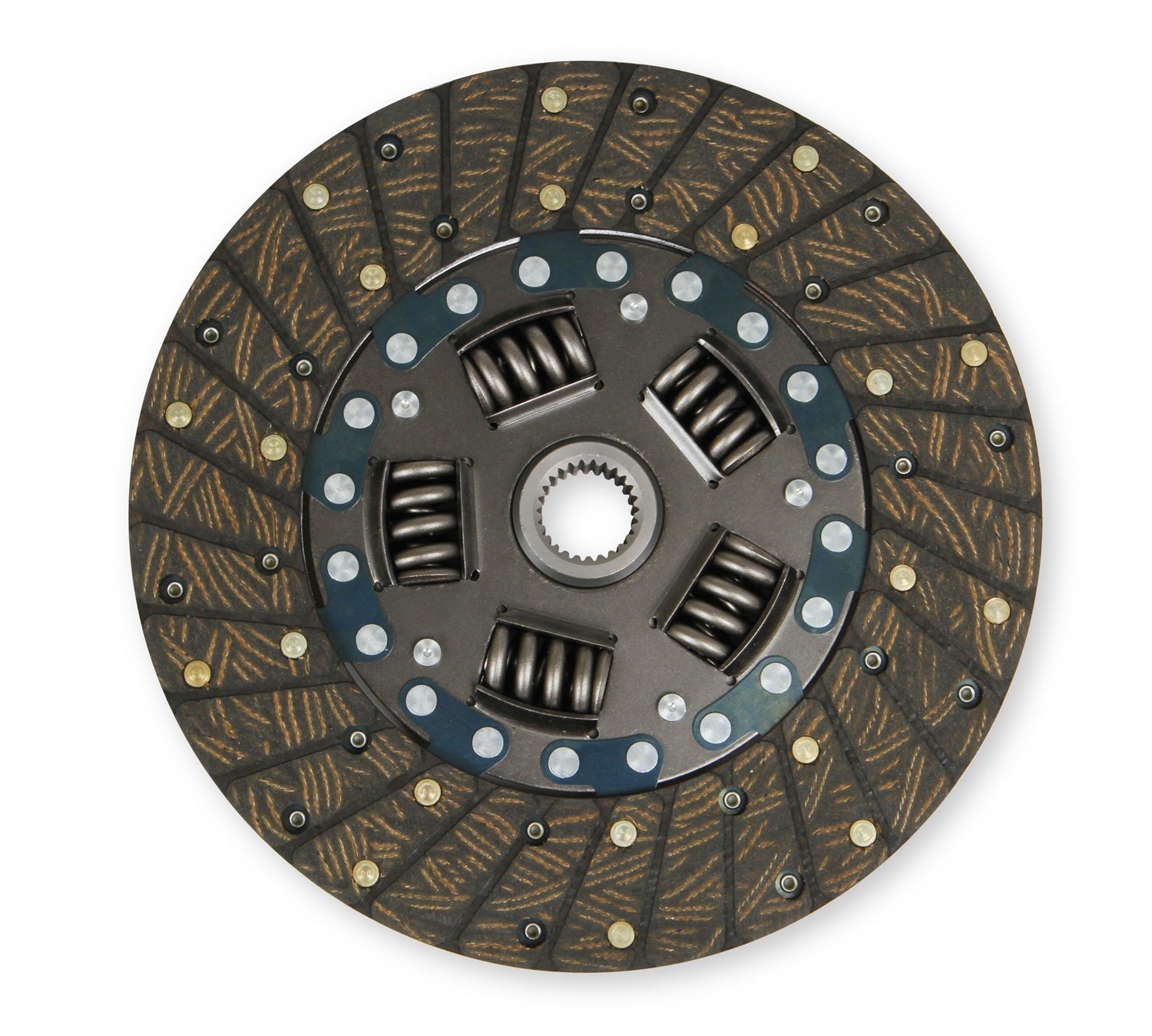

Hays street clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 26 spline input shaft. The pressure plate is diaphragm style, clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available.
Resources
Installation InstructionsSpecifications:
| Alignment Tool Included | Yes |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Transmission Clutch Kit |
| Description_DES | Street Clutch Kit |
| Description_EXT | Street Clutch Kit; Diaphragm; Steel; Incl. Pressure Plate/Disc/Throwout Bearing/Alignment Tool; Fits Chevy/Buick/Pontiac Apps w/10.5 in. Dia.; 26 Spline By 1 1/8 in. Specs; |
| Description_FAB | 1 1/8 in. Input Shaft Diameter |
| Description_FAB | 422 ft.-lbs. Max Torque Rating |
| Description_FAB | 442 Max Horsepower Rating |

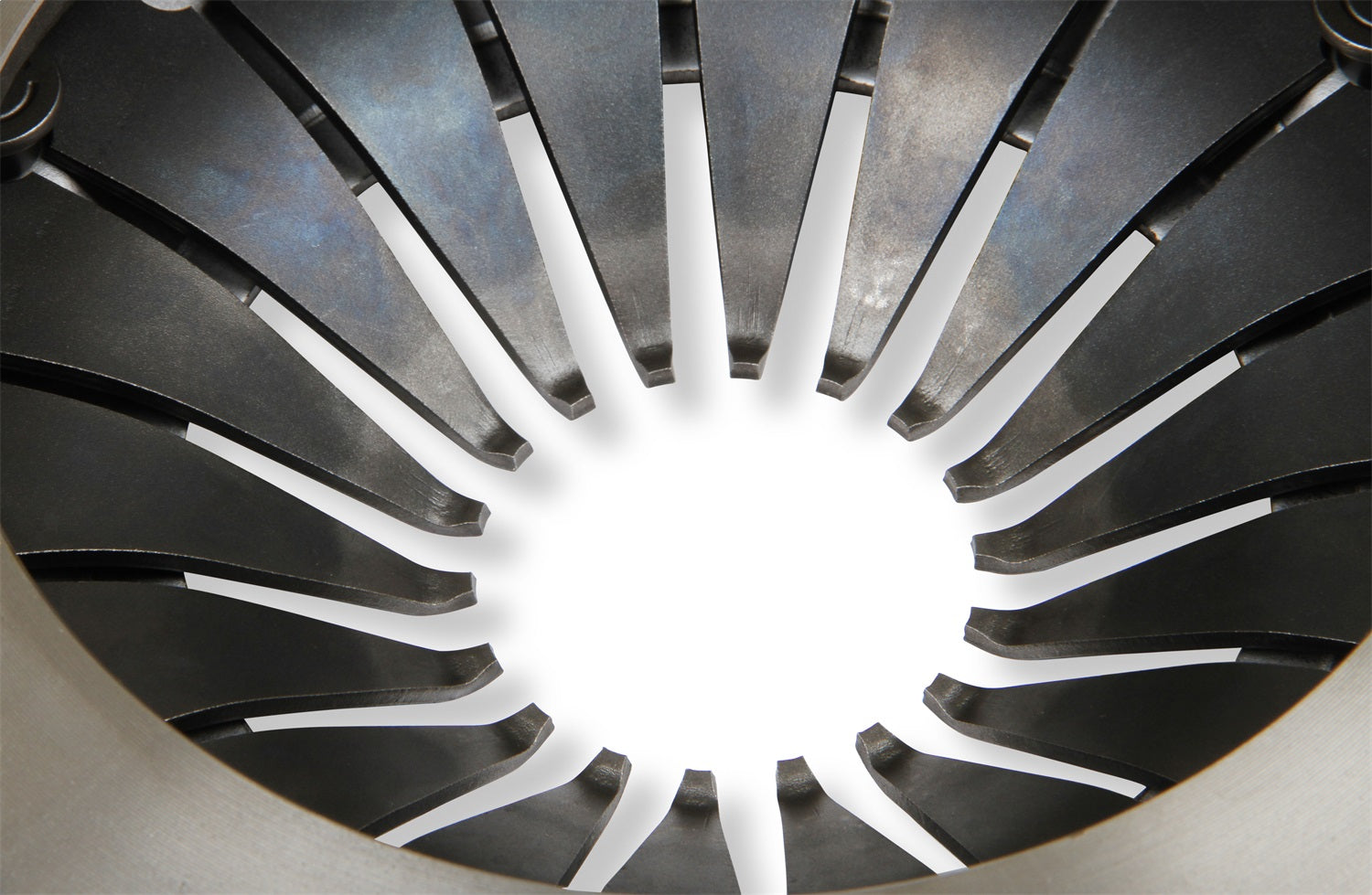

| Description_FAB | Diaphragm Pressure Plate Style |
| Description_FAB | Limited 90 Day Warranty |
| Description_FAB | Organic Disc Material |
| Description_FAB | Spring Hub Disc Style |
| Description_INV | STREET CLUTCH KIT-10.5 GM |
| Description_MKT | Hays street clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 26 spline input shaft. The pressure plate is diaphragm style, clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available. |
| Description_SHO | Clutch Kit |
| Disc Diameter | 10.500 in. |
| Disc Material | Organic |
| Disc Type | Spring Hub |
| height | 4.9 |
| Input Shaft Diameter | 1.125 in. |
| Input Shaft Spline Quantity | 26 |
| length | 17.0 |
| LTL | N |
| Material | Steel |
| Maximum Horsepower | 442 |
| Pressure Plate Type | Diaphram |
| Throwout Bearing Included | Yes |
| Torque Capacity | 422 ft/lbs. |
| WARNING CA Proposition 65 | No |
| weight | 20.0 |
| width | 15.6 |
