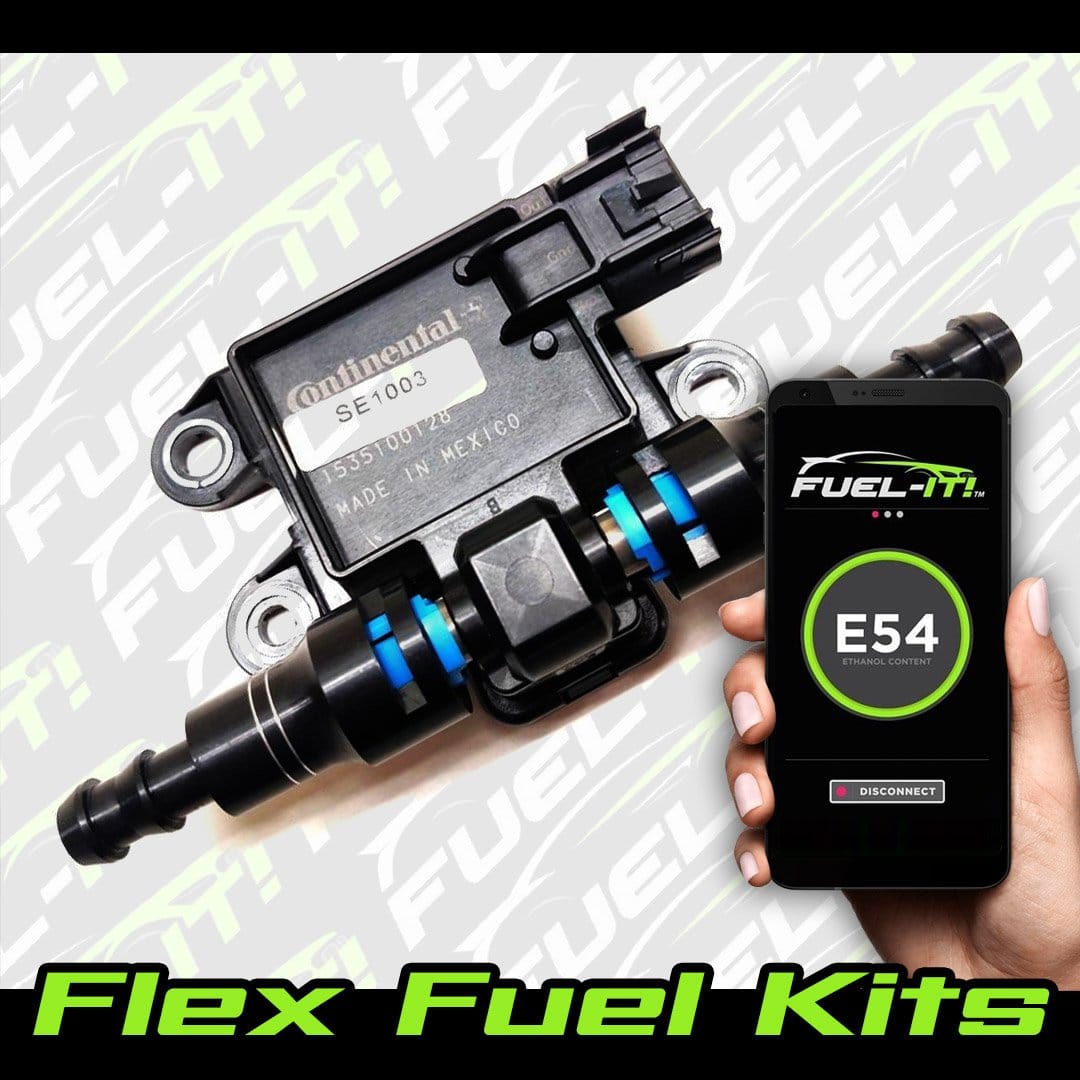

This is the complete solution for adding a Bluetooth compatible flex fuel analyzer to your vehicle with an ethanol sensor and a variety of optional -6an (3/8") or -5an (5/16") Fuel-It! fittings.

All of our Bluetooth Ethanol Analyzers include the optional 0-5V analog output or 50-150hz raw signal output in the same unit!

• Includes 0-5 volt linear output
• 0 volts = 0% ethanol
• 1 volt = 20% ethanol
• 2 volts = 40% ethanol
• etc.
• Includes 50-150 raw signal linear output directly from the ethanol sensor
• 50hz = 0% ethanol
• 60hz = 10% ethanol
• 70hz = 20% ethanol
• etc.

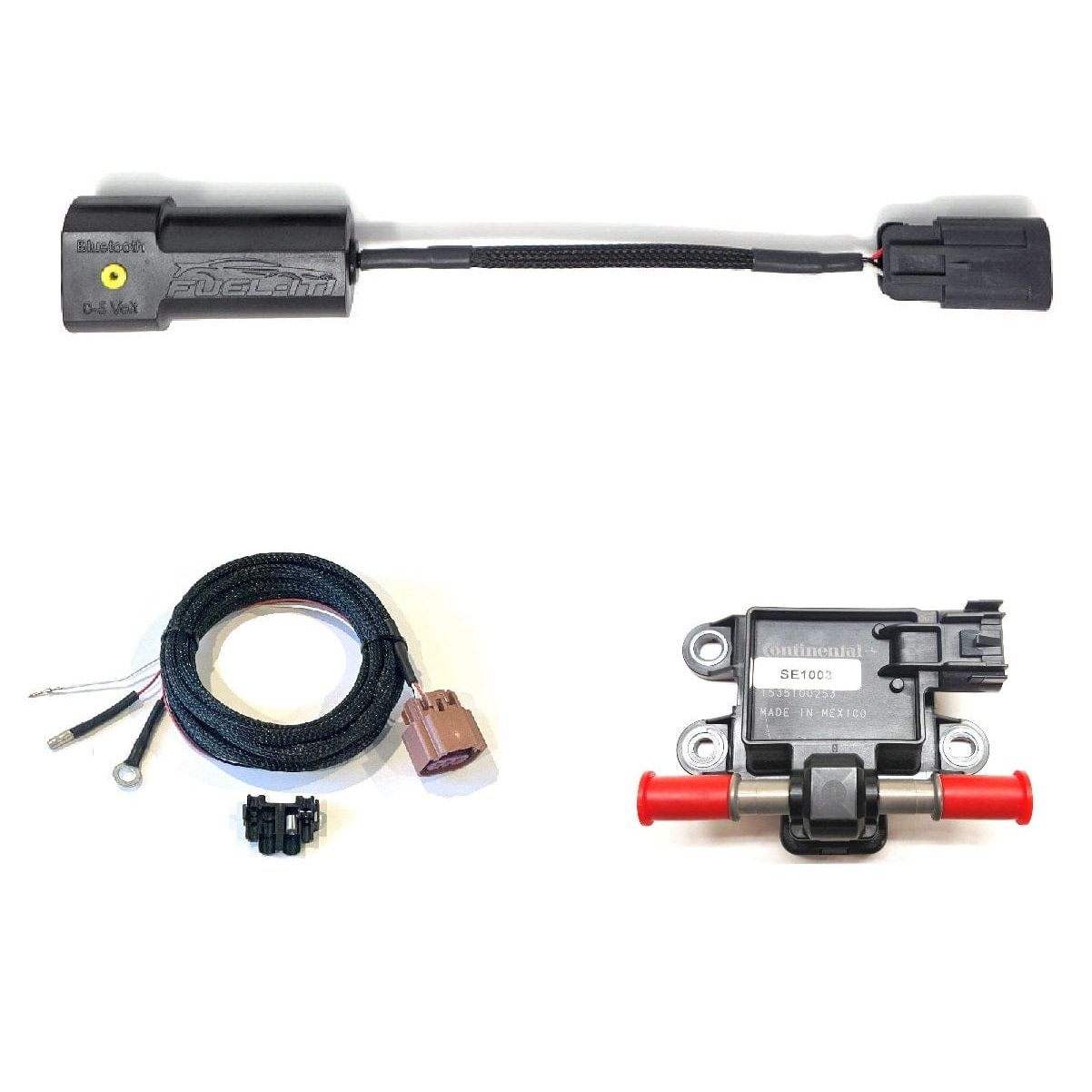

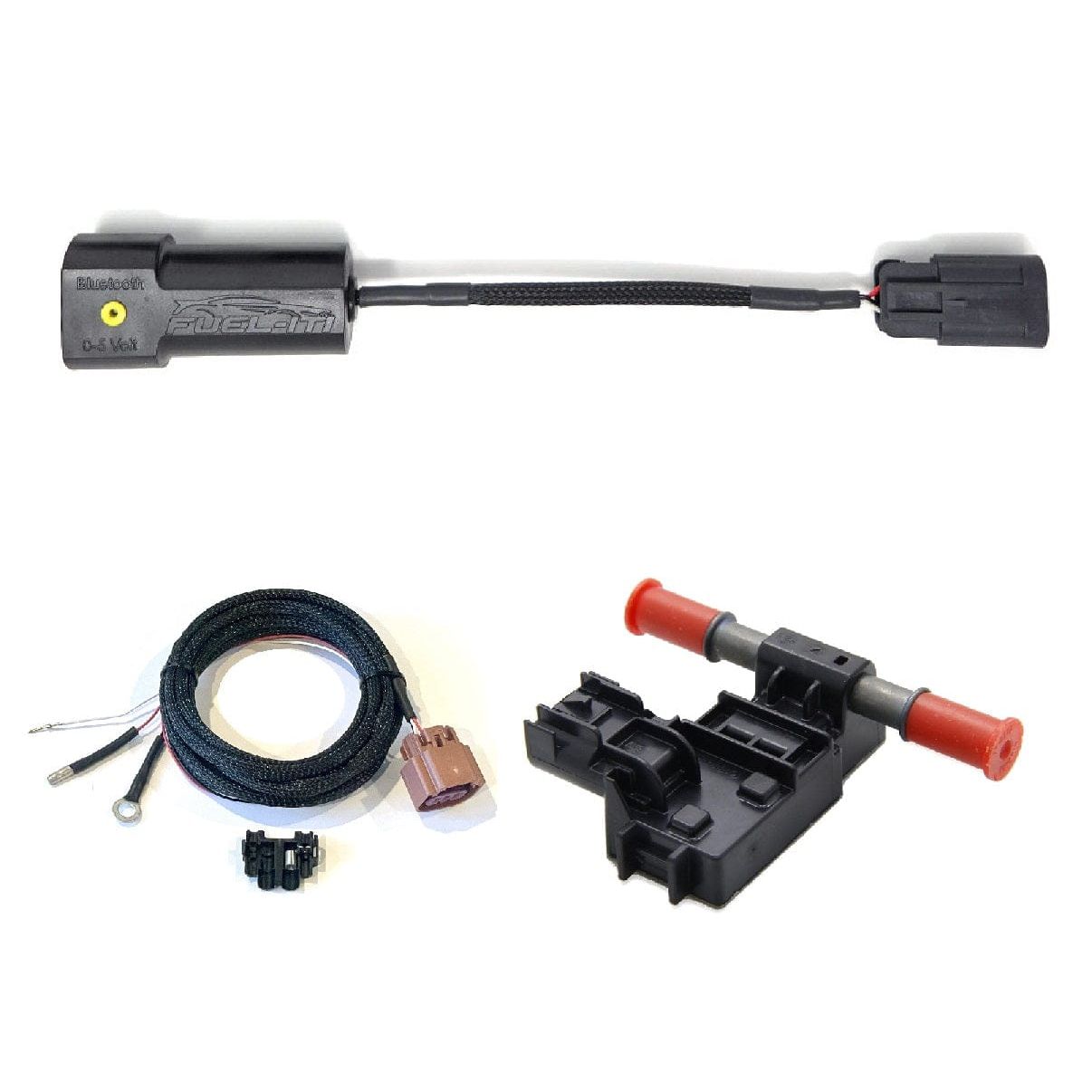

• All analyzer options include:

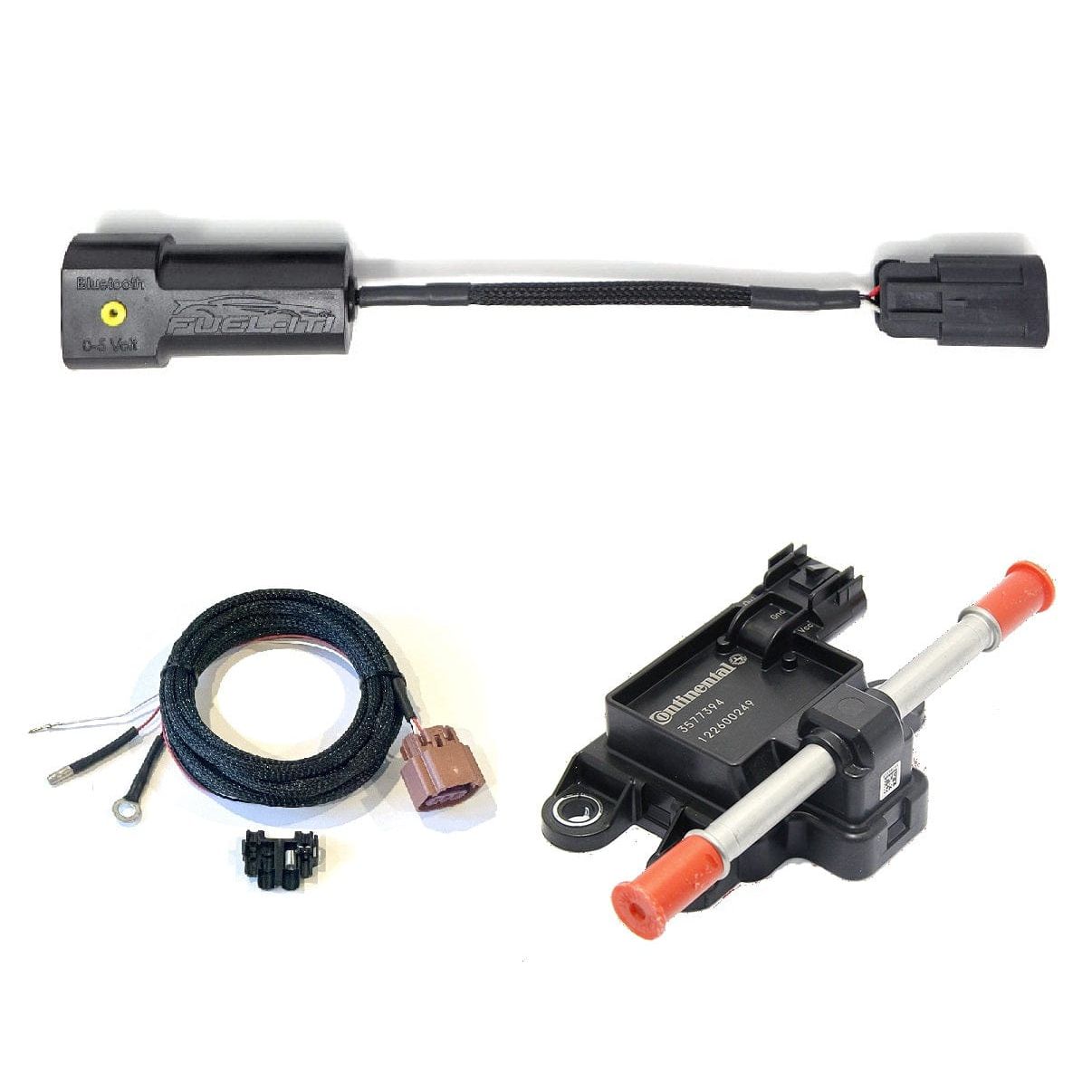

• Fuel-It! Universal Bluetooth analyzer that plugs directly into the supplied ethanol sensor
• Genuine Continental ethanol sensor
• Bluetooth output, 0-5 volt analog output, and 50-150hz raw signal output

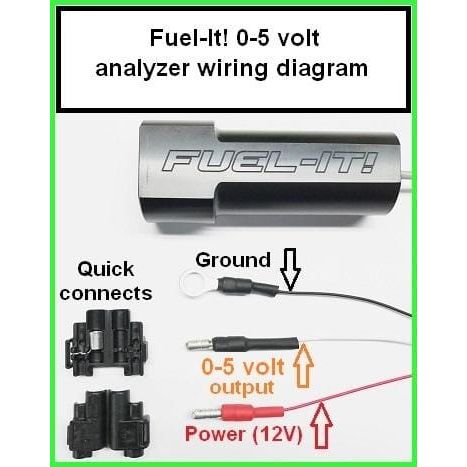

• Electrical connections for power and ground

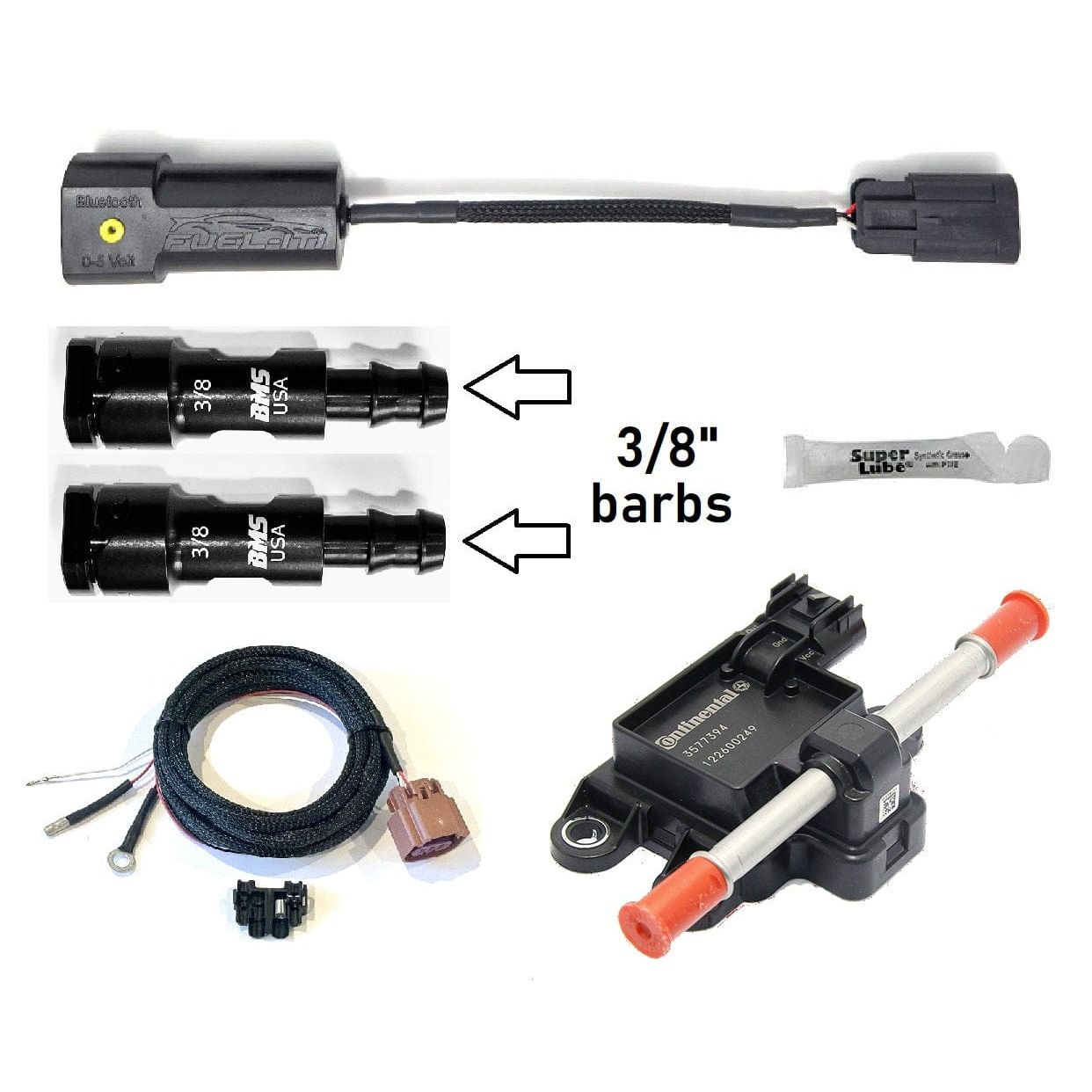

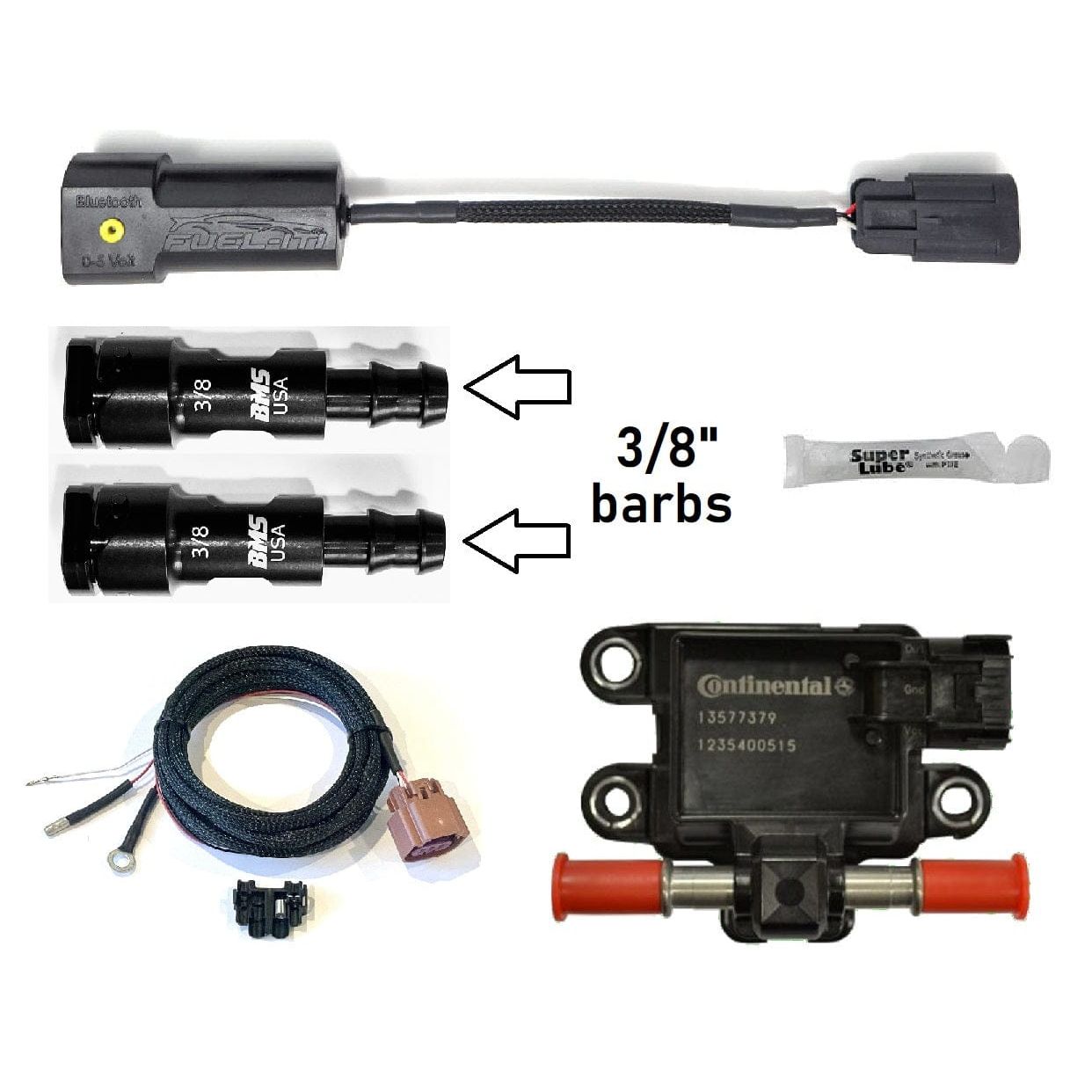

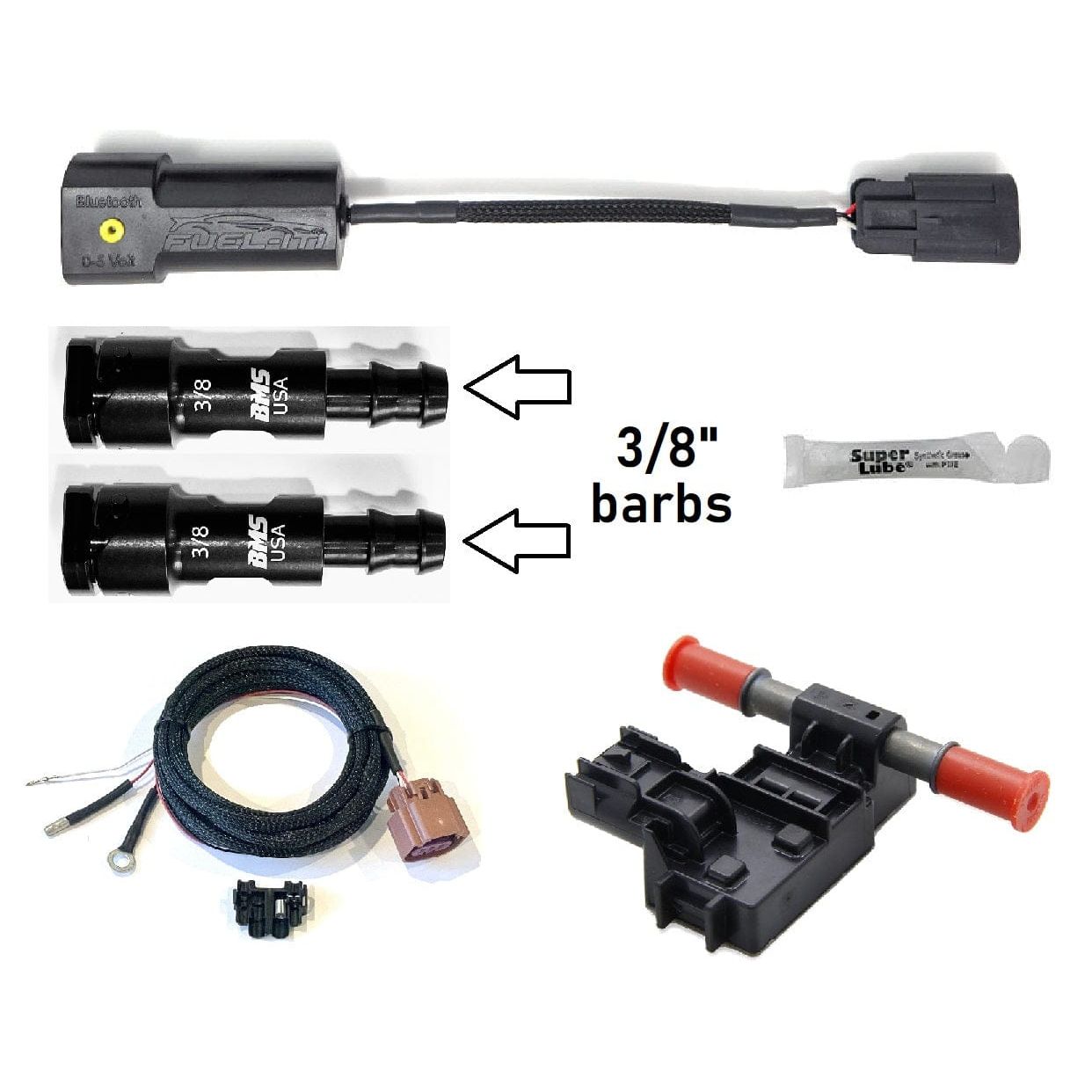

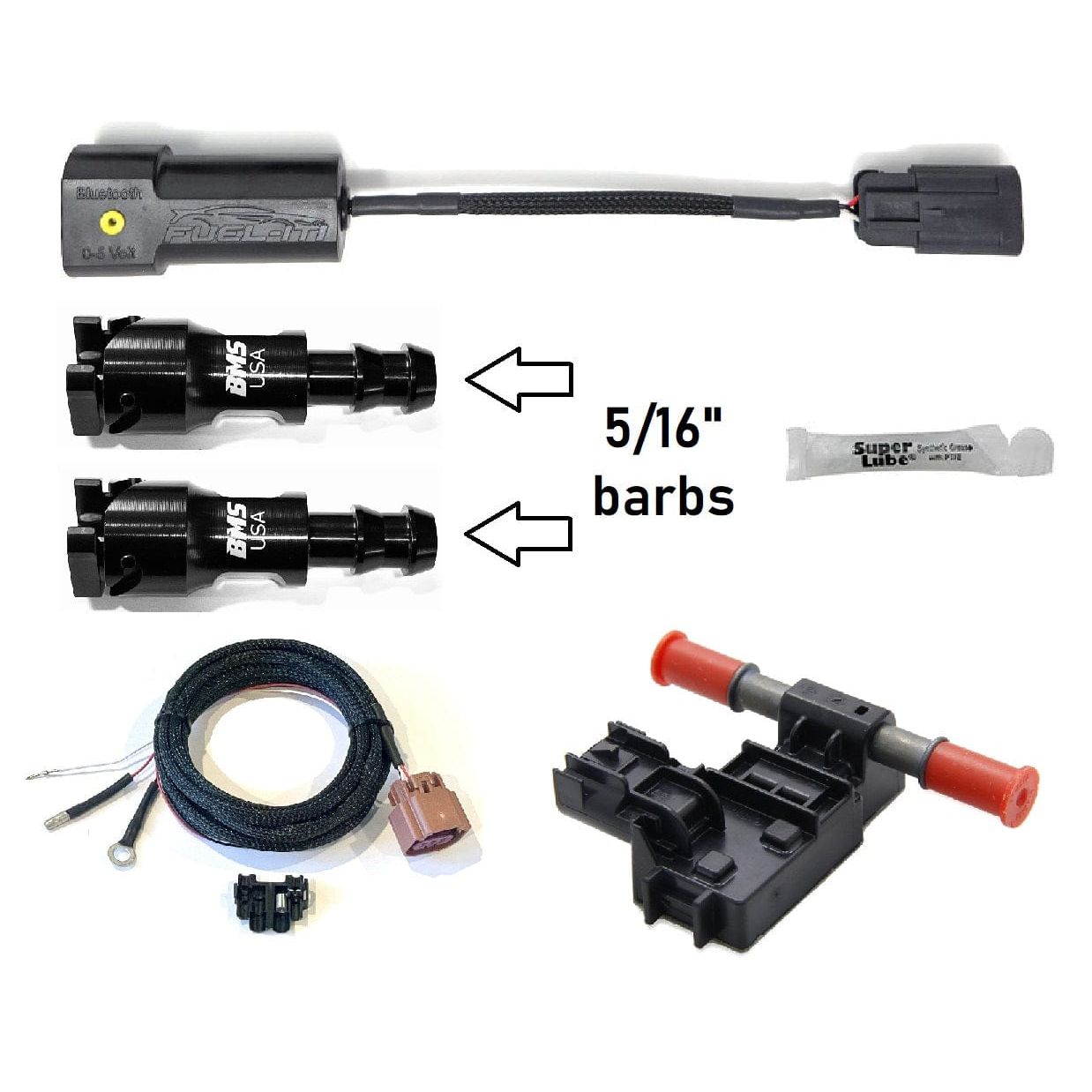

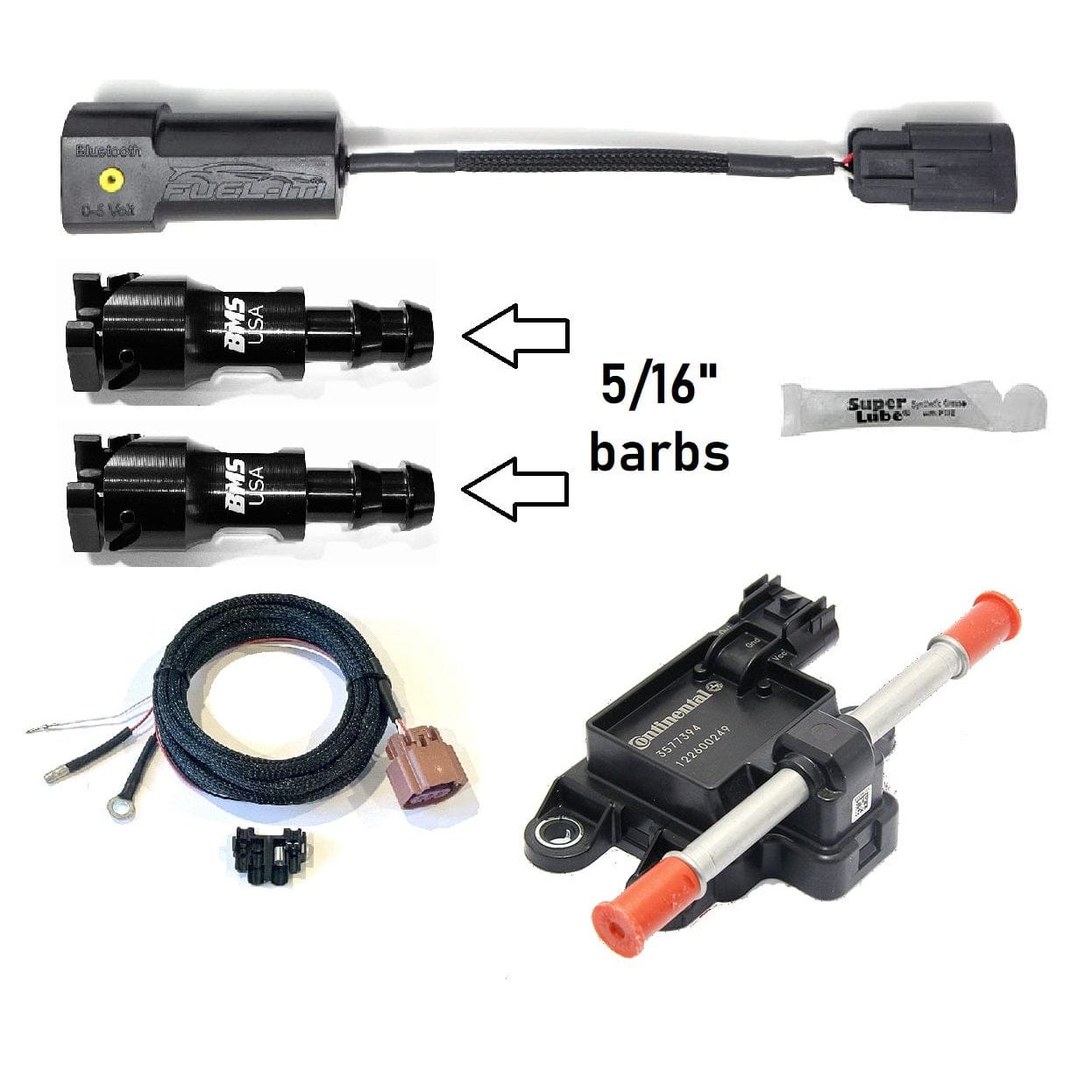

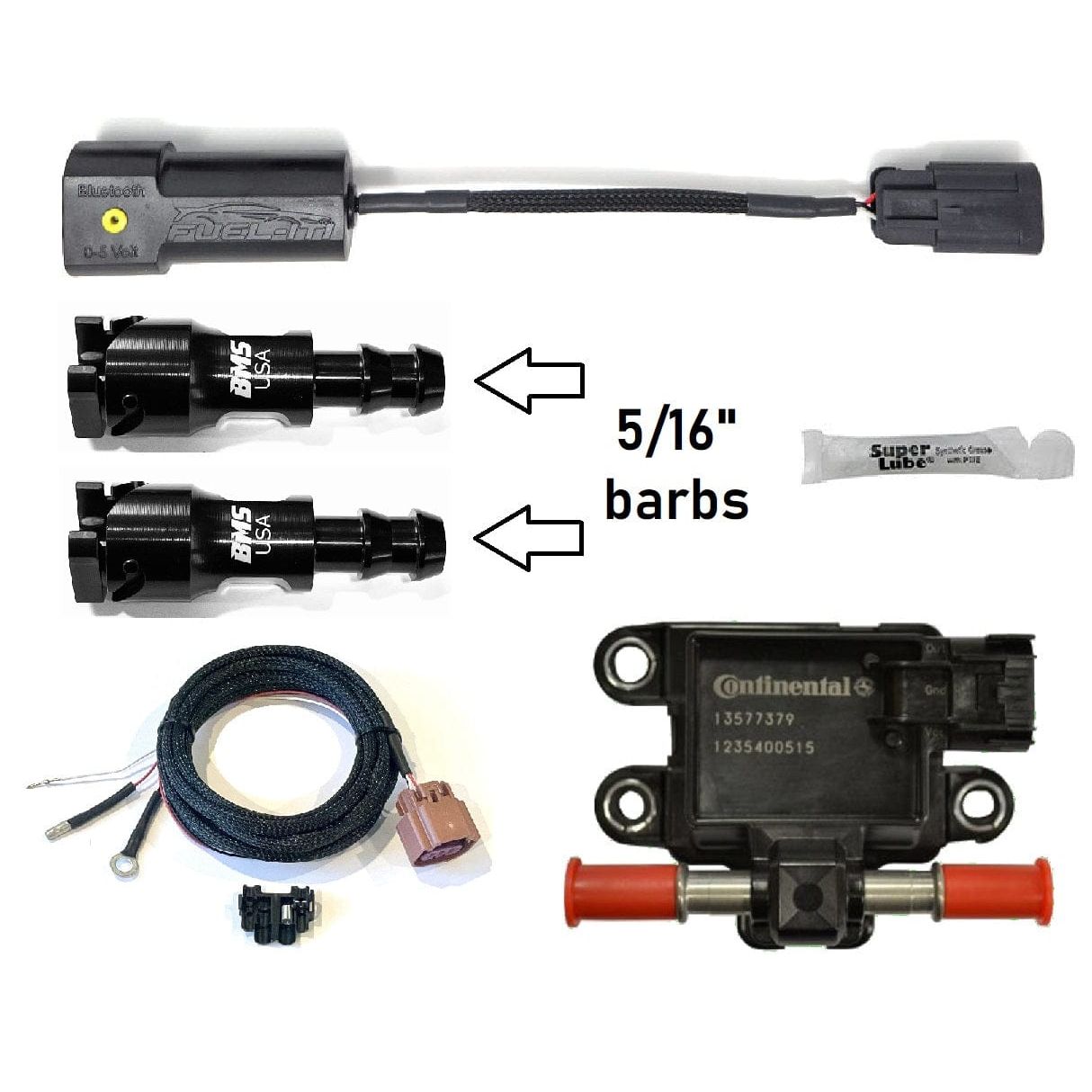

• Optional barbed fittings feature:
  • Anodized billet aluminum construction
  • Push-lock style barbed connections for use with many socketless fuel hoses available on the market. (Please consult hose manufacturer to verify compatibility)
  • Fuel-It! exclusive cam lock fittings (see video below)

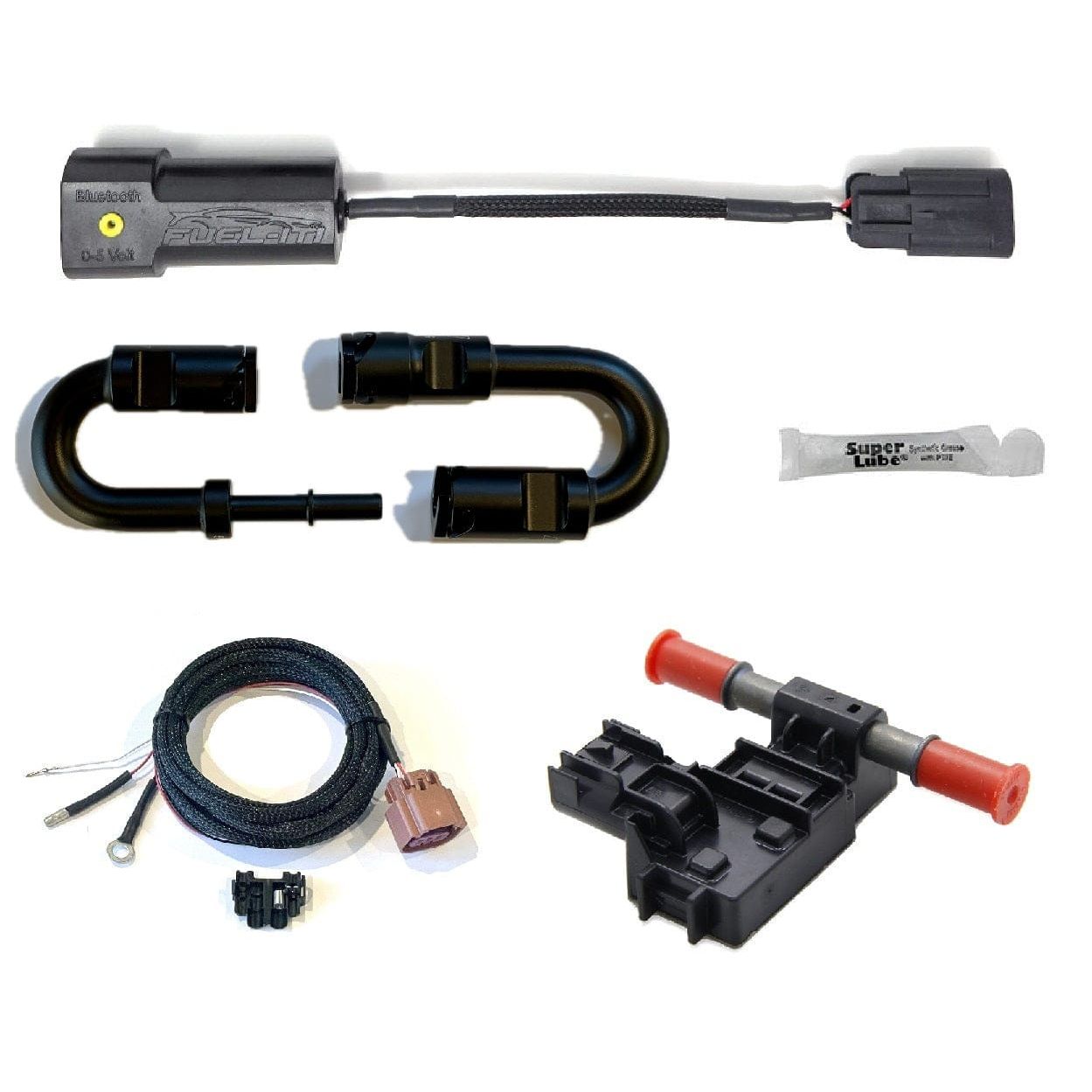

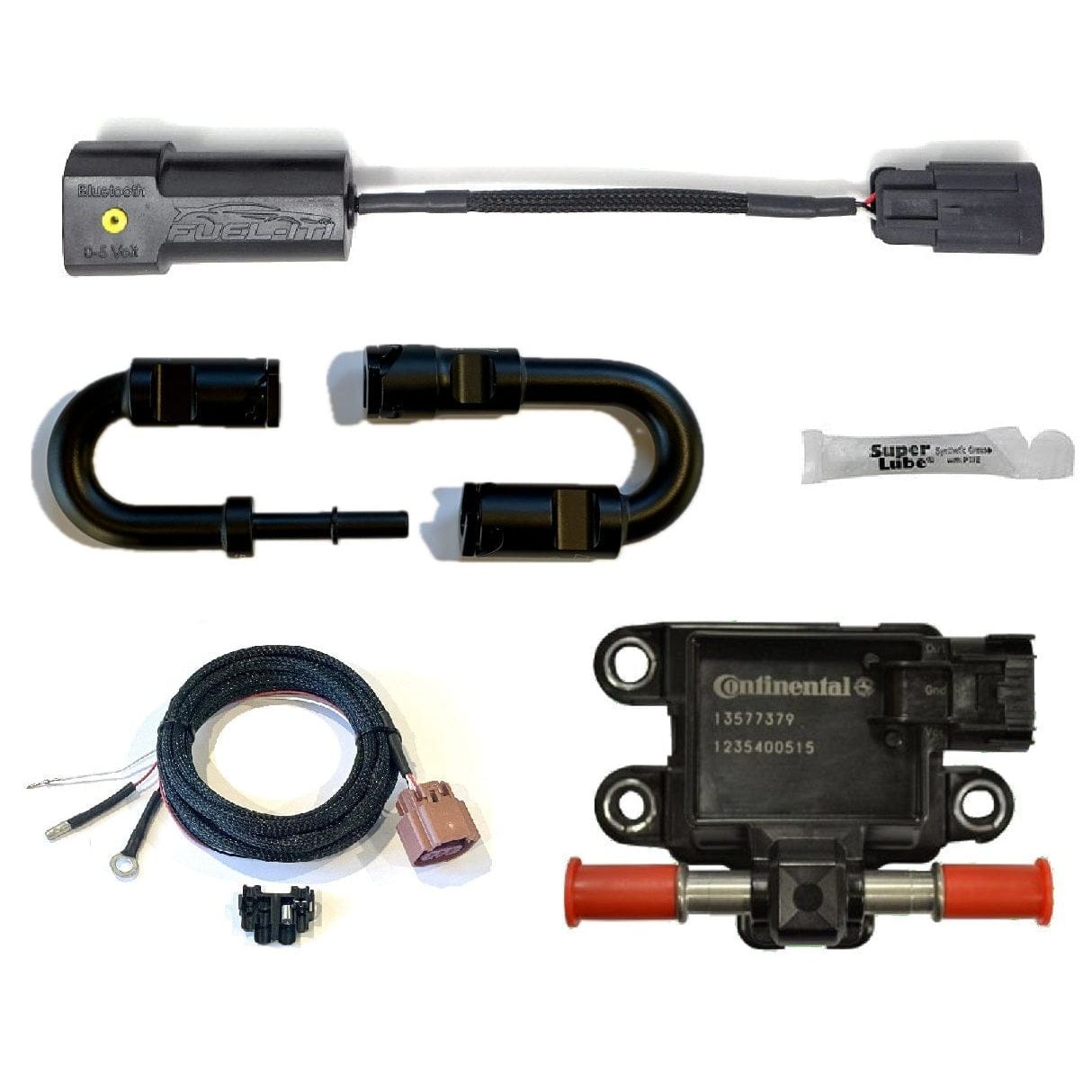

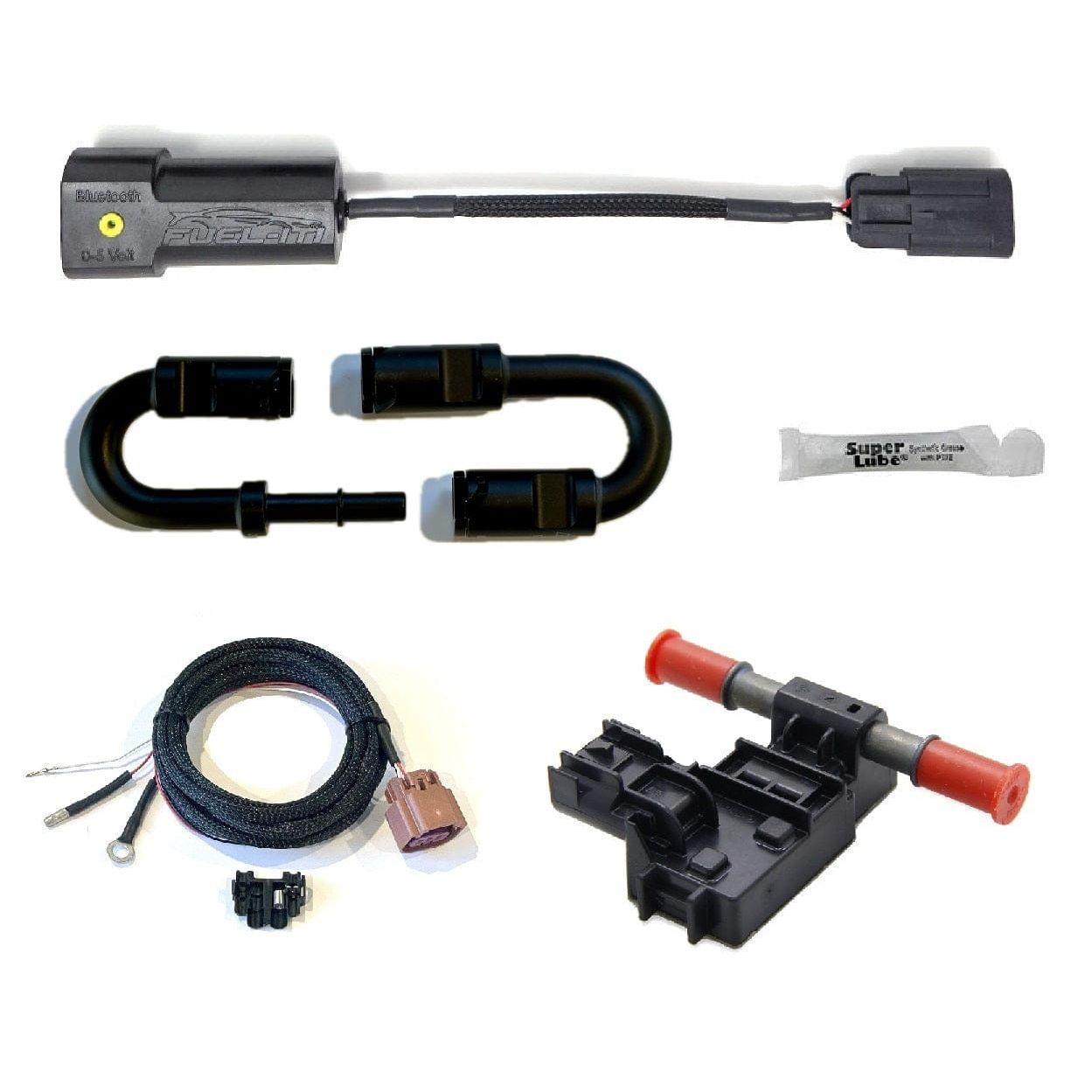

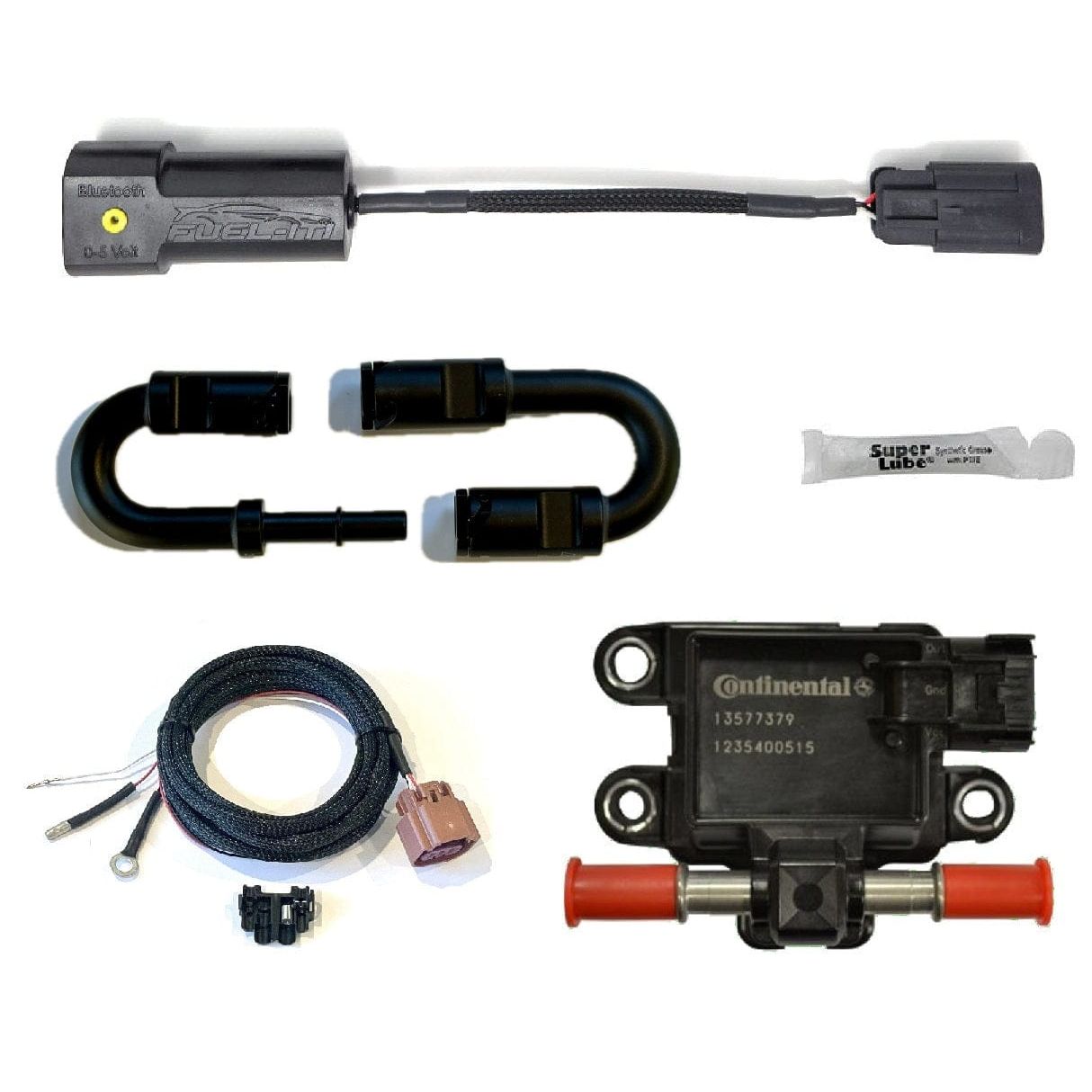

• Optional quick connect fittings feature:
  • Anodized billet aluminum construction
  • Quick connect connections for use with many stock fuel lines and fittings found on modern cars. As a general rule but not always most domestic manufacturers use 3/8" fittings and most European manufacturers use 5/16" fittings. Please verify before ordering.
  • Fuel-It! exclusive cam lock fittings (see video below)

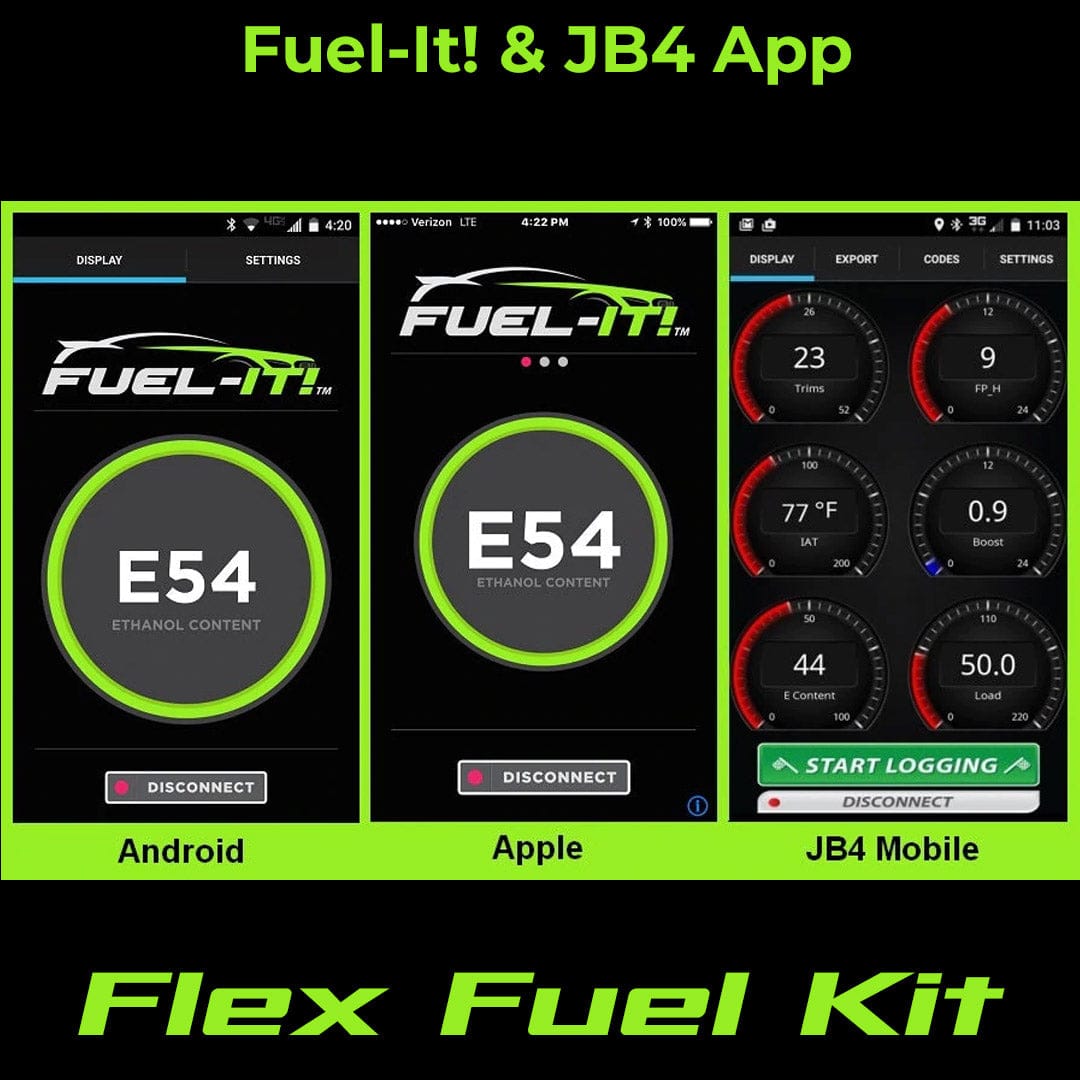

• To use our Bluetooth feature an additional 3rd party app for your Android or Apple phone must be downloaded and can be found here:
  • If you are using an Apple® product the app can be found by clicking here
  • If you are using an Android® product the app can be found by clicking here

* Fuel lines sold separately.
