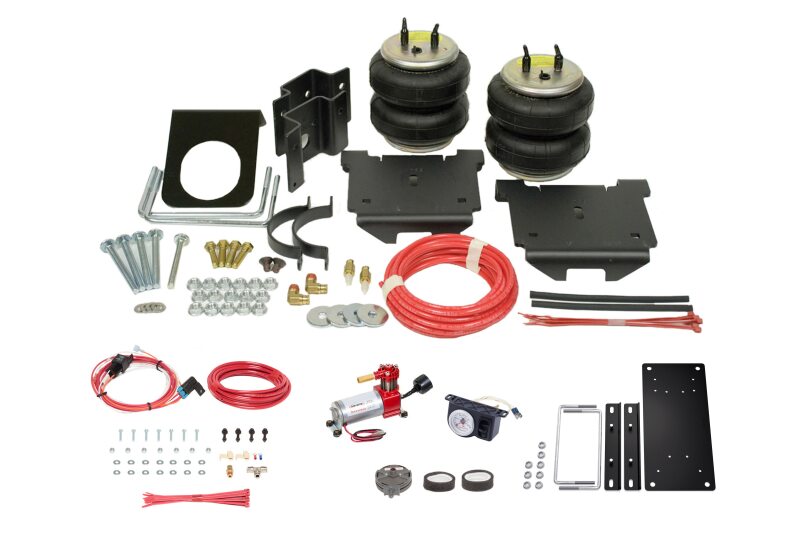

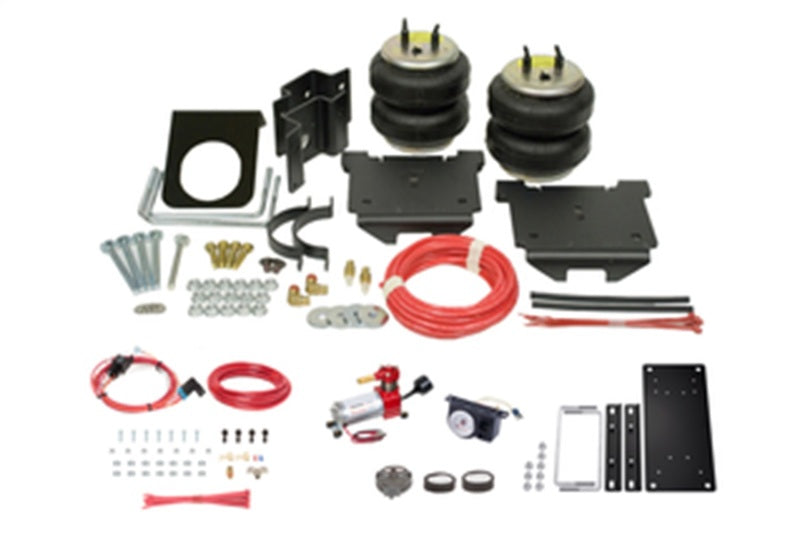

Firestone 01-10 GM C2500HD/C3500HD Analog Ride-Rite All-In-One Kit (W217602869)

Firestone's original helper spring kit is designed to level loads when you are hauling or towing to eliminate squat and return the vehicle designed ride height. Paired with a single path analog compressor kit and no drill mounting plate. A true All In One kit with everything you need in one box for a quick and easy install.

• 100 PSI Max Pressure 9 Percent Duty Cycle 13 AMP Max Draw 17 Second Fill Rate From 0-30 PSI 0.32 CFM At 100 PSI
• Most kits are no-drill systems that utilize existing factory holes
• Comes With Standard Duty Compressor - No Drill Mounting Plate
• 5 PSI Minimum Air Pressure - 100 PSI Max Air Pressure Rating
• Easy installation in 1-2 hours with step-by-step manual
• 5000 lbs. of Carrying Capacity - Do Not Exceed The GVWR
• No Drill Installation - Compatible With Inbed Hitches
• Analog Back Lit Gauge - Black Plastic Housing
• Bundles Ride-Rite Kit + Air Compressor Kit
• Up to 5,000 lbs of load-leveling capacity
• Fitments for most current applications
• Gauge Mounts Inside The Vehicle

This Part Fits:
