*item may differ from images
The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings re-position the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.

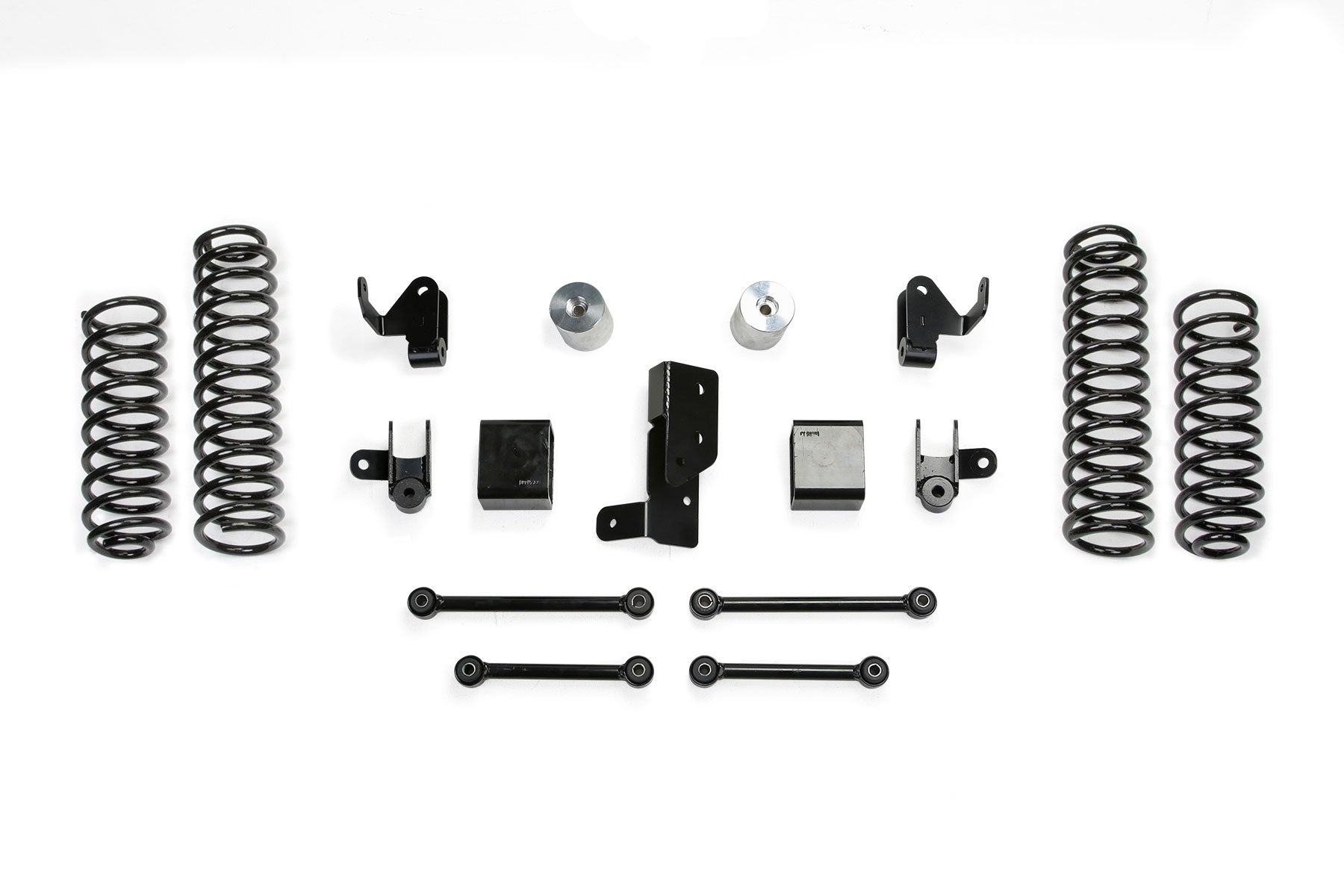

Fabtech K4106 3" SPORT SYSTEM W/ SHK EXT 2018-22 JEEP JL 4-DOOR 4WD.
Specifications:
| Description_ASC | W/ STANDARD FENDERS TIRE SIZE - 35/12.5R17 WHEEL - 17X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 35/12.5R18 WHEEL - 18X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 325/65R18 WHEEL - 18X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 35/12.5R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 325/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R17 WHEEL - 17X9 W/4.5" BS W/CUTTING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R18 WHEEL - 18X9 W/4.5" BS W/CUTTING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R20 WHEEL - 20X9 W/5" BS W/CUTTING; 185. FITS 4-DOOR MODELS ONLY; 224. DOES NOT FIT 4XE MODELS; 225. DOES NOT FIT RUBICON 392 MODELS |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3" SPORT SYSTEM W/ SHK EXT 2018-22 JEEP JL 4-DOOR 4WD |
| Description_EXT | 3" SPORT SYSTEM W/ SHK EXT 2018-22 JEEP JL 4-DOOR 4WD. |
| Description_INV | Fabtech-3" SPORT SYSTEM W/ S |
| Description_MKT | The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings re-position the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height. |
| Description_SHO | 3" SPORT SYSTEM W/ S |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2018 | Jeep | Wrangler | Rubicon | |
| 2018 | Jeep | Wrangler | Sport | |
| 2018 | Jeep | Wrangler | Sport S | |
| 2018,2021 | Jeep | Wrangler | Unlimited Rubicon | |
| 2018,2021 | Jeep | Wrangler | Unlimited Sahara | |
| 2018,2021 | Jeep | Wrangler | Unlimited Sport | |
| 2018,2021 | Jeep | Wrangler | Unlimited Sport S |
