Our Ram 1500 6'' system features Fabtech's proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4'' thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. In the Basic system lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle. Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle without loss of ground clearance.

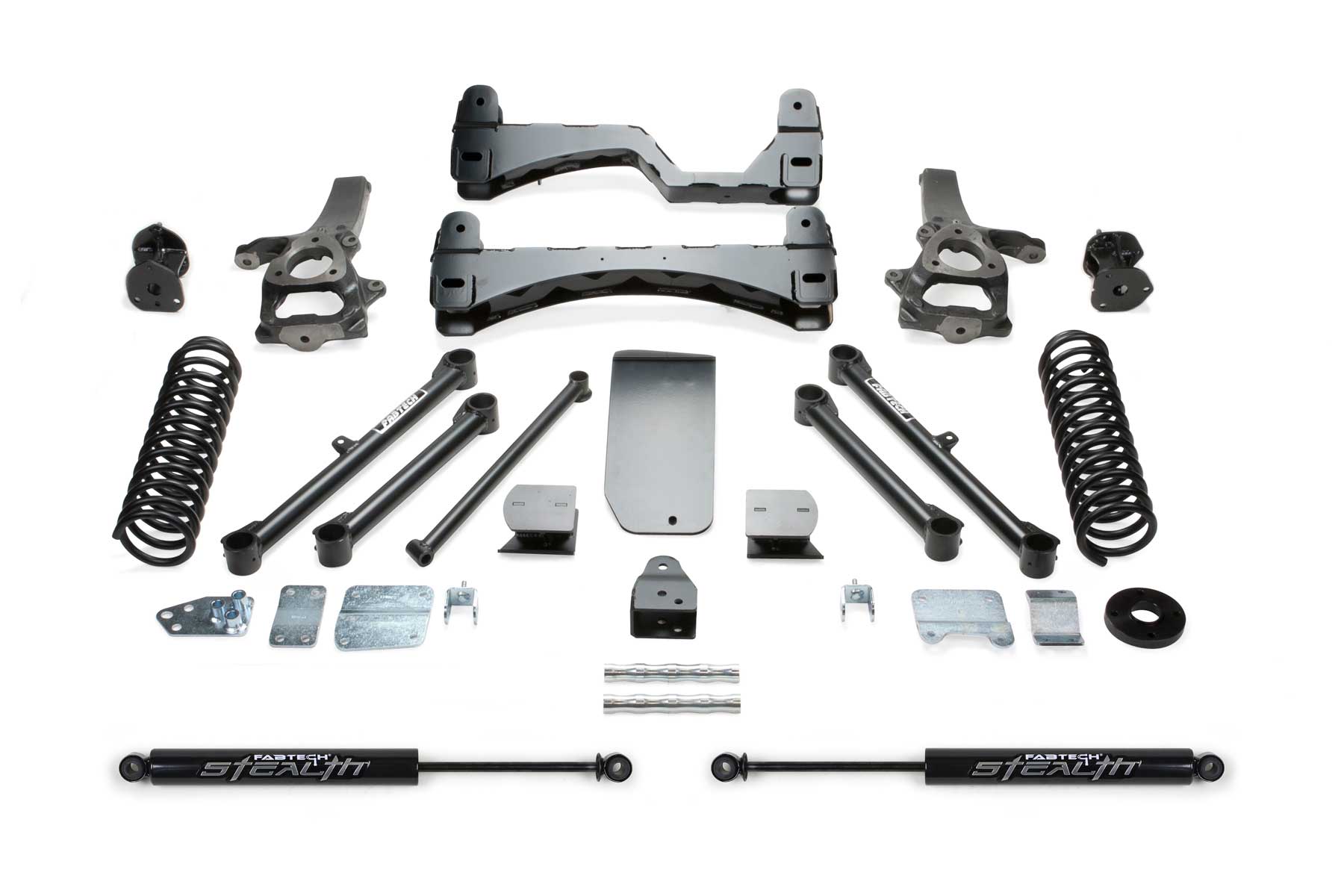

Fabtech K3055M 6" BASIC SYS W/STEALTH 2013-18 RAM 1500 4WD.
Specifications:
| Description_ASC | TIRE SIZE - 35/12.50R20 Wheel - 20X10 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R18 Wheel - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; 29. REAR SPRINGS MAY REDUCE LOAD CARRYING CAPACITY.; 55. MUST USE AFTERMARKET 18 IN. Wheels OR LARGER.; 105. WILL NOT FIT 1500 MEGA CAB MODELS.; 130. WILL NOT FIT FACTORY AIR SUSPENSION. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6" BASIC SYS W/STEALTH 2013-18 RAM 1500 4WD |
| Description_EXT | 6" BASIC SYS W/STEALTH 2013-18 RAM 1500 4WD. |
| Description_INV | Fabtech-6" BASIC SYS W/STEAL |
| Description_MKT | Our Ram 1500 6'' system features Fabtech's proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4'' thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. In the Basic system lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle. Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle without loss of ground clearance. |
| Description_SHO | 6" BASIC SYS W/STEAL |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2015 | Ram | 1500 | Big Horn | |
| 2016 | Ram | 1500 | Big Horn | |
| 2017 | Ram | 1500 | Big Horn | |
| 2018 | Ram | 1500 | Big Horn | |
| 2013 | Ram | 1500 | Express | |
| 2014 | Ram | 1500 | Express | |
| 2015 | Ram | 1500 | Express | |
| 2016 | Ram | 1500 | Express | |
| 2017 | Ram | 1500 | Express | |
| 2013 | Ram | 1500 | Laramie | |
| 2014 | Ram | 1500 | Laramie | |
| 2015 | Ram | 1500 | Laramie | |
| 2016 | Ram | 1500 | Laramie | |
| 2017 | Ram | 1500 | Laramie | |
| 2018 | Ram | 1500 | Laramie | |
| 2014 | Ram | 1500 | Laramie Limited | |
| 2015 | Ram | 1500 | Laramie Limited | |
| 2016 | Ram | 1500 | Laramie Limited | |
| 2017 | Ram | 1500 | Laramie Limited | |
| 2018 | Ram | 1500 | Laramie Limited | |
| 2013 | Ram | 1500 | Laramie Longhorn | |
| 2014 | Ram | 1500 | Laramie Longhorn | |
| 2015 | Ram | 1500 | Laramie Longhorn | |
| 2016 | Ram | 1500 | Laramie Longhorn | |
| 2017 | Ram | 1500 | Laramie Longhorn | |
| 2018 | Ram | 1500 | Laramie Longhorn | |
| 2015 | Ram | 1500 | Limited | |
| 2016 | Ram | 1500 | Limited | |
| 2015 | Ram | 1500 | Outdoorsman | |
| 2016 | Ram | 1500 | Outdoorsman | |
| 2017 | Ram | 1500 | Outdoorsman | |
| 2018 | Ram | 1500 | Outdoorsman | |
| 2015 | Ram | 1500 | Rebel | |
| 2013 | Ram | 1500 | SLT | |
| 2014 | Ram | 1500 | SLT | |
| 2015 | Ram | 1500 | SLT | |
| 2016 | Ram | 1500 | SLT | |
| 2017 | Ram | 1500 | SLT | |
| 2018 | Ram | 1500 | SLT | |
| 2015 | Ram | 1500 | Special Service | |
| 2016 | Ram | 1500 | Special Service | |
| 2013 | Ram | 1500 | Sport | |
| 2014 | Ram | 1500 | Sport | |
| 2015 | Ram | 1500 | Sport | |
| 2016 | Ram | 1500 | Sport | |
| 2017 | Ram | 1500 | Sport | |
| 2018 | Ram | 1500 | Sport | |
| 2015 | Ram | 1500 | ST | |
| 2016 | Ram | 1500 | ST | |
| 2017 | Ram | 1500 | ST | |
| 2015 | Ram | 1500 | SXT | |
| 2016 | Ram | 1500 | SXT | |
| 2017 | Ram | 1500 | SXT | |
| 2018 | Ram | 1500 | SXT | |
| 2013 | Ram | 1500 | Tradesman | |
| 2014 | Ram | 1500 | Tradesman | |
| 2015 | Ram | 1500 | Tradesman | |
| 2016 | Ram | 1500 | Tradesman | |
| 2017 | Ram | 1500 | Tradesman | |
| 2018 | Ram | 1500 | Tradesman |
