*item may differ from images

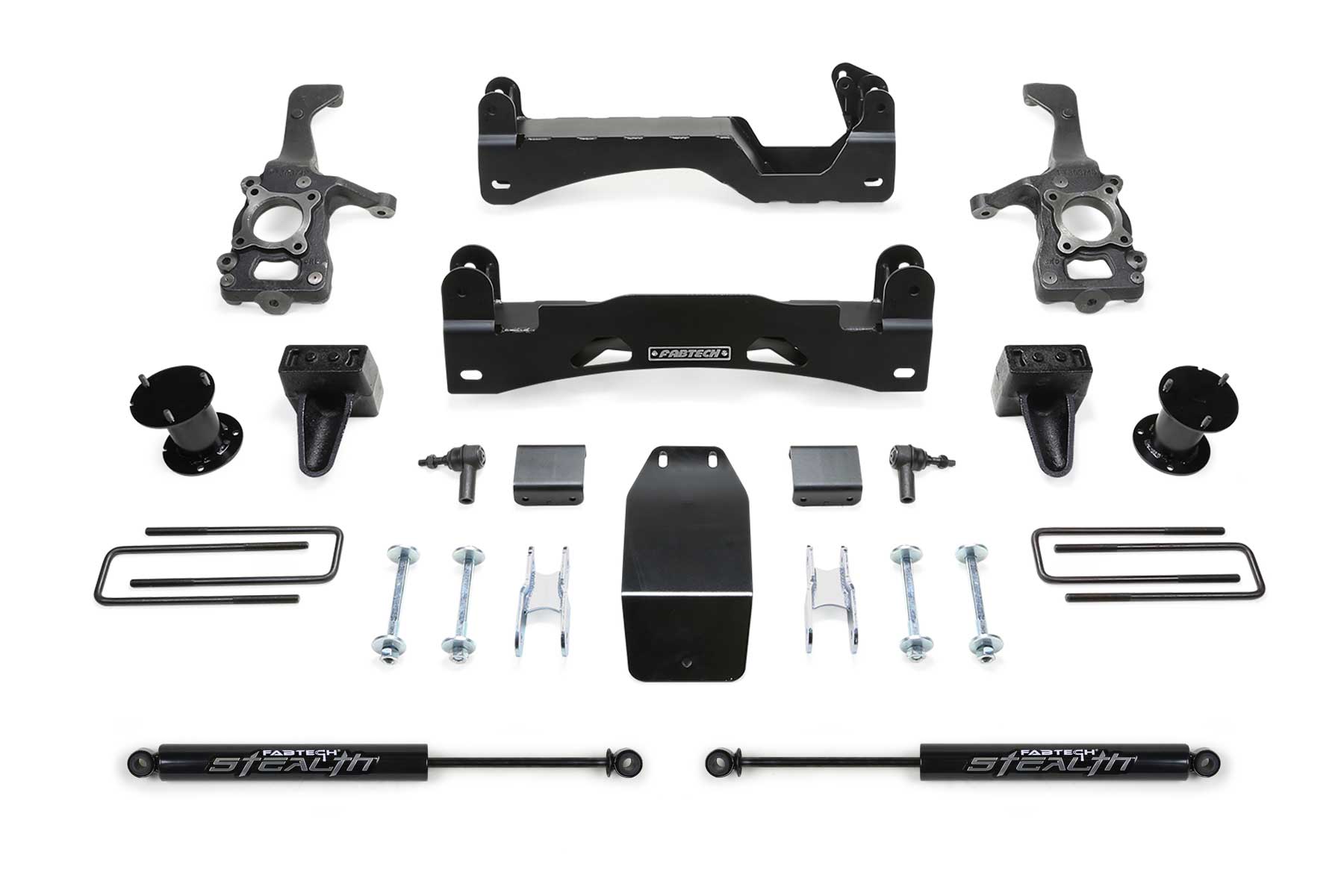

In cooperation with Ford Motor Company, Fabtech has developed this 6'' Suspension Systems for the all new 2015 F150. This new system includes heavy duty 1/4'' thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad. Fabtech's extended length ductile iron steering knuckles allow use of 18'', 20'' or 22'' wheels. The Basic System includes front spacers utilizing the factory Coilover shocks to retain the stock ride while the rear receives Fabtech Performance twin tube shocks. Estimated installation time - 5 hrs. Zero holes to drill for installation. No welding required. Some cutting required. No driveshaft modification required.
Fabtech K2194M 6" BASIC SYS W/STEALTH 2015-20 FORD F150 4WD.
Specifications:
| Description_ASC | TIRE SIZE - 35/13.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R22 Wheel - 22X9.5 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 12WILL NOT FIT RAPTOR MODELS. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6" BASIC SYS W/STEALTH 2015-20 FORD F150 4WD |
| Description_EXT | 6" BASIC SYS W/STEALTH 2015-20 FORD F150 4WD. |
| Description_INV | Fabtech-6" BASIC SYS W/STEAL |
| Description_MKT | In cooperation with Ford Motor Company, Fabtech has developed this 6'' Suspension Systems for the all new 2015 F150. This new system includes heavy duty 1/4'' thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad. Fabtech's extended length ductile iron steering knuckles allow use of 18'', 20'' or 22'' wheels. The Basic System includes front spacers utilizing the factory Coilover shocks to retain the stock ride while the rear receives Fabtech Performance twin tube shocks. Estimated installation time - 5 hrs. Zero holes to drill for installation. No welding required. Some cutting required. No driveshaft modification required. |
| Description_SHO | 6" BASIC SYS W/STEAL |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2016 | Ford | F-150 | SSV |
