*item may differ from images

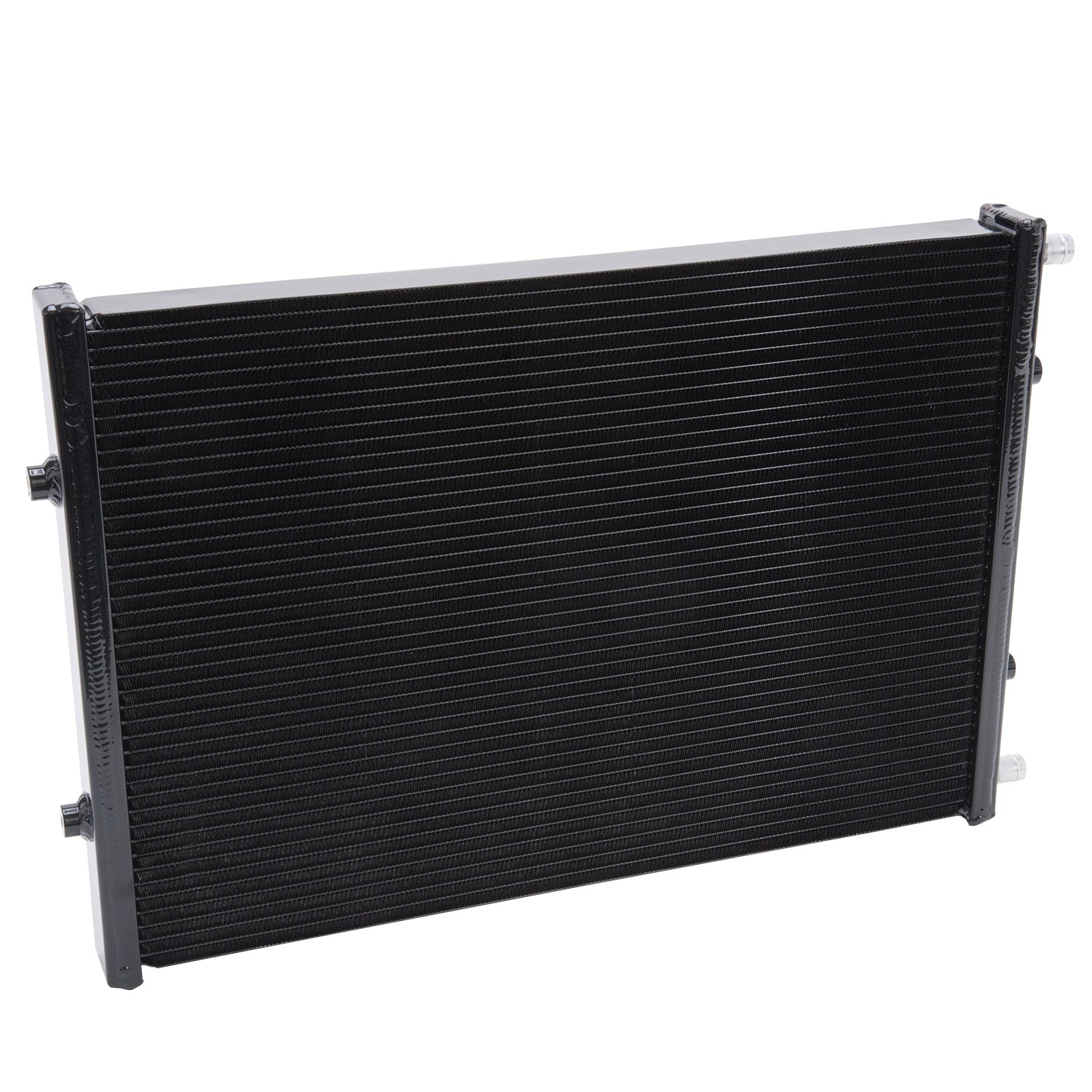

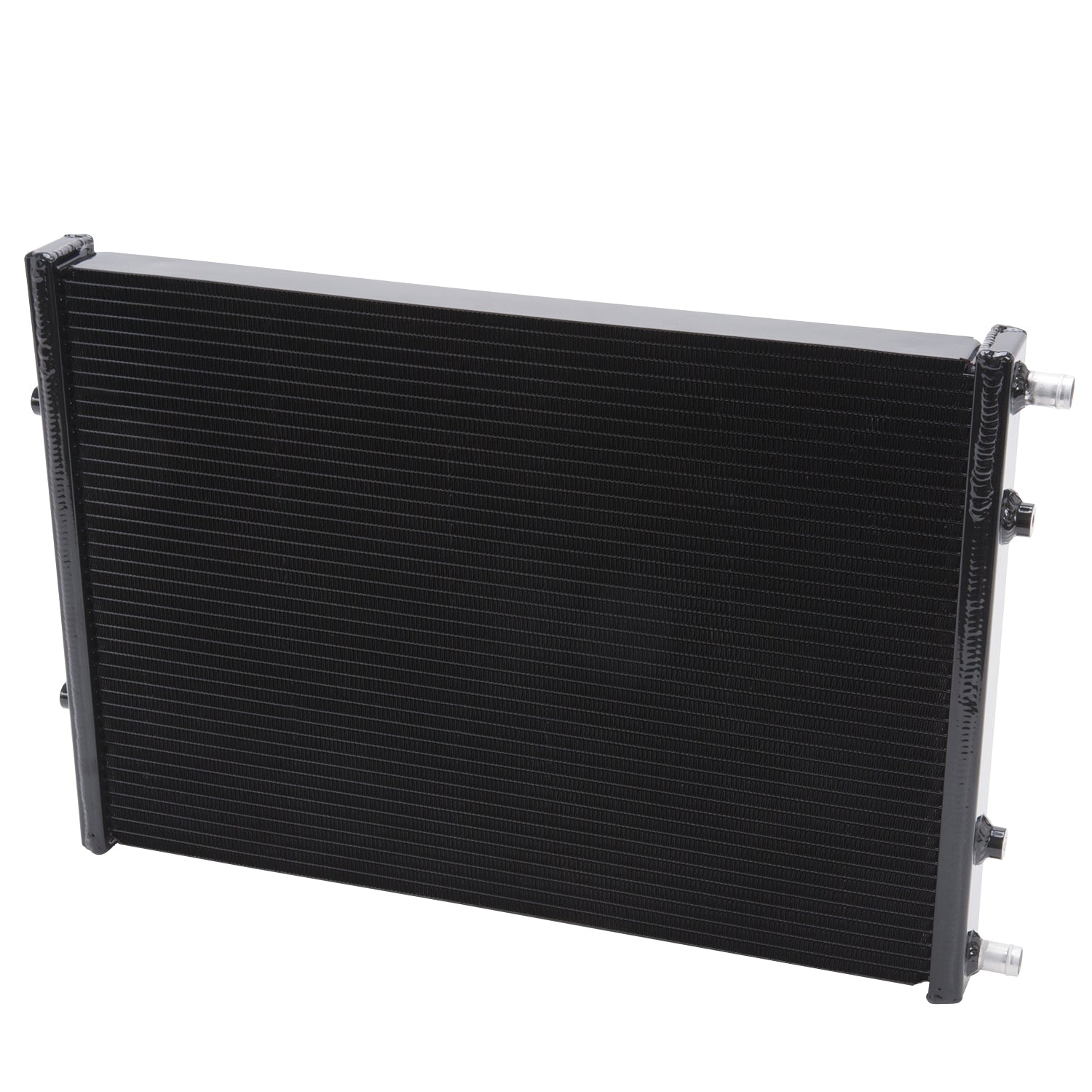

Edelbrock heat exchanger part #15569 is a dual pass/single row design and delivers 44,600 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (24in. W x 16.5in. H x 2.12in. D) with 4 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
Edelbrock Supercharger Heat Exchanger 15569
Specifications:
| Length | 24 |
| Width | 16.5 |
| Material | Aluminum |
| Inlet Port Outside Diameter | 0.75 |
| Grade Type | Performance |
| Construction | Dual Pass |
| Row Quantity | Single |
| Quantity | Sold Individually |
| Mounting Hardware Included | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thickness | 2.12 |
| Finish | Black Powder Coated |
| Mounting Hole Quantity | 4 |
| BTU Rating | 44600 btu/hr |
| Inlet Port Quantity | 1 |
| Outlet Port Quantity | 1 |
| Mounting Hole Diameter | M6 x 1.0 |
| Outlet Port Outside Diameter | 0.75 |
| Description_ABR | Heat Exchngr |
| Description_INV | Universal Heat Exchanger |
| Description_LAB | Edelbrock Heat Exchanger #15569 Dual Pass/Single Row 24" L x 16.5" W x 2.12" D |
| Description_EXT | Edelbrock part #15569 Universal Heat Exchanger for Edelbrock Universal or Enforcer Supercharger system. These heat exchangers offer reliability and durable construction for high Performance's street applications. Delivers 44,600 btu/hr |
| Description_MKT | Edelbrock heat exchanger part #15569 is a dual pass/single row design and delivers 44,600 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (24in. W x 16.5in. H x 2.12in. D) with 4 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications. |
| Description_DEF | Supercharger Heat Exchanger |
