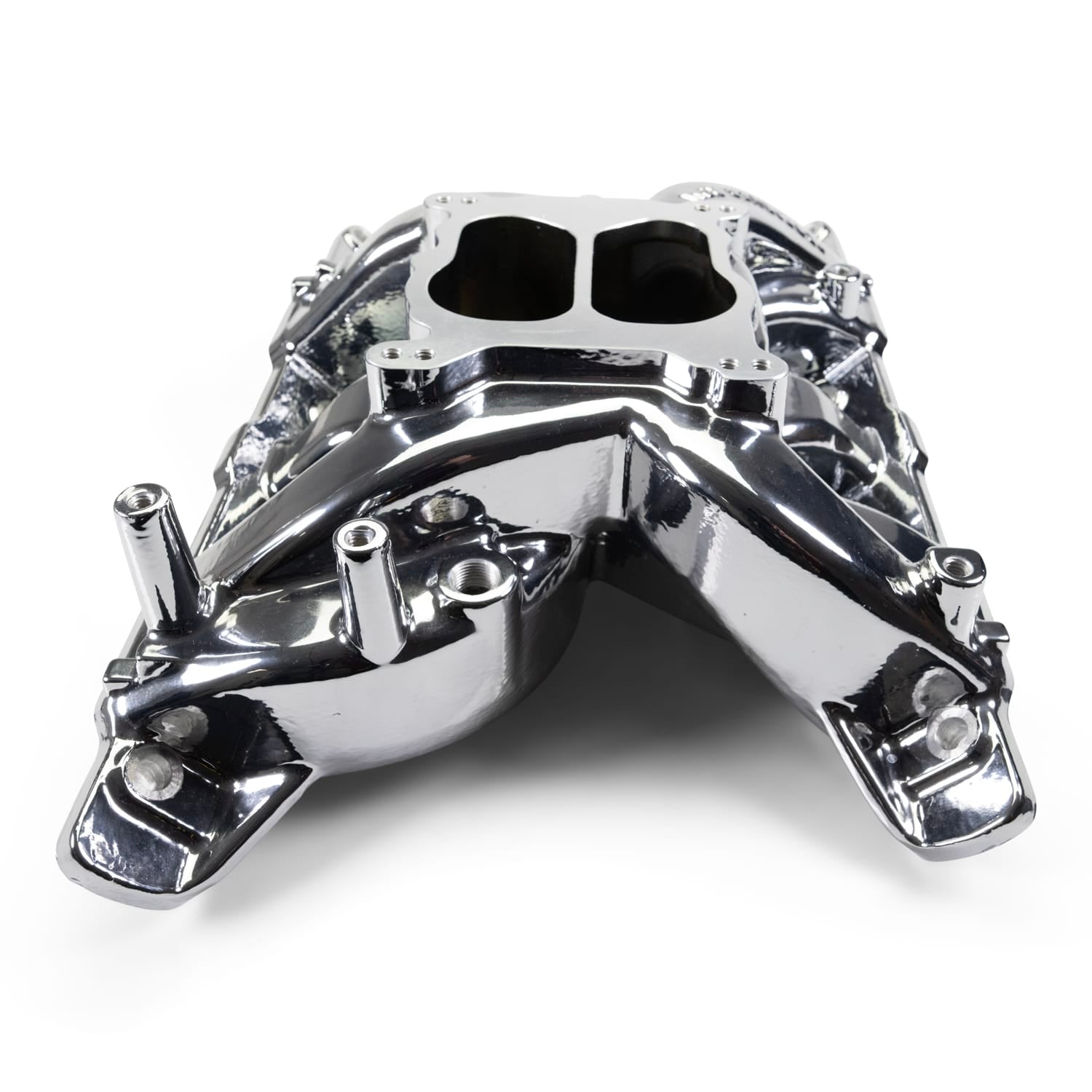

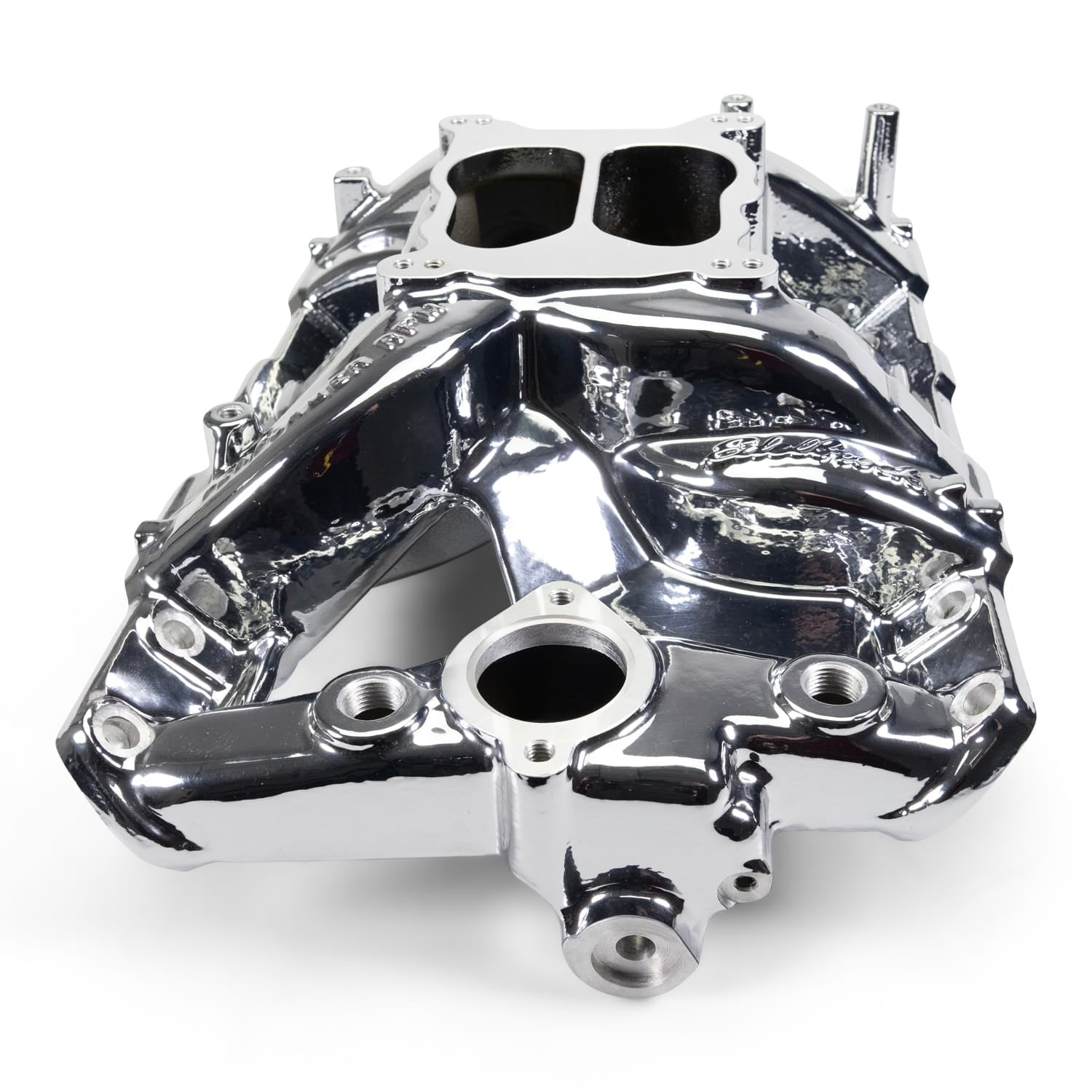

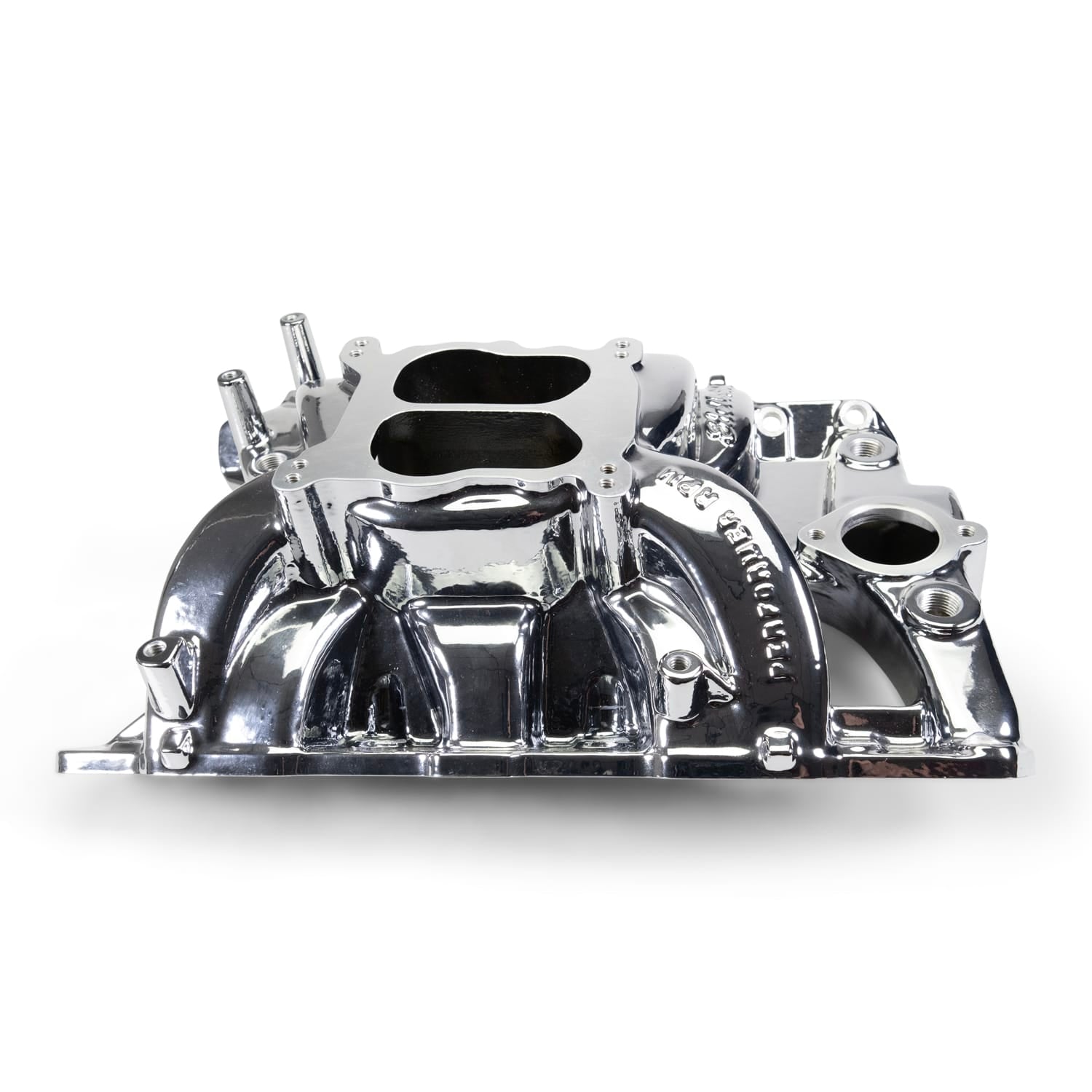

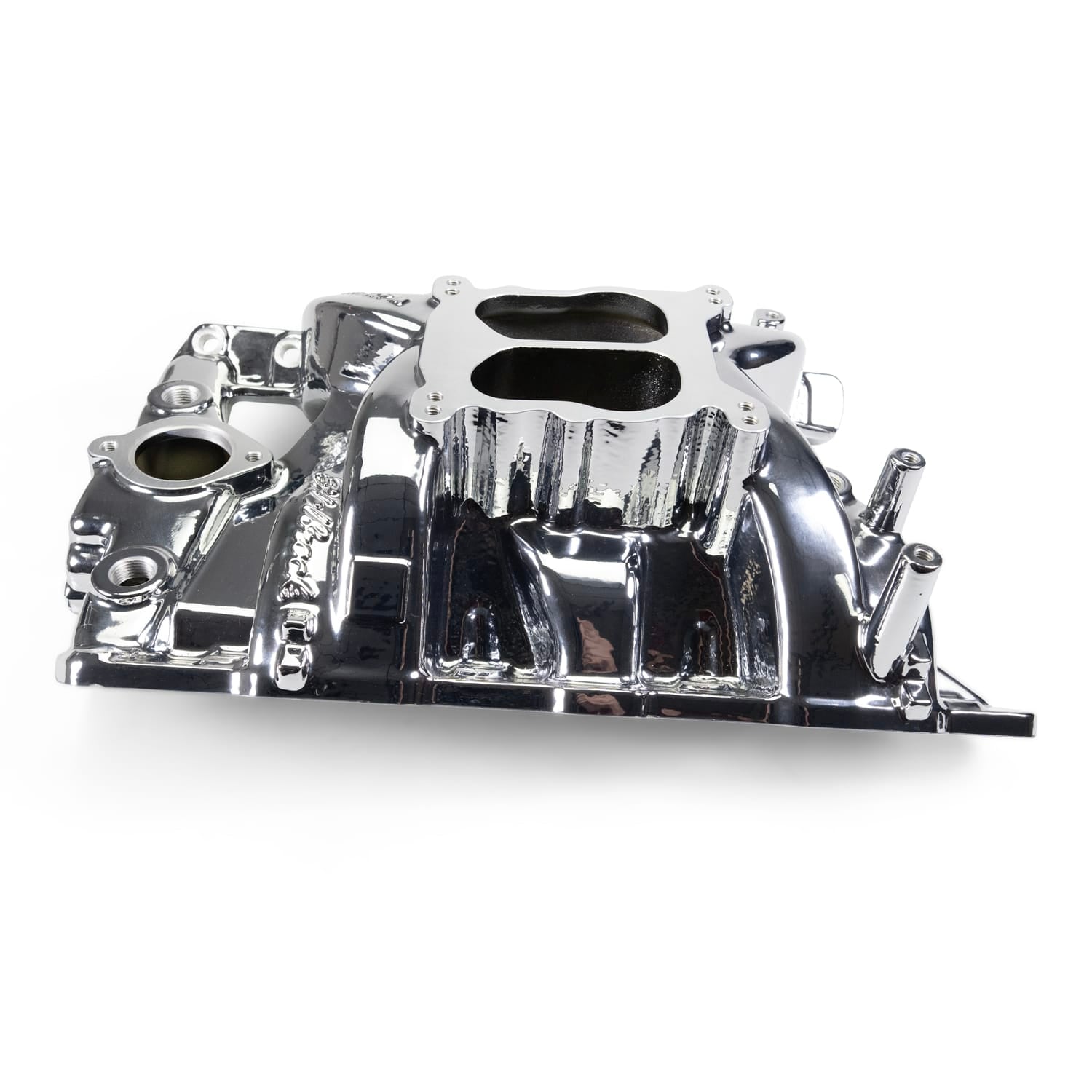

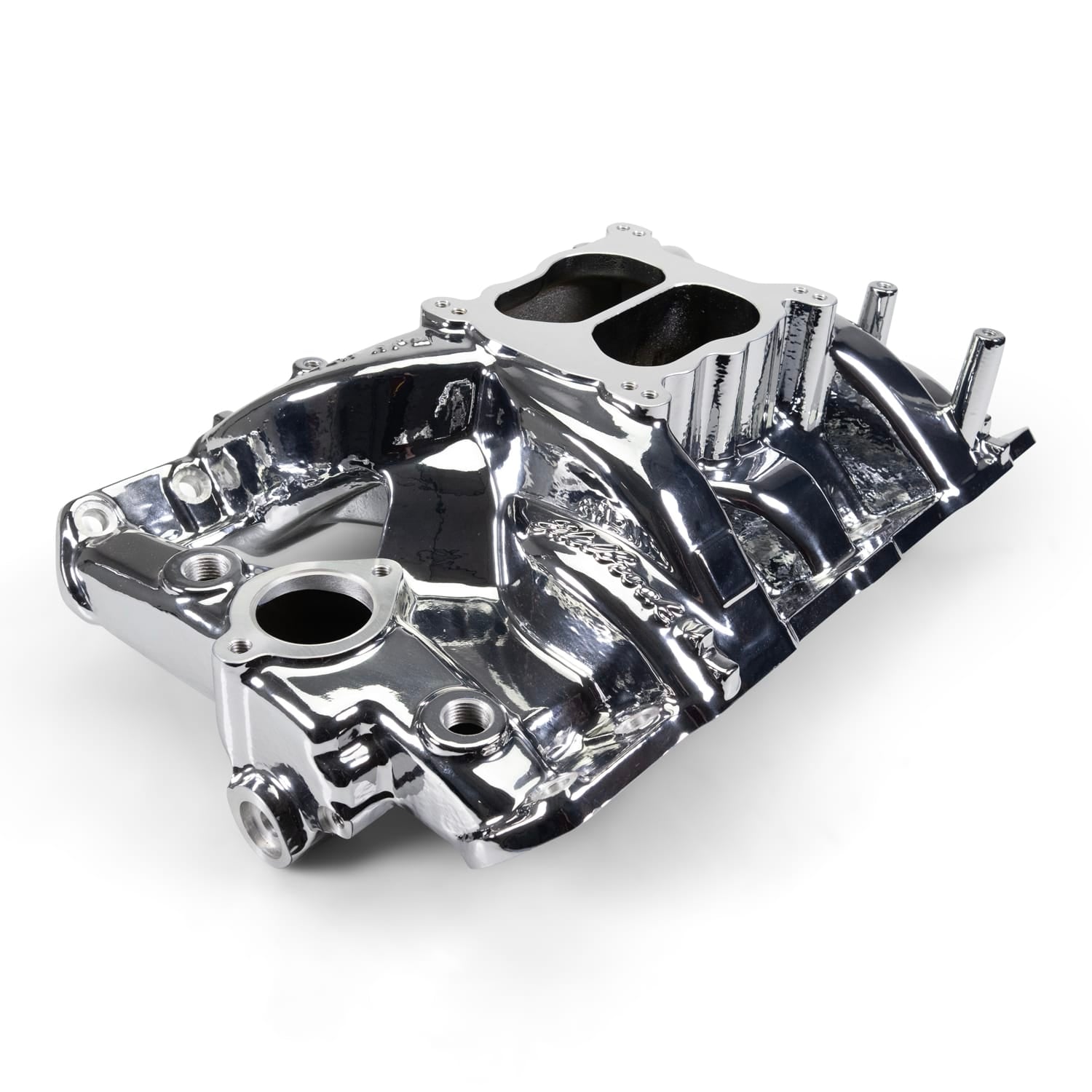

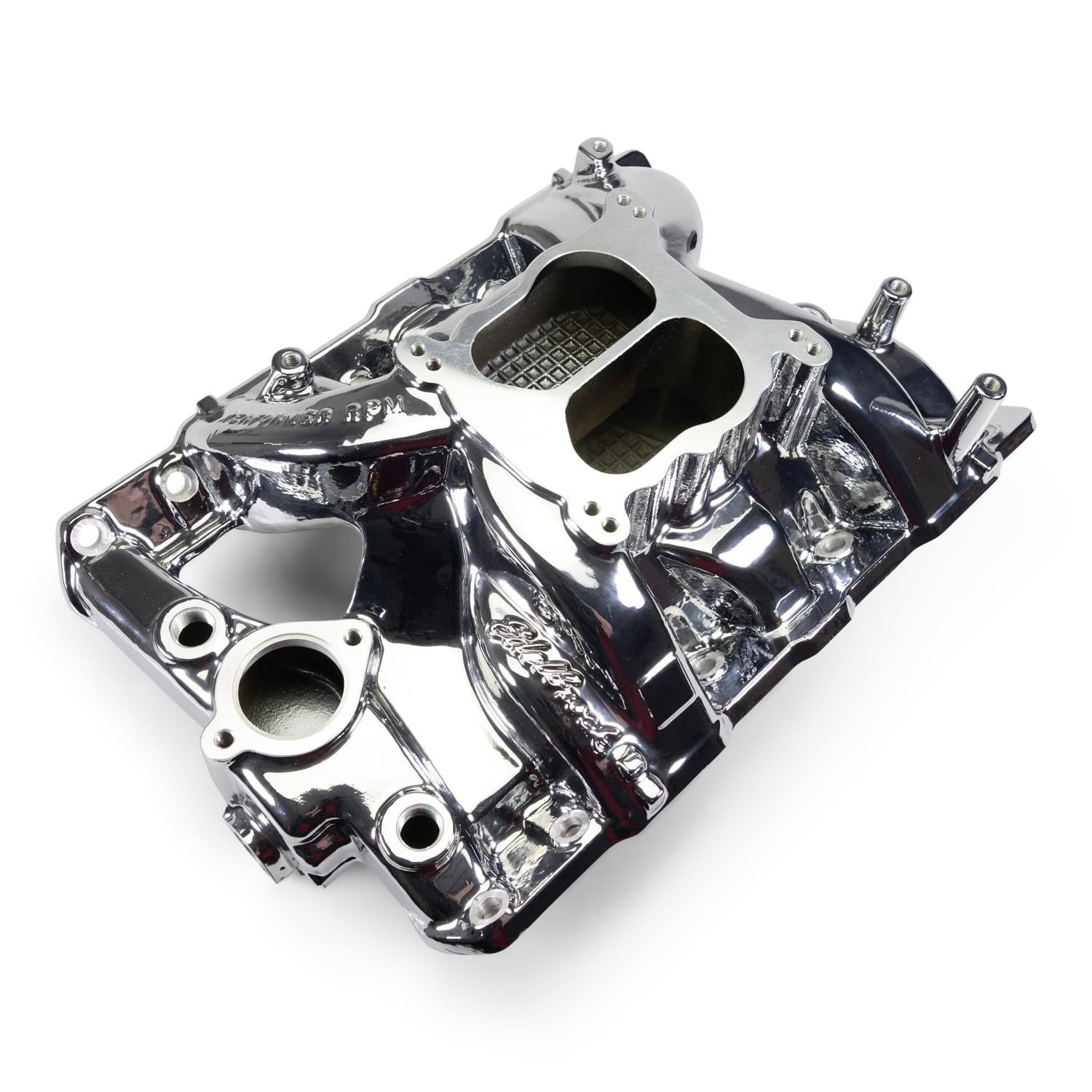

Edelbrock part #7156-CP Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). The PN 7156-CP version comes with a brilliant Chrome plasma finish that is durable and easy to maintain.Recommended for high-performance street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications
Edelbrock Performer RPM Pontiac 326-455 Intake Manifold, Chrome Plasma Finish 7156-CP
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Vehicle Model | Pontiac |
| 10 | Aluminum |
| 353 | No |
| 3390 | Performance |
| 6642 | Dual Plane |
| 6643 | 6.880 |
| 6644 | 7.450 |
| 6645 | 8.000 |
| 9063 | No |
| EGR Port | No |
| Flange Type | 4150 |
| Finish | Chrome Plasma |
| Basic Operating RPM Range | 1500-6500 |
| Description_ABR | Intake Mnfld |
| Description_INV | RPM Pontiac 1965-79 Intake Manifold |
| Description_LAB | Performer RPM Pontiac 326-455 Intake Manifold, Chrome Plasma Finish |
| Description_DES | Performer RPM Pontiac 326-455 Intake Manifold, Chrome Plasma Finish |
| Description_SHP | None |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_EXT | Edelbrock Performer RPM Pontiac Intake Manifold for Pontiac 326-455 V8 with a beautiful Chrome Plasma finish. |
| Description_MKT | Edelbrock part #7156-CP Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). The PN 7156-CP version comes with a brilliant Chrome plasma finish that is durable and easy to maintain.Recommended for high-performance street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | No provisions for OEM choke |
| Description_TRA | OEM carb requires conversion to electric/manual choke |
| Description_TRA | Carb recommendations: Edelbrock Thunder Series AVS, AVS2 or Performer Series 650-800 cfm. |
| Description_TRA | For 1968-71 use Edelbrock #8015 throttle bracket |
| Description_TRA | Manifold height: 1-1/4" taller than stock, A-6.88", B-8.00" measured to engine block |
| Description_TRA | Carb pad height: 7.45" |
| Description_TRA | Port exit dimensions: 1.10" x 2.06" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
