*item may differ from images

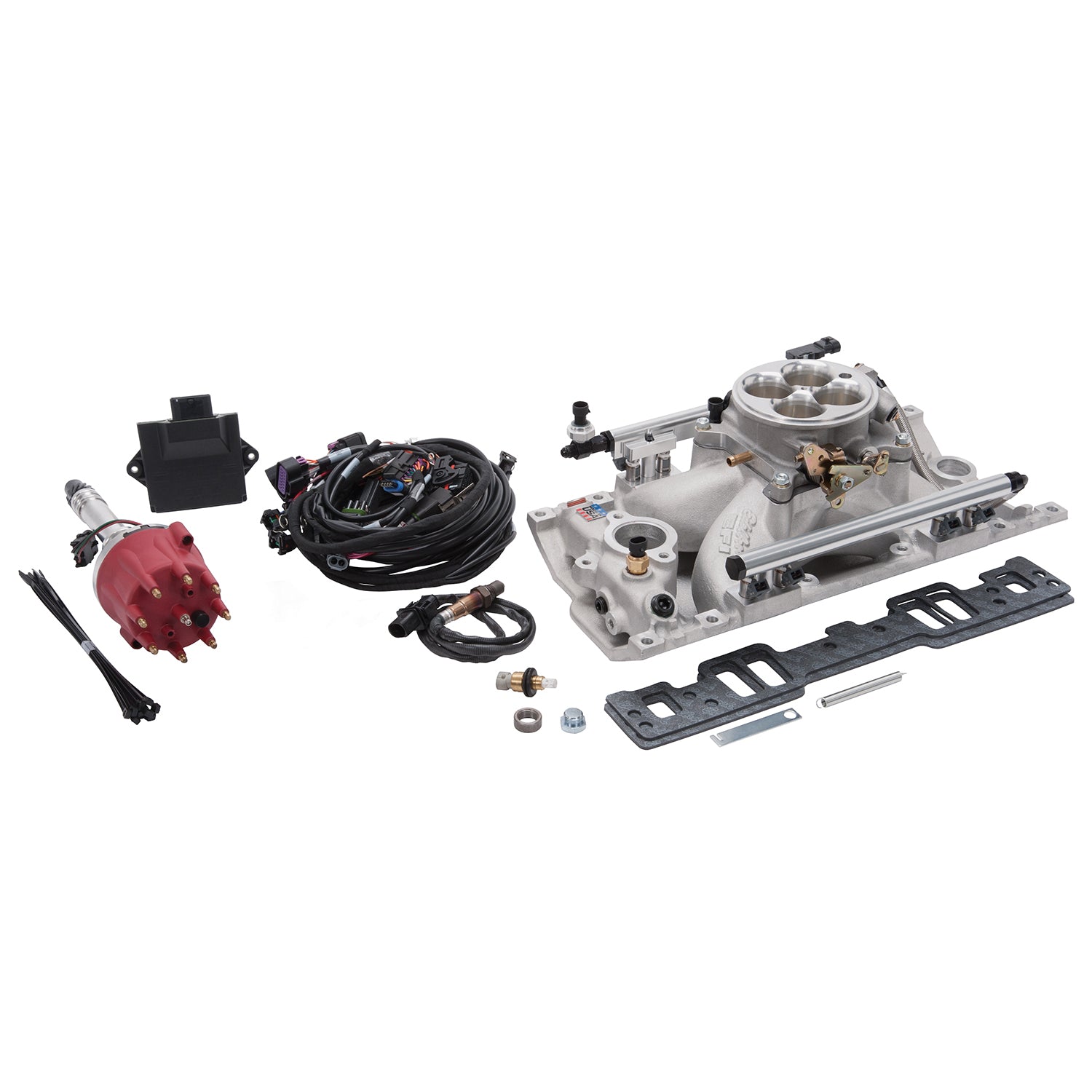

The Edelbrock Pro-Flo 4 EFI Kit #35780 for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner application's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner App then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner App takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner App provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Edelbrock Fuel Injection System 35780
Specifications:
| Fuel Pressure Port | 1/8-27 NPT |
| Fuel Injector Type | 29 lb/hr |
| Wire Harness Included | Yes |
| Bore Diameter | 1.75 |
| Maximum Horsepower | 450 |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Throttle Body Type | 4 Barrel |
| System Type | Traditional 4150-Style Kit |
| Finish | Satin |
| Wiring Harness Included | Yes |
| Idle Air Control Motor Included | Yes |
| Manifold Height | 4.58 |
| Flange Type | 4150 |
| Distributor Cap Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | EFI System |
| Description_INV | Edelbrock Pro-Flo 4 EFI System |
| Description_LAB | Pro-Flo 4 EFI 4150-Style Kit #35780 For Chevy Small-Block W/ Vortec/E-Tec Heads |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Pro-Flo 4 EFI System for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI System comes with a satin 4150-Style single plane intake & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #35780 for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner application's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner App then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner App takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner App provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_TRA | Pro-Flo 4 EFI system #35780 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35780 is 4.63 inches. |
| Description_DEF | Fuel Injection System |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1996 | Chevrolet | C1500 | ||
| 1996 | Chevrolet | C1500 | ||
| 1997 | Chevrolet | C1500 | ||
| 1997 | Chevrolet | C1500 | ||
| 1998 | Chevrolet | C1500 | ||
| 1998 | Chevrolet | C1500 | ||
| 1999 | Chevrolet | C1500 | ||
| 1999 | Chevrolet | C1500 | ||
| 1996 | Chevrolet | C1500 Suburban | ||
| 1997 | Chevrolet | C1500 Suburban | ||
| 1998 | Chevrolet | C1500 Suburban | ||
| 1999 | Chevrolet | C1500 Suburban | ||
| 1996 | Chevrolet | C2500 | ||
| 1996 | Chevrolet | C2500 | ||
| 1997 | Chevrolet | C2500 | ||
| 1997 | Chevrolet | C2500 | ||
| 1998 | Chevrolet | C2500 | ||
| 1998 | Chevrolet | C2500 | ||
| 1999 | Chevrolet | C2500 | ||
| 1999 | Chevrolet | C2500 | ||
| 2000 | Chevrolet | C2500 | ||
| 1996 | Chevrolet | C2500 Suburban | ||
| 1997 | Chevrolet | C2500 Suburban | ||
| 1998 | Chevrolet | C2500 Suburban | ||
| 1999 | Chevrolet | C2500 Suburban | ||
| 1996 | Chevrolet | C35 | ||
| 1997 | Chevrolet | C35 | ||
| 1998 | Chevrolet | C35 | ||
| 1999 | Chevrolet | C35 | ||
| 2000 | Chevrolet | C35 | ||
| 1996 | Chevrolet | C3500 | ||
| 1997 | Chevrolet | C3500 | ||
| 1998 | Chevrolet | C3500 | ||
| 1999 | Chevrolet | C3500 | ||
| 2000 | Chevrolet | C3500 | ||
| 1996 | Chevrolet | Camaro | ||
| 1997 | Chevrolet | Camaro | ||
| 1998 | Chevrolet | Camaro | ||
| 1999 | Chevrolet | Camaro | ||
| 2000 | Chevrolet | Camaro | ||
| 2001 | Chevrolet | Camaro | ||
| 2002 | Chevrolet | Camaro | ||
| 1996 | Chevrolet | Caprice | ||
| 1997 | Chevrolet | Cargo Van | ||
| 1998 | Chevrolet | Cargo Van | ||
| 1999 | Chevrolet | Cargo Van | ||
| 2000 | Chevrolet | Cargo Van | ||
| 1996 | Chevrolet | Corvette | ||
| 1997 | Chevrolet | Corvette | ||
| 1998 | Chevrolet | Corvette | ||
| 1999 | Chevrolet | Corvette | ||
| 2000 | Chevrolet | Corvette | ||
| 2001 | Chevrolet | Corvette | ||
| 2002 | Chevrolet | Corvette | ||
| 1996 | Chevrolet | Express 1500 | ||
| 1996 | Chevrolet | Express 1500 | ||
| 1997 | Chevrolet | Express 1500 | ||
| 1997 | Chevrolet | Express 1500 | ||
| 1998 | Chevrolet | Express 1500 | ||
| 1998 | Chevrolet | Express 1500 | ||
| 1999 | Chevrolet | Express 1500 | ||
| 1999 | Chevrolet | Express 1500 | ||
| 2000 | Chevrolet | Express 1500 | ||
| 2000 | Chevrolet | Express 1500 | ||
| 2001 | Chevrolet | Express 1500 | ||
| 2001 | Chevrolet | Express 1500 | ||
| 2002 | Chevrolet | Express 1500 | ||
| 2002 | Chevrolet | Express 1500 | ||
| 1996 | Chevrolet | Express 2500 | ||
| 1996 | Chevrolet | Express 2500 | ||
| 1997 | Chevrolet | Express 2500 | ||
| 1997 | Chevrolet | Express 2500 | ||
| 1998 | Chevrolet | Express 2500 | ||
| 1998 | Chevrolet | Express 2500 | ||
| 1999 | Chevrolet | Express 2500 | ||
| 1999 | Chevrolet | Express 2500 | ||
| 2000 | Chevrolet | Express 2500 | ||
| 2000 | Chevrolet | Express 2500 | ||
| 2001 | Chevrolet | Express 2500 | ||
| 2001 | Chevrolet | Express 2500 | ||
| 2002 | Chevrolet | Express 2500 | ||
| 2002 | Chevrolet | Express 2500 | ||
| 1996 | Chevrolet | Express 3500 | ||
| 1997 | Chevrolet | Express 3500 | ||
| 1998 | Chevrolet | Express 3500 | ||
| 1999 | Chevrolet | Express 3500 | ||
| 2000 | Chevrolet | Express 3500 | ||
| 2001 | Chevrolet | Express 3500 | ||
| 2002 | Chevrolet | Express 3500 | ||
| 1996 | Chevrolet | G30 | ||
| 1996 | Chevrolet | GP3500 | ||
| 1996 | Chevrolet | Impala | ||
| 1996 | Chevrolet | K1500 | ||
| 1996 | Chevrolet | K1500 | ||
| 1997 | Chevrolet | K1500 | ||
| 1997 | Chevrolet | K1500 | ||
| 1998 | Chevrolet | K1500 | ||
| 1998 | Chevrolet | K1500 | ||
| 1999 | Chevrolet | K1500 | ||
| 1999 | Chevrolet | K1500 | ||
| 1996 | Chevrolet | K1500 Suburban | ||
| 1997 | Chevrolet | K1500 Suburban | ||
| 1998 | Chevrolet | K1500 Suburban | ||
| 1999 | Chevrolet | K1500 Suburban | ||
| 1996 | Chevrolet | K2500 | ||
| 1997 | Chevrolet | K2500 | ||
| 1997 | Chevrolet | K2500 | ||
| 1998 | Chevrolet | K2500 | ||
| 1998 | Chevrolet | K2500 | ||
| 1999 | Chevrolet | K2500 | ||
| 2000 | Chevrolet | K2500 | ||
| 1996 | Chevrolet | K2500 Suburban | ||
| 1997 | Chevrolet | K2500 Suburban | ||
| 1998 | Chevrolet | K2500 Suburban | ||
| 1999 | Chevrolet | K2500 Suburban | ||
| 1996 | Chevrolet | K3500 | ||
| 1997 | Chevrolet | K3500 | ||
| 1998 | Chevrolet | K3500 | ||
| 1999 | Chevrolet | K3500 | ||
| 2000 | Chevrolet | K3500 | ||
| 1999 | Chevrolet | L30 | ||
| 2000 | Chevrolet | L30 | ||
| 1996 | Chevrolet | Silverado | ||
| 1997 | Chevrolet | Silverado | ||
| 1998 | Chevrolet | Silverado | ||
| 1999 | Chevrolet | Silverado | ||
| 2001 | Chevrolet | Silverado 2500 | ||
| 2002 | Chevrolet | Silverado 2500 | ||
| 2000 | Chevrolet | Sonora | ||
| 2001 | Chevrolet | Sonora | ||
| 2002 | Chevrolet | Sonora | ||
| 1996 | Chevrolet | Suburban 1500 | ||
| 1997 | Chevrolet | Suburban 1500 | ||
| 1998 | Chevrolet | Suburban 1500 | ||
| 1999 | Chevrolet | Suburban 1500 | ||
| 2000 | Chevrolet | Suburban 1500 | ||
| 2001 | Chevrolet | Suburban 1500 | ||
| 2002 | Chevrolet | Suburban 1500 | ||
| 1996 | Chevrolet | Tahoe | ||
| 1997 | Chevrolet | Tahoe | ||
| 1998 | Chevrolet | Tahoe | ||
| 1999 | Chevrolet | Tahoe | ||
| 2000 | Chevrolet | Tahoe | ||
| 1996 | Chevrolet | W3500 Tiltmaster | ||
| 1997 | Chevrolet | W3500 Tiltmaster | ||
| 1998 | Chevrolet | W3500 Tiltmaster | ||
| 1999 | Chevrolet | W3500 Tiltmaster | ||
| 2000 | Chevrolet | W3500 Tiltmaster | ||
| 2001 | Chevrolet | W3500 Tiltmaster | ||
| 2002 | Chevrolet | W3500 Tiltmaster | ||
| 1996 | Chevrolet | W4500 Tiltmaster | ||
| 1997 | Chevrolet | W4500 Tiltmaster | ||
| 1998 | Chevrolet | W4500 Tiltmaster | ||
| 1999 | Chevrolet | W4500 Tiltmaster | ||
| 2000 | Chevrolet | W4500 Tiltmaster | ||
| 2001 | Chevrolet | W4500 Tiltmaster | ||
| 2002 | Chevrolet | W4500 Tiltmaster | ||
| 1996 | GMC | C1500 | ||
| 1996 | GMC | C1500 | ||
| 1997 | GMC | C1500 | ||
| 1997 | GMC | C1500 | ||
| 1998 | GMC | C1500 | ||
| 1998 | GMC | C1500 | ||
| 1999 | GMC | C1500 | ||
| 1999 | GMC | C1500 | ||
| 1996 | GMC | C1500 Suburban | ||
| 1997 | GMC | C1500 Suburban | ||
| 1998 | GMC | C1500 Suburban | ||
| 1999 | GMC | C1500 Suburban | ||
| 1996 | GMC | C2500 | ||
| 1996 | GMC | C2500 | ||
| 1997 | GMC | C2500 | ||
| 1997 | GMC | C2500 | ||
| 1998 | GMC | C2500 | ||
| 1998 | GMC | C2500 | ||
| 1999 | GMC | C2500 | ||
| 1999 | GMC | C2500 | ||
| 2000 | GMC | C2500 | ||
| 1996 | GMC | C2500 Suburban | ||
| 1997 | GMC | C2500 Suburban | ||
| 1998 | GMC | C2500 Suburban | ||
| 1999 | GMC | C2500 Suburban | ||
| 1996 | GMC | C3500 | ||
| 1997 | GMC | C3500 | ||
| 1998 | GMC | C3500 | ||
| 1999 | GMC | C3500 | ||
| 2000 | GMC | C3500 | ||
| 1996 | GMC | G3500 | ||
| 1996 | GMC | K1500 | ||
| 1996 | GMC | K1500 | ||
| 1997 | GMC | K1500 | ||
| 1997 | GMC | K1500 | ||
| 1998 | GMC | K1500 | ||
| 1998 | GMC | K1500 | ||
| 1999 | GMC | K1500 | ||
| 1999 | GMC | K1500 | ||
| 1996 | GMC | K1500 Suburban | ||
| 1997 | GMC | K1500 Suburban | ||
| 1998 | GMC | K1500 Suburban | ||
| 1999 | GMC | K1500 Suburban | ||
| 1996 | GMC | K2500 | ||
| 1997 | GMC | K2500 | ||
| 1998 | GMC | K2500 | ||
| 1998 | GMC | K2500 | ||
| 1999 | GMC | K2500 | ||
| 2000 | GMC | K2500 | ||
| 1996 | GMC | K2500 Suburban | ||
| 1997 | GMC | K2500 Suburban | ||
| 1998 | GMC | K2500 Suburban | ||
| 1999 | GMC | K2500 Suburban | ||
| 1996 | GMC | K3500 | ||
| 1997 | GMC | K3500 | ||
| 1998 | GMC | K3500 | ||
| 1999 | GMC | K3500 | ||
| 2000 | GMC | K3500 | ||
| 1996 | GMC | P3500 | ||
| 1997 | GMC | P3500 | ||
| 1998 | GMC | P3500 | ||
| 1999 | GMC | P3500 | ||
| 1996 | GMC | Savana 1500 | ||
| 1996 | GMC | Savana 1500 | ||
| 1997 | GMC | Savana 1500 | ||
| 1997 | GMC | Savana 1500 | ||
| 1998 | GMC | Savana 1500 | ||
| 1998 | GMC | Savana 1500 | ||
| 1999 | GMC | Savana 1500 | ||
| 1999 | GMC | Savana 1500 | ||
| 2000 | GMC | Savana 1500 | ||
| 2000 | GMC | Savana 1500 | ||
| 2001 | GMC | Savana 1500 | ||
| 2001 | GMC | Savana 1500 | ||
| 2002 | GMC | Savana 1500 | ||
| 2002 | GMC | Savana 1500 | ||
| 1996 | GMC | Savana 2500 | ||
| 1996 | GMC | Savana 2500 | ||
| 1997 | GMC | Savana 2500 | ||
| 1997 | GMC | Savana 2500 | ||
| 1998 | GMC | Savana 2500 | ||
| 1998 | GMC | Savana 2500 | ||
| 1999 | GMC | Savana 2500 | ||
| 1999 | GMC | Savana 2500 | ||
| 2000 | GMC | Savana 2500 | ||
| 2000 | GMC | Savana 2500 | ||
| 2001 | GMC | Savana 2500 | ||
| 2001 | GMC | Savana 2500 | ||
| 2002 | GMC | Savana 2500 | ||
| 2002 | GMC | Savana 2500 | ||
| 1996 | GMC | Savana 3500 | ||
| 1997 | GMC | Savana 3500 | ||
| 1998 | GMC | Savana 3500 | ||
| 1999 | GMC | Savana 3500 | ||
| 2000 | GMC | Savana 3500 | ||
| 2001 | GMC | Savana 3500 | ||
| 2002 | GMC | Savana 3500 | ||
| 1996 | GMC | W3500 Forward | ||
| 1997 | GMC | W3500 Forward | ||
| 1998 | GMC | W3500 Forward | ||
| 1999 | GMC | W3500 Forward | ||
| 2000 | GMC | W3500 Forward | ||
| 2001 | GMC | W3500 Forward | ||
| 2002 | GMC | W3500 Forward | ||
| 1998 | GMC | W4500 Forward | ||
| 1999 | GMC | W4500 Forward | ||
| 2000 | GMC | W4500 Forward | ||
| 2001 | GMC | W4500 Forward | ||
| 2002 | GMC | W4500 Forward | ||
| 1996 | GMC | Yukon | ||
| 1997 | GMC | Yukon | ||
| 1998 | GMC | Yukon | ||
| 1999 | GMC | Yukon | ||
| 2000 | GMC | Yukon |
