*item may differ from images

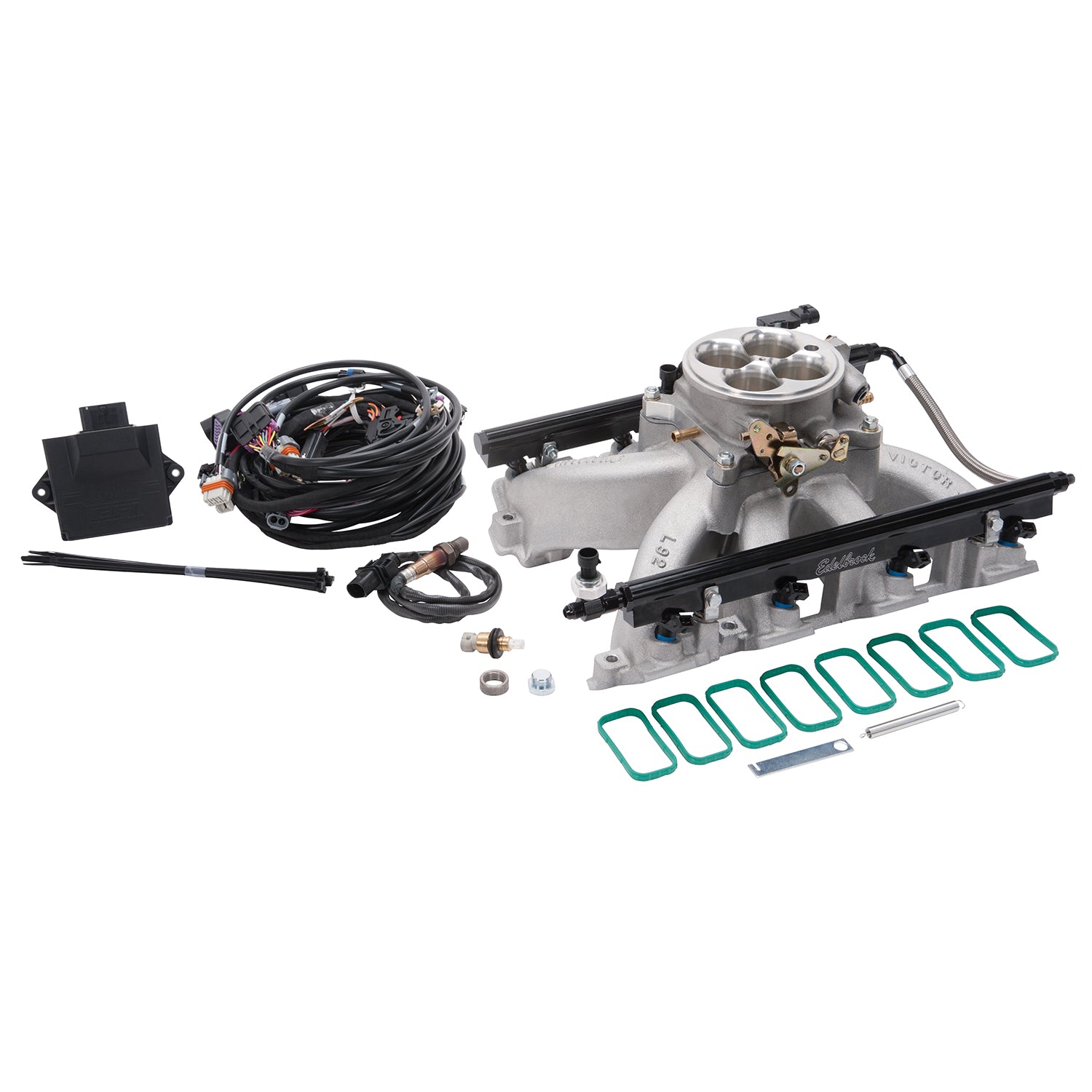

The Edelbrock Pro-Flo 4 Sequential Port EFI System #35750 for Chevrolet LS GEN IV engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. rectangle port intake manifold and 42 Lb/Hr injectors capable of 675 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Edelbrock Fuel Injection System 35750
Specifications:
| Flange Type | 4150 |
| Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Maximum Horsepower | 675 |
| Throttle Body Type | 4 Barrel |
| System Type | Traditional 4150-Style Kit |
| Bore Diameter | 1.75 |
| Manifold Height | 7.40 |
| Fuel Pressure Port | 1/8-27 NPT |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Wire Harness Included | Yes |
| Distributor Cap Included | Yes |
| Wiring Harness Included | Yes |
| Idle Air Control Motor Included | Yes |
| Fuel Injector Type | 42 lb/hr |
| Quantity | Kit |
| Description_ASM | Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_EXT | Edelbrock Pro-Flo 4 EFI System for Chevy LS GEN IV engines. The EFI System comes with a 4150-Style satin finish Victor Jr. rectangle port intake manifold and 42 Lb/Hr injectors capable of 675 HP with 58 p.s.i. fuel pressure. |
| Description_MKT | The Edelbrock Pro-Flo 4 Sequential Port EFI System #35750 for Chevrolet LS GEN IV engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. rectangle port intake manifold and 42 Lb/Hr injectors capable of 675 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_TRA | This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #37-1633 and 58(x) reluctor applications will require #37-1632. 35750 manifold height: 7.40". Throttle body height: 2.530" |
| Description_DEF | Fuel Injection System |
| Description_ABR | EFI System |
| Description_INV | Edelbrock Pro-Flo 4 EFI System LS Gen IV |
| Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style Kit #35750 For Chevy LS Gen IV |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2010 | Chevrolet | Camaro | ||
| 2011 | Chevrolet | Camaro | ||
| 2012 | Chevrolet | Camaro | ||
| 2013 | Chevrolet | Camaro | ||
| 2014 | Chevrolet | Camaro | ||
| 2015 | Chevrolet | Camaro | ||
| 2014 | Chevrolet | Cheyenne | ||
| 2015 | Chevrolet | Cheyenne | ||
| 2016 | Chevrolet | Cheyenne | ||
| 2017 | Chevrolet | Cheyenne | ||
| 2018 | Chevrolet | Cheyenne | ||
| 2008 | Chevrolet | Corvette | ||
| 2009 | Chevrolet | Corvette | ||
| 2010 | Chevrolet | Corvette | ||
| 2011 | Chevrolet | Corvette | ||
| 2012 | Chevrolet | Corvette | ||
| 2013 | Chevrolet | Corvette | ||
| 2014 | Chevrolet | Silverado 1500 | ||
| 2015 | Chevrolet | Silverado 1500 | ||
| 2016 | Chevrolet | Silverado 1500 | ||
| 2017 | Chevrolet | Silverado 1500 | ||
| 2018 | Chevrolet | Silverado 1500 | ||
| 2014 | Chevrolet | SS | ||
| 2015 | Chevrolet | SS | ||
| 2016 | Chevrolet | SS | ||
| 2017 | Chevrolet | SS | ||
| 2008 | Chevrolet | Tahoe |
