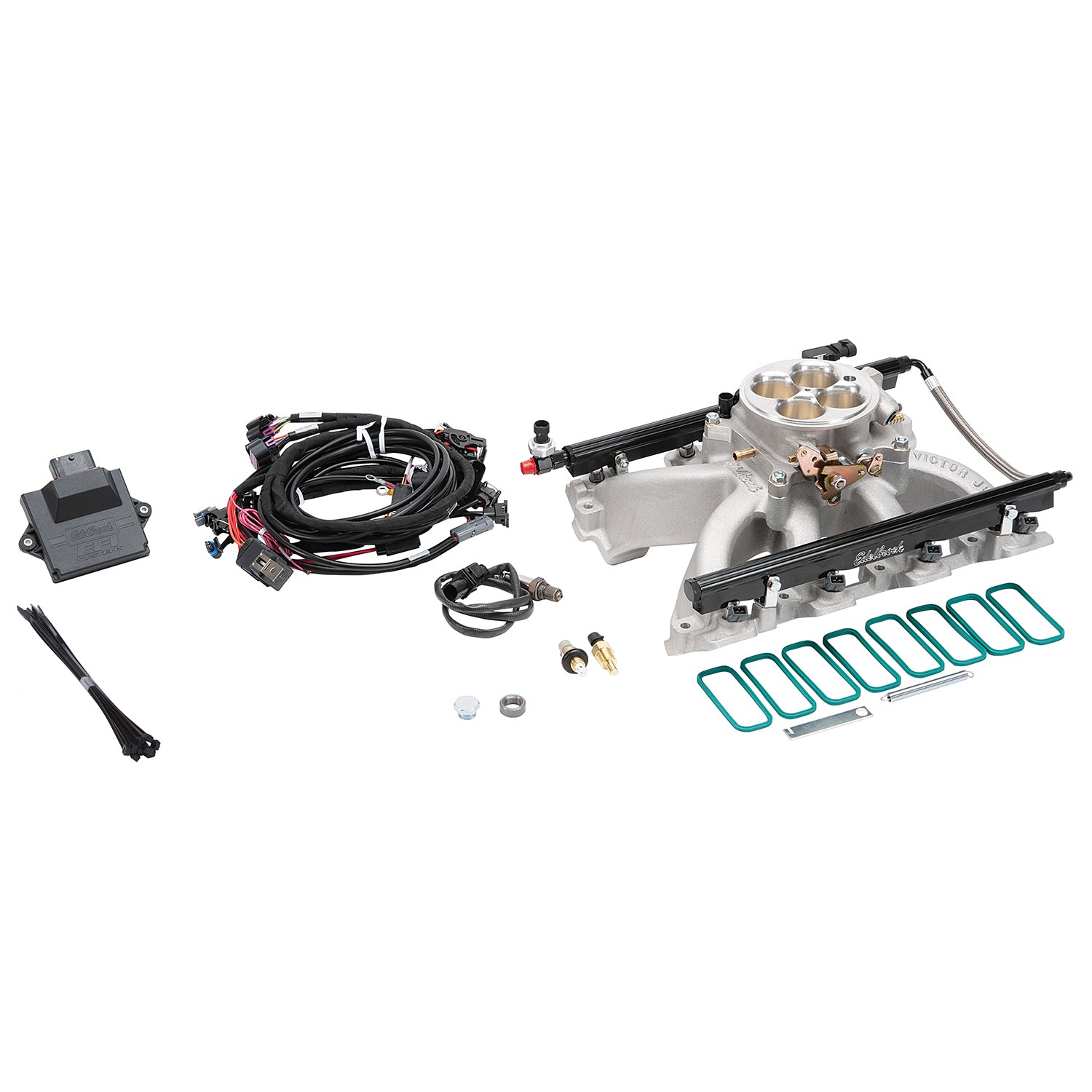

The Edelbrock Pro-Flo 4 EFI Kit #35700 for Chevrolet LS GEN III/IV engines is a Sequential Port EFI System equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. cathedral port single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Edelbrock Fuel Injection System 35700
Specifications:
| Gasket Or Seal Included | Yes |
| Flange Type | 4150 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Quantity | Kit |
| Finish | Satin |
| Wiring Harness Included | Yes |
| Bore Diameter | 1.75 |
| Idle Air Control Motor Included | Yes |
| Manifold Height | 4.95 |
| Maximum Horsepower | 450 |
| Distributor Cap Included | Yes |
| Fuel Pressure Port | 1/8-27 NPT |
| Fuel Injector Type | 29 lb/hr |
| Wire Harness Included | Yes |
| Throttle Body Type | 4 Barrel |
| System Type | Traditional 4150-Style Kit |
| Description_ABR | EFI System |
| Description_INV | Edel Pro-Flo 4 EFI System LS Gen III/ IV |
| Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style Kit #35700 For Chevy LS Gen III/IV |
| Description_ASM | Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LH8:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LMF:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LMG:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LY5:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen III LR4:293 (4.8L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LMF:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LY5:325 (5.3L) |
| Description_EXT | Edelbrock Pro-Flo 4 EFI System for Chevy LS GEN III/IV engines. The EFI System comes with a 4150-Style satin finish Victor Jr. cathedral port intake manifold & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #35700 for Chevrolet LS GEN III/IV engines is a Sequential Port EFI System equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. cathedral port single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_TRA | This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #35713 and 58(x) reluctor applications will require #35714. For the heights of all Edelbrock manifolds please visit the Manifold Reference Dimensions page. |
| Description_DEF | Fuel Injection System |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2007 | Chevrolet | Avalanche | ||
| 2008 | Chevrolet | Avalanche | ||
| 2009 | Chevrolet | Avalanche | ||
| 2002 | Chevrolet | Avalanche 1500 | ||
| 2003 | Chevrolet | Avalanche 1500 | ||
| 2004 | Chevrolet | Avalanche 1500 | ||
| 2005 | Chevrolet | Avalanche 1500 | ||
| 2006 | Chevrolet | Avalanche 1500 | ||
| 1997 | Chevrolet | B7 | ||
| 1998 | Chevrolet | B7 | ||
| 1997 | Chevrolet | C6500 Kodiak | ||
| 1998 | Chevrolet | C6500 Kodiak | ||
| 1997 | Chevrolet | C7500 Kodiak | ||
| 1998 | Chevrolet | C7500 Kodiak | ||
| 2007 | Chevrolet | Cheyenne | ||
| 2008 | Chevrolet | Cheyenne | ||
| 2009 | Chevrolet | Cheyenne | ||
| 2010 | Chevrolet | Cheyenne | ||
| 2011 | Chevrolet | Cheyenne | ||
| 2012 | Chevrolet | Cheyenne | ||
| 2013 | Chevrolet | Cheyenne | ||
| 2009 | Chevrolet | Colorado | ||
| 2010 | Chevrolet | Colorado | ||
| 2011 | Chevrolet | Colorado | ||
| 2012 | Chevrolet | Colorado | ||
| 2005 | Chevrolet | Corvette | ||
| 2006 | Chevrolet | Corvette | ||
| 2007 | Chevrolet | Corvette | ||
| 2003 | Chevrolet | Express 1500 | ||
| 2004 | Chevrolet | Express 1500 | ||
| 2005 | Chevrolet | Express 1500 | ||
| 2006 | Chevrolet | Express 1500 | ||
| 2007 | Chevrolet | Express 1500 | ||
| 2008 | Chevrolet | Express 1500 | ||
| 2009 | Chevrolet | Express 1500 | ||
| 2003 | Chevrolet | Express 2500 | ||
| 2004 | Chevrolet | Express 2500 | ||
| 2005 | Chevrolet | Express 2500 | ||
| 2003 | Chevrolet | Express 3500 | ||
| 2004 | Chevrolet | Express 3500 | ||
| 2005 | Chevrolet | Express 3500 | ||
| 2010 | Chevrolet | Express Cargo | ||
| 2011 | Chevrolet | Express Cargo | ||
| 2012 | Chevrolet | Express Cargo | ||
| 2013 | Chevrolet | Express Cargo | ||
| 2010 | Chevrolet | Express Pasajeros | ||
| 2010 | Chevrolet | Express Pasajeros | ||
| 2011 | Chevrolet | Express Pasajeros | ||
| 2011 | Chevrolet | Express Pasajeros | ||
| 2012 | Chevrolet | Express Pasajeros | ||
| 2012 | Chevrolet | Express Pasajeros | ||
| 2013 | Chevrolet | Express Pasajeros | ||
| 2013 | Chevrolet | Express Pasajeros | ||
| 2006 | Chevrolet | Impala | ||
| 2007 | Chevrolet | Impala | ||
| 2008 | Chevrolet | Impala | ||
| 2009 | Chevrolet | Impala | ||
| 2006 | Chevrolet | Monte Carlo | ||
| 2007 | Chevrolet | Monte Carlo | ||
| 1999 | Chevrolet | Silverado 1500 | ||
| 2000 | Chevrolet | Silverado 1500 | ||
| 2001 | Chevrolet | Silverado 1500 | ||
| 2002 | Chevrolet | Silverado 1500 | ||
| 2003 | Chevrolet | Silverado 1500 | ||
| 2004 | Chevrolet | Silverado 1500 | ||
| 2005 | Chevrolet | Silverado 1500 | ||
| 2006 | Chevrolet | Silverado 1500 | ||
| 2007 | Chevrolet | Silverado 1500 | ||
| 2008 | Chevrolet | Silverado 1500 | ||
| 2009 | Chevrolet | Silverado 1500 | ||
| 2007 | Chevrolet | Silverado 1500 Classic | ||
| 2011 | Chevrolet | Silverado 2500 HD | ||
| 2012 | Chevrolet | Silverado 2500 HD | ||
| 2013 | Chevrolet | Silverado 2500 HD | ||
| 2008 | Chevrolet | Silverado 3500 | ||
| 2009 | Chevrolet | Silverado 3500 | ||
| 2010 | Chevrolet | Silverado 3500 | ||
| 2011 | Chevrolet | Silverado 3500 | ||
| 2012 | Chevrolet | Silverado 3500 | ||
| 2013 | Chevrolet | Silverado 3500 | ||
| 2011 | Chevrolet | Silverado 3500 HD | ||
| 2012 | Chevrolet | Silverado 3500 HD | ||
| 2013 | Chevrolet | Silverado 3500 HD | ||
| 2003 | Chevrolet | SSR | ||
| 2004 | Chevrolet | SSR | ||
| 2000 | Chevrolet | Suburban 1500 | ||
| 2001 | Chevrolet | Suburban 1500 | ||
| 2002 | Chevrolet | Suburban 1500 | ||
| 2003 | Chevrolet | Suburban 1500 | ||
| 2004 | Chevrolet | Suburban 1500 | ||
| 2005 | Chevrolet | Suburban 1500 | ||
| 2006 | Chevrolet | Suburban 1500 | ||
| 2007 | Chevrolet | Suburban 1500 | ||
| 2008 | Chevrolet | Suburban 1500 | ||
| 2009 | Chevrolet | Suburban 1500 | ||
| 2011 | Chevrolet | Suburban 1500 | ||
| 2012 | Chevrolet | Suburban 1500 | ||
| 2013 | Chevrolet | Suburban 1500 | ||
| 2013 | Chevrolet | Suburban 1500 | ||
| 1997 | Chevrolet | T6500 | ||
| 1998 | Chevrolet | T6500 | ||
| 1997 | Chevrolet | T7500 | ||
| 1998 | Chevrolet | T7500 | ||
| 2006 | Chevrolet | Trailblazer | ||
| 2007 | Chevrolet | Trailblazer | ||
| 2008 | Chevrolet | Trailblazer | ||
| 2003 | Chevrolet | Trailblazer EXT | ||
| 2004 | Chevrolet | Trailblazer EXT | ||
| 2005 | Chevrolet | Trailblazer EXT | ||
| 2006 | Chevrolet | Trailblazer EXT |
