*item may differ from images

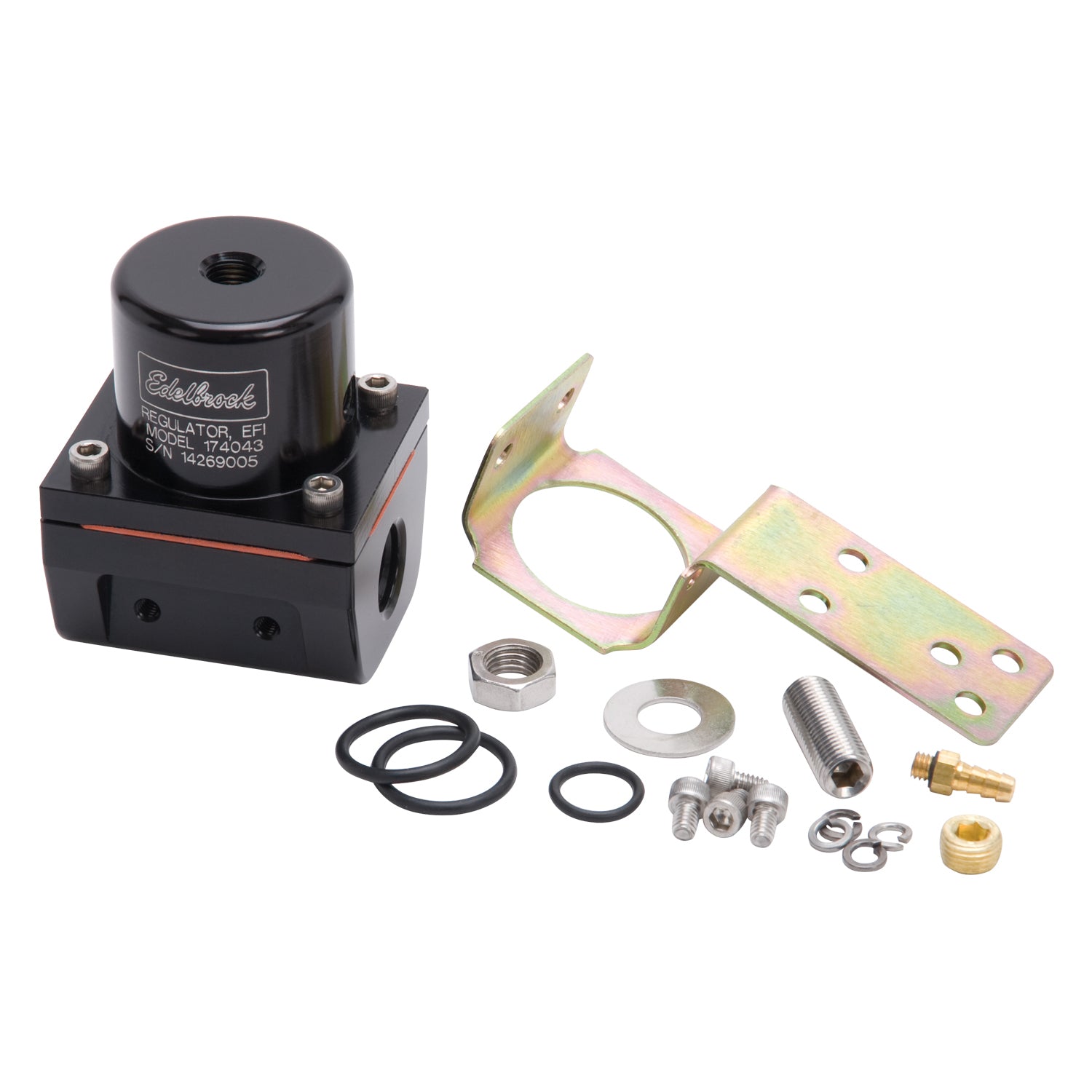

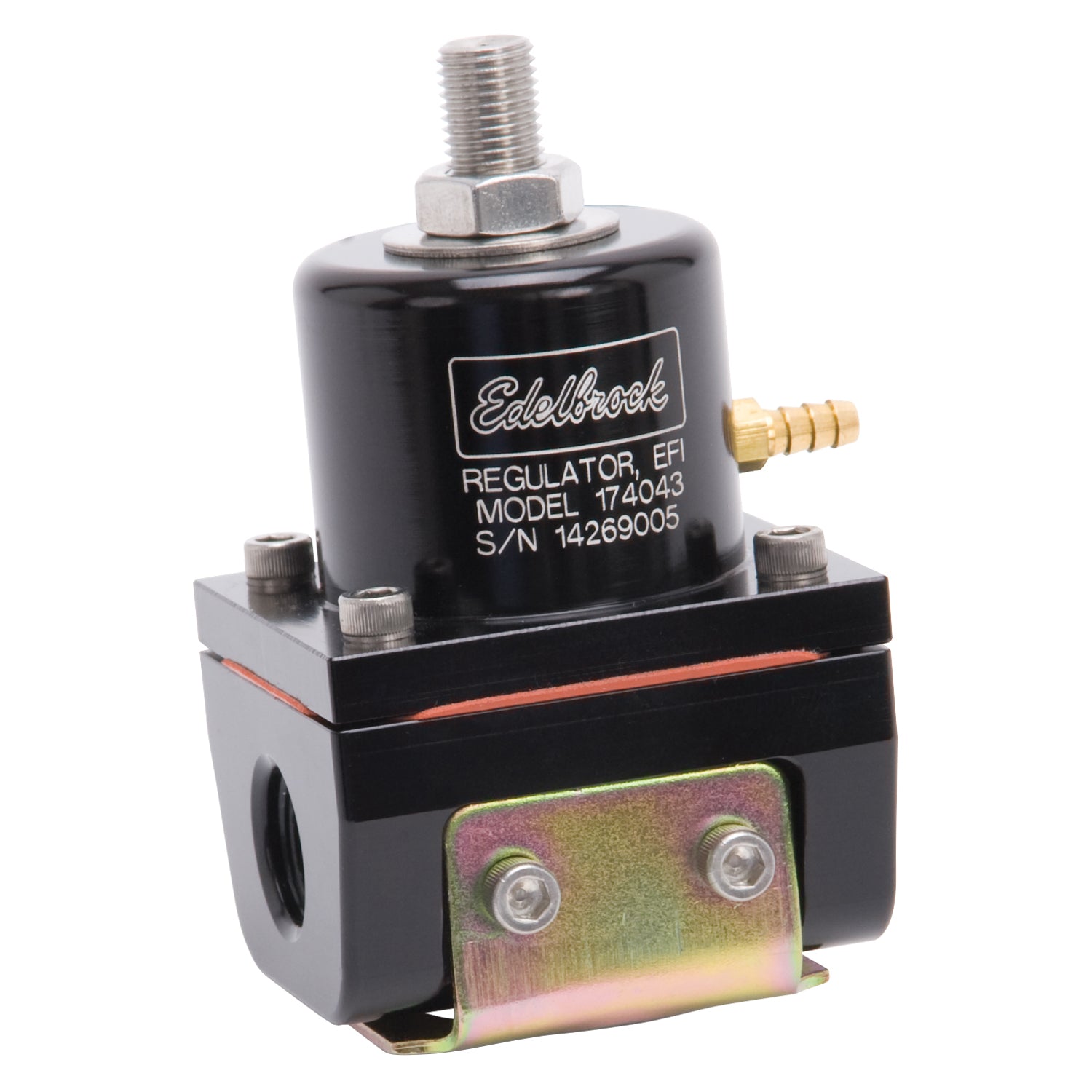

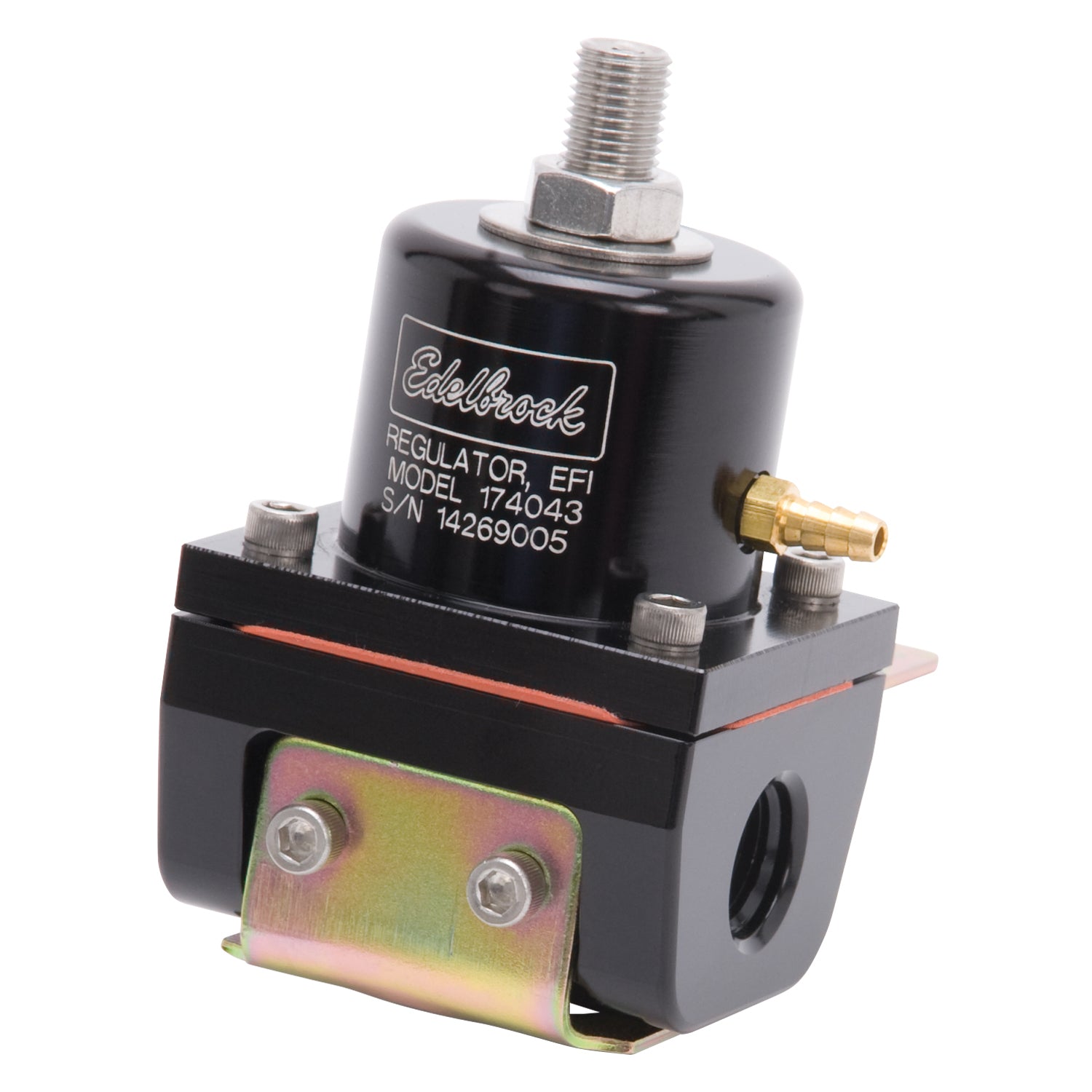

Edelbrock fuel pressure regulators #174043 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
Edelbrock Fuel Injection Pressure Regulator 174043
Specifications:
| Outlet Type | Port |
| Mounting Type | Bracket |
| Maximum Pressure Reading | 90 |
| Adjustable | Yes |
| Outlet Port Diameter | 6.0 |
| Gauge Port | No |
| Inlet Port Diameter | 6.0 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Port Quantity | 4 |
| Inlet Type | Port |
| Description_MKT | Edelbrock fuel pressure regulators #174043 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. |
| Description_DEF | Fuel Injection Pressure Regulator |
| Description_ABR | EFI |
| Description_INV | Edel Fuel Injection Pressure Regulator |
| Description_LAB | EFI Fuel Pressure Regulator -6 AN (180 GPH) in Black Finish |
| Description_EXT | Edelbrock fuel pressure regulators #174043 are machined from high quality aluminum for those who demand the best. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Mounting bracket and hardware are included. |
