*item may differ from images

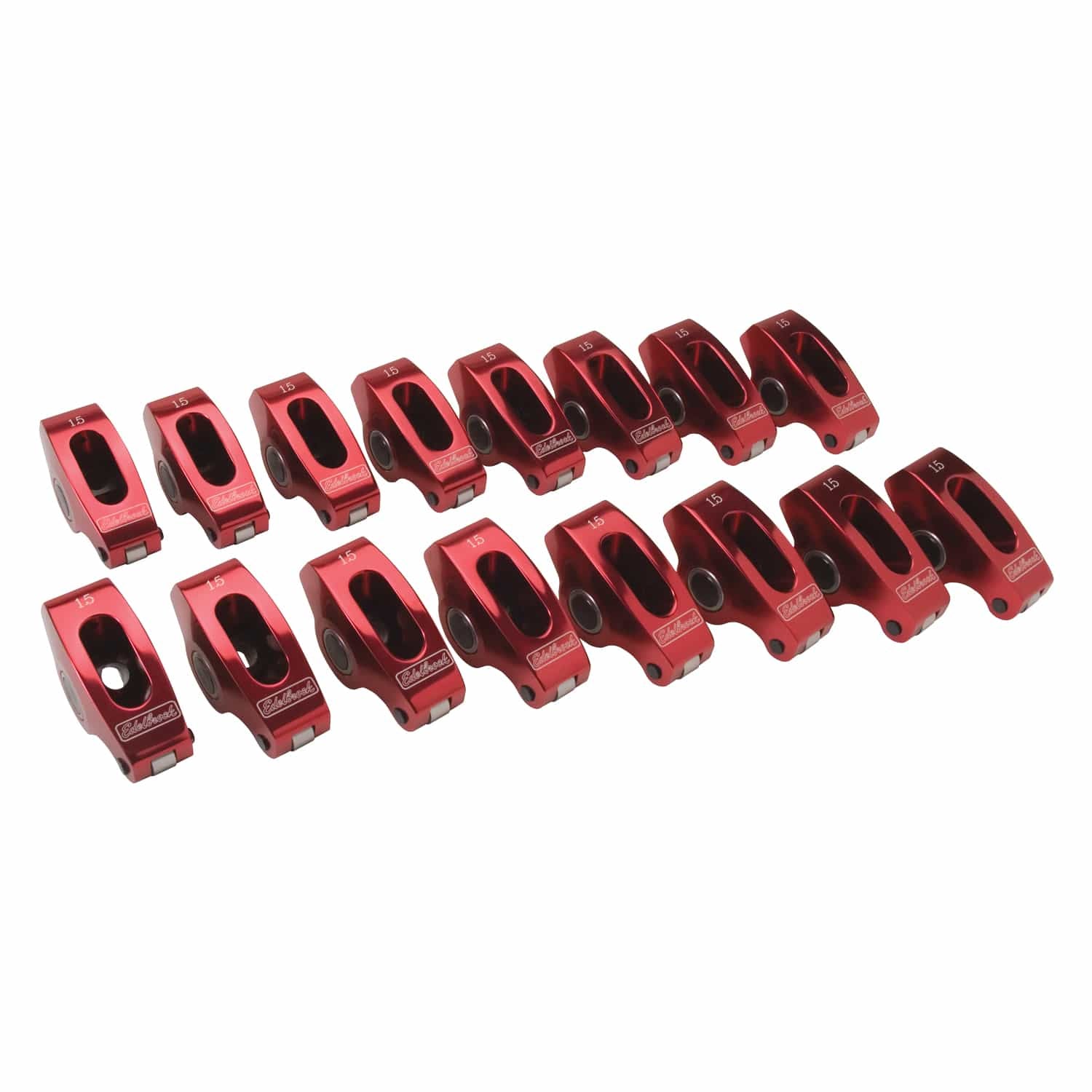

Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included.
Edelbrock Engine Rocker Arm 77770
Specifications:
| Mounting Type | Stud |
| Self Aligning | No |
| Rocker Arm Finish | Red anodized |
| Stud Thread Diameter | 0.375 |
| Maximum Spring Outside Diameter | 1.65 |
| Material | Aluminum |
| Rocker Arm Ratio | 1.5:1 |
| Grade Type | Performance |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Shims Included | No |
| Rocker Arm Material | Aluminum |
| Rocker Arm Nut Type | Poly Lock |
| Quantity | Set of 16 |
| Rocker Arm Type | Full Roller |
| Description_ABR | SBC Rockers |
| Description_INV | Edelbrock red roller rockers #77770 SBC |
| Description_LAB | Red Roller Rockers for Small-Block Chevy 3/8 stud 1.5:1 Ratio (Qty 16) |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) |
| Description_EXT | Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. |
| Description_MKT | Edelbrock part #77770 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included. |
| Description_TRA | Rocker geometry should be checked, making sure that the contact point of the roller remains properly on the valve tip and does not roll off the edge. Visual inspection of the rockers, valve springs, retainers, and pushrods should be made to ensure that none of these components come into improper contact with each other. If problems with valve train geometry occur, changes such as pushrod length may have to be made. |
| Description_DEF | Engine Rocker Arm |
