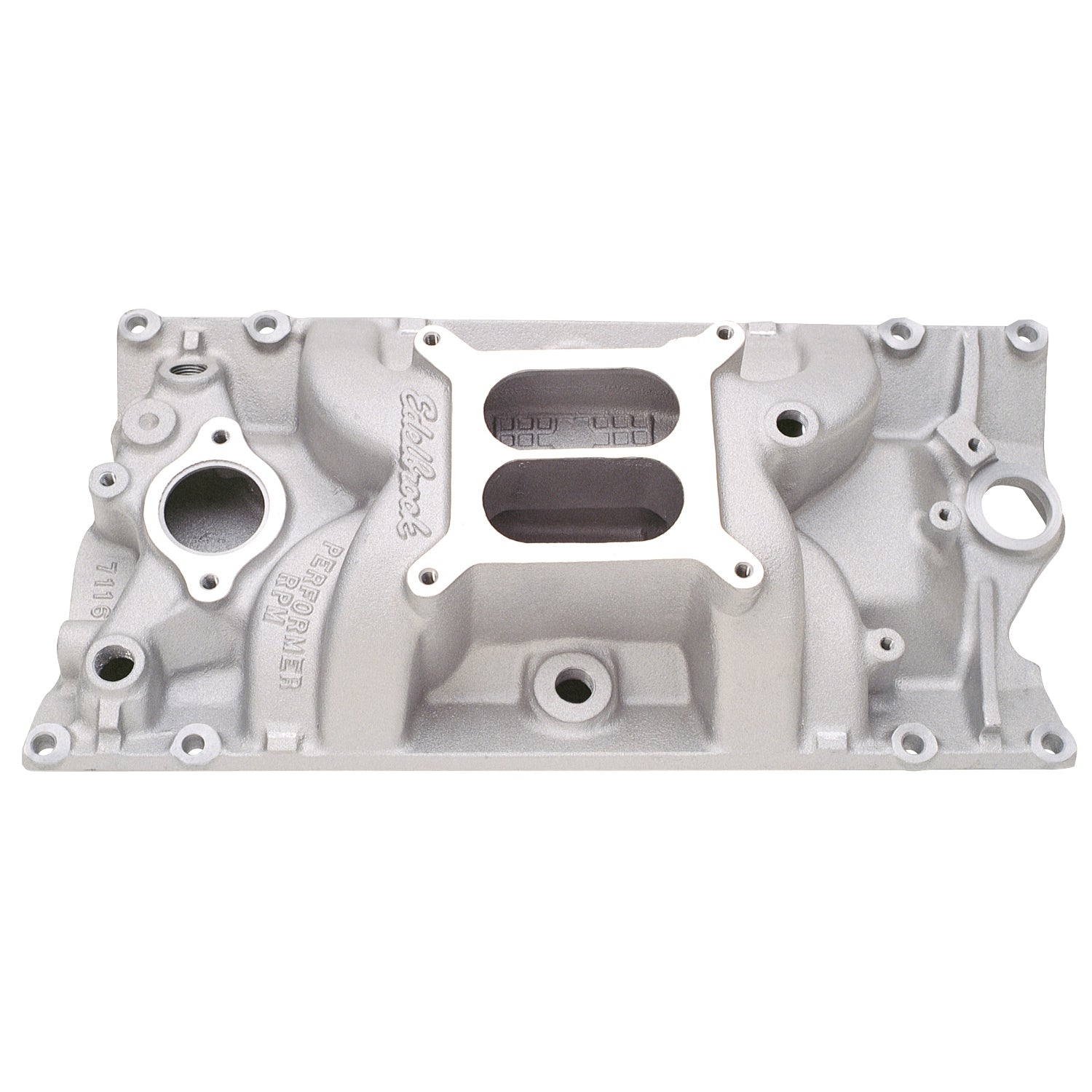

Edelbrock Engine Intake Manifold 7116

Edelbrock part #7116 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood.

Edelbrock Engine Intake Manifold 7116

Specifications:

Vehicle Model	Chevrolet
Basic Operating RPM Range	1500-6500
Material	Aluminum
Finish	Satin
Flange Type	4150
Series	Performer RPM
Rear Maximum Height	5.250
Grade Type	Performance
Single Or Dual Plane Type	Dual
CNC Ported	No
EGR Port	No
Gasket Or Seal Included	No
Front Maximum Height	4.200
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Center Maximum Height	4.720
Description_ABR	Intake Mnfld
Description_INV	RPM Vortec Intake Manifold
Description_LAB	Performer RPM Small Block Chevy Vortec Intake Manifold
Description_ASM	Chevrolet:Small-Block Gen I:302 (4.9L)/305 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Description_EXT	Edelbrock Performer RPM Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8
Description_MKT	Edelbrock part #7116 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood.
Description_TRA	Manifold ht: A-4.20", B-5.25" (.70" taller than #2101)
Description_TRA	Carb pad height: 4.27"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8032 for 1972-78.
Description_TRA	Port exit dimensions: 2.05" tall with slanted side walls
Description_TRA	Recommended intake gasket: Edelbrock #7235 or GM #89017465
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Use #8516 Edelbrock bolt kit
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Will not fit under stock Corvette hood.
Description_TRA	Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032.
Description_TRA	Edelbrock does not recommend the use of an economy type carburetor such as the Performer series #1406 or #1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake.
Description_TRA	Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Description_DEF	Engine Intake Manifold
