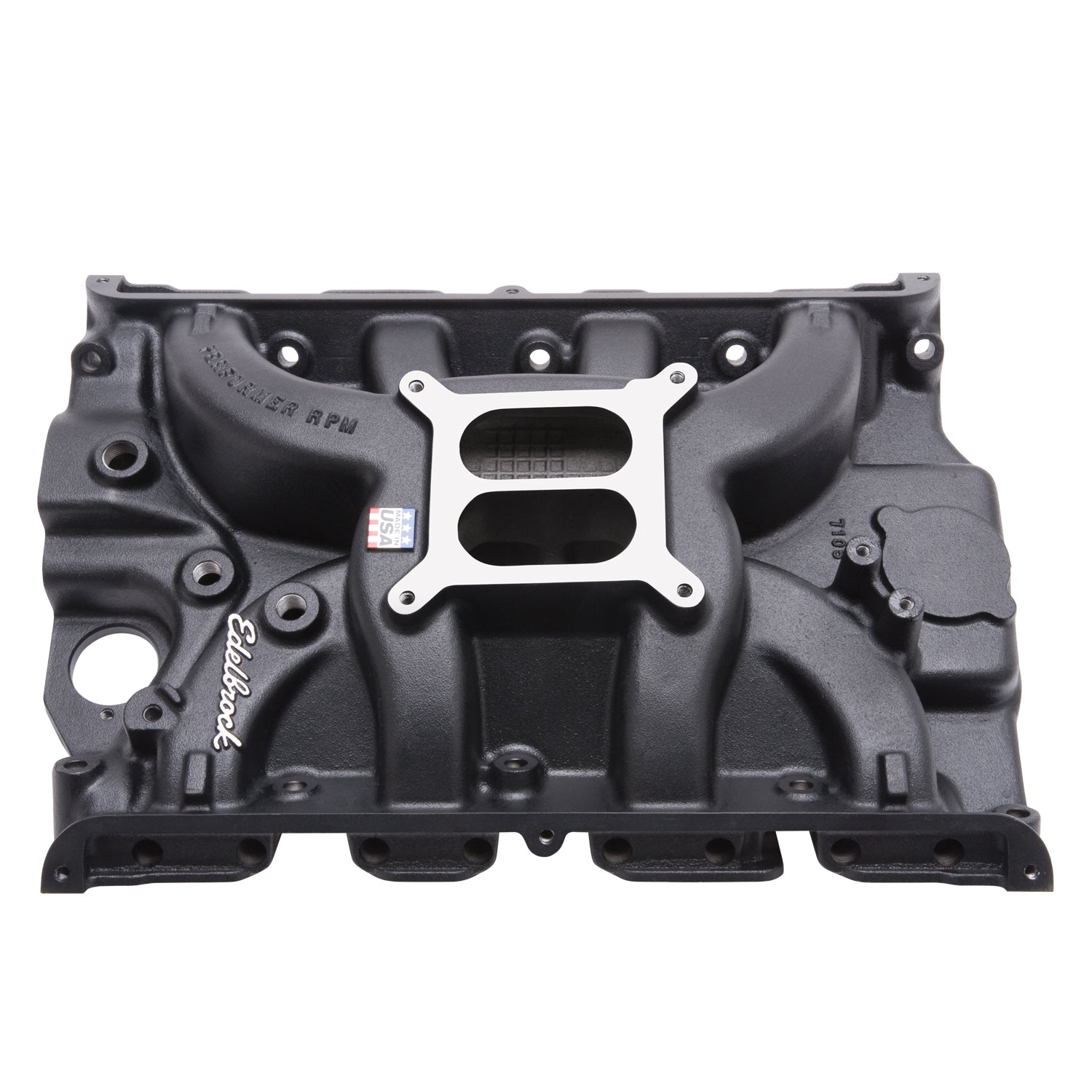

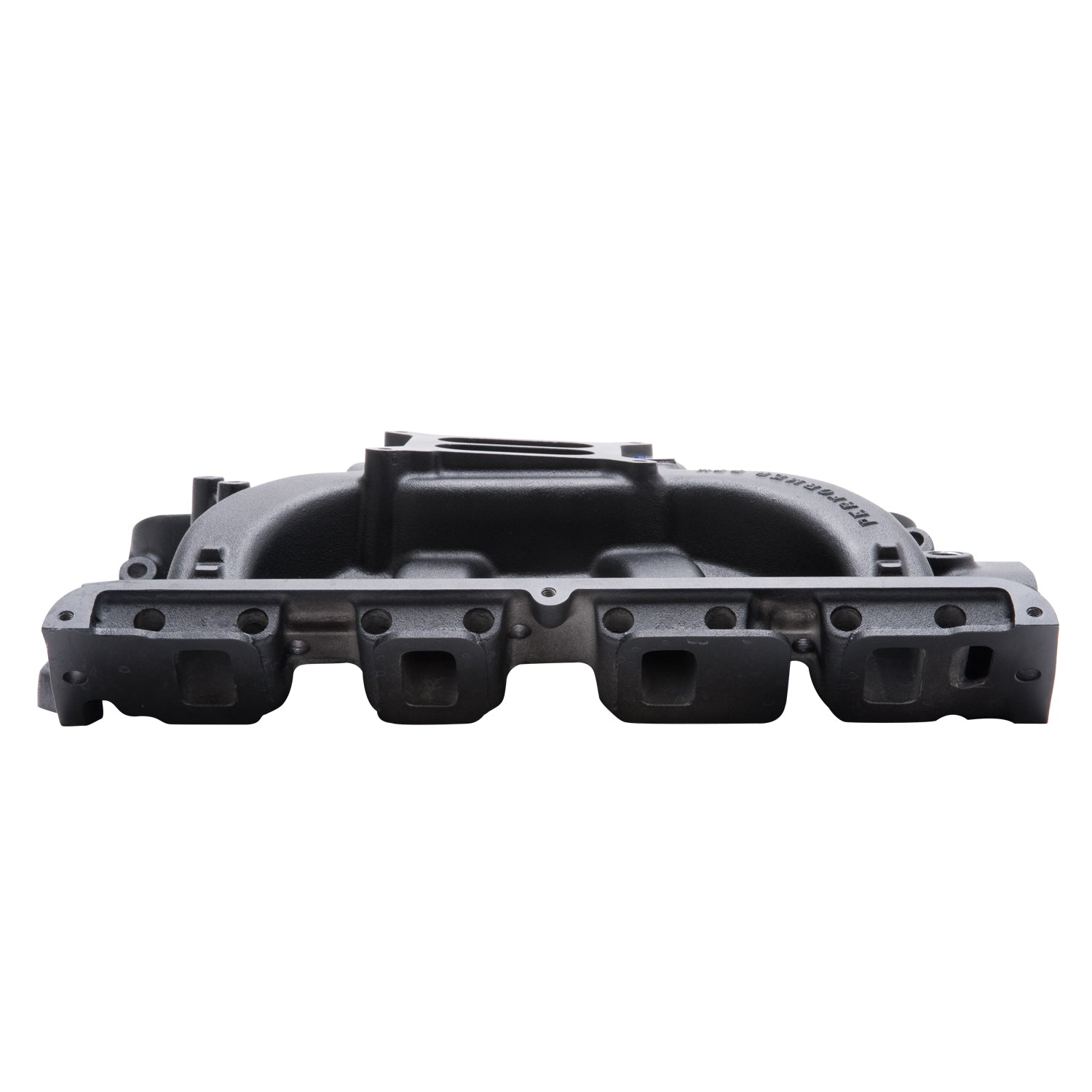

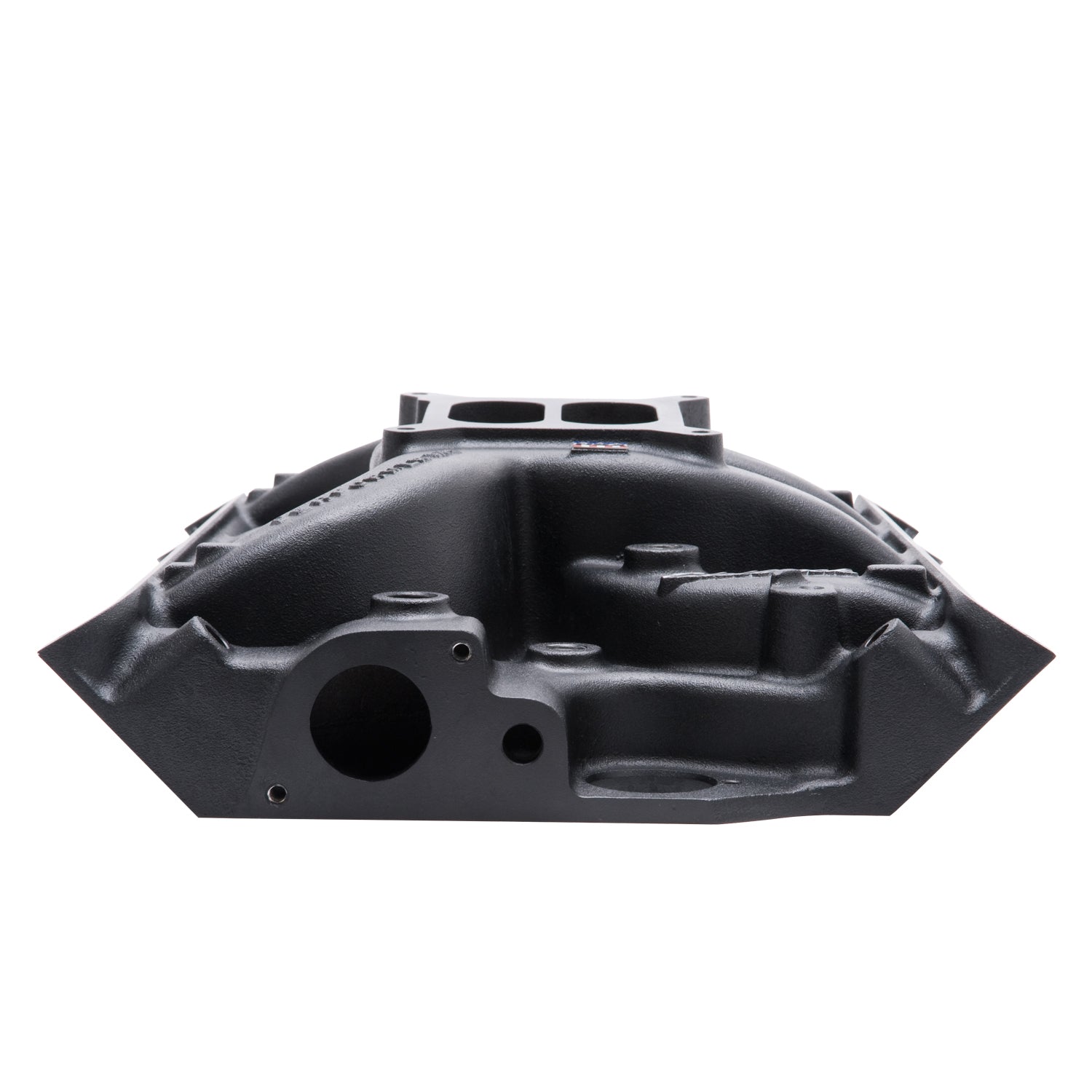

Edelbrock part #71053 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Edelbrock Engine Intake Manifold 71053
Specifications:
| Rear Maximum Height | 6.040 |
| EGR Port | No |
| Vehicle Model | Ford |
| Grade Type | Performance |
| Single Or Dual Plane Type | Dual |
| Series | Performer RPM |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Front Maximum Height | 4.890 |
| Flange Type | 4150 |
| Basic Operating RPM Range | 1500-6500 |
| CNC Ported | No |
| Finish | Black Powder Coated |
| Center Maximum Height | 5.460 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Intake Mnfld |
| Description_INV | Black RPM Ford FE Intake Manifold |
| Description_LAB | Performer RPM Ford FE 390 Black Intake Manifold |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_EXT | Edelbrock Performer RPM 390 Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_MKT | Edelbrock part #71053 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_TRA | Recommended intake gasket: Edelbrock #7224 |
| Description_TRA | Manifold height: A-4.89", B-6.04" |
| Description_TRA | Carb pad height: 5.46" |
| Description_TRA | Carb recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use #1483 or #1844. |
| Description_TRA | Port exit dimensions: 1.16" x 1.97" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
