*item may differ from images

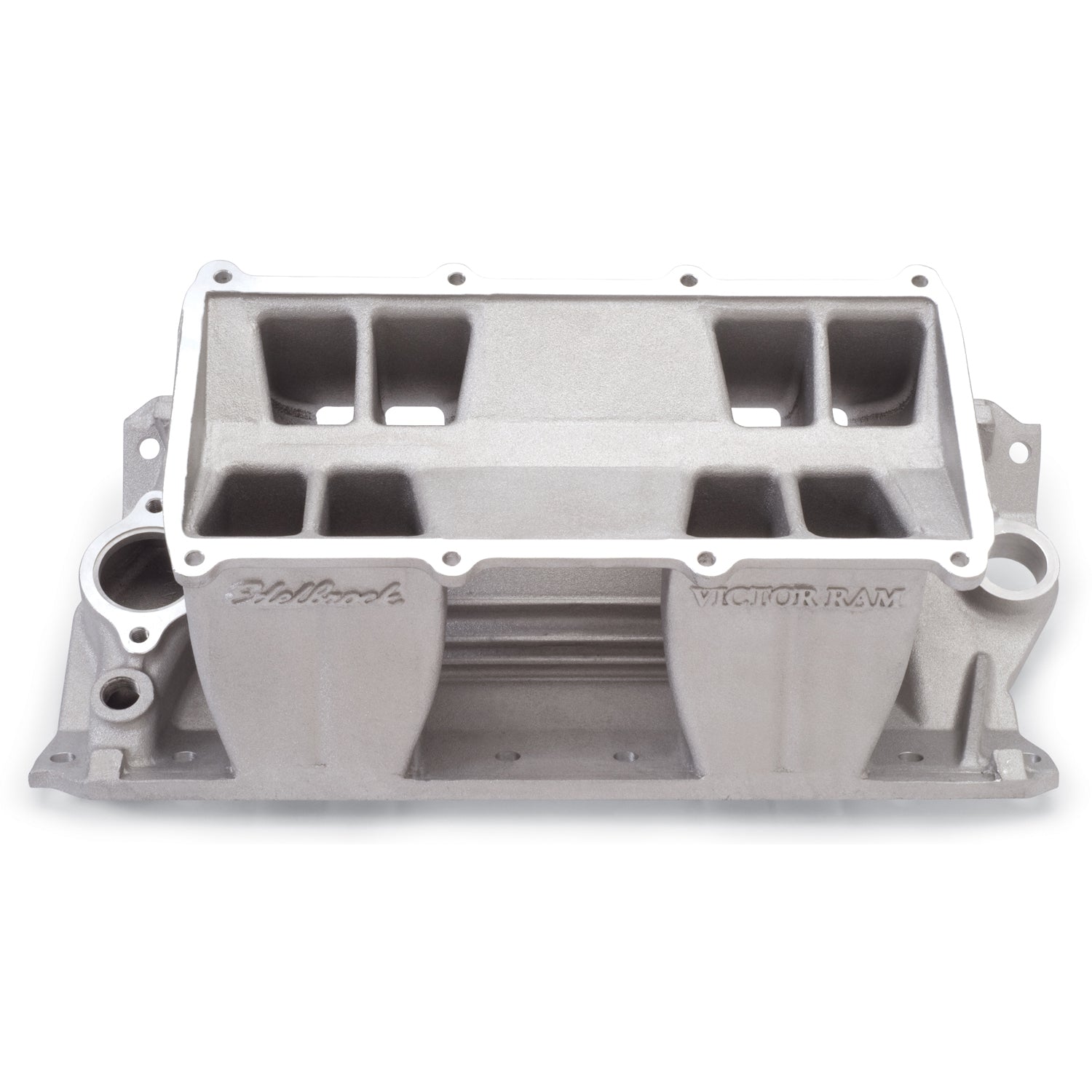

Edelbrock part #7070 Victor Ram 23-degree for Small-Block Chevy is a tunnel ram manifold base for the control of high velocity mixture flow, especially above 8500 rpm. Suited to drag race engines operating at 6500-10,000 rpm and race boat engines above 7000 rpm. Does not fit raised port cylinder heads or 1987 and later cast iron heads.
Edelbrock Engine Intake Manifold 7070
Specifications:
| Series | Victor |
| Vehicle Model | Chevrolet |
| EGR Port | No |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 7.130 |
| Color | Satin |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 6500-10000 |
| Center Maximum Height | 7.130 |
| CNC Ported | No |
| Rear Maximum Height | 7.130 |
| Flange Type | 4150 Dual-Quad |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type | Performance |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Tunnel Ram Base Only SBC |
| Description_LAB | Victor Ram 23-Degree Intake Manifold Base for Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Victor Ram 23 Degree Intake Manifold Base For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #7070 Victor Ram 23-degree for Small-Block Chevy is a tunnel ram manifold base for the control of high velocity mixture flow, especially above 8500 rpm. Suited to drag race engines operating at 6500-10,000 rpm and race boat engines above 7000 rpm. Does not fit raised port cylinder heads or 1987 and later cast iron heads. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1206 |
| Description_TRA | Distance from carburetor center to carburetor center: 8.88" |
| Description_TRA | Manifold top with base height: 9.25" |
| Description_TRA | H.E.I. ignition will not clear manifold |
| Description_TRA | For the heights of all Edelbrock manifolds, please visit the Manifold Reference Dimensions page. http://www.edelbrock.com/automotive/mc/manifolds/reference-dimensions.shtml |
| Description_TRA | H.E.I. ignition will not clear manifold |
| Description_TRA | Base ONL:Y |
| Description_TRA | Match with Edelbrock top #7073 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_DEF | Engine Intake Manifold |
