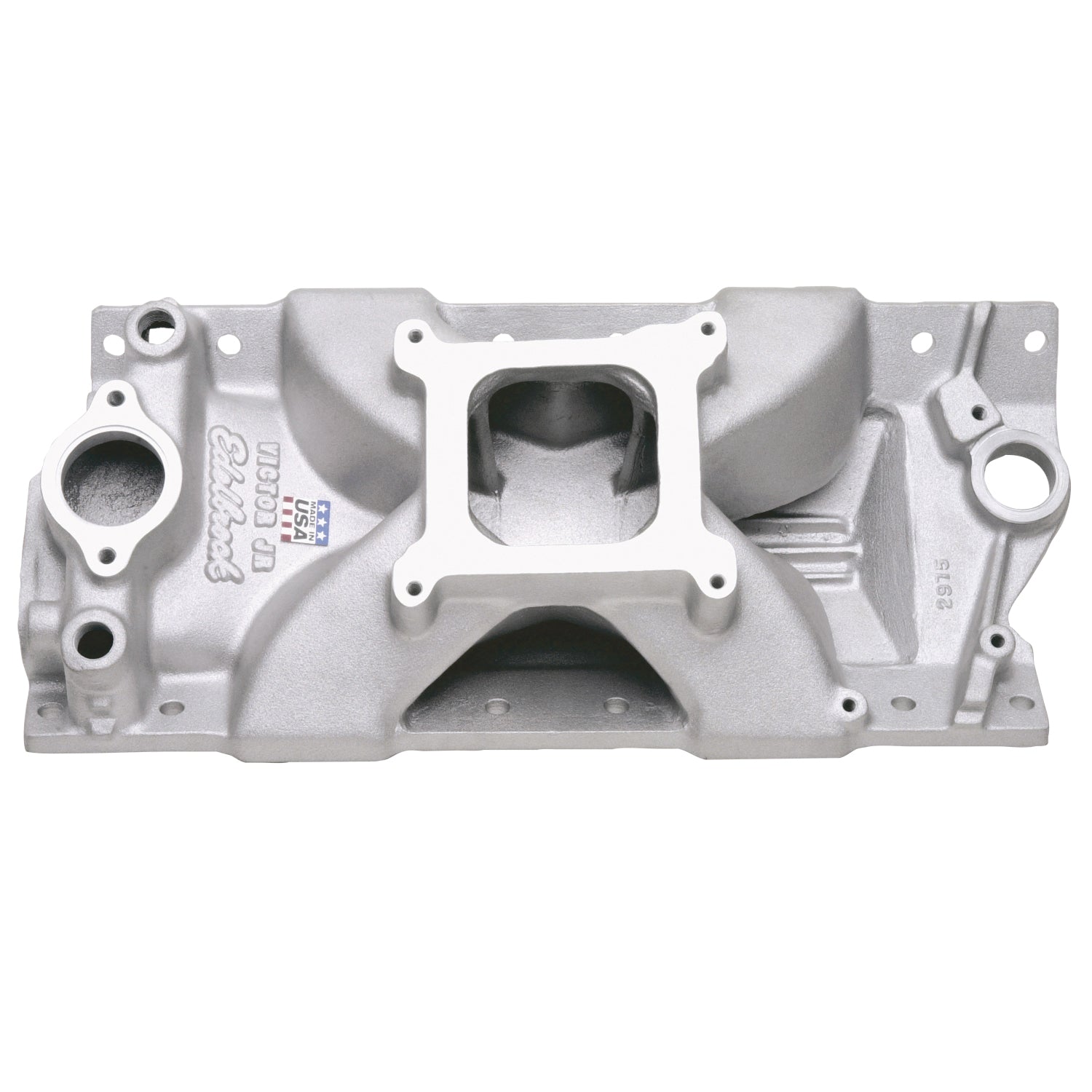

Edelbrock part #2975 Victor Jr. intake manifold is excellent for many applications from drag to circle track racing. This intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Edelbrock Victor Jr. #2975 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Edelbrock Engine Intake Manifold 2975
Specifications:
| Material | Aluminum |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 0.010 |
| Center Maximum Height | 4.580 |
| Flange Type | 4150 |
| Grade Type | Performance |
| CNC Ported | No |
| Rear Maximum Height | 0.010 |
| Basic Operating RPM Range | 3500-8000 |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Gasket Or Seal Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| EGR Port | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Jr SBC Intake Manifold |
| Description_LAB | Victor Jr. 23 Degree Intake Manifold Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Victor Jr. 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #2975 Victor Jr. intake manifold is excellent for many applications from drag to circle track racing. This intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Edelbrock Victor Jr. #2975 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_DEF | Engine Intake Manifold |
