*item may differ from images

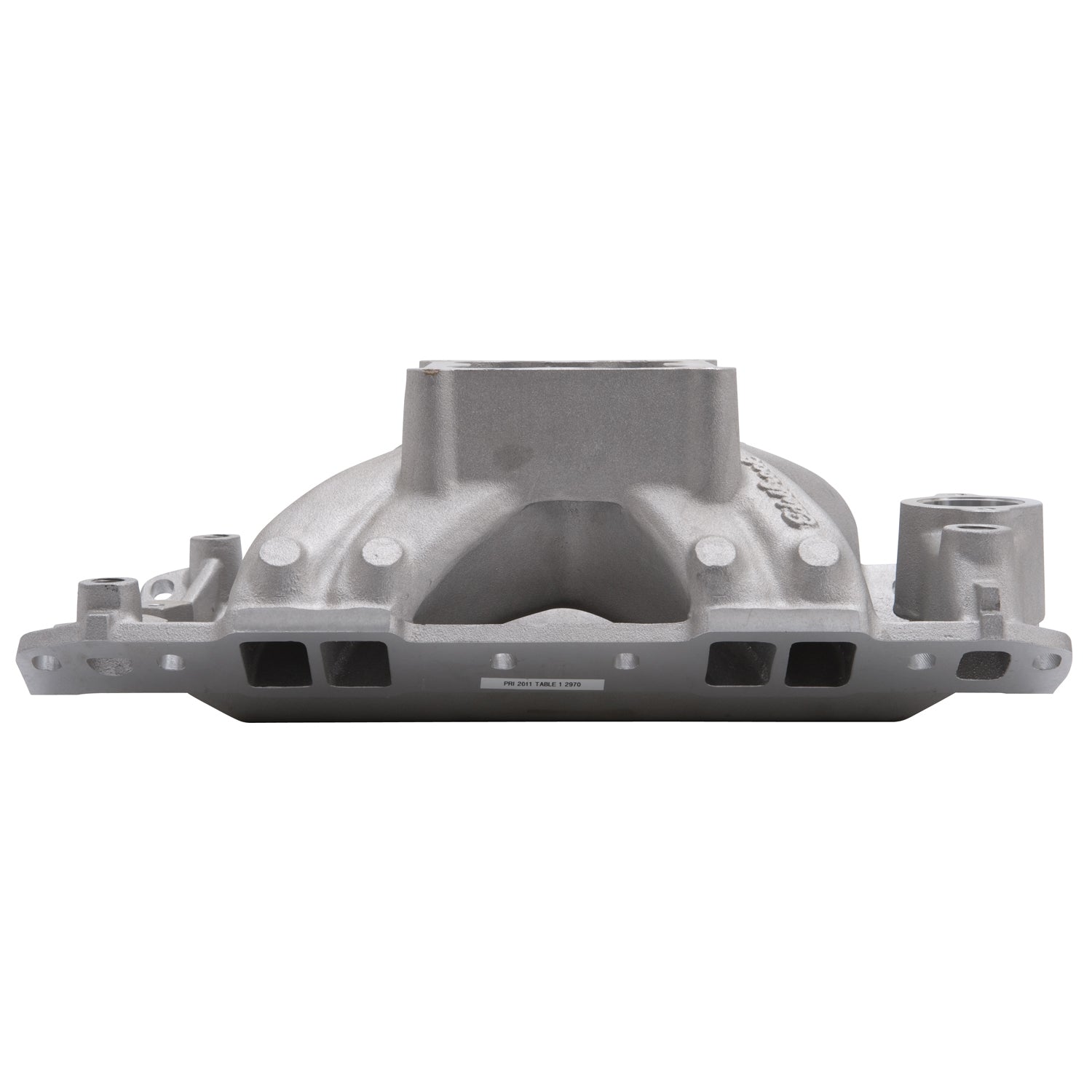

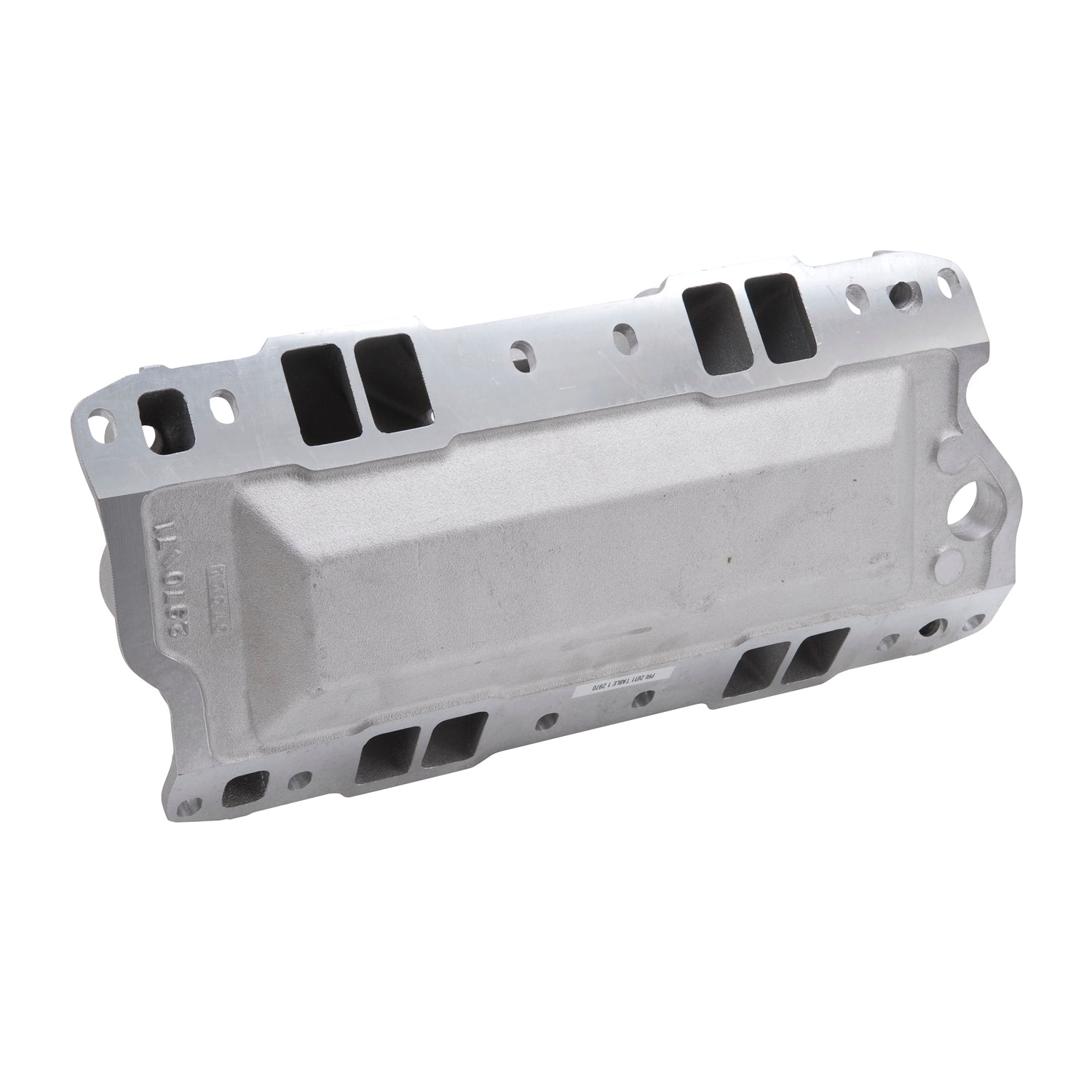

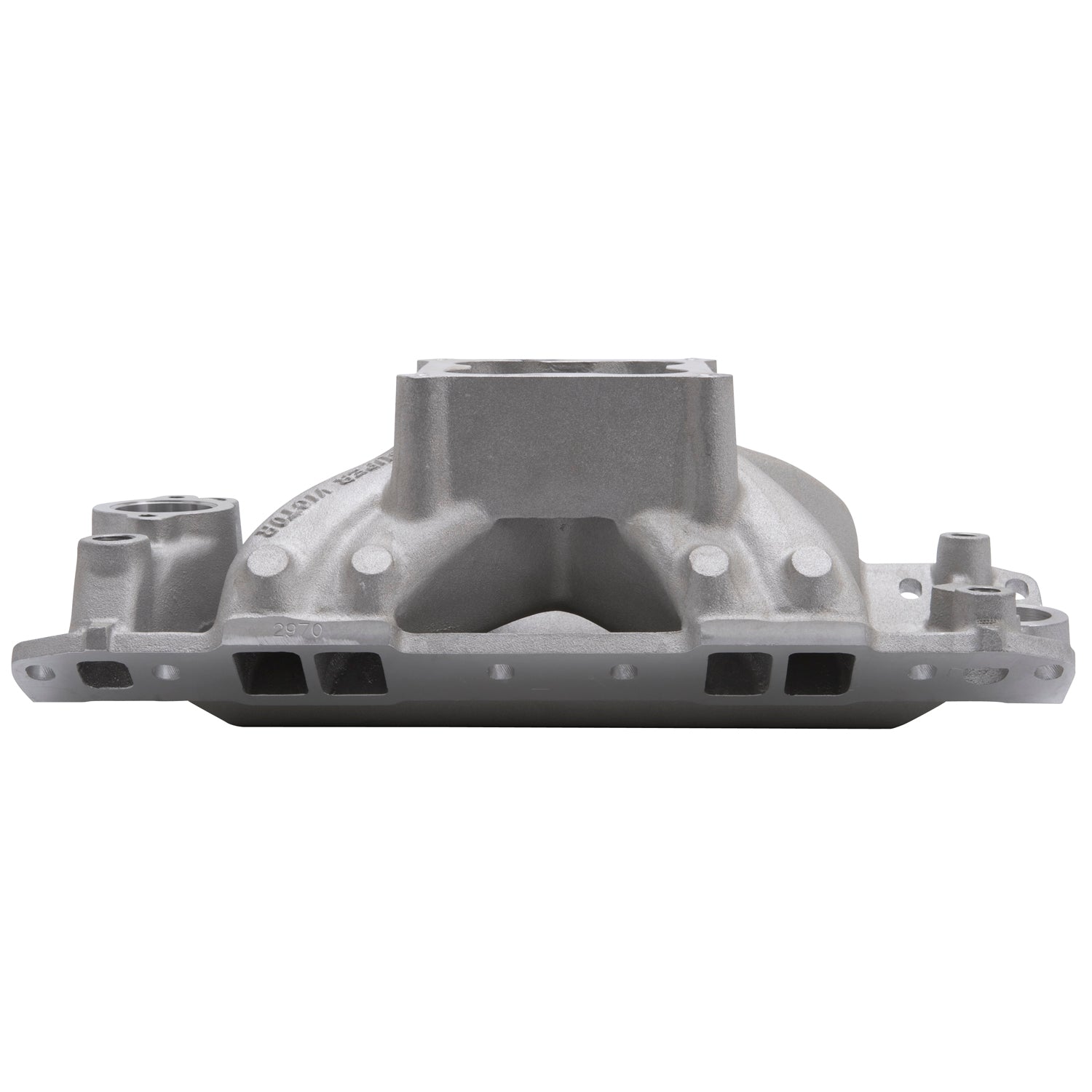

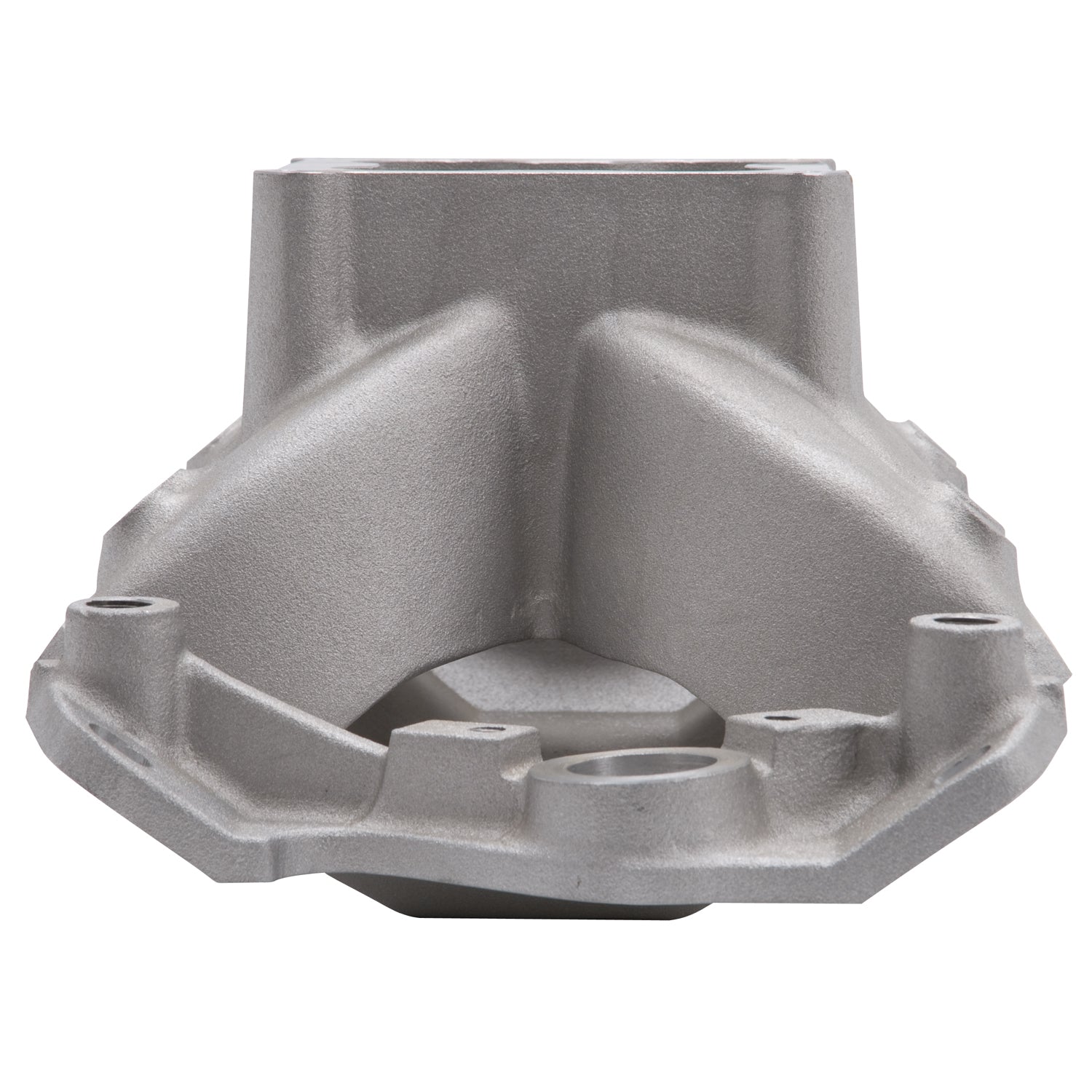

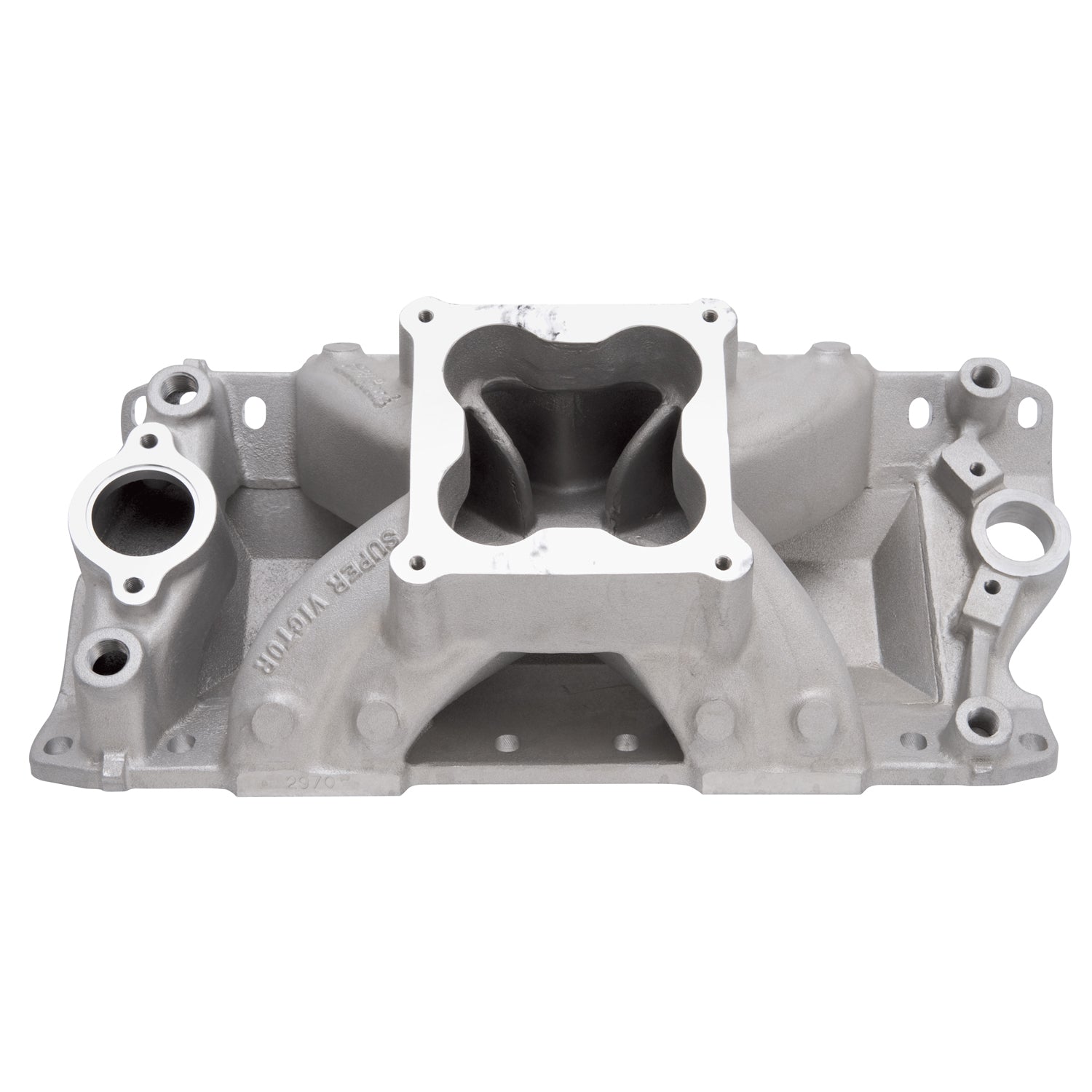

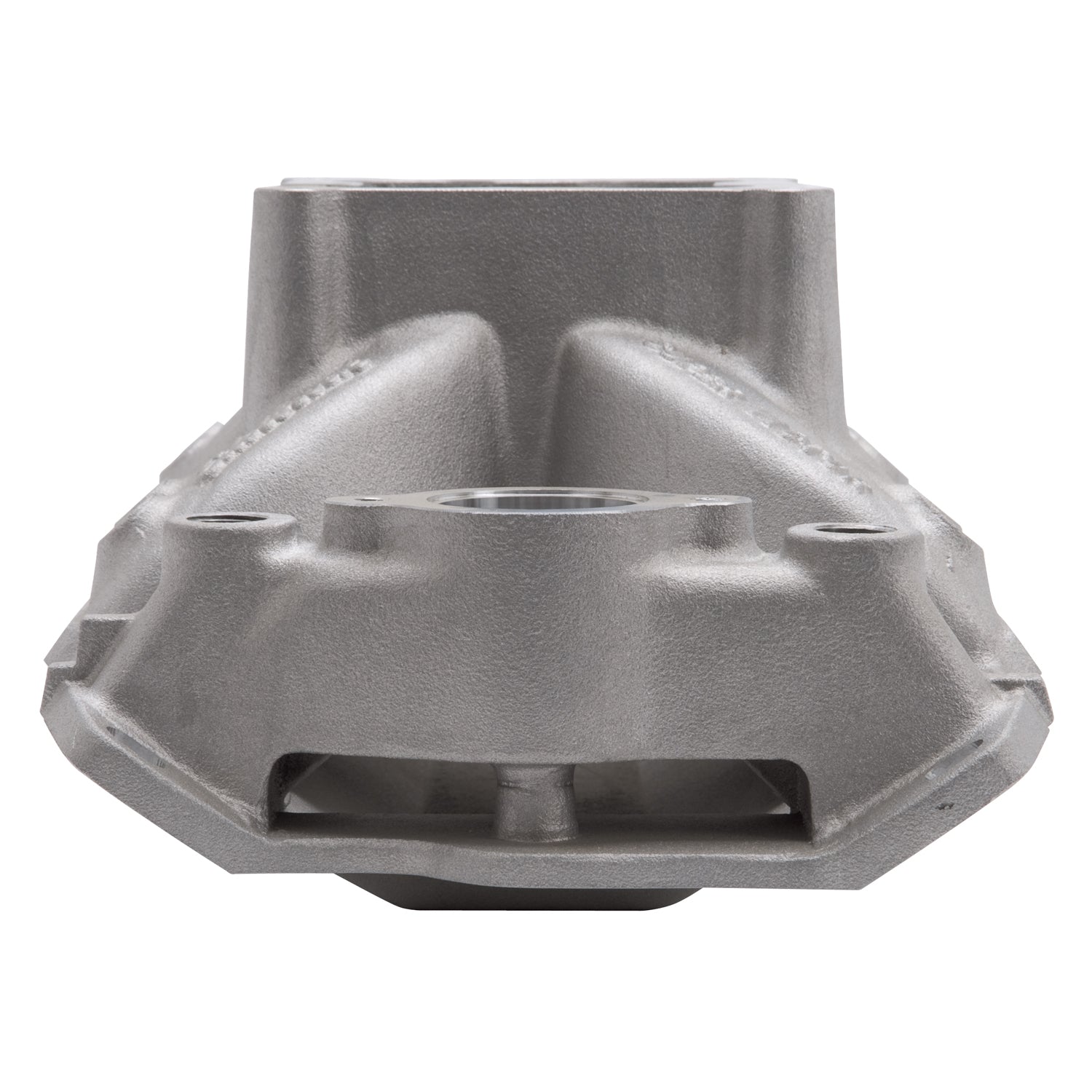

Edelbrock part #2970 Super Victor 4500 23 degree standard port location intake manifold is designed for small-block Chevys with 4500 Series carburetors and 23 degree heads. This intake manifold has a large runner cross-sectional area (3.2 square inches) and a highly efficient cloverleaf plenum design. In dyno tests on a 358-inch small-block, #2970 made 10 horsepower more than the best competitor's manifold!
Edelbrock Engine Intake Manifold 2970
Specifications:
| Basic Operating RPM Range | 3500-8000 |
| Rear Maximum Height | 6.360 |
| CNC Ported | No |
| Vehicle Model | Chevrolet |
| Flange Type | 4500 |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 6.360 |
| Gasket Or Seal Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Center Maximum Height | 6.360 |
| EGR Port | No |
| Finish | Satin |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor 4500 SBC Intake Manifold |
| Description_LAB | Super Victor 4500 23 Degree Intake Manifold Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Super Victor 4500 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #2970 Super Victor 4500 23 degree standard port location intake manifold is designed for small-block Chevys with 4500 Series carburetors and 23 degree heads. This intake manifold has a large runner cross-sectional area (3.2 square inches) and a highly efficient cloverleaf plenum design. In dyno tests on a 358-inch small-block, #2970 made 10 horsepower more than the best competitor's manifold! |
| Description_TRA | Recommended intake gasket: Edelbrock #7217, Fel-Pro #1206 or larger |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | It is the responsibility of the end user to verify conformity to a particular racing association's rules regarding manifold dimensions, fitment to a template, etc. |
| Description_DEF | Engine Intake Manifold |
