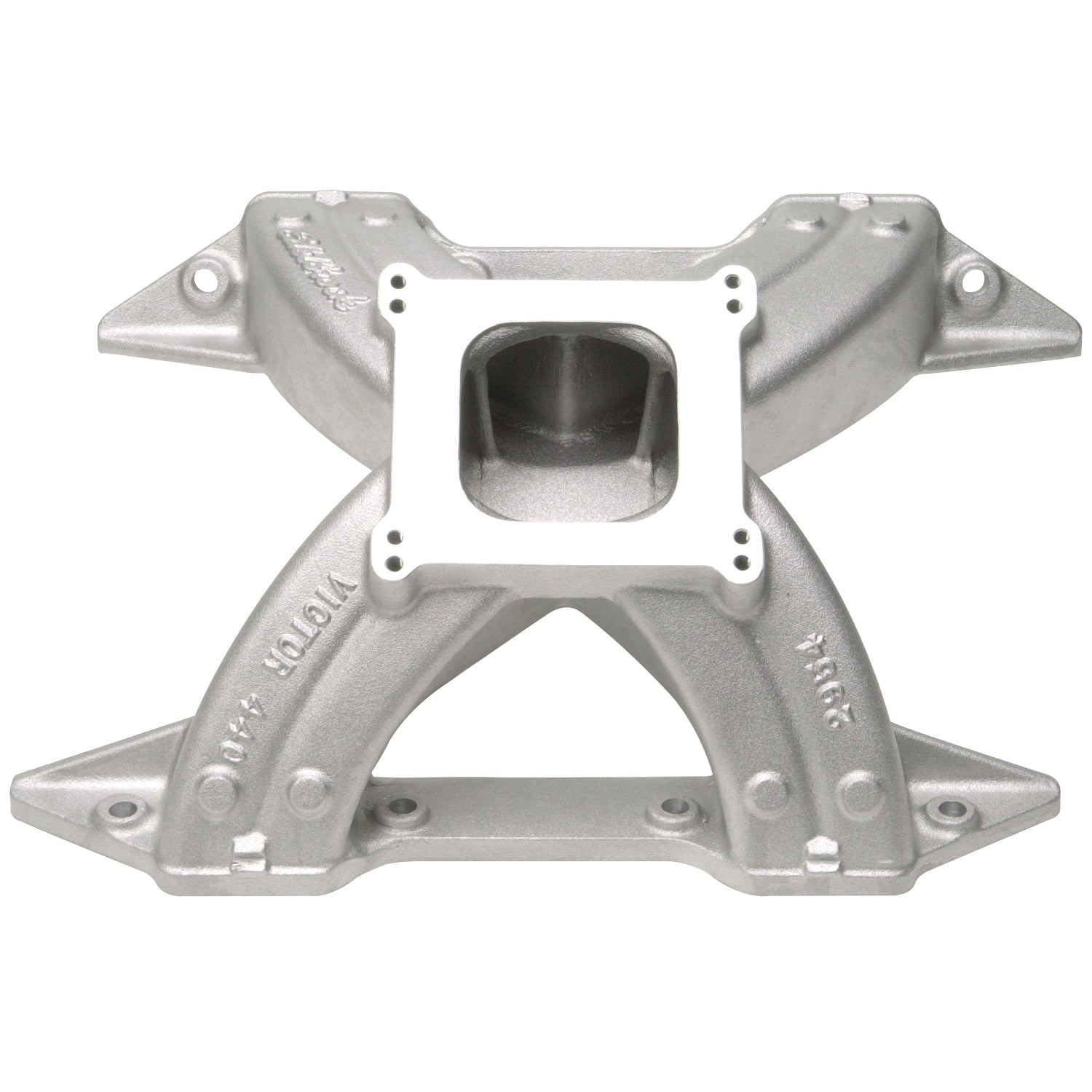

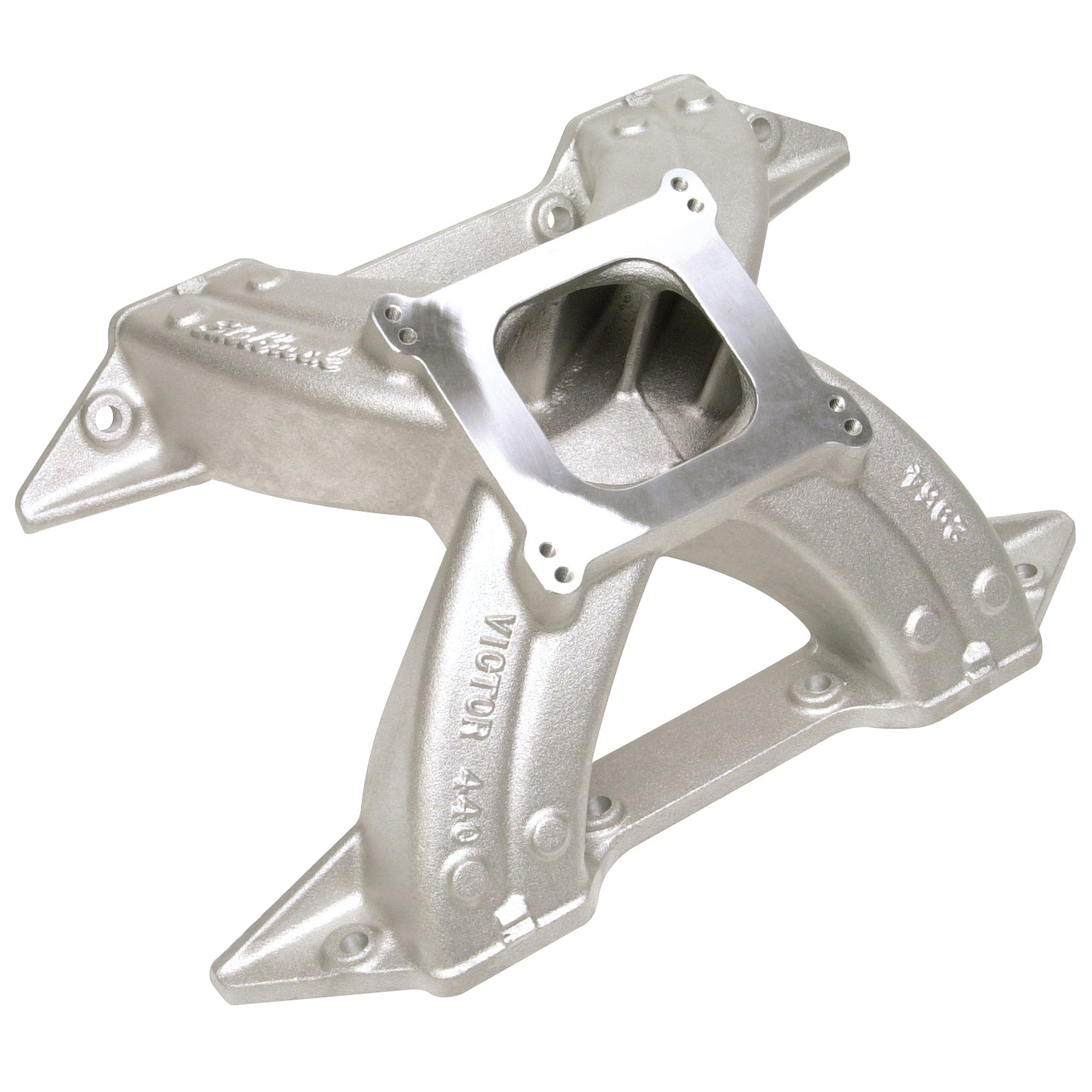

Edelbrock part #2954 Victor 440 intake manifold is for competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. This Victor 440 has an all-new runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold includes nitrous bosses and is designed for square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads.
Edelbrock Engine Intake Manifold 2954
Specifications:
| Flange Type | 4150 |
| CNC Ported | No |
| Material | Aluminum |
| Single Or Dual Plane Type | Single |
| Grade Type | Performance |
| Rear Maximum Height | 6.250 |
| Finish | Satin |
| Center Maximum Height | 6.250 |
| EGR Port | No |
| Vehicle Model | Chrysler |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Front Maximum Height | 6.250 |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor 413-440 Chrysler Intake Manifold |
| Description_LAB | Victor Chrysler 440 Intake Manifold |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_EXT | Edelbrock Victor 440 Intake Manifold for Chrysler 413-426-440 Big-Block V8 RB Block |
| Description_MKT | Edelbrock part #2954 Victor 440 intake manifold is for competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. This Victor 440 has an all-new runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold includes nitrous bosses and is designed for square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads. |
| Description_TRA | Recommended intake gasket: Edelbrock #7225. |
| Description_TRA | Manifold height: A-6.10", B-6.10" |
| Description_TRA | Port exit dimensions: 1.15" x 2.17" |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
