Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads.

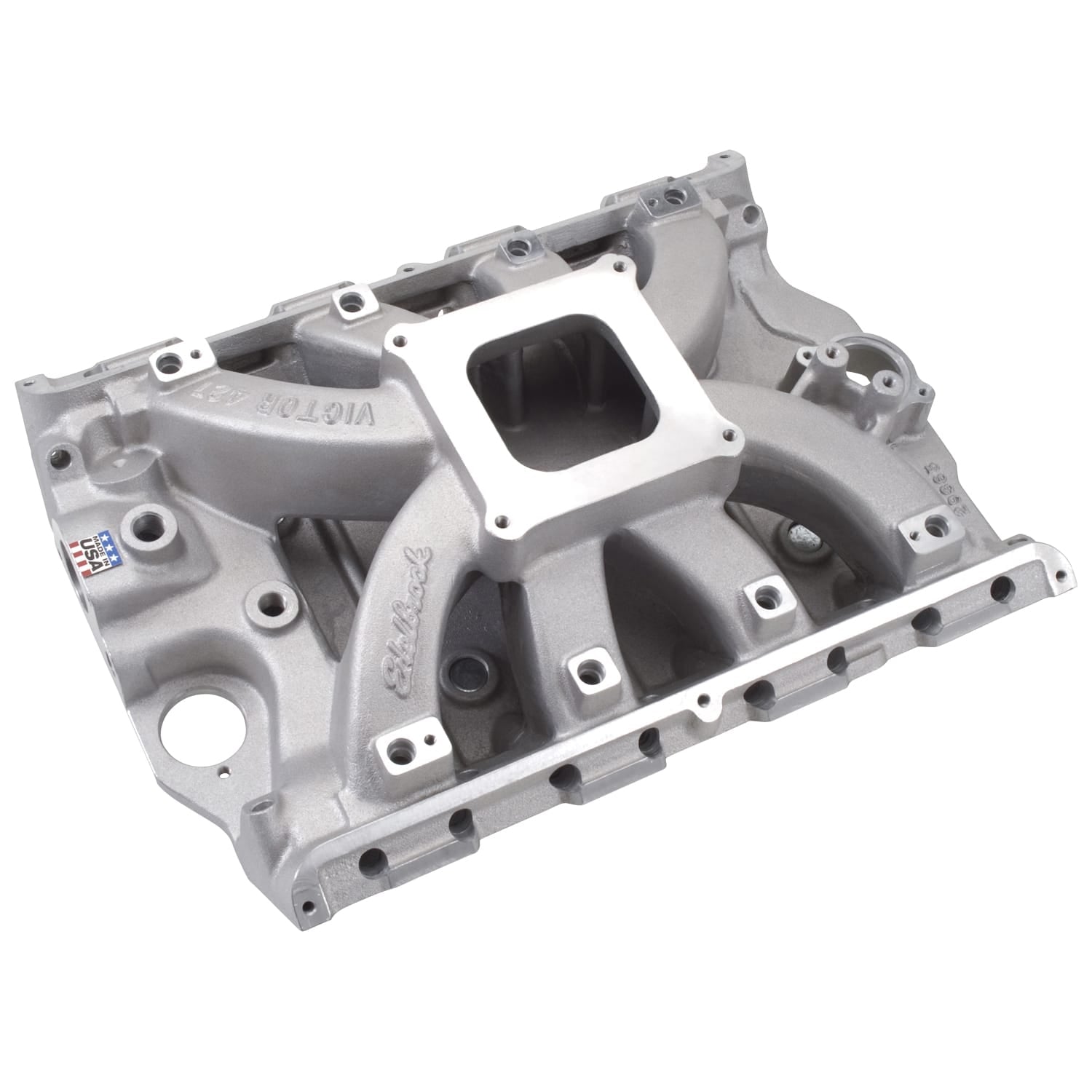

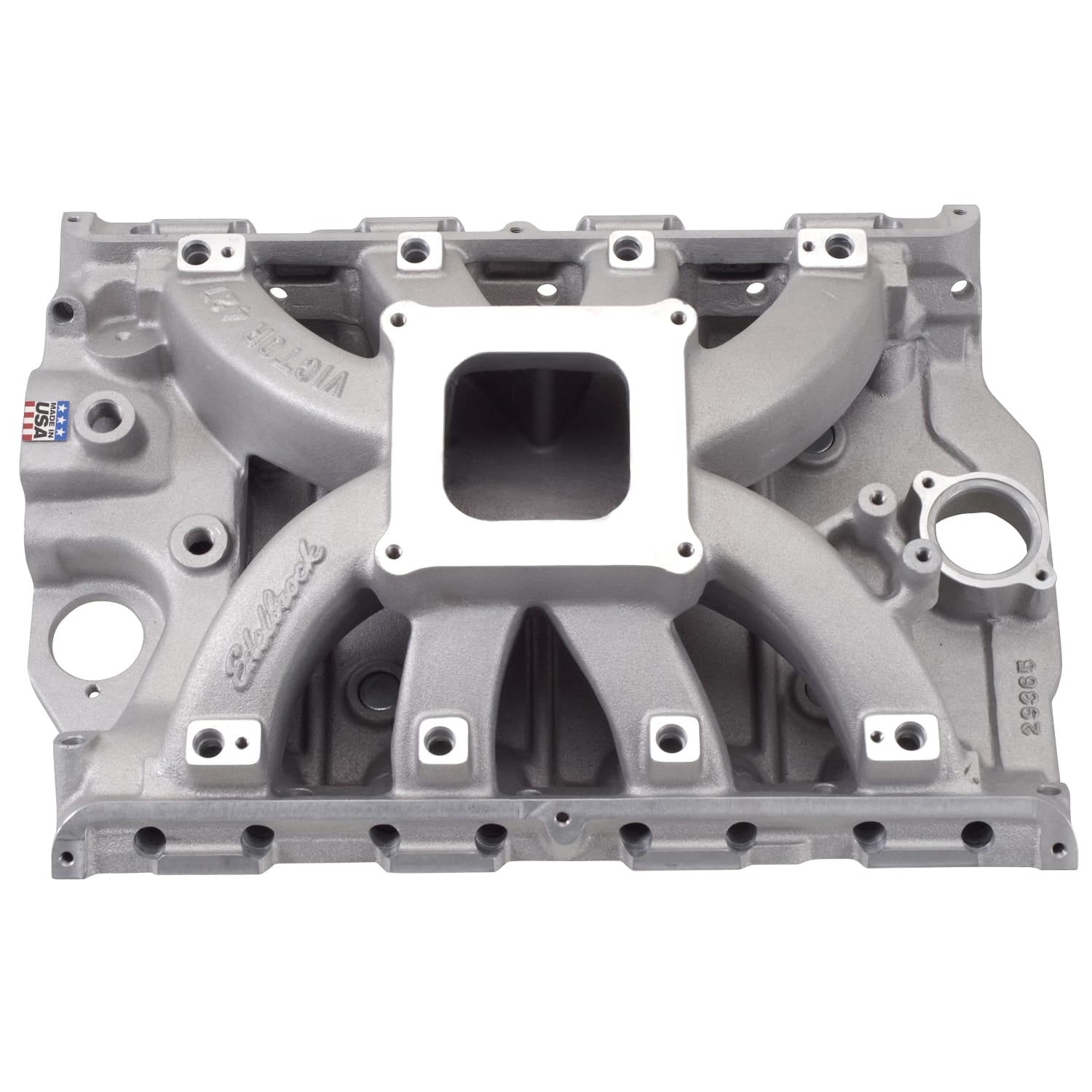

Edelbrock Engine Intake Manifold 29365
Specifications:
| Gasket Or Seal Included | No |
| Rear Maximum Height | 6.490 |
| Finish | Satin |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type | Performance |
| Basic Operating RPM Range | 4000-8000 |
| Front Maximum Height | 6.490 |
| Flange Type | 4150 |
| CNC Ported | No |
| Vehicle Model | Ford |
| Center Maximum Height | 6.490 |
| EGR Port | No |
| Series | Victor |
| Material | Aluminum |
| Single Or Dual Plane Type | Single |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Victor FE Standard Flange Intake |
| Description_LAB | Victor Ford FE EFI Intake Manifold |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_EXT | Edelbrock Victor FE EFI Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_MKT | Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1247 |
| Description_TRA | Manifold height: A-6.49", B-6.49" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
