*item may differ from images

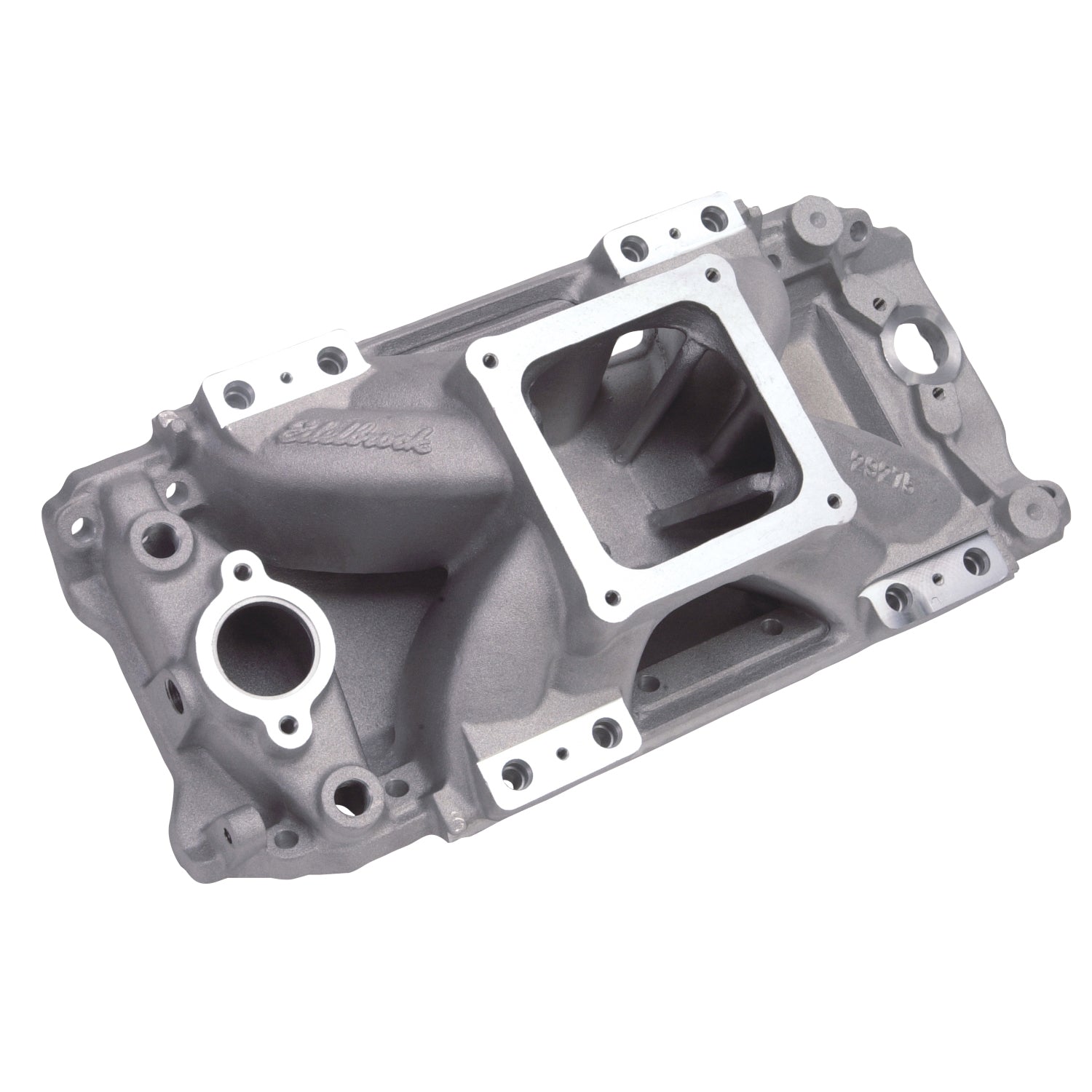

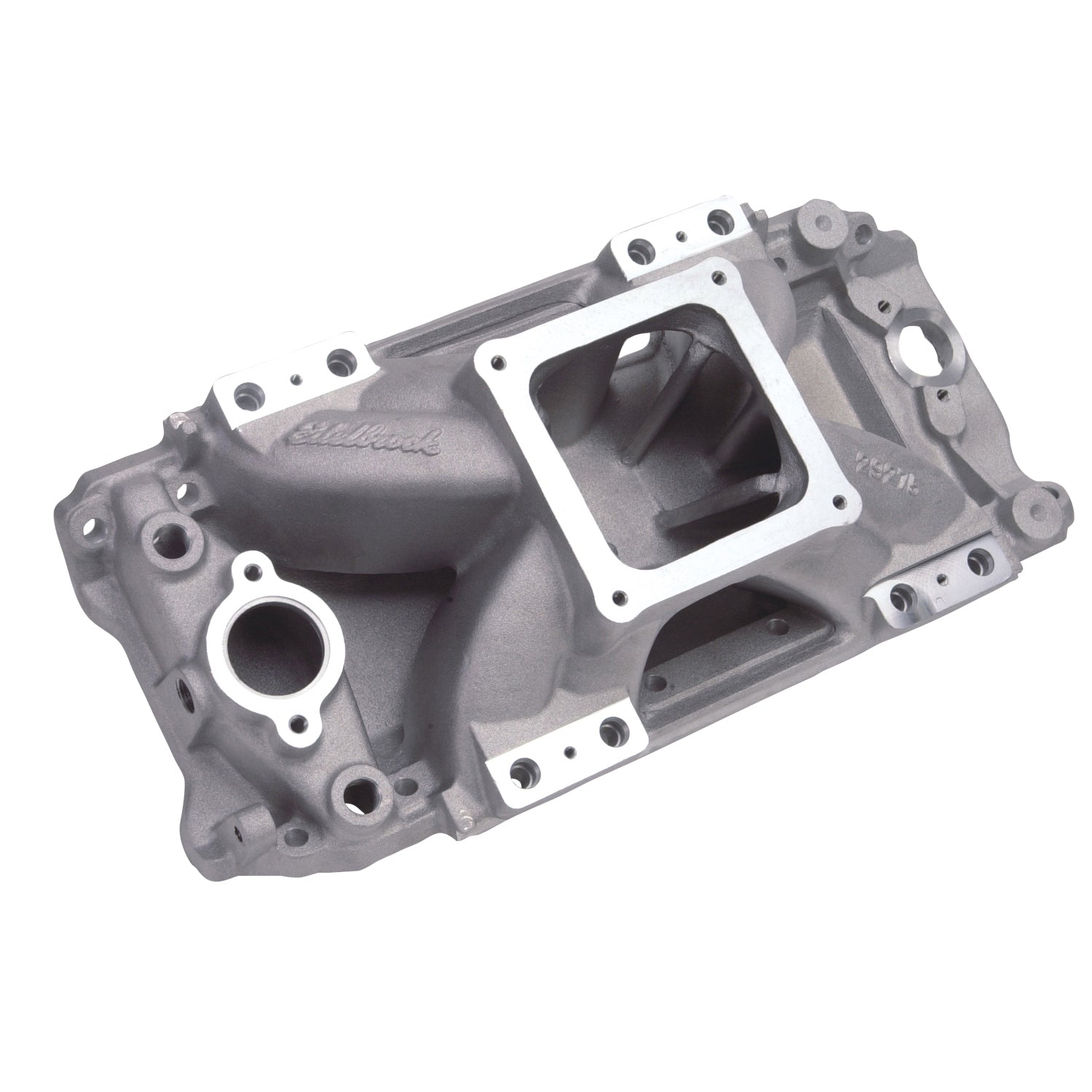

Edelbrock part #29275 Super Victor BBC EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. It features a single-plane design that is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29275 EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces.
Edelbrock Engine Intake Manifold 29275
Specifications:
| Gasket Or Seal Included | No |
| Center Maximum Height | 6.200 |
| Flange Type | 4500 |
| Series | Victor |
| Vehicle Model | Chevrolet |
| CNC Ported | No |
| Material | Aluminum |
| Finish | Satin |
| Basic Operating RPM Range | 3500-8500 |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 6.200 |
| EGR Port | No |
| Rear Maximum Height | 6.200 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Super Victor BBC STD Deck Intake |
| Description_LAB | Super Victor Big Block Chevy EFI Intake Manifold |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_EXT | Edelbrock Super Victor 454 BBC EFI Intake Manifold For Chevrolet 500+ Ci. Big-Block V8 |
| Description_MKT | Edelbrock part #29275 Super Victor BBC EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. It features a single-plane design that is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29275 EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces. |
| Description_TRA | Recommended intake gasket: Edelbrock #7208, Fel-Pro #1275 |
| Description_TRA | Throttle body recommendations: Use Edelbrock #3879 4500 style or #3814 EFI elbow and #3869 90mm throttle body. |
| Description_TRA | Manifold height: A-6.20", B-6.20" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
