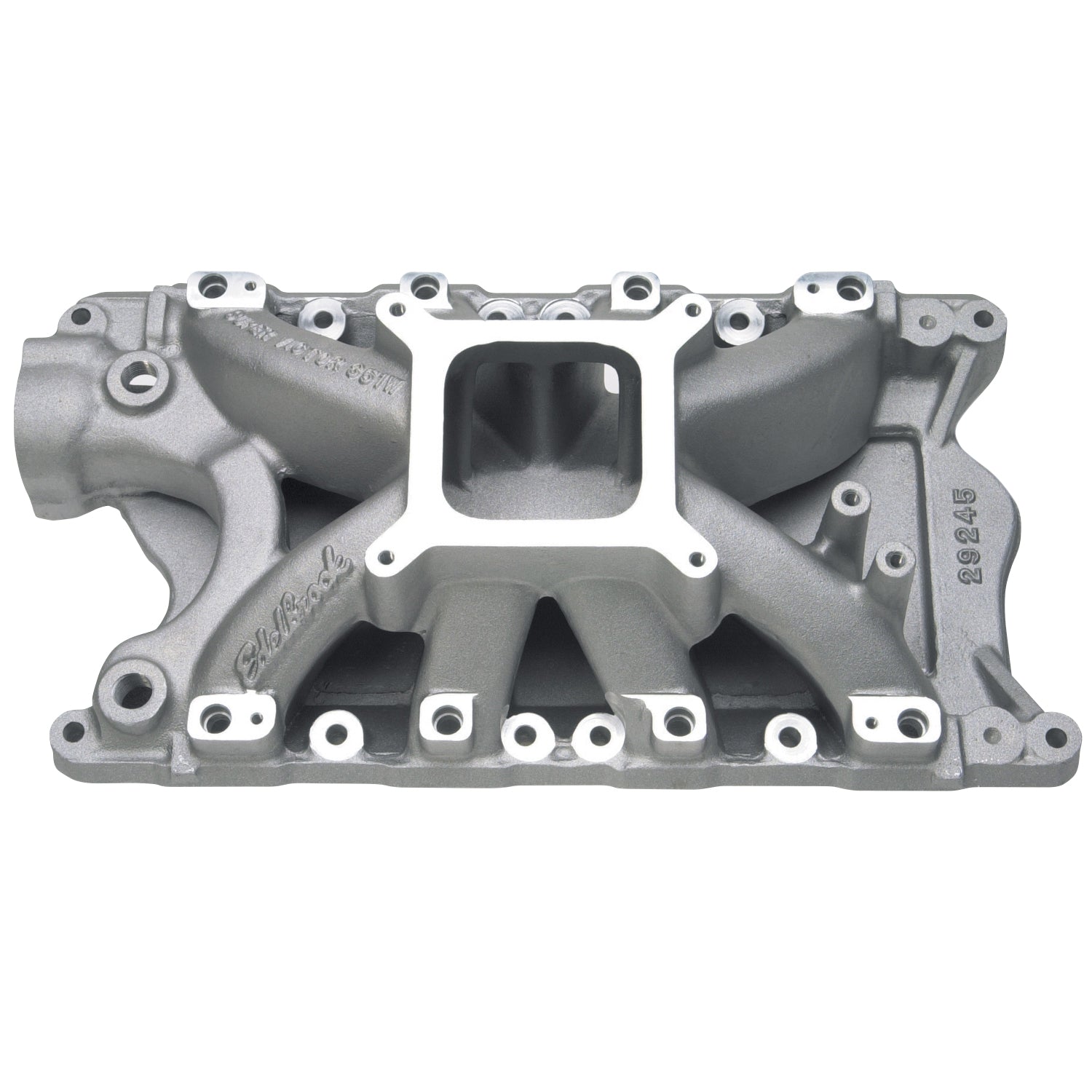

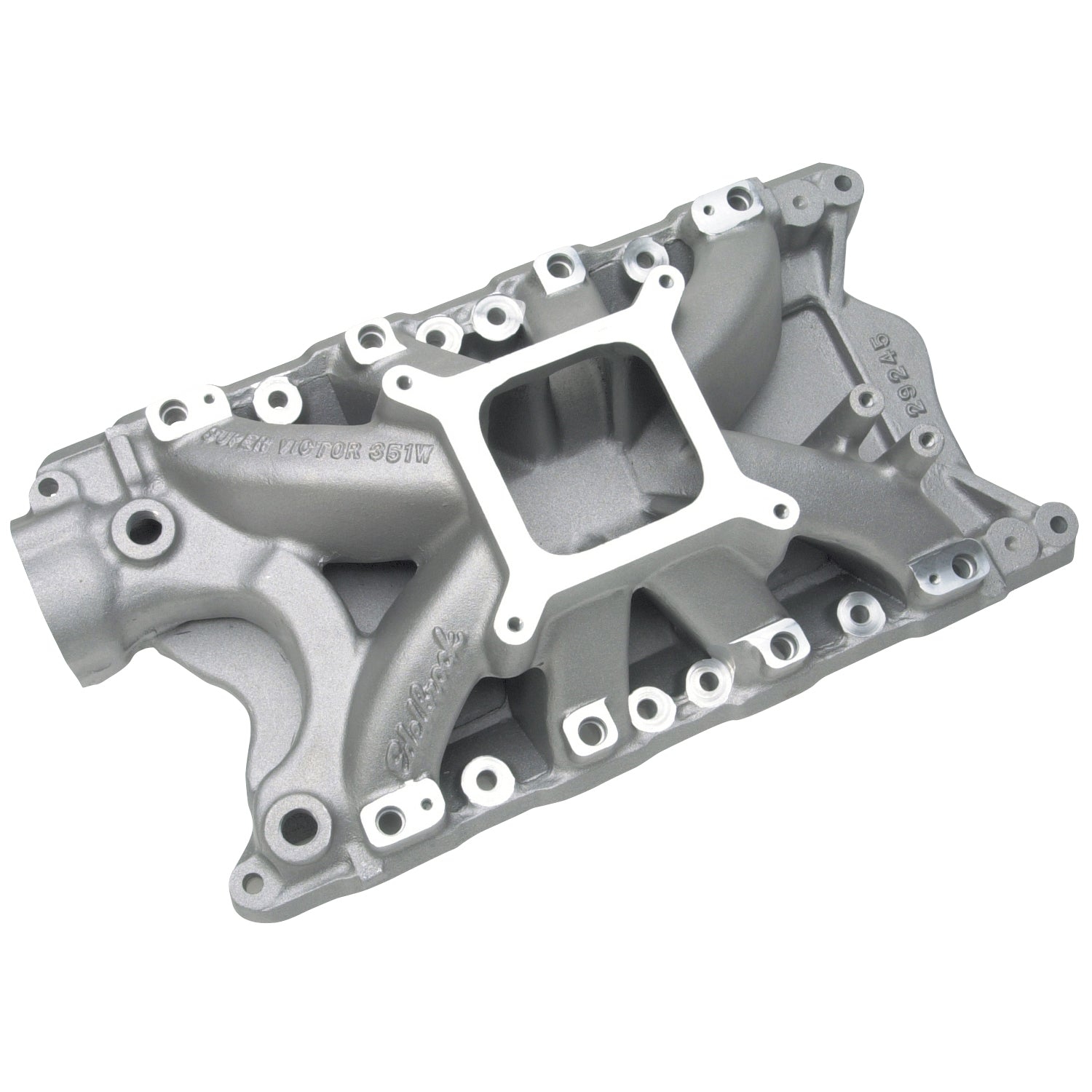

Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.
Edelbrock Engine Intake Manifold 29245
Specifications:
| Basic Operating RPM Range | 4500-8500 |
| Grade Type | Performance |
| Front Maximum Height | 6.250 |
| CNC Ported | No |
| Material | Aluminum |
| Finish | Satin |
| Single Or Dual Plane Type | Single |
| Gasket Or Seal Included | No |
| Series | Victor |
| Center Maximum Height | 6.250 |
| Vehicle Model | Ford |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type | 4150 |
| Rear Maximum Height | 6.250 |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Super Victor 351W Intake Manifold |
| Description_LAB | Super Victor EFI Small Block Ford 351W Intake Manifold |
| Description_ASM | Ford:Small-Block Windsor:351 (5.8L) |
| Description_EXT | Edelbrock Super Victor EFI 351W (9.5" deck) Intake Manifold for Ford 351-427 Small-Block Windsor V8 |
| Description_MKT | Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V |
| Description_TRA | or use #3849 EFI elbow and Ford style single 90mm throttle body #3818 |
| Description_TRA | Fuel rail kit: Edelbrock #3620 |
| Description_TRA | MSD distributor #8578 must be used to clear the front water crossover. |
| Description_TRA | Manifold height: A-6.25", B-6.25" |
| Description_DEF | Engine Intake Manifold |
