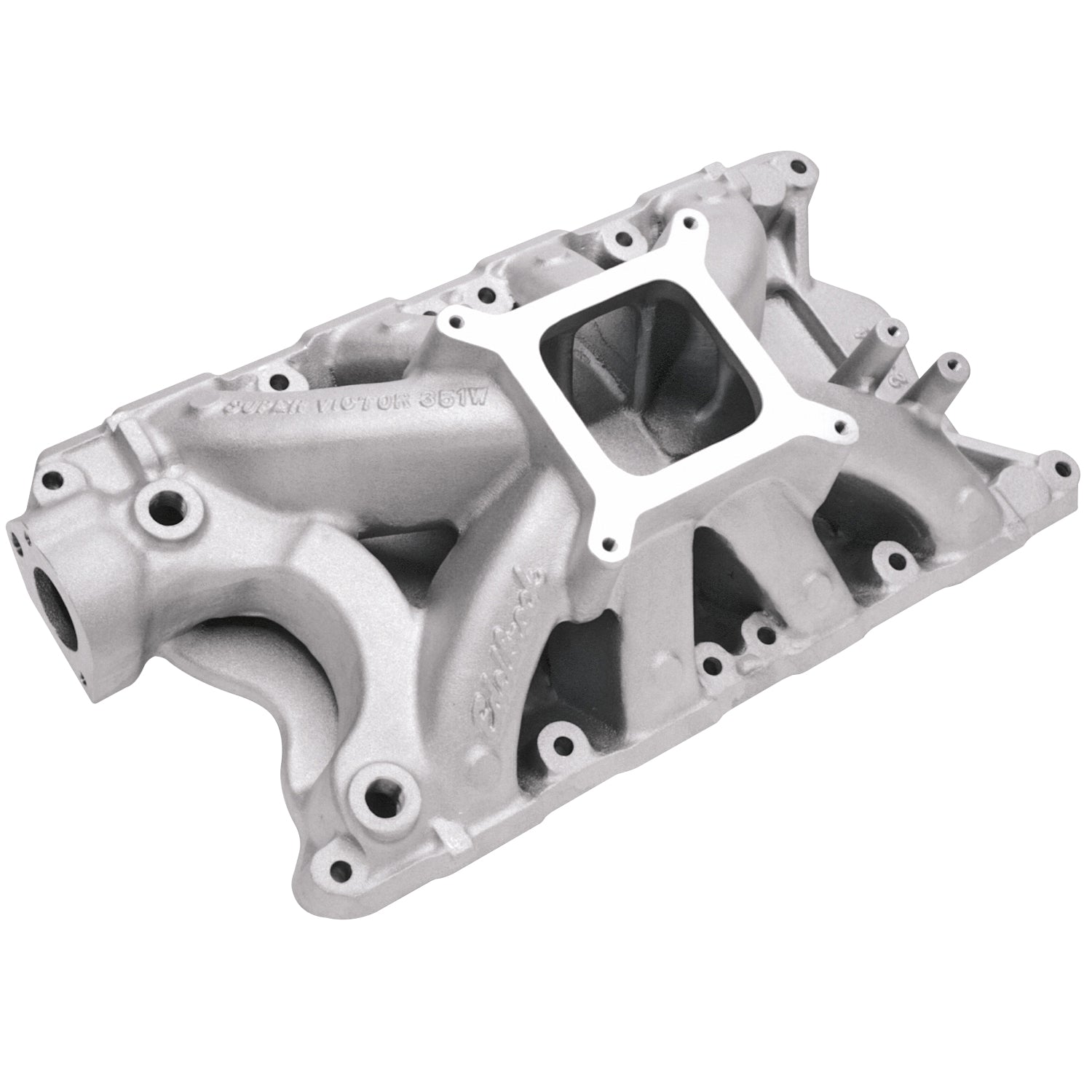

Edelbrock part #2924 Super Victor 351W intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5" which are used in drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area. This Super Victor is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Edelbrock Engine Intake Manifold 2924
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Rear Maximum Height | 6.250 |
| Center Maximum Height | 6.250 |
| EGR Port | No |
| Vehicle Model | Ford |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 6.250 |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Finish | Satin |
| Basic Operating RPM Range | 4500-8500 |
| Flange Type | 4150 |
| Grade Type | Performance |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor 351W Intake Manifold |
| Description_LAB | Super Victor 351W Intake Manifold Small-Block Ford |
| Description_ASM | Ford:Small-Block Windsor:351 (5.8L) |
| Description_EXT | Edelbrock Super Victor 351W (9.5" deck) Intake Manifold for Ford 351-427 Small-Block Windsor V8 |
| Description_MKT | Edelbrock part #2924 Super Victor 351W intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5" which are used in drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area. This Super Victor is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R |
| Description_TRA | MSD distributor #8578 must be used to clear the front water crossover. |
| Description_TRA | Manifold height: A-6.25", B-6.25" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
