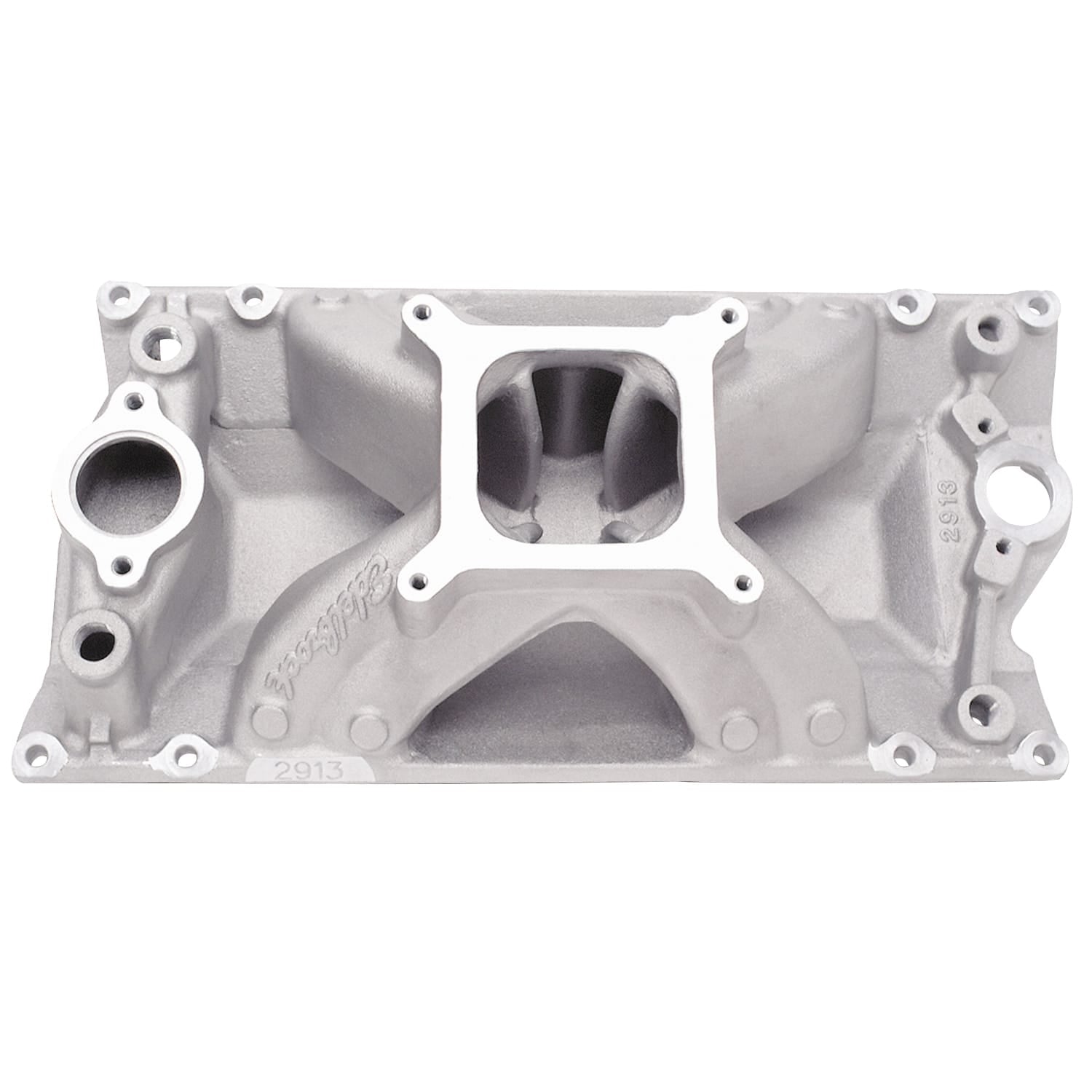

Edelbrock part #2913 Super Victor Vortec intake manifold is designed for racers using Vortec cast iron or Edelbrock E-Tec aluminum cylinder heads. This manifold offers the same awesome top-end horsepower, throttle response and advanced design features as Super Victor #2925. Designed specifically to enhance the performance of the Vortec cylinder heads (also known as L31), the #2913 is the most powerful intake available for these Chevy production heads. Runners have a 2.60 square-inch cross-section.
Edelbrock Engine Intake Manifold 2913
Specifications:
| Series | Victor |
| Vehicle Model | Chevrolet |
| Gasket Or Seal Included | No |
| Material | Aluminum |
| Basic Operating RPM Range | 4000-8000 |
| Single Or Dual Plane Type | Single |
| Rear Maximum Height | 5.630 |
| Flange Type | 4150 |
| Grade Type | Performance |
| CNC Ported | No |
| Front Maximum Height | 5.630 |
| Center Maximum Height | 5.630 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Description_TRA | Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor E-tec/Vortec Intake Manfld |
| Description_LAB | Super Victor Vortec Intake Manifold Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec |
| Description_EXT | Edelbrock Super Victor Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #2913 Super Victor Vortec intake manifold is designed for racers using Vortec cast iron or Edelbrock E-Tec aluminum cylinder heads. This manifold offers the same awesome top-end horsepower, throttle response and advanced design features as Super Victor #2925. Designed specifically to enhance the performance of the Vortec cylinder heads (also known as L31), the #2913 is the most powerful intake available for these Chevy production heads. Runners have a 2.60 square-inch cross-section. |
| Description_TRA | Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
| Description_TRA | Carb pad height: 5.63" |
| Description_TRA | Port exit dimensions: 2.09" tall with slanted side walls |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_DEF | Engine Intake Manifold |
