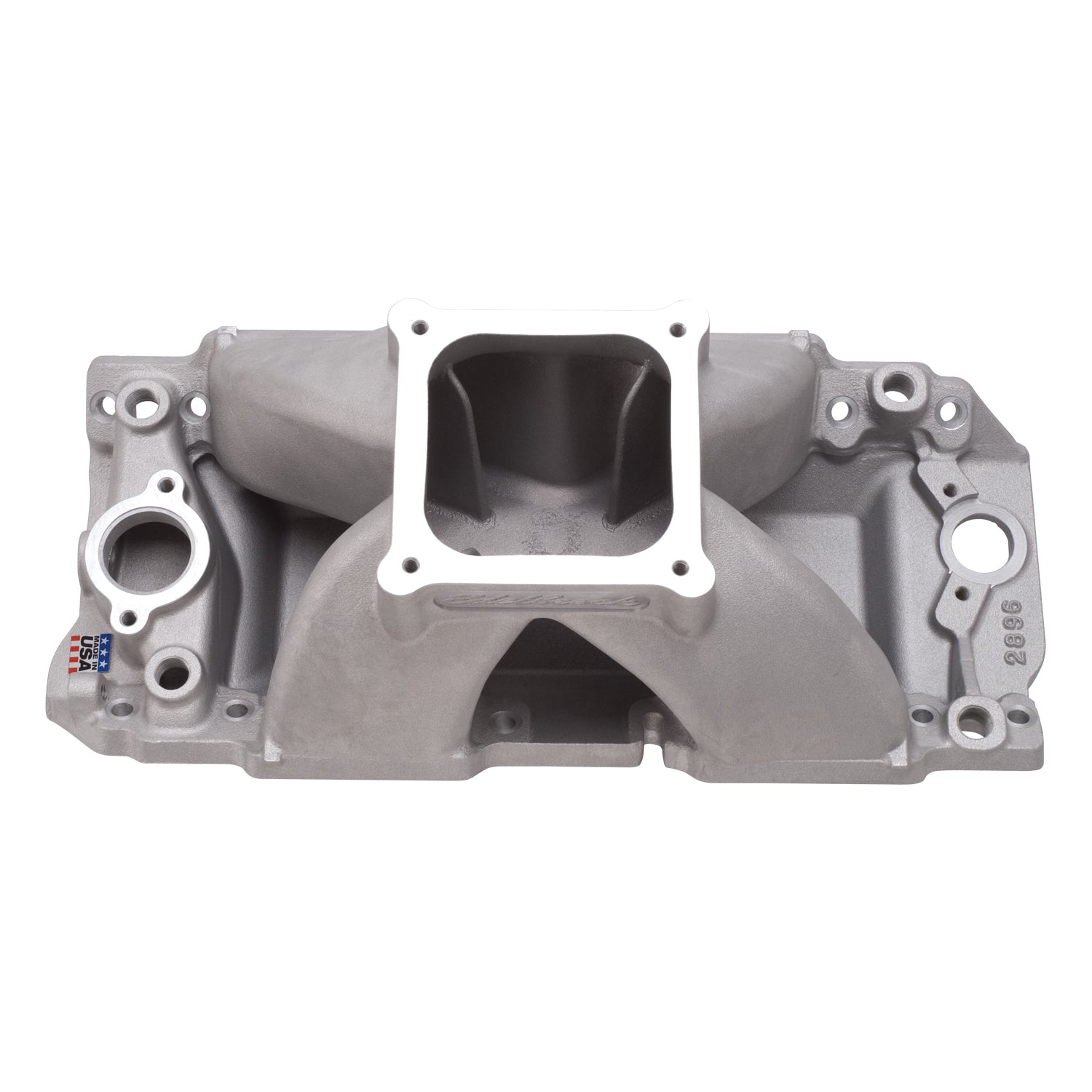

Edelbrock part #2896 Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Edelbrock Engine Intake Manifold 2896
Specifications:
| Center Maximum Height | 7.560 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Vehicle Model | Chevrolet |
| CNC Ported | No |
| Grade Type | Performance |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-8500 |
| Rear Maximum Height | 7.560 |
| Finish | Satin |
| Front Maximum Height | 7.560 |
| Single Or Dual Plane Type | Single |
| EGR Port | No |
| Flange Type | 4500 |
| Description_INV | Super Victor 2 BBC 9.8 Deck STD Deck |
| Description_LAB | Super Victor II BBC Intake Manifold V8 9.8" Deck |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_EXT | Edelbrock Super Victor II Intake Manifold for Standard Deck Chevrolet Big-Block V8 |
| Description_DEF | Engine Intake Manifold |
| Description_MKT | Edelbrock part #2896 Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1275 |
| Description_TRA | Manifold height: A-7.56", B-7.56" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_ABR | Intake Mnfld |
