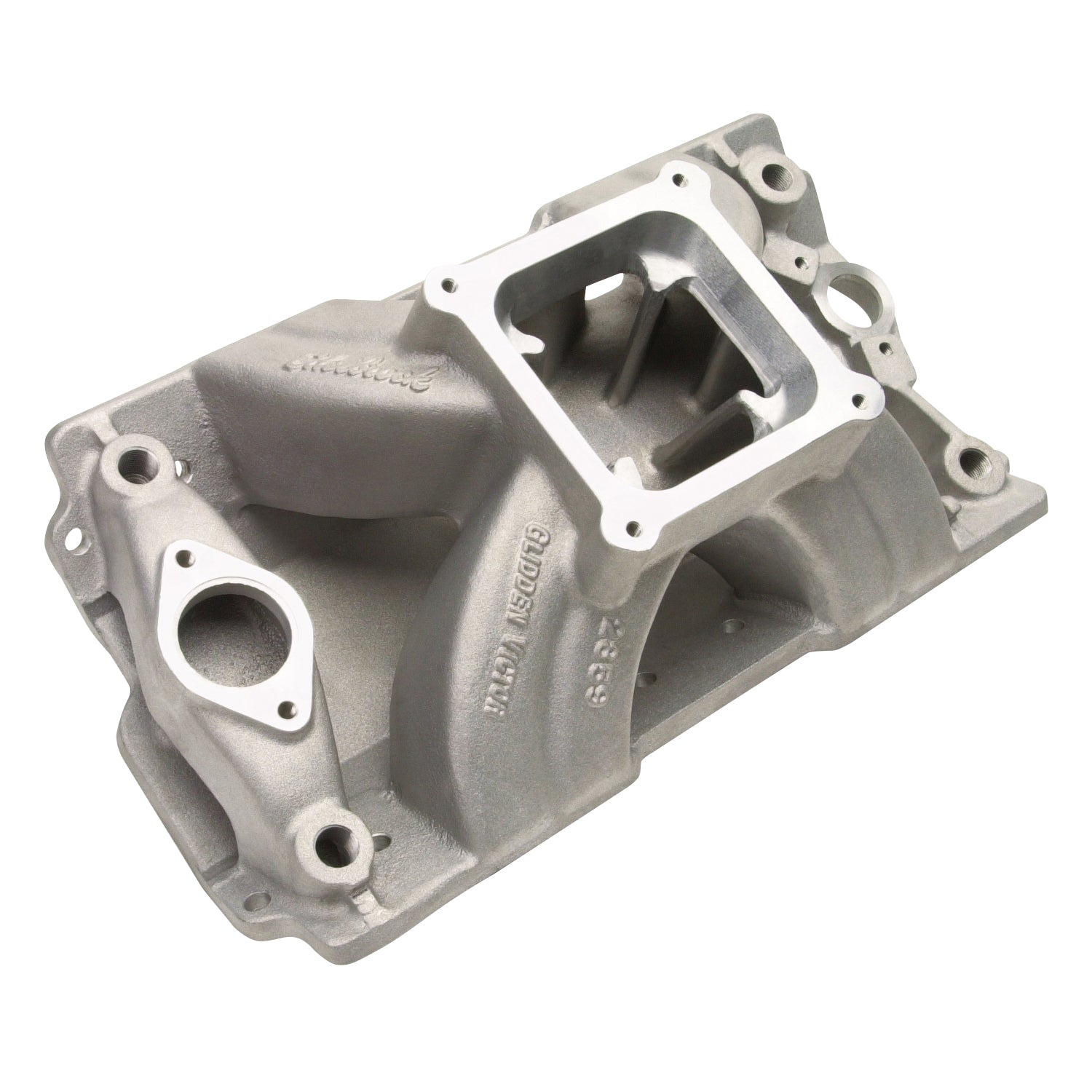

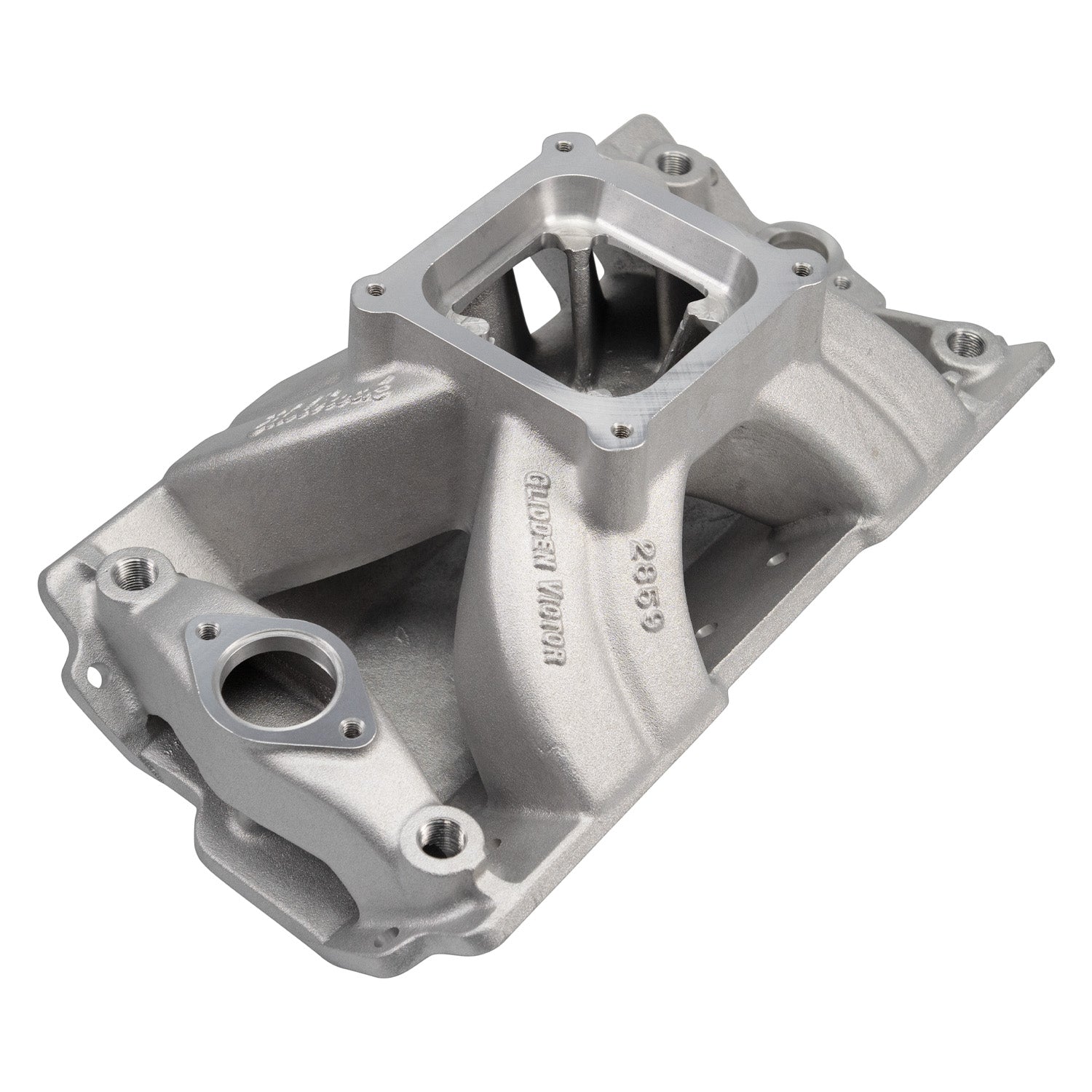

Edelbrock part #2859 Victor Glidden intake manifold is for all-out nitrous-assisted drag race applications. Designed with noted drag racer Billy Glidden, it features intake runners with a large cross-section area of 3.2 square-inches for maximum high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18-degree heads. Carb mount flange and plenum are machined for 4500 Series carburetors and require port matching and blending prior to use. The Edelbrock Victor Glidden is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Edelbrock Engine Intake Manifold 2859
Specifications:
| Front Maximum Height | 7.030 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Center Maximum Height | 7.030 |
| Gasket Or Seal Included | No |
| Flange Type | 4500 |
| Material | Aluminum |
| Basic Operating RPM Range | 5000-8500 |
| Single Or Dual Plane Type | Single |
| Rear Maximum Height | 7.030 |
| Grade Type | Performance |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor SBC 18d Spider Intake Manifold |
| Description_LAB | Victor 15-18 Degree Intake Manifold Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_EXT | Edelbrock Victor 15-18 Degree Intake Manifold For 15 and 18 Degree Chevy for 4500 Series Carburetors |
| Description_MKT | Edelbrock part #2859 Victor Glidden intake manifold is for all-out nitrous-assisted drag race applications. Designed with noted drag racer Billy Glidden, it features intake runners with a large cross-section area of 3.2 square-inches for maximum high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18-degree heads. Carb mount flange and plenum are machined for 4500 Series carburetors and require port matching and blending prior to use. The Edelbrock Victor Glidden is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Recommended intake gasket: Edelbrock #7218 or Fel-Pro #1282 |
| Description_TRA | Carb Pad Height: 7.03" |
| Description_TRA | For use with 15 and 18 Degree Chevy with 4500 Series Carburetor. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_DEF | Engine Intake Manifold |
