*item may differ from images

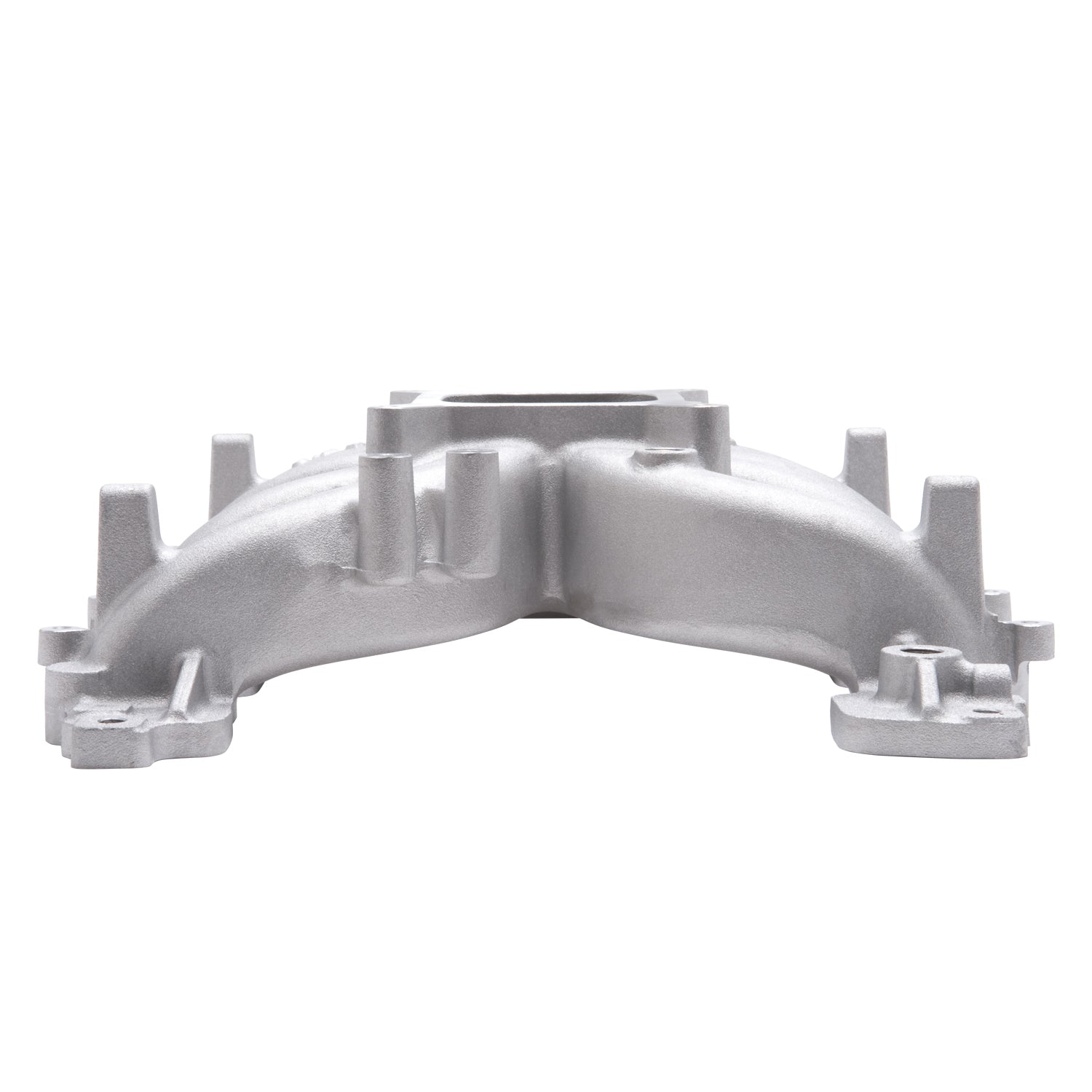

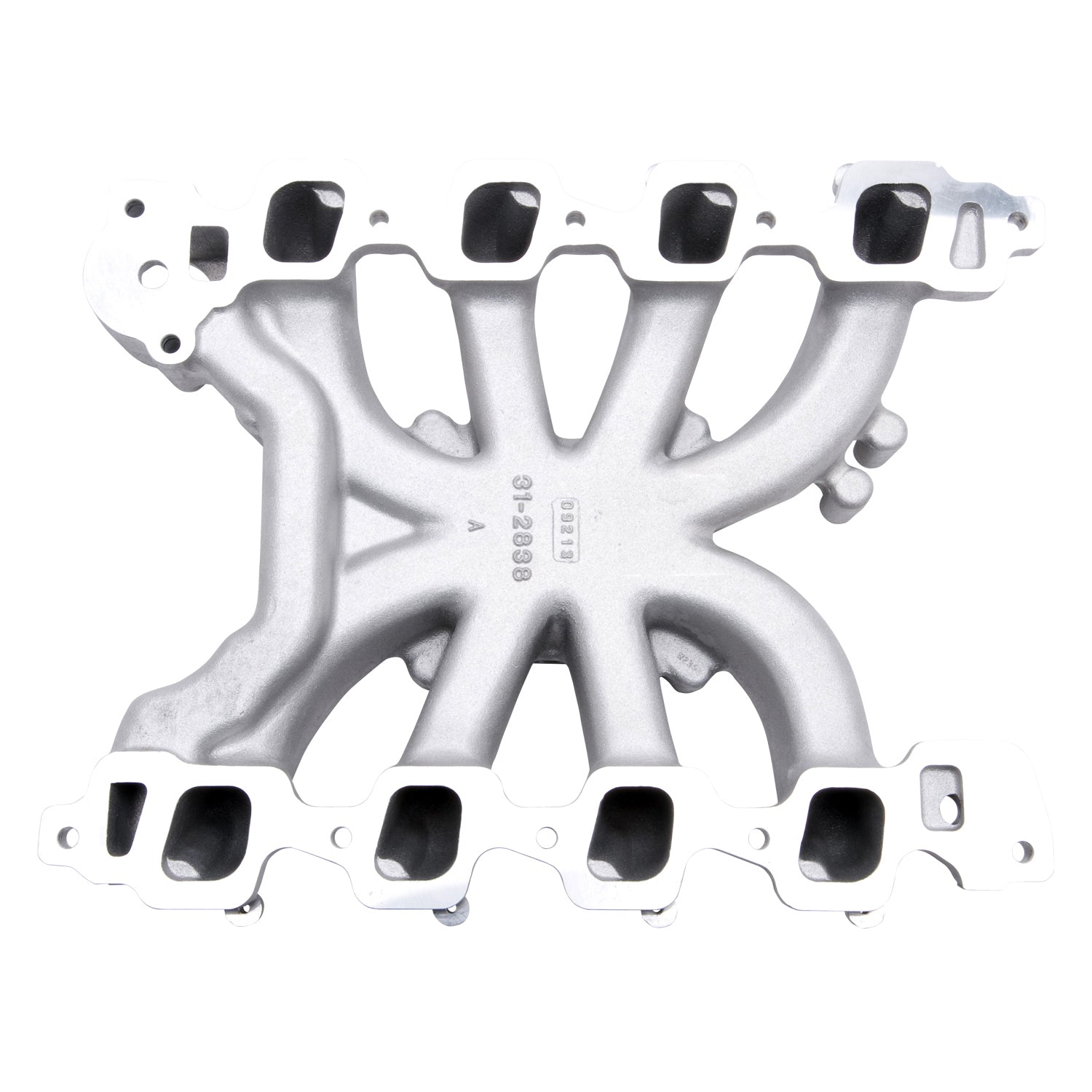

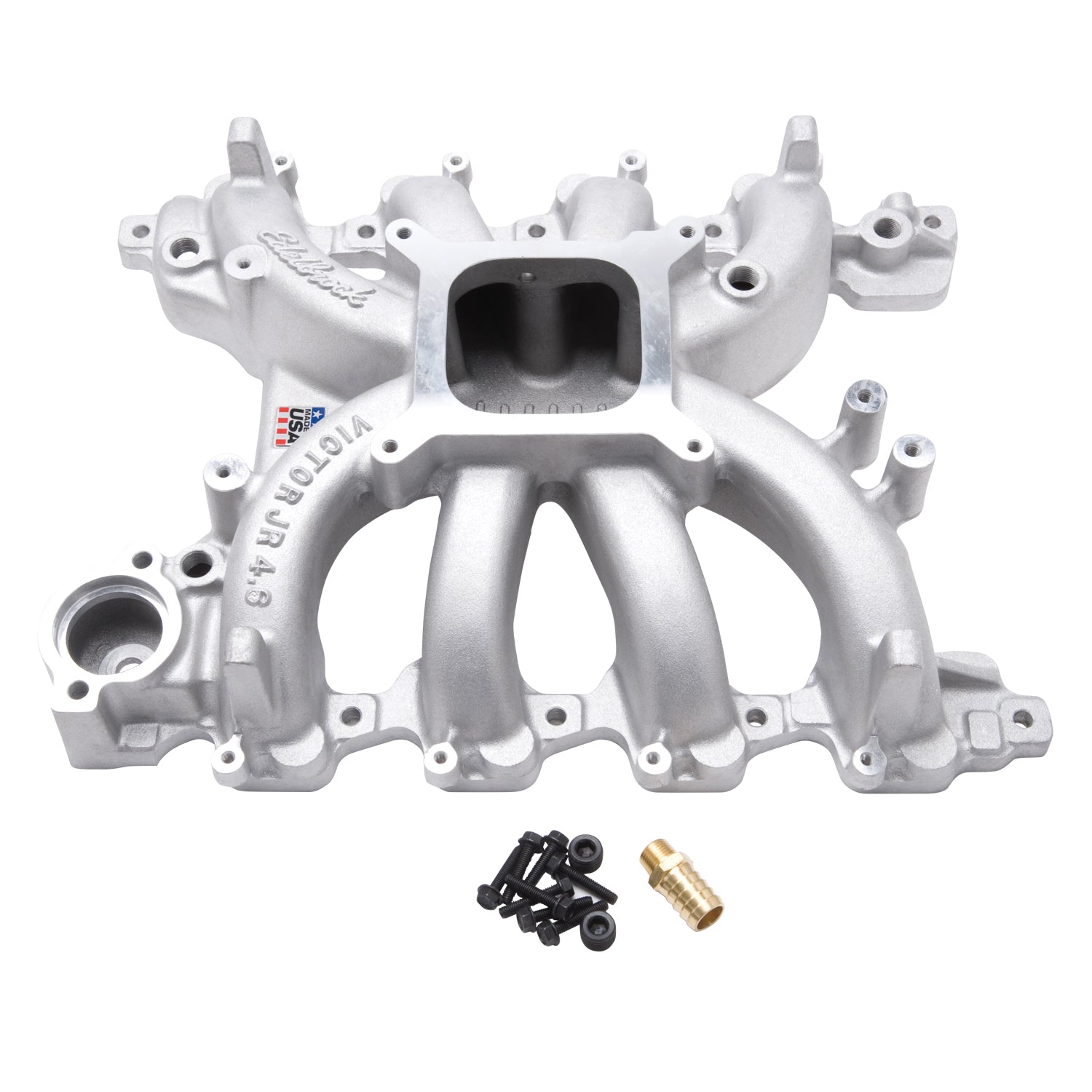

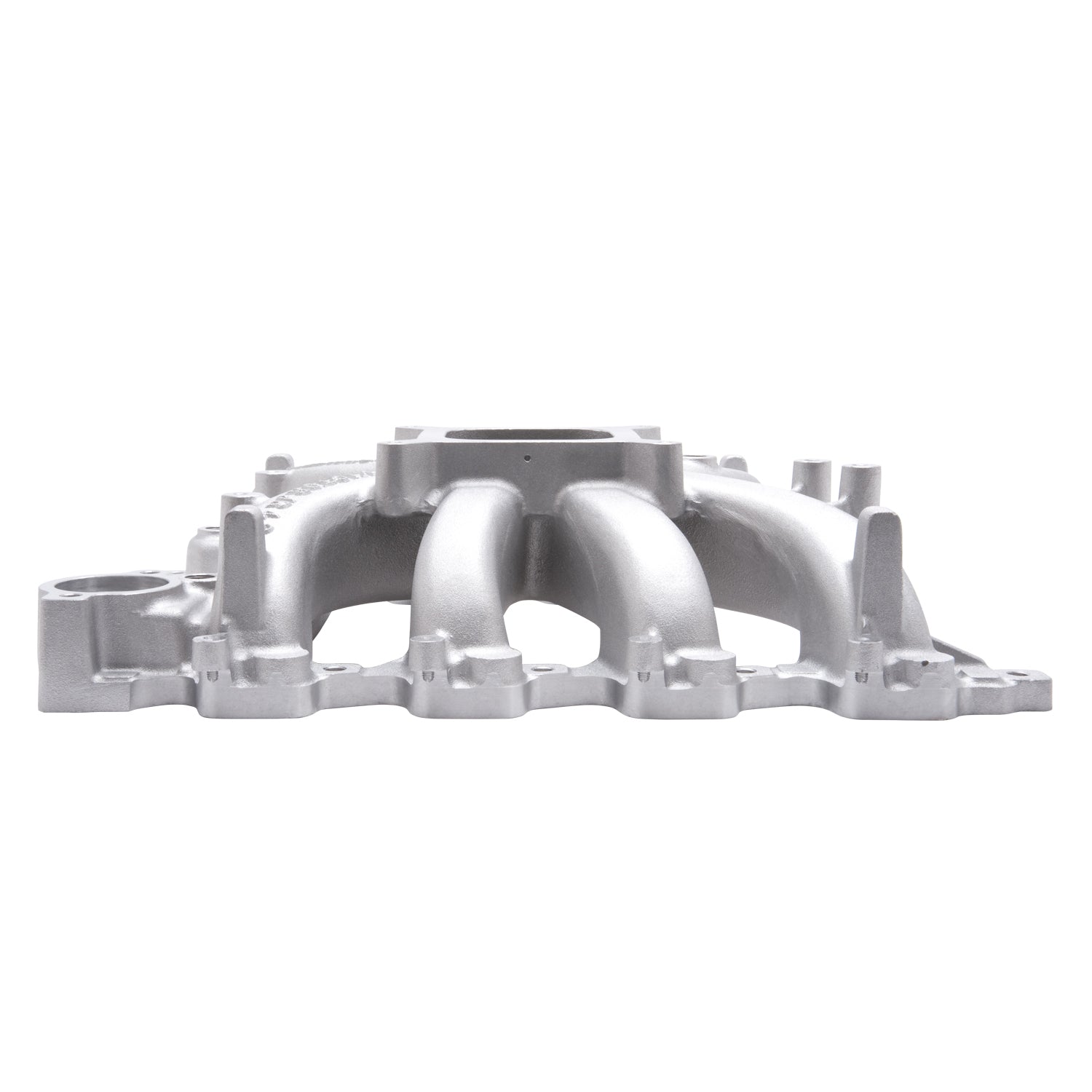

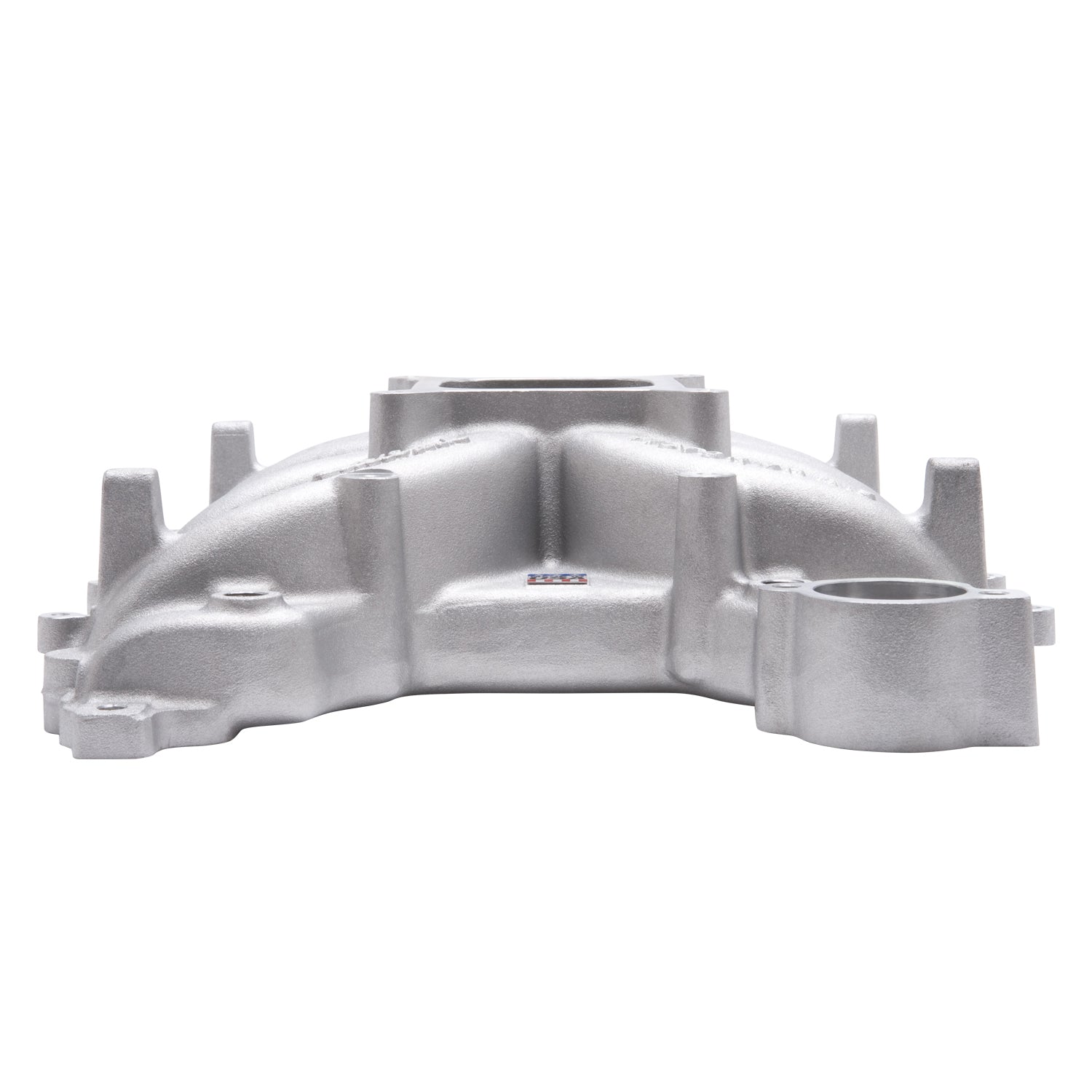

Edelbrock part #2838 Victor Jr. Ford 4.6L SOHC intake manifold for Ford 4.6L SOHC Modular engines allows the customer to take any 1999-2004 SOHC Modular 4.6L engine and convert it for use with a carburetor. Timing control module available separately. Not intended for or as a stock replacement intake manifold.
Edelbrock Engine Intake Manifold 2838
Specifications:
| Series | Victor |
| Material | Aluminum |
| Vehicle Model | Ford |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 4.750 |
| EGR Port | No |
| Grade Type | Performance |
| Rear Maximum Height | 4.750 |
| Flange Type | 4150 |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height | 4.750 |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 |
| Finish | Satin |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Jr Ford 4.6L Modular Carburetor |
| Description_LAB | Victor Jr. Ford 4.6L SOHC Modular Carburetor Intake Manifold Without Electronics |
| Description_ASM | Ford:Modular 2V:281 (4.6L) |
| Description_EXT | Victor Jr. Intake Manifold for Small-Block Ford 4.6L SOHC Modular Engines is Designed for 4.6L Ford Racing Applications. Not Recommended for Stock Replacement. Electronics Not Included. Accepts 4150-Series Carburetor. Non-EGR. |
| Description_MKT | Edelbrock part #2838 Victor Jr. Ford 4.6L SOHC intake manifold for Ford 4.6L SOHC Modular engines allows the customer to take any 1999-2004 SOHC Modular 4.6L engine and convert it for use with a carburetor. Timing control module available separately. Not intended for or as a stock replacement intake manifold. |
| Description_TRA | Recommended intake gasket: OEM factory gaskets |
| Description_TRA | Manifold height: A-4.75", B-4.75", 0 Deg carb angle |
| Description_TRA | Throttle body recommendations: Edelbrock #38780 4150 style 4 V or #3848 competition EFI elbow and #3818 90mm throttle body |
| Description_TRA | Port exit dimensions: 1.42" x 1.72" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
