*item may differ from images

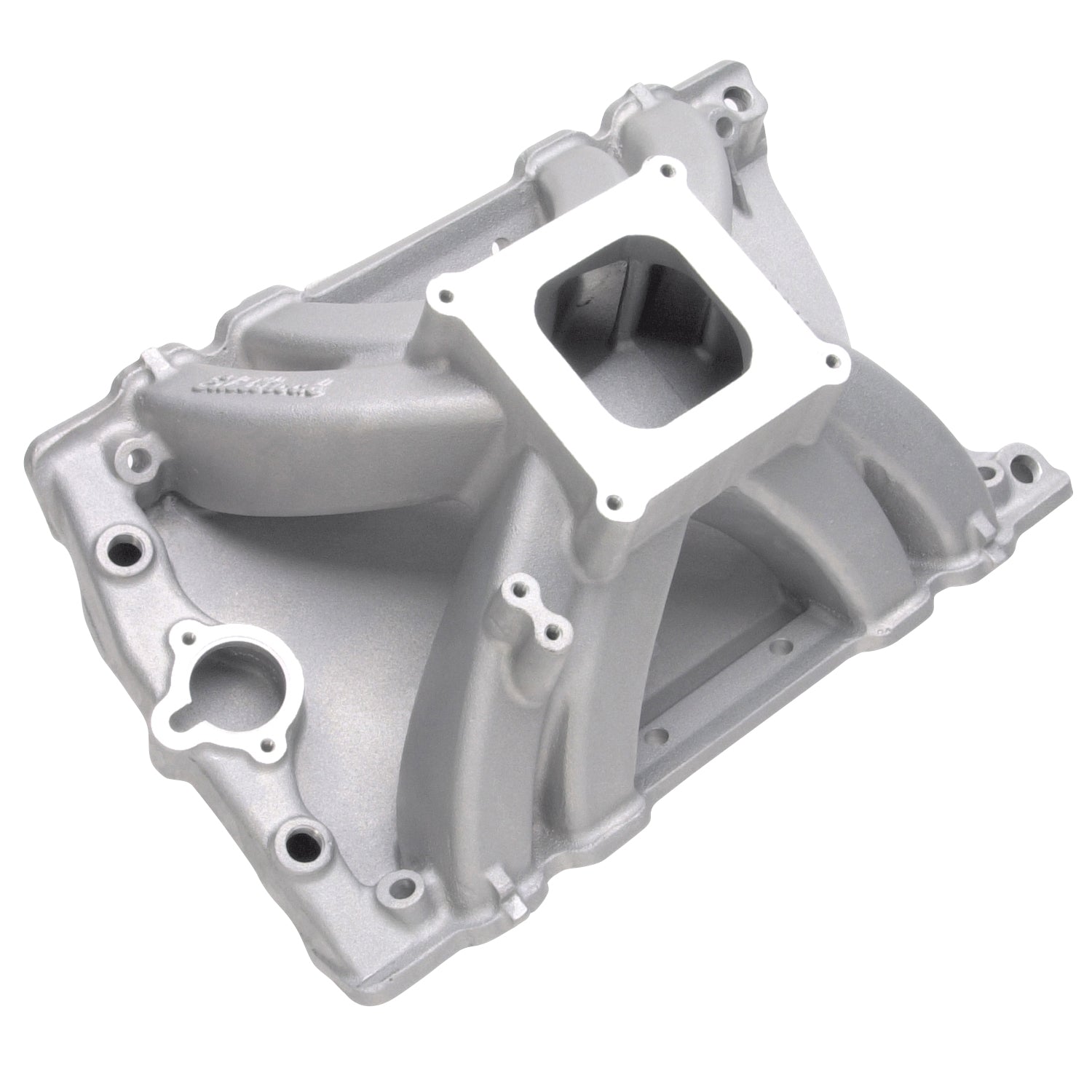

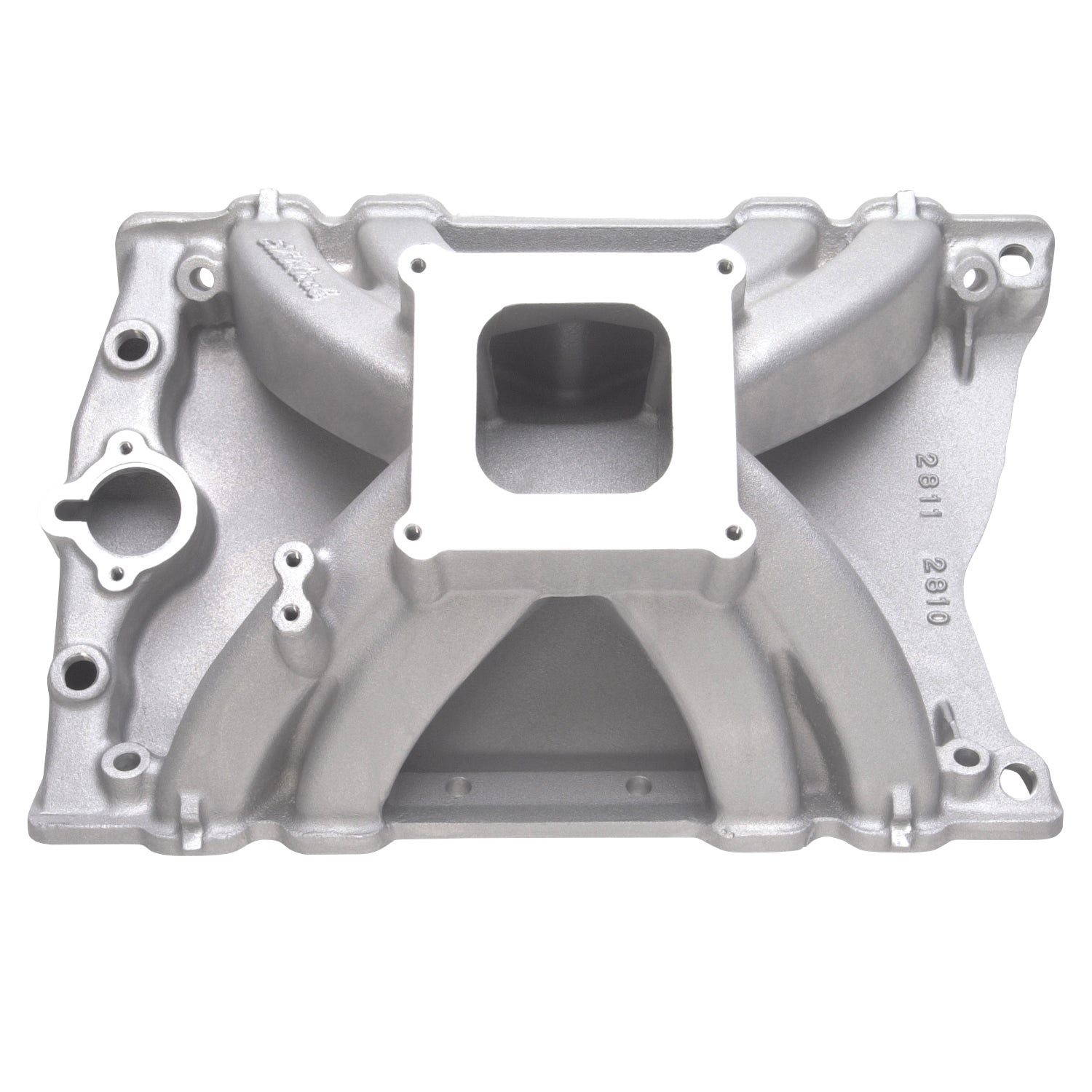

Edelbrock part #2810 Victor Oldsmobile 455 drag racing intake manifold provide power levels never before available for competition single-carb 455 Olds engines. In independent flow testing, our port-matched design out-flowed the best fully ported manifolds on the market. Featuring a single-plane "Air-Gap" design, they are available for square-bore or 4500 Series carbs to accommodate many competition applications, and offer significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. With a carb mount pad height of 8.2", this manifold stand more than three inches taller than the Edelbrock Torker manifold and incorporate a high-flow 3.4-square-inch runner. We've removed the intake bolts between the runners, thus creating a smoother airflow path for higher airflow and more power! This intake manifold features a port size and shape that has been optimized to match the flow characteristics of Edelbrock Performer RPM #60519 aluminum cylinder heads.
Edelbrock Engine Intake Manifold 2810
Specifications:
| Vehicle Model | Oldsmobile |
| Finish | Satin |
| Center Maximum Height | 8.200 |
| Flange Type | 4150 |
| CNC Ported | No |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Rear Maximum Height | 8.200 |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 |
| Front Maximum Height | 8.200 |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Big Block Olds intake Manifold |
| Description_LAB | Victor Olds 455 Intake Manifold for 455 Oldsmobile Engines |
| Description_ASM | Oldsmobile:Big-Block:400 (6.6L)/425 (7.0L)/455 (7.5L) |
| Description_EXT | Edelbrock Victor Olds 455 Intake Manifold for 400-425-455 Big-Block Oldsmobile Engines is Designed for High-Performance Competition & Marine Engines. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_MKT | Edelbrock part #2810 Victor Oldsmobile 455 drag racing intake manifold provide power levels never before available for competition single-carb 455 Olds engines. In independent flow testing, our port-matched design out-flowed the best fully ported manifolds on the market. Featuring a single-plane "Air-Gap" design, they are available for square-bore or 4500 Series carbs to accommodate many competition applications, and offer significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. With a carb mount pad height of 8.2", this manifold stand more than three inches taller than the Edelbrock Torker manifold and incorporate a high-flow 3.4-square-inch runner. We've removed the intake bolts between the runners, thus creating a smoother airflow path for higher airflow and more power! This intake manifold features a port size and shape that has been optimized to match the flow characteristics of Edelbrock Performer RPM #60519 aluminum cylinder heads. |
| Description_TRA | For marine/competition use, contact Mondello Performance at (805) 237-8808 for correct gasket kit |
| Description_TRA | HEI will clear. |
| Description_TRA | Manifold height: A-8.20", B-8.20" |
| Description_TRA | Carb recommendations: Any Carburetor class allows |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
