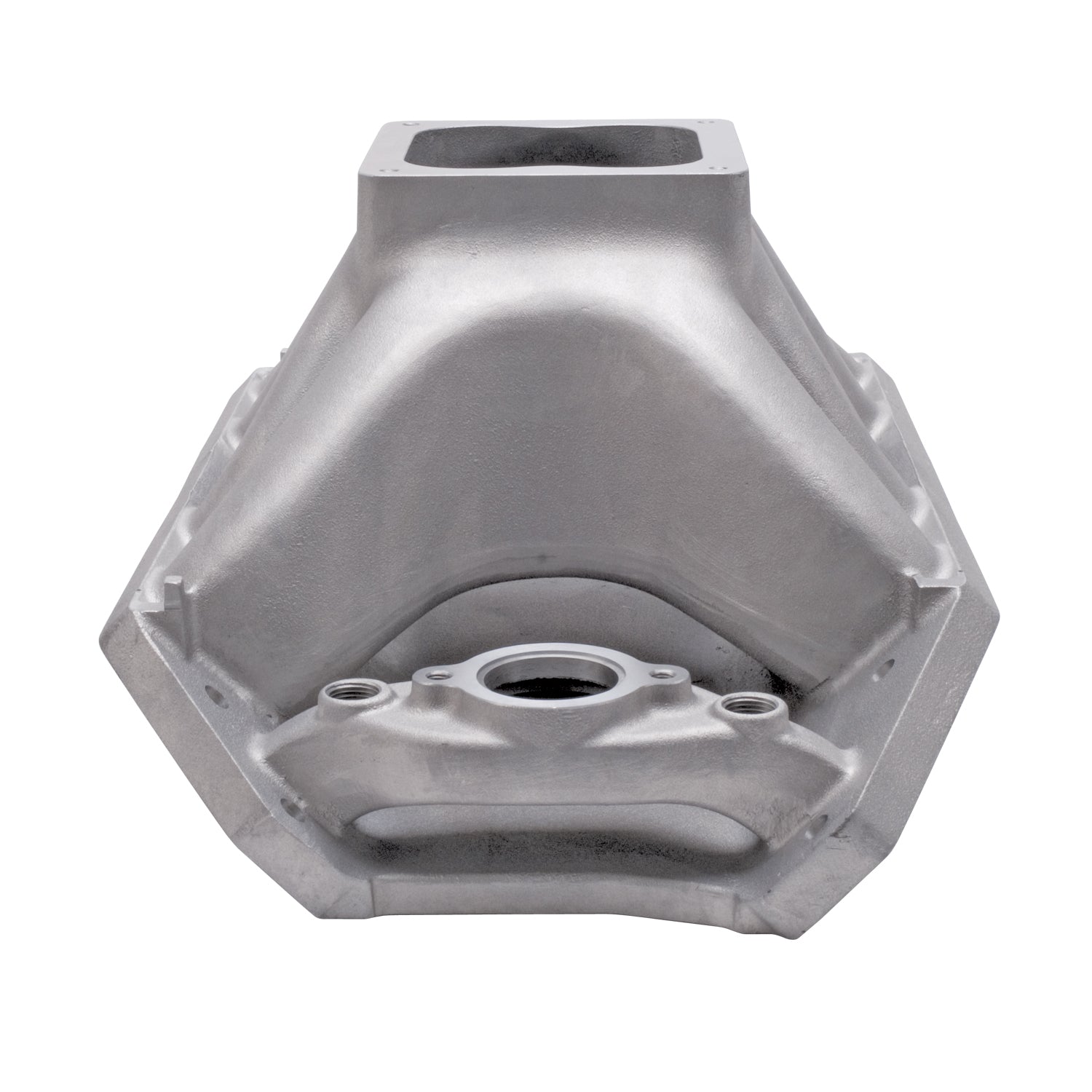

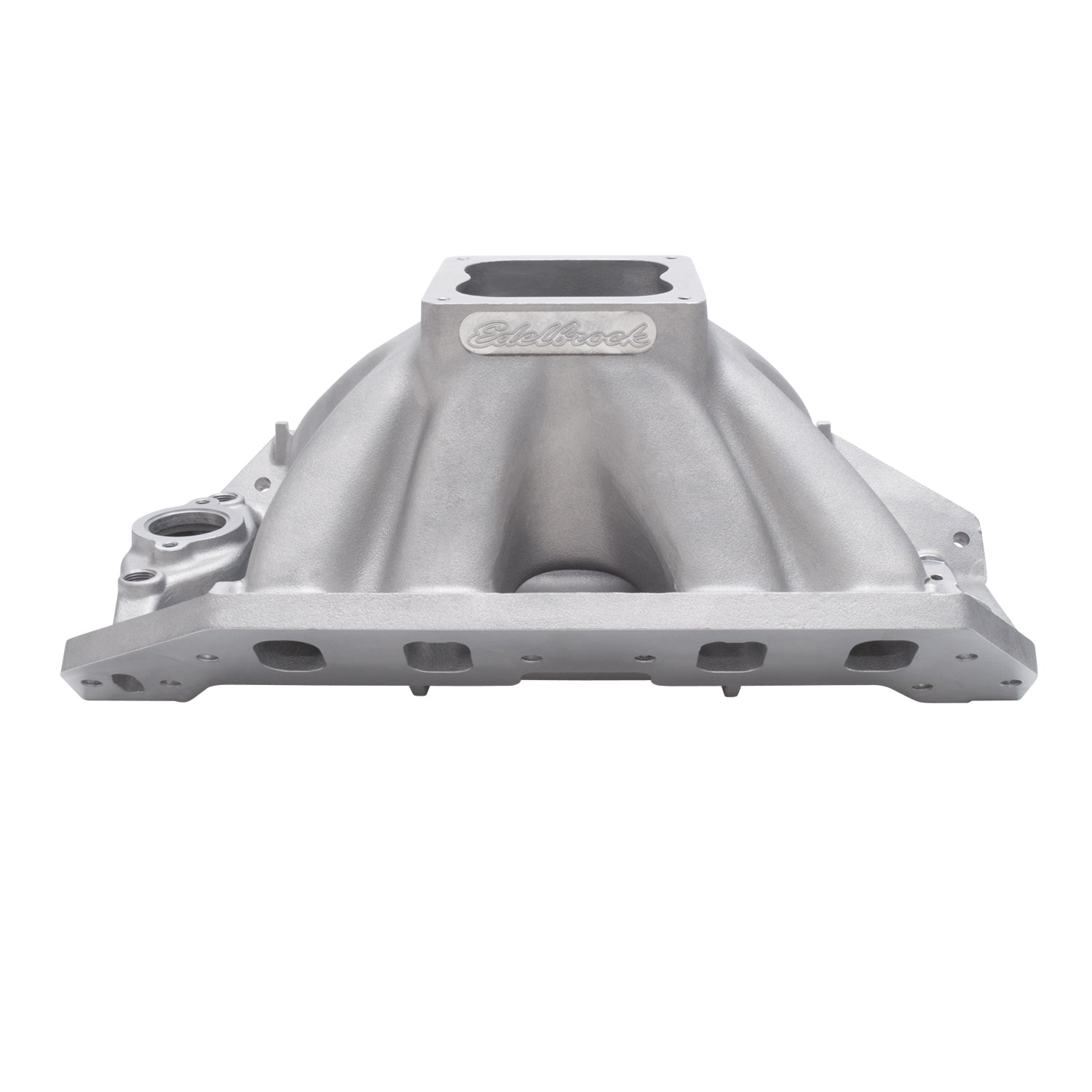

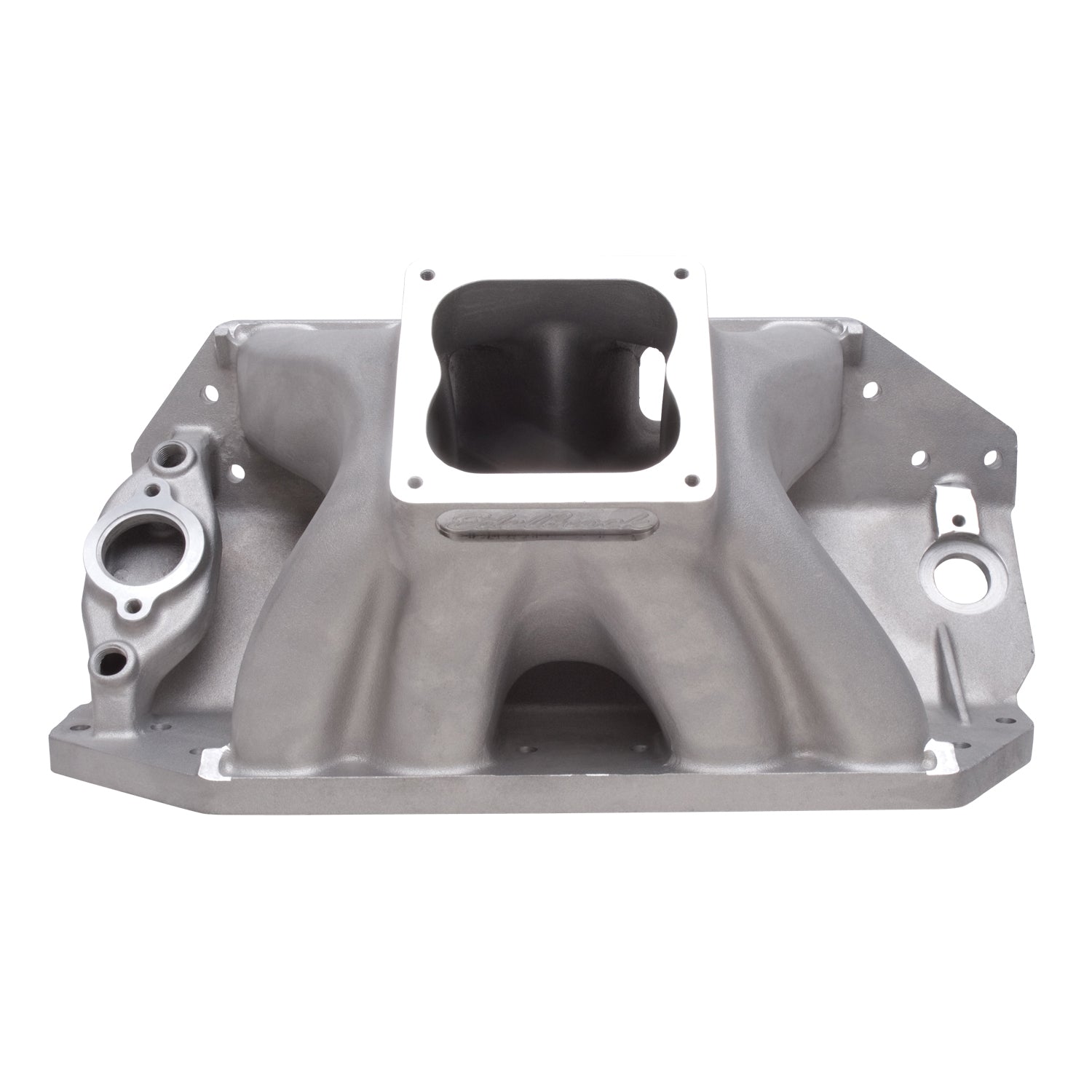

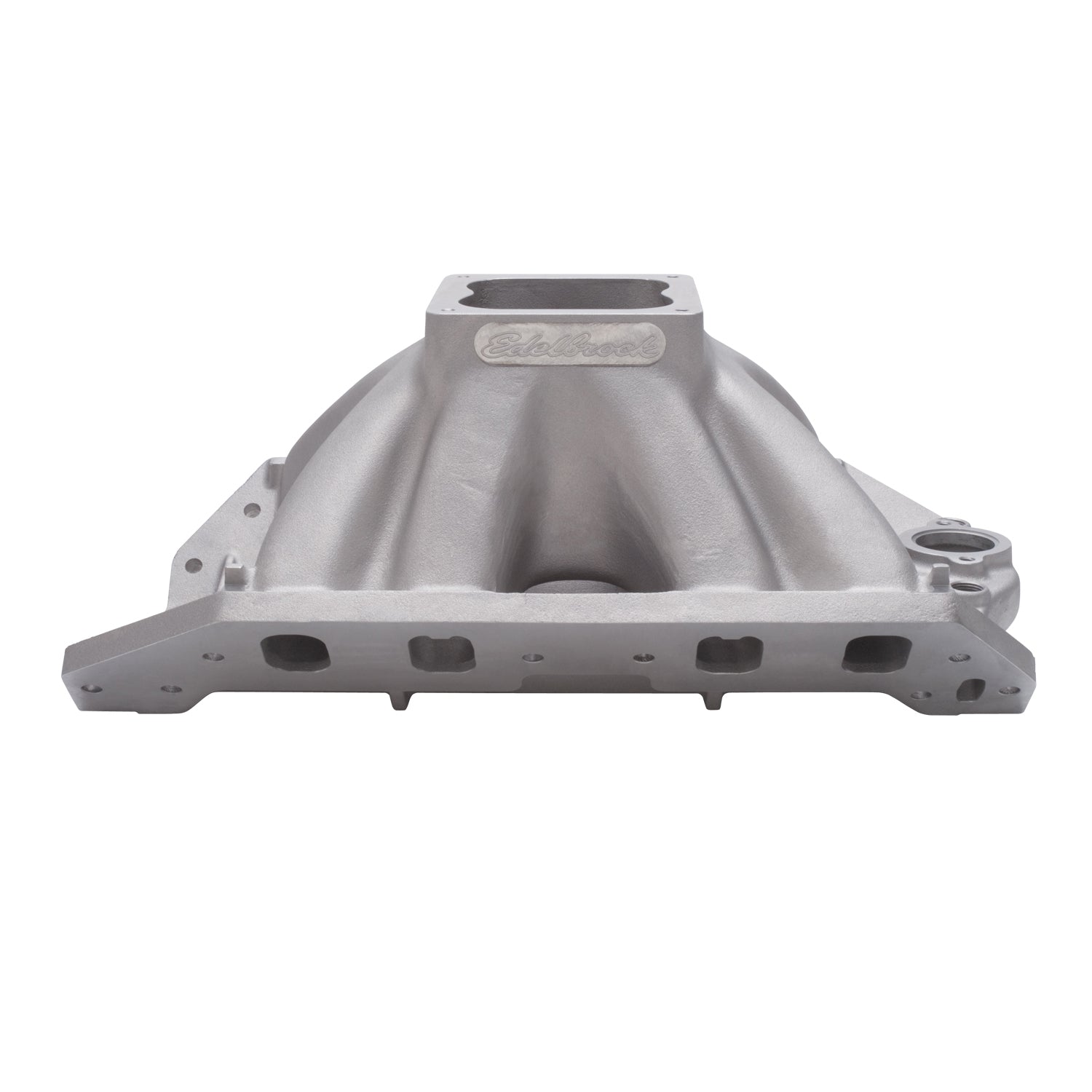

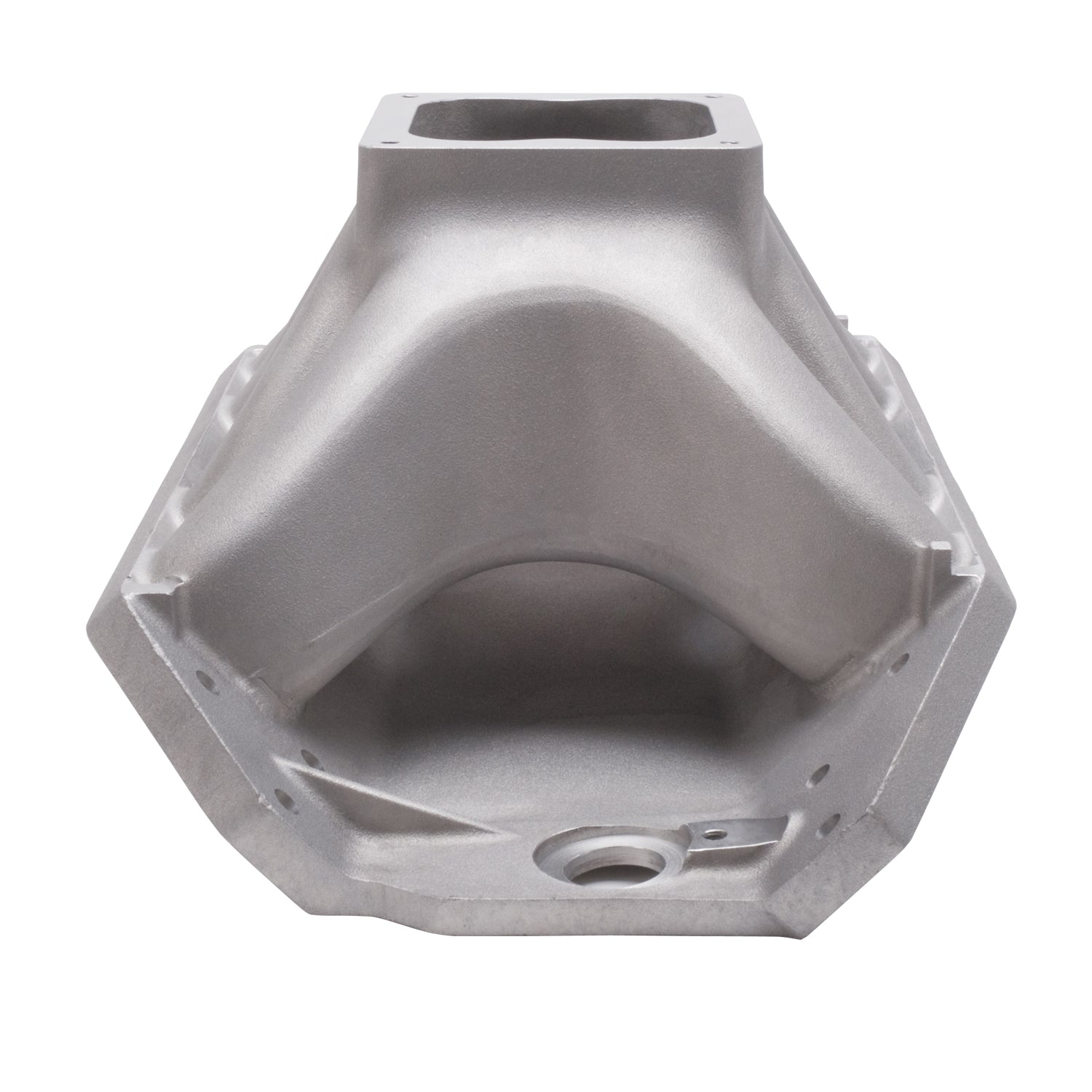

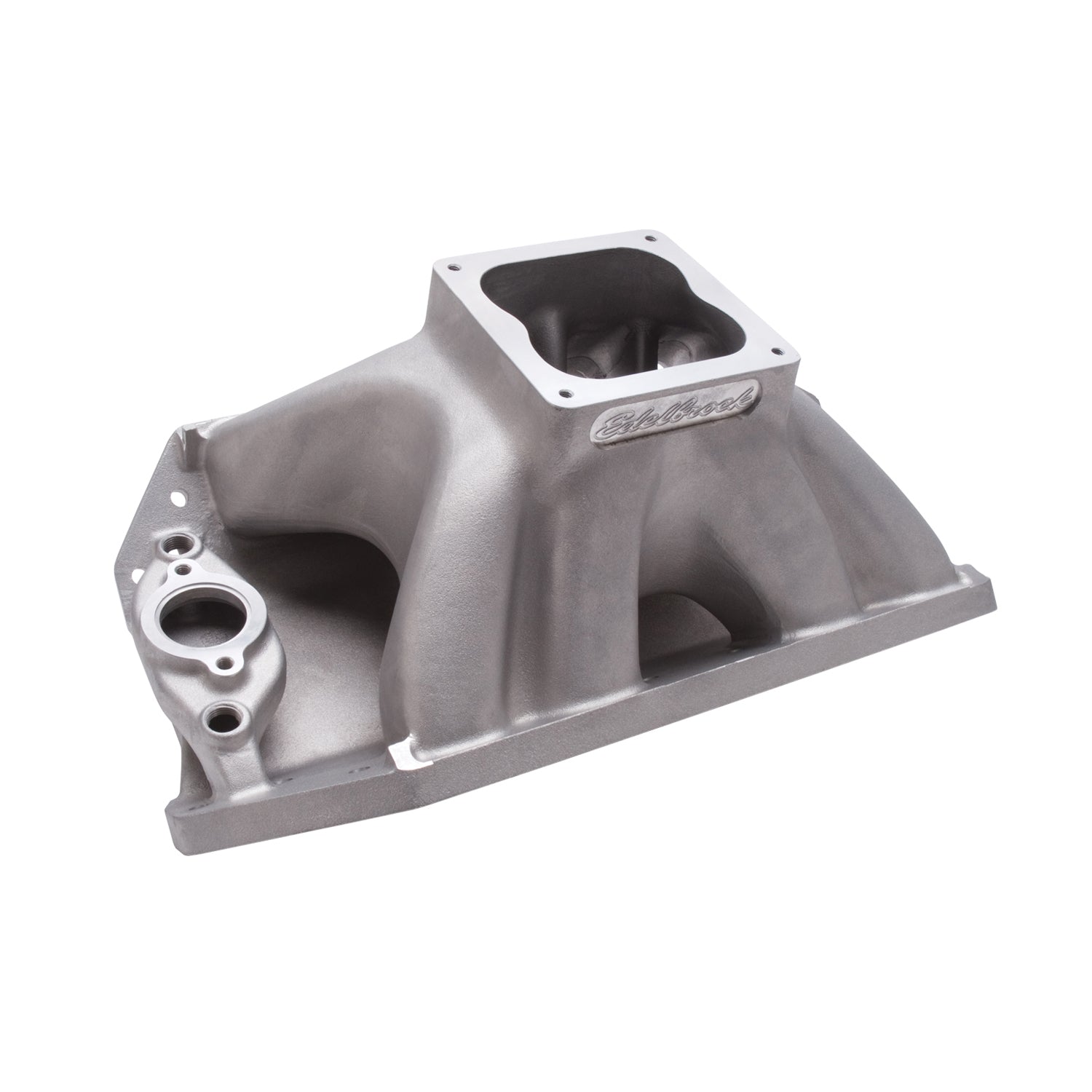

*item may differ from images
Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Edelbrock Engine Intake Manifold 28002
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Rear Maximum Height | 9.530 |
| EGR Port | No |
| Flange Type | 4500 |
| Material | Aluminum |
| Finish | Satin |
| Basic Operating RPM Range | 3500-8500 |
| CNC Ported | No |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 9.530 |
| Gasket Or Seal Included | No |
| Center Maximum Height | 9.530 |
| Description_ABR | Intake Mnfld |
| Description_INV | Big Victor 2 10.2 Deck |
| Description_LAB | Big Victor 2 Spread-Port, Tall Deck Intake Manifold for Big-Block Chevy |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_EXT | Edelbrock Big Victor 2 Spread-Port Tall Deck Intake Manifold for Big-Block Chevrolet |
| Description_MKT | Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1298. |
| Description_TRA | Manifold height: A-9.53", B-9.53" |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
