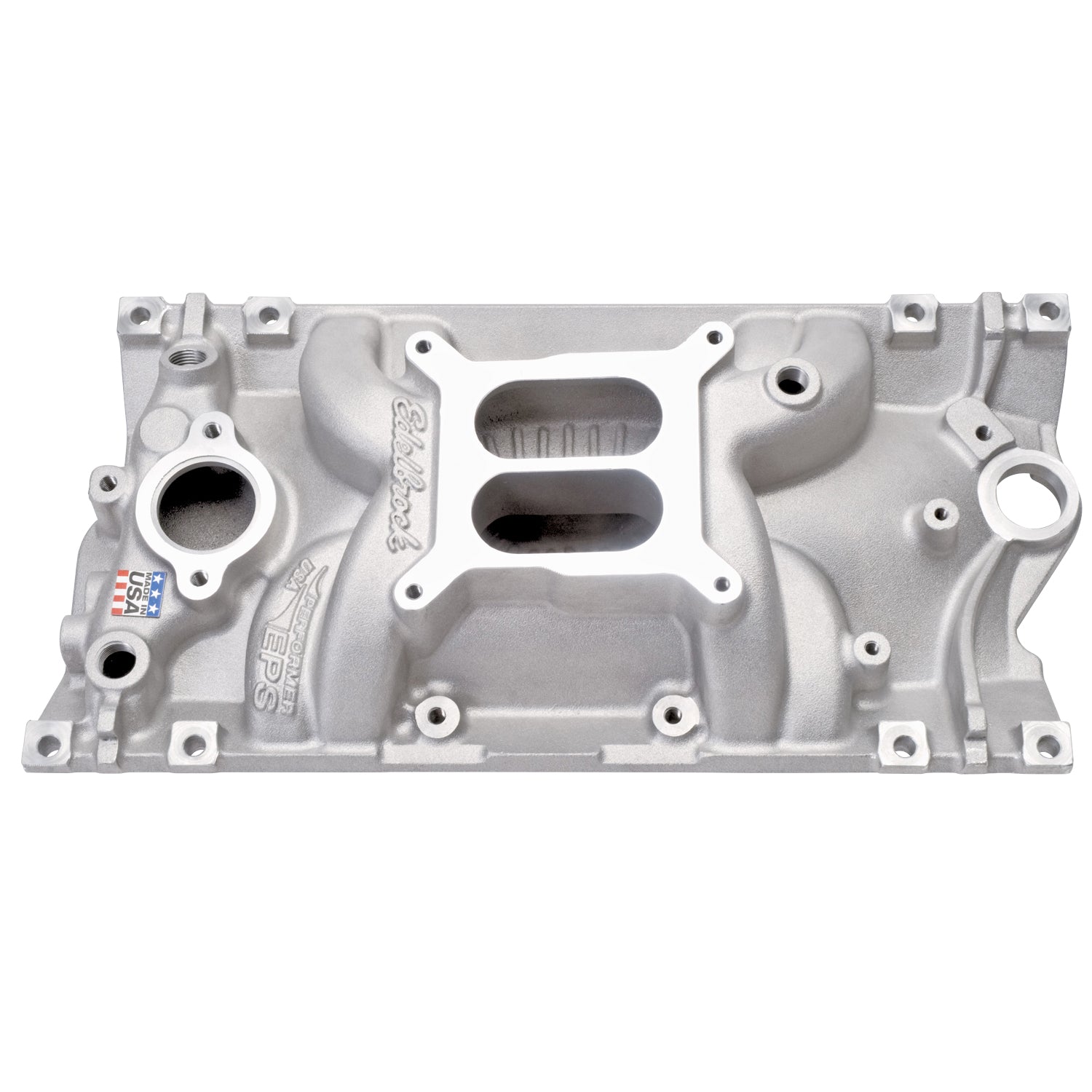

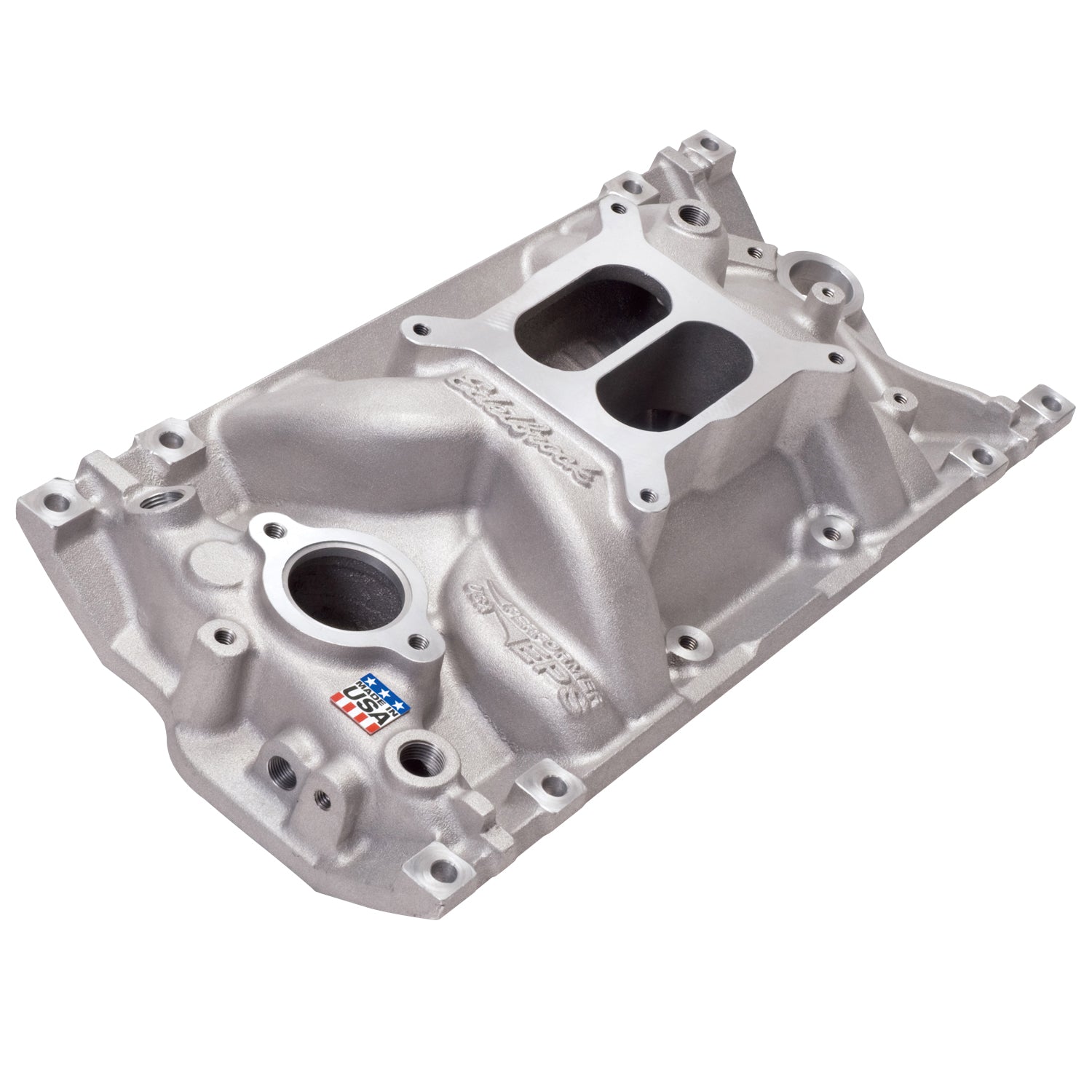

Edelbrock Engine Intake Manifold 2716

Edelbrock part #2716 Performer EPS Vortec intake manifold is now available for small-block Chevys with Vortec or Edelbrock E-Tec cylinder heads, the Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. The runner design is "tuned" for peak torque around 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Will not fit under stock Corvette hood.

Edelbrock Engine Intake Manifold 2716

Specifications:

Series	Performer
Rear Maximum Height	3.900
Gasket Or Seal Included	No
Vehicle Model	Chevrolet
EGR Port	No
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Center Maximum Height	3.200
Flange Type	4150
CNC Ported	No
Finish	Satin
Basic Operating RPM Range	Idle-5500
Material	Aluminum
Grade Type	Performance
Single Or Dual Plane Type	Dual
Front Maximum Height	2.500
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Will not fit under stock Corvette hood.
Description_TRA	Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
Description_TRA	Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Description_DEF	Engine Intake Manifold
Description_ABR	Intake Mnfld
Description_INV	Performer EPS Vortec SBC Intake Manfld
Description_LAB	Performer EPS Vortec Intake Manifold for Small-Block Chevy
Description_ASM	Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Description_EXT	Edelbrock Performer EPS Vortec Intake Manifold for Small-Block Chevrolet 262-400 V8's with E-Tec or Vortec Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR.
Description_MKT	Edelbrock part #2716 Performer EPS Vortec intake manifold is now available for small-block Chevys with Vortec or Edelbrock E-Tec cylinder heads, the Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. The runner design is "tuned" for peak torque around 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Will not fit under stock Corvette hood.
Description_TRA	Manifold ht: A-3.87", B-5.28
Description_TRA	Carb pad height: 4.57"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm
Description_TRA	Port exit dimensions: 2.05" tall with slanted side walls.
Description_TRA	Recommended intake gasket: Edelbrock #7235
