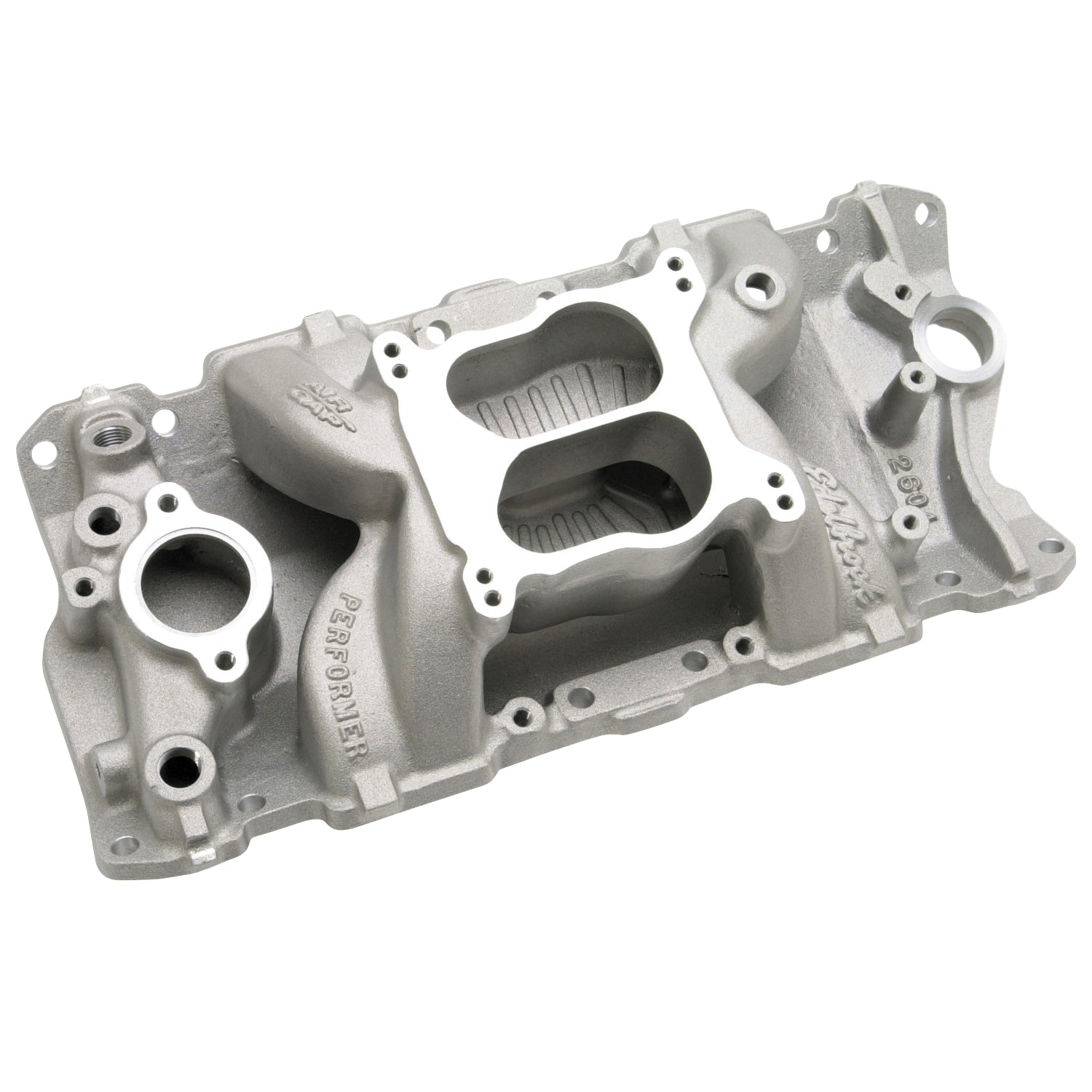

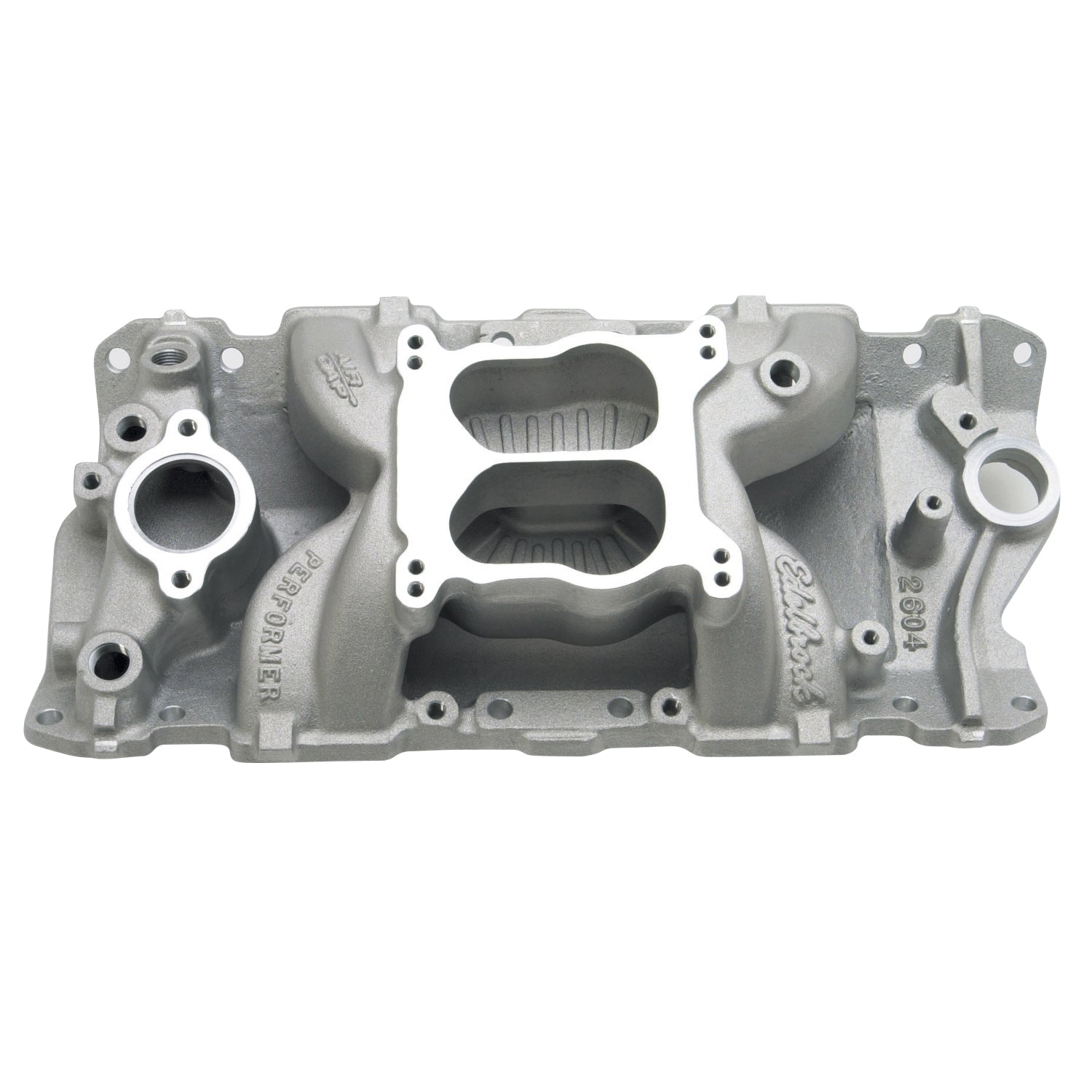

Edelbrock Engine Intake Manifold 2604

Edelbrock part #2604 Performer Air-Gap intake manifold is designed for 1987-95 cast iron heads with canted center bolt holes small-block Chevys. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood.

Edelbrock Engine Intake Manifold 2604

Specifications:

RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Grade Type	Performance
Rear Maximum Height	4.920
Finish	Satin
Center Maximum Height	4.320
Gasket Or Seal Included	No
Vehicle Model	Chevrolet
EGR Port	No
Series	Performer Air-Gap
Material	Aluminum
Single Or Dual Plane Type	Dual
Flange Type	4150
CNC Ported	No
Basic Operating RPM Range	Idle-5500
Front Maximum Height	3.720
Description_ABR	Intake Mnfld
Description_INV	Performer Air-Gap SBC 1987-95 Intake Man
Description_LAB	Performer Air-Gap Intake Manifold for 1987-95 Small-Block Chevy
Description_ASM	Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L)
Description_EXT	Edelbrock Performer Air-Gap Intake Manifold for 1987-95 262-400 Small-Block Chevrolet V8's with OEM Cylinder Heads. Work with either a Q-Jet or a 4150-Style Square-Bore Carburetor. Non-EGR.
Description_MKT	Edelbrock part #2604 Performer Air-Gap intake manifold is designed for 1987-95 cast iron heads with canted center bolt holes small-block Chevys. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood.
Description_TRA	Manifold ht: A-3.72", B-4.92" (.27" taller than #2101)
Description_TRA	Carb pad height: 4.32"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm. Use Bracket #8031 or #8036 for 1972-78.
Description_TRA	Port exit dimensions: 1.14" x 1.88"
Description_TRA	Recommended intake gasket: GM #10163409
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Will not fir under stock Corvette hood
Description_TRA	Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
Description_TRA	Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Description_DEF	Engine Intake Manifold
