*item may differ from images

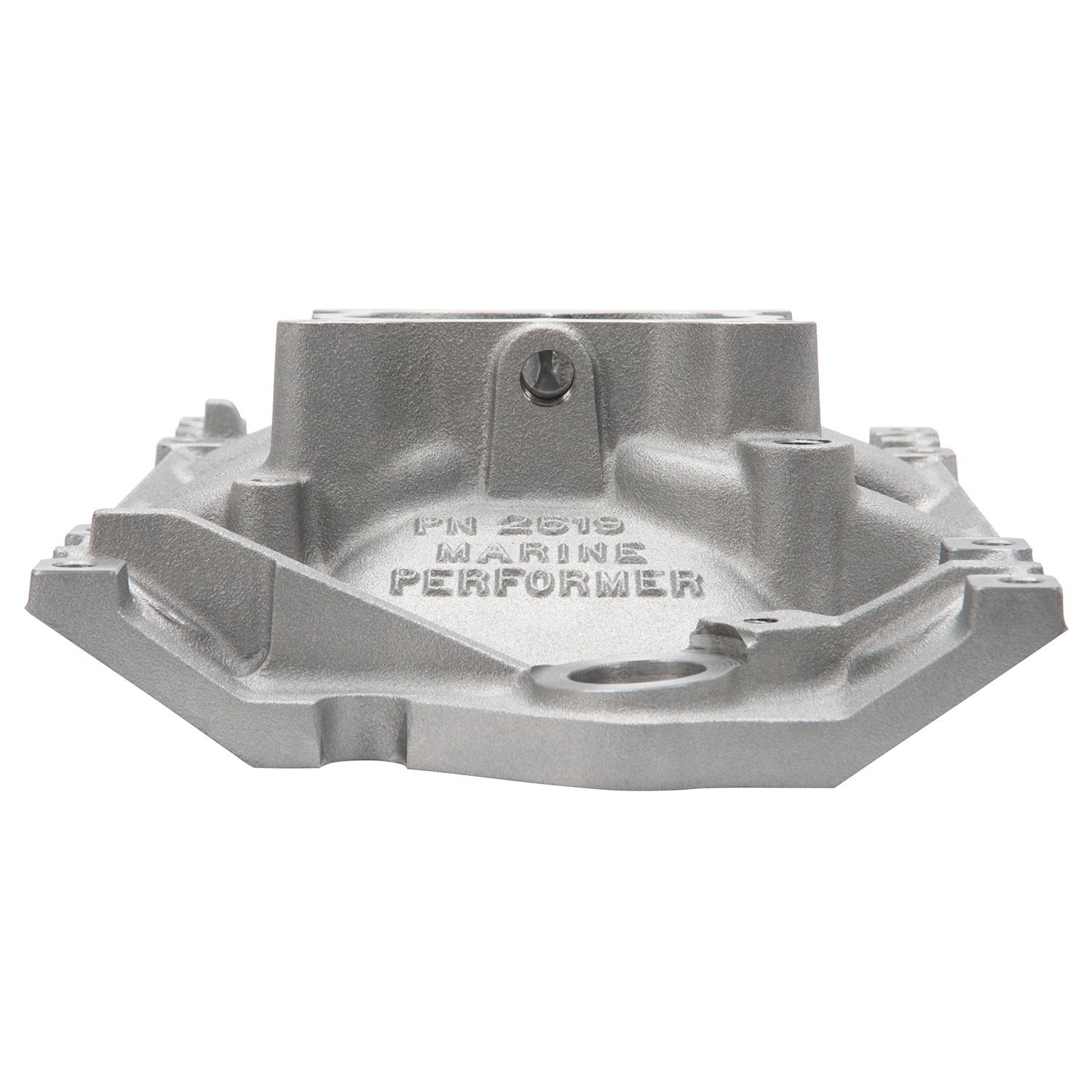

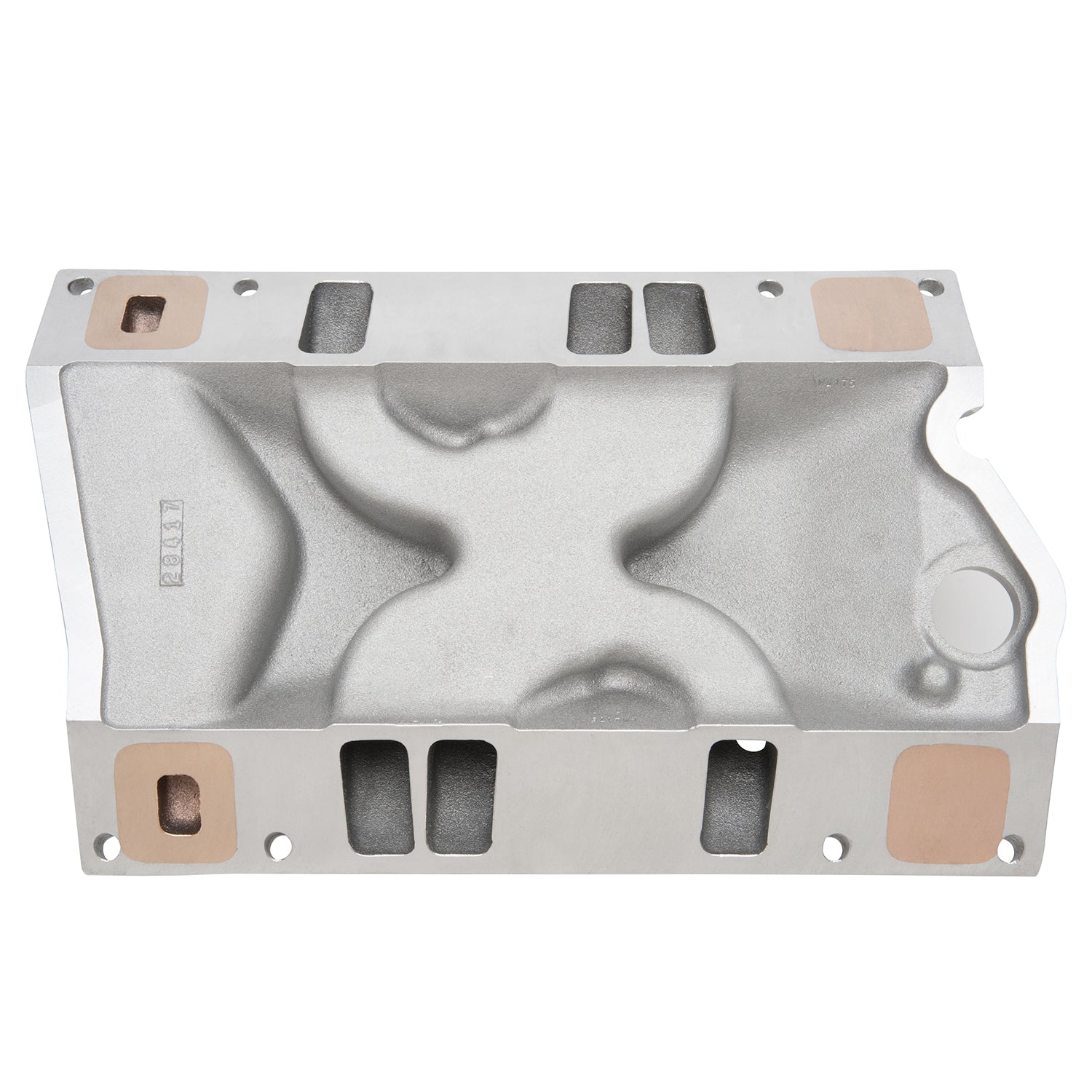

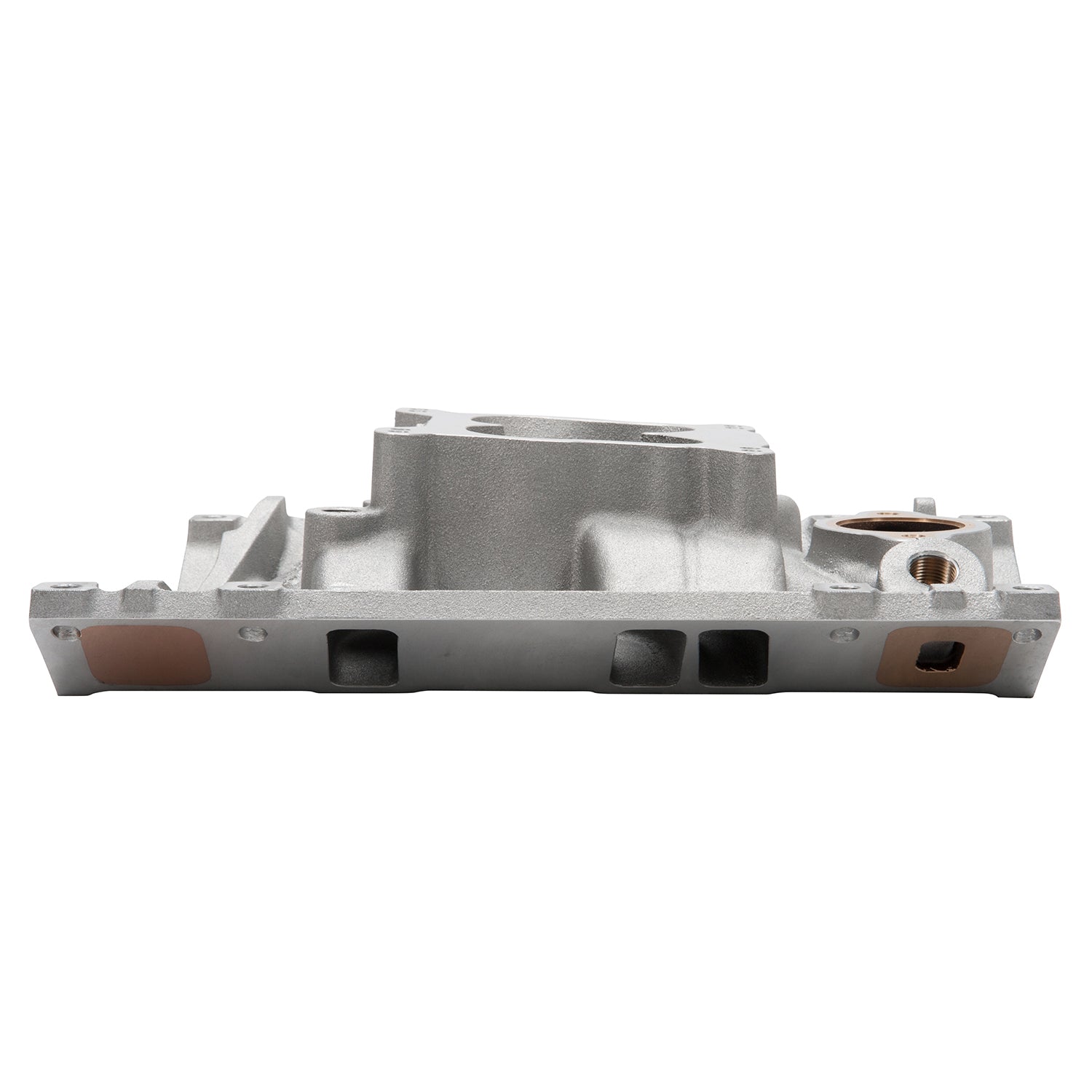

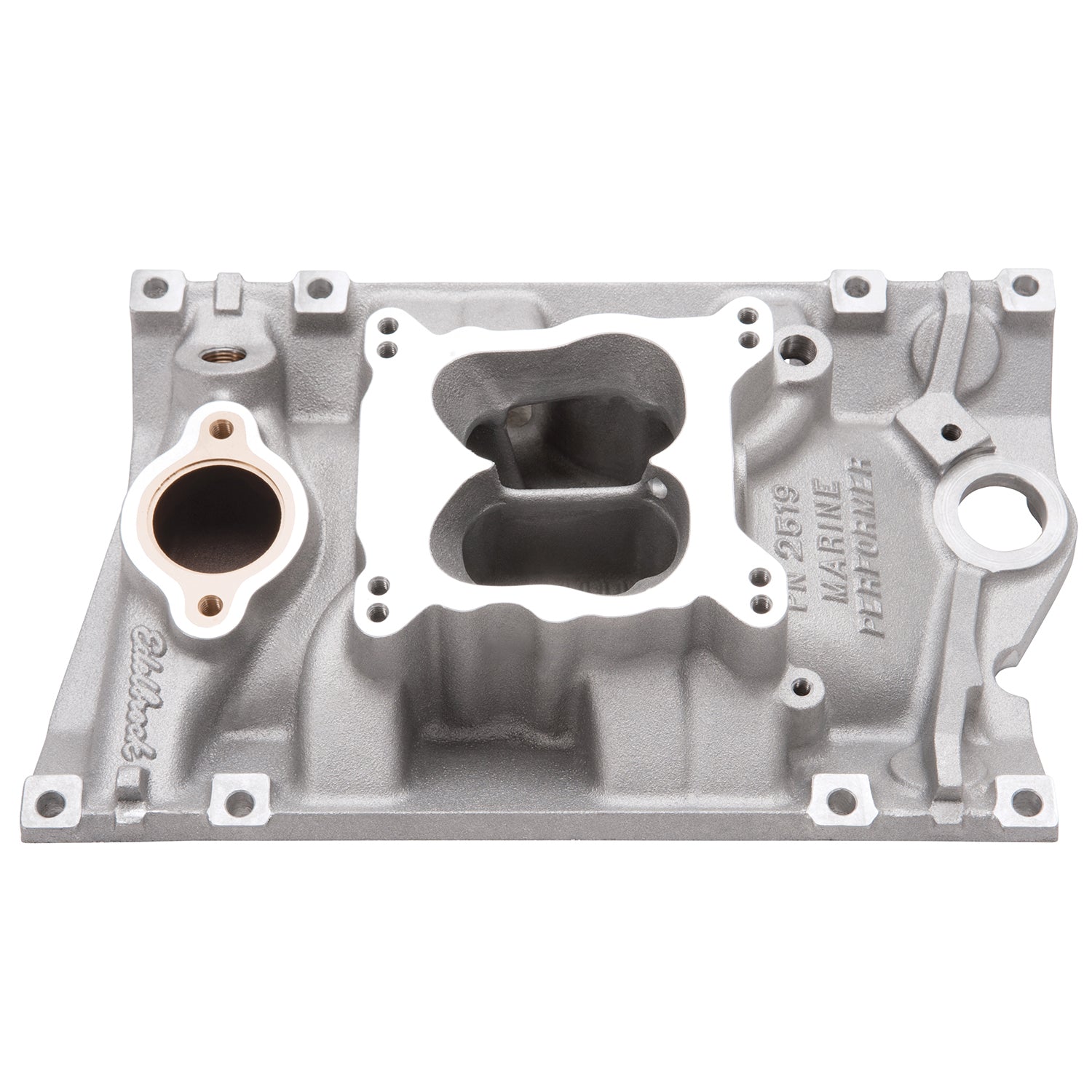

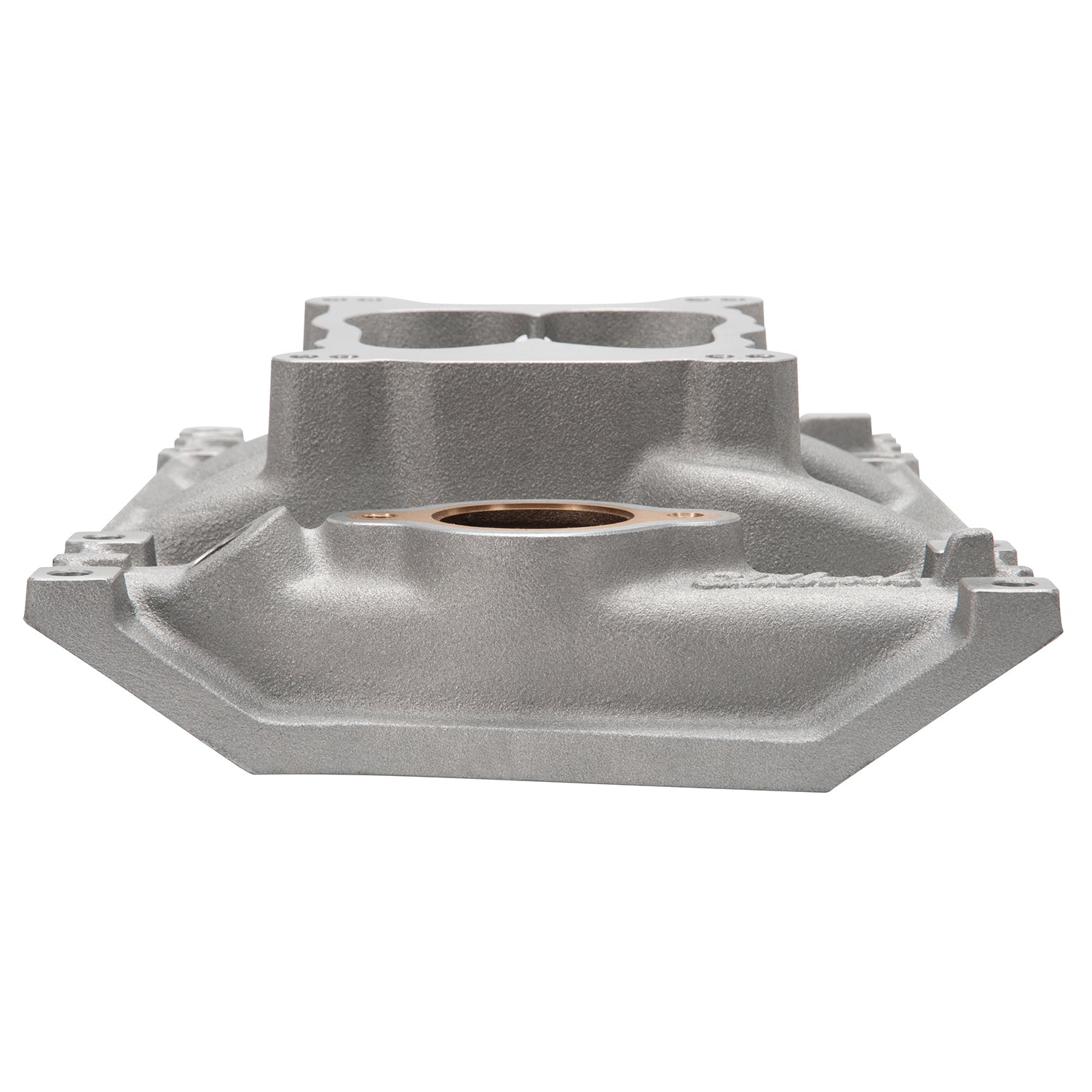

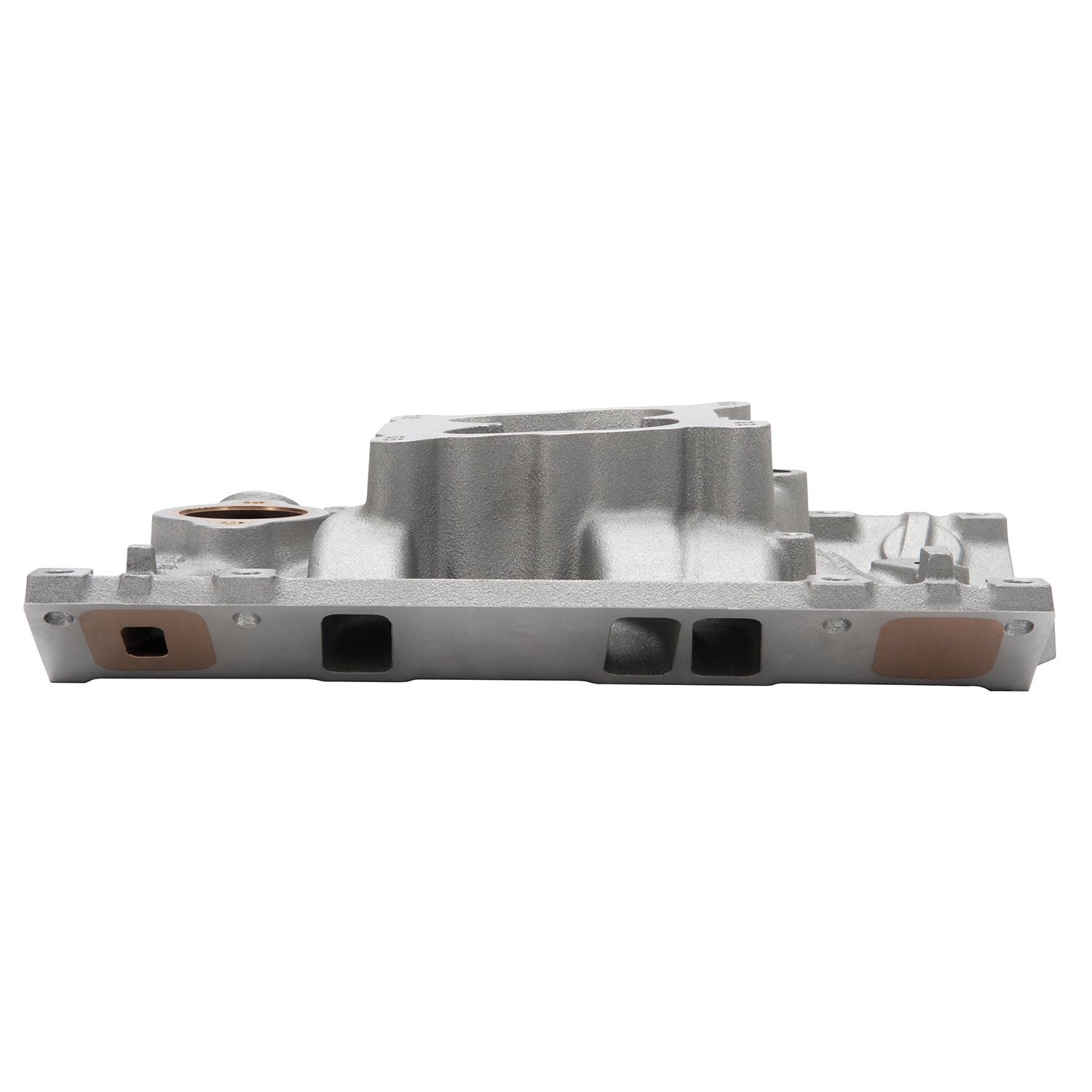

Edelbrock part #2519 Performer Vortec V6 Marine Intake Manifold is based on the powerful Edelbrock #2111. This dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this Marine manifold, boaters can take advantage of the higher flow available with the Vortec head design. This marine intake has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Marine Series 600 cfm carb, it accepts late model water neck, alternator, HEI and air conditioning.
Edelbrock Engine Intake Manifold 2519
Specifications:
| Basic Operating RPM Range | Idle-5500 |
| Flange Type | 4150 |
| Series | Marine |
| Vehicle Model | Chevrolet |
| Rear Maximum Height | 4.180 |
| Single Or Dual Plane Type | Dual |
| EGR Port | No |
| Material | Aluminum |
| Finish | Satin |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Front Maximum Height | 3.500 |
| Center Maximum Height | 3.840 |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Intake Mnfld |
| Description_INV | Marine Vortec V6 4.3 Intake Manifold |
| Description_LAB | Performer Vortec V6 Marine Intake Manifold for GM 90 Deg V6 (4.3L) |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Marine Vortec V6 4.3 Intake Manifold for Chevy 4.3L V6 Marine Engines w/Vortec Style Cylinder Heads. Cooling Water Passages are Lined with Brass to Prevent Corrosion. Accepts Q-jet or 4150-Style Square-Bore Marine Carbs. Non-EGR |
| Description_MKT | Edelbrock part #2519 Performer Vortec V6 Marine Intake Manifold is based on the powerful Edelbrock #2111. This dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this Marine manifold, boaters can take advantage of the higher flow available with the Vortec head design. This marine intake has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Marine Series 600 cfm carb, it accepts late model water neck, alternator, HEI and air conditioning. |
| Description_TRA | Recommended intake gasket: GM 89017866. |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500 cfm |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
