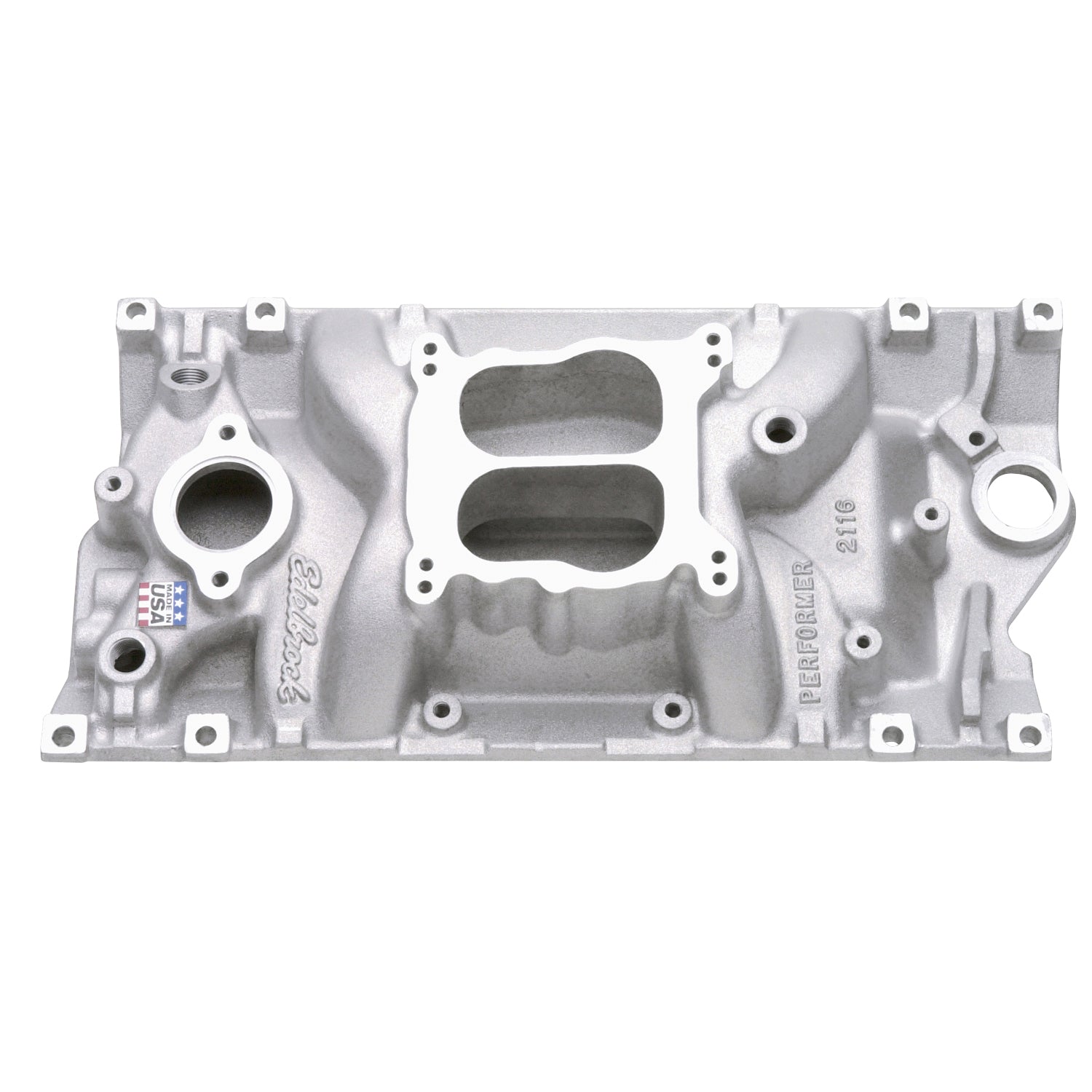

Edelbrock Engine Intake Manifold 2116

Edelbrock part #2116 Performer intake manifold is based on the popular and powerful Edelbrock #2101, this dual-plane intake is designed for the street rod, industrial and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. Manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. No provision for exhaust heated chokes.

Edelbrock Engine Intake Manifold 2116

Specifications:

Grade Type	Performance
Material	Aluminum
Gasket Or Seal Included	No
Single Or Dual Plane Type	Dual
Center Maximum Height	4.570
Finish	Satin
Flange Type	4150
EGR Port	No
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Vehicle Model	Chevrolet
Basic Operating RPM Range	Idle-5500
Rear Maximum Height	5.280
Series	Performer
CNC Ported	No
Front Maximum Height	3.870
Description_ABR	Intake Mnfld
Description_INV	Performer Vortec SBC Intake Manifold
Description_LAB	Performer Intake Manifold for Small-Block Chevy w/Vortec Heads
Description_ASM	Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Description_EXT	Edelbrock Performer Vortec Intake Manifold for all Small-Block Chevrolet 262-400 c.i.d Engines with 1996+ L31 Vortec Cylinder Heads & all Modern Marine and Industrial Engines. Accepts Q-Jet or 4150-Style Square-Bore Carburetors. Non-EGR
Description_MKT	Edelbrock part #2116 Performer intake manifold is based on the popular and powerful Edelbrock #2101, this dual-plane intake is designed for the street rod, industrial and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. Manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. No provision for exhaust heated chokes.
Description_TRA	Recommended intake gasket: Edelbrock #7235
Description_TRA	Manifold ht: A-3.87", B-5.28"
Description_TRA	Carb pad height: 4.57"
Description_TRA	Carb recommendations: OEM 4-Bbl (pre-1981, Electric choke ONLY) Use #8032 throttle bracket. Edelbrock AVS2 Series or Performer Series 500-650cfm, use bracket #8032 for 1972-78.
Description_TRA	Port exit dimensions: 2.05" tall with slanted side walls
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Stock brackets will require modification to fit the upright manifold bolt holes.
Description_TRA	Will not fit under stock Corvette hood.
Description_TRA	Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
Description_TRA	Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Description_DEF	Engine Intake Manifold
