*item may differ from images

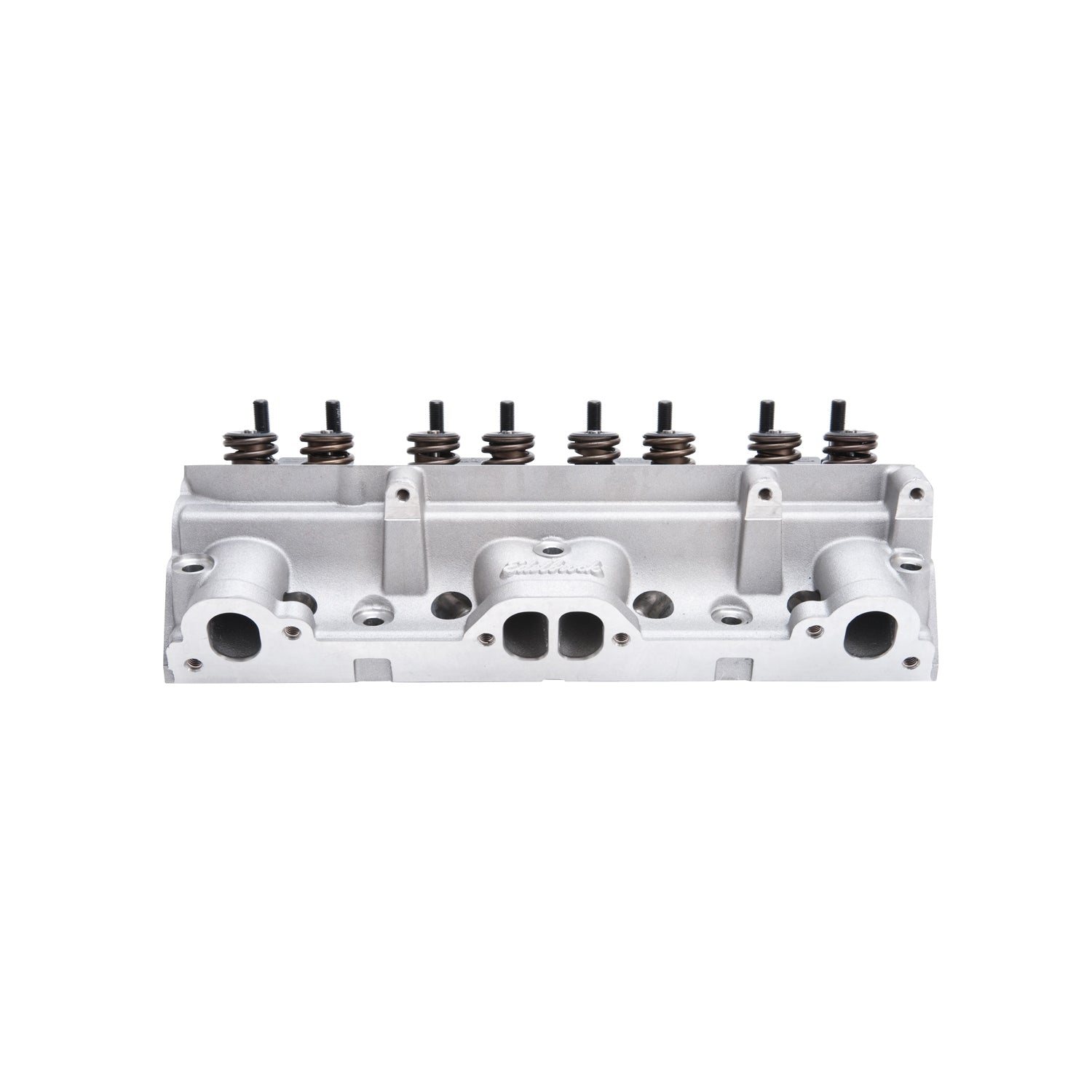

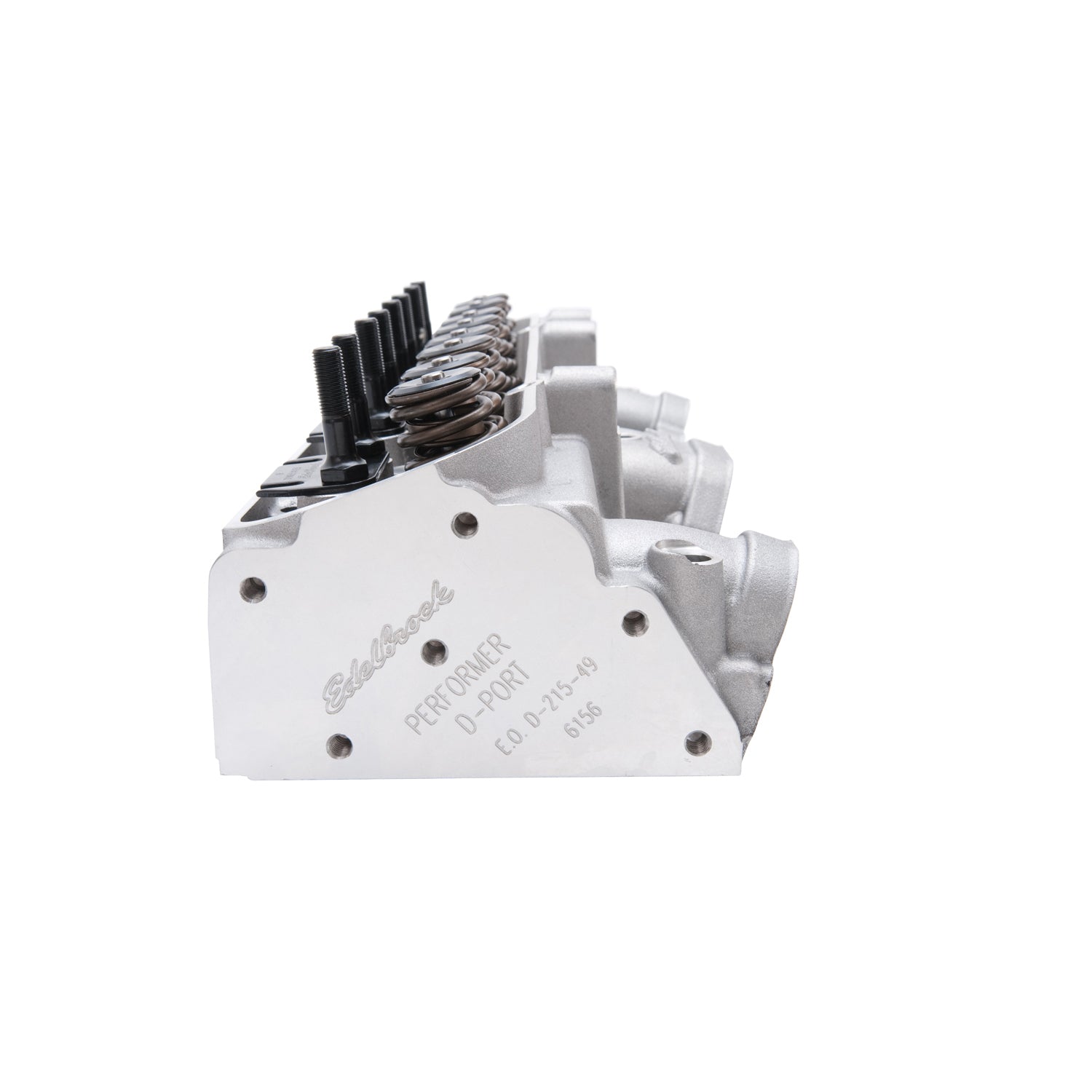

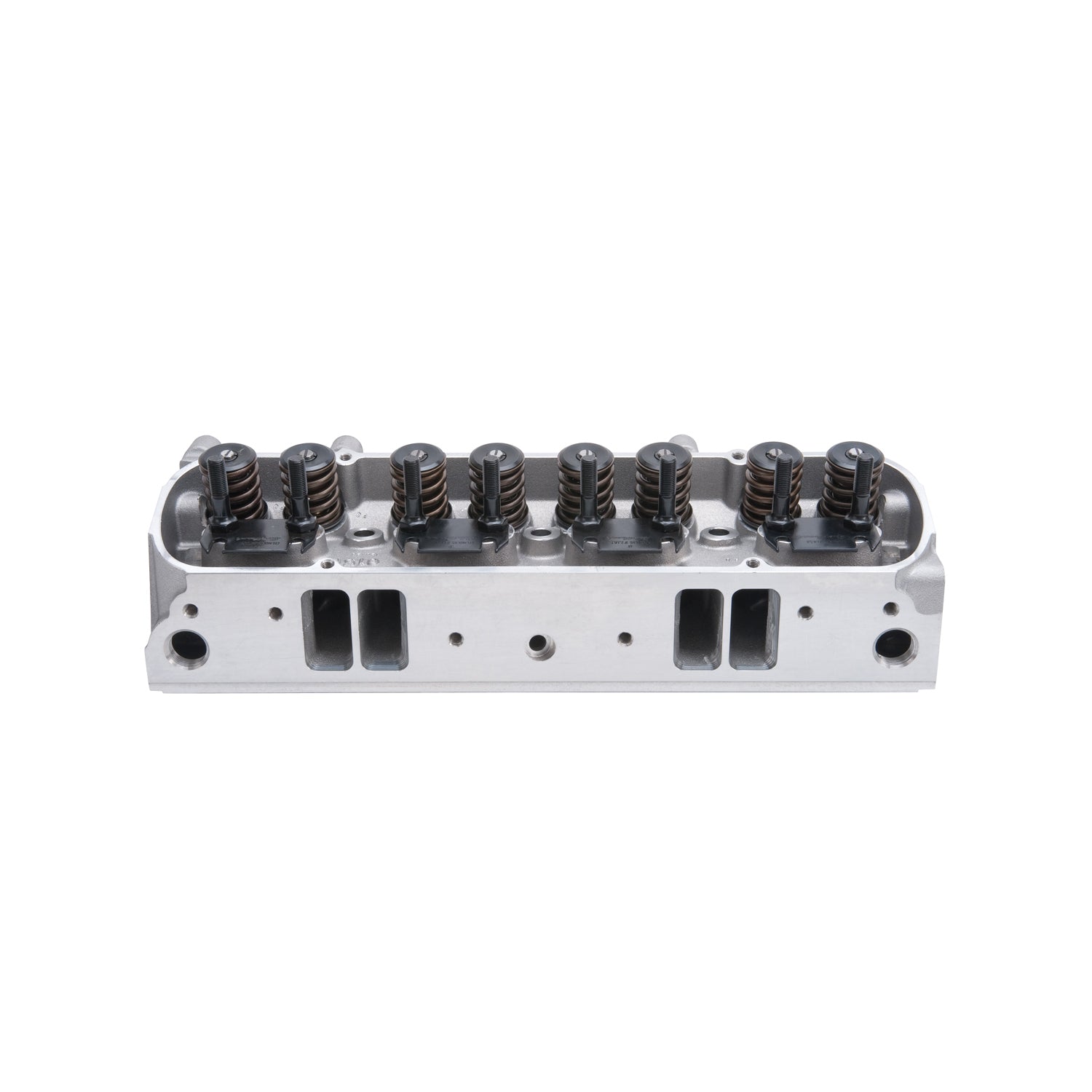

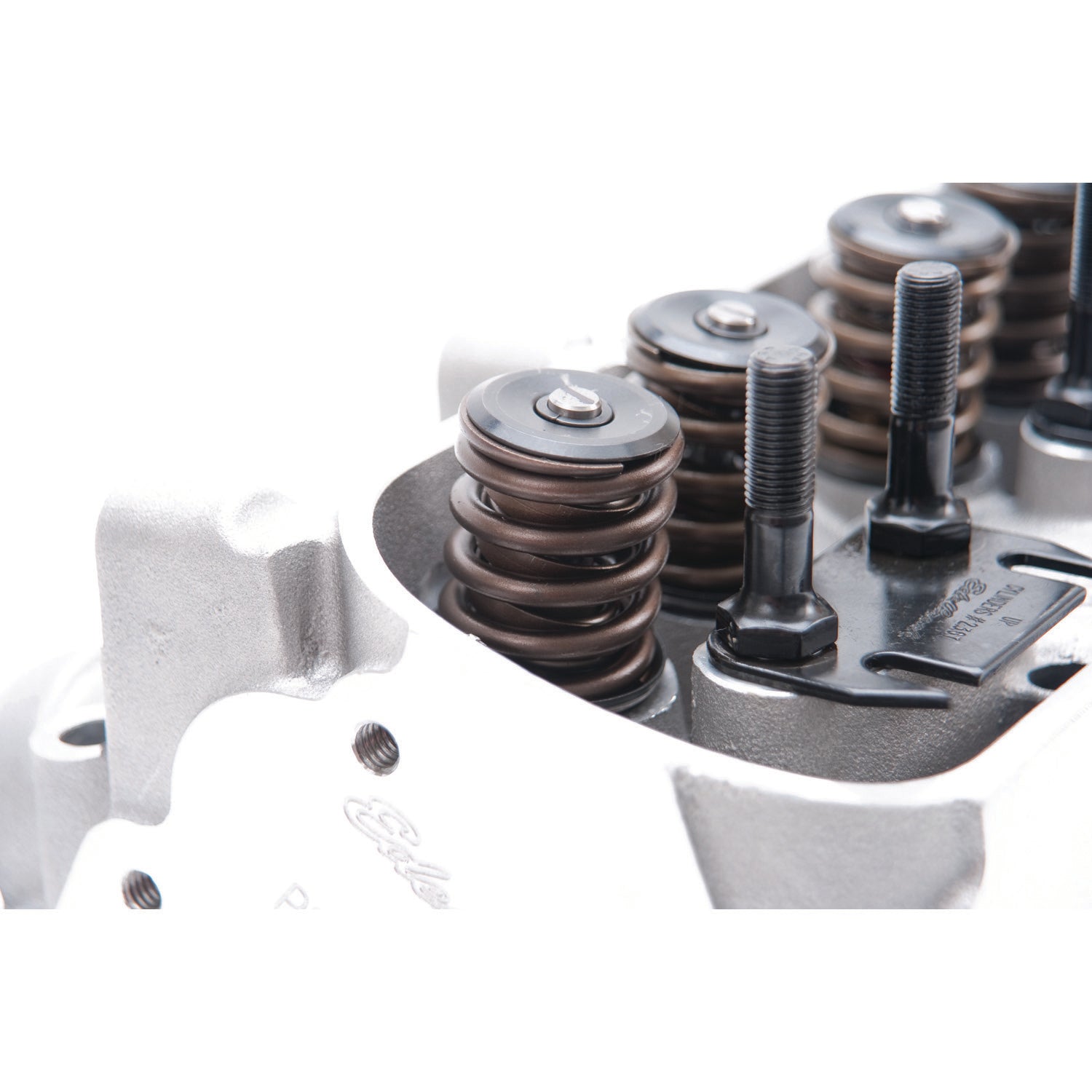

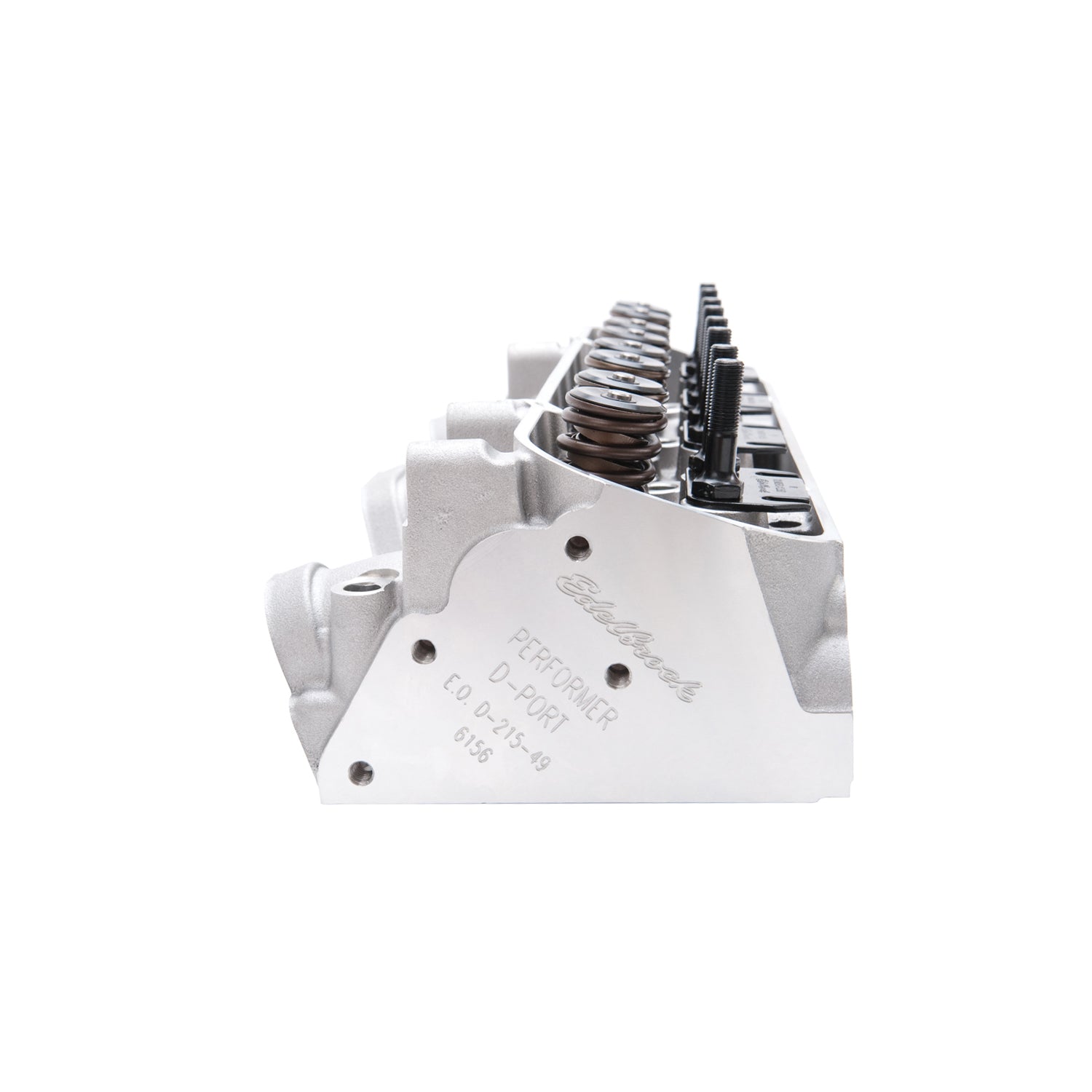

The Edelbrock #61575 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Edelbrock Engine Cylinder Head 61575
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Guide Plates Included | Yes |
| 9040 | D-215-94 |
| Exhaust Runner Volume | 145 |
| Valve Stem Diameter | 0.3438 |
| Push Rod Diameter | (Suggested) 0.3125 |
| Exhaust Valve Diameter | 1.66 |
| Construction Type | Complete |
| Rocker Arm Stud Diameter | 0.4375 |
| EGR Port | Yes |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Valve Spring Maximum Lift | 0.575 |
| Valve Angle | 14 |
| Guide Plate Material | Hardened Steel |
| Series | Performer |
| Family | Performer |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| CNC Ported | Yes |
| Exhaust Port Location | Standard |
| Seat Material | Ductile Iron |
| Grade Type | Performance |
| Deck Thickness | 0.625 |
| Combustion Chamber Volume | 87 |
| Intake Valve Diameter | 2.11 |
| Head Casting Number | N/A |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Guide Material | Manganese Bronze |
| Material | Aluminum |
| Camshaft Type | Hydraulic Roller |
| Horsepower | 400-500 |
| Intake Runner Volume | 204 |
| Valve Springs Included | Yes |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock Pontiac Cylinder Head |
| Description_LAB | Performer Pontiac D-Port Cylinder Head 87cc Hydraulic Roller Springs |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_EXT | Edelbrock part #61575 Performer Pontiac D-Port Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. |
| Description_MKT | The Edelbrock #61575 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |

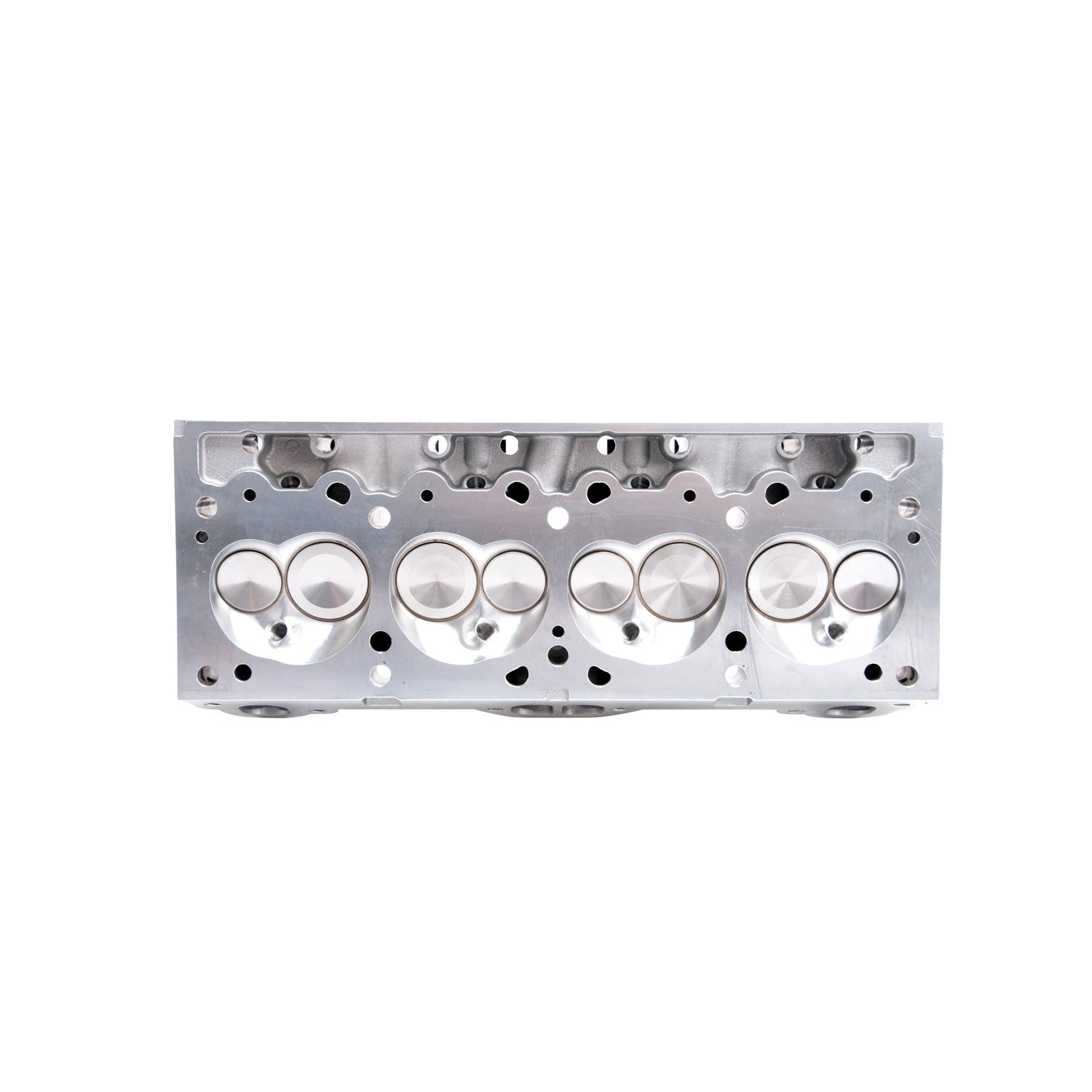

| Description_TRA | Combustion Chamber: 87cc |
| Description_TRA | 350 c.i.d. engines may require notching the block for valve clearance. |
| Description_TRA | Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_DEF | Engine Cylinder Head |
