*item may differ from images

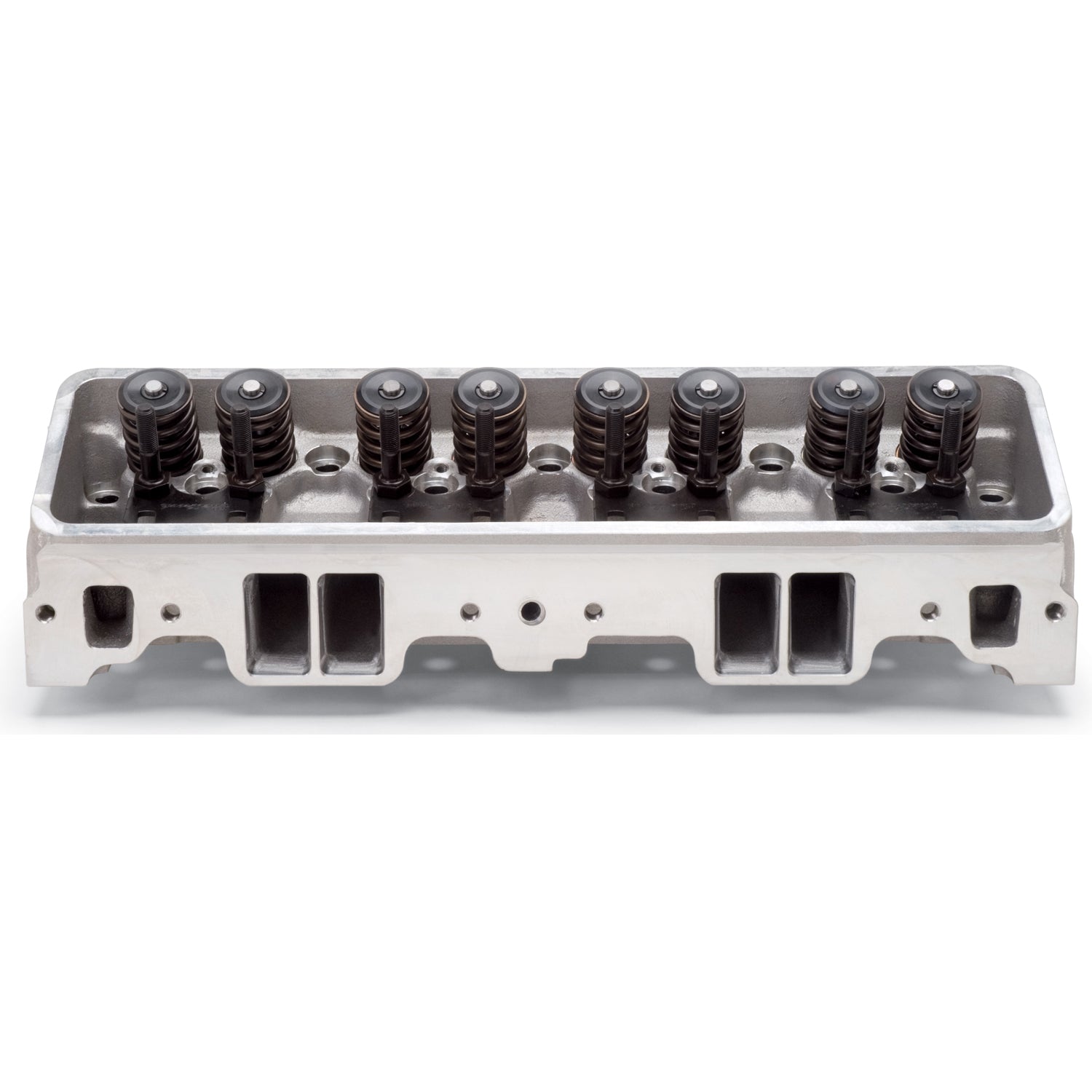

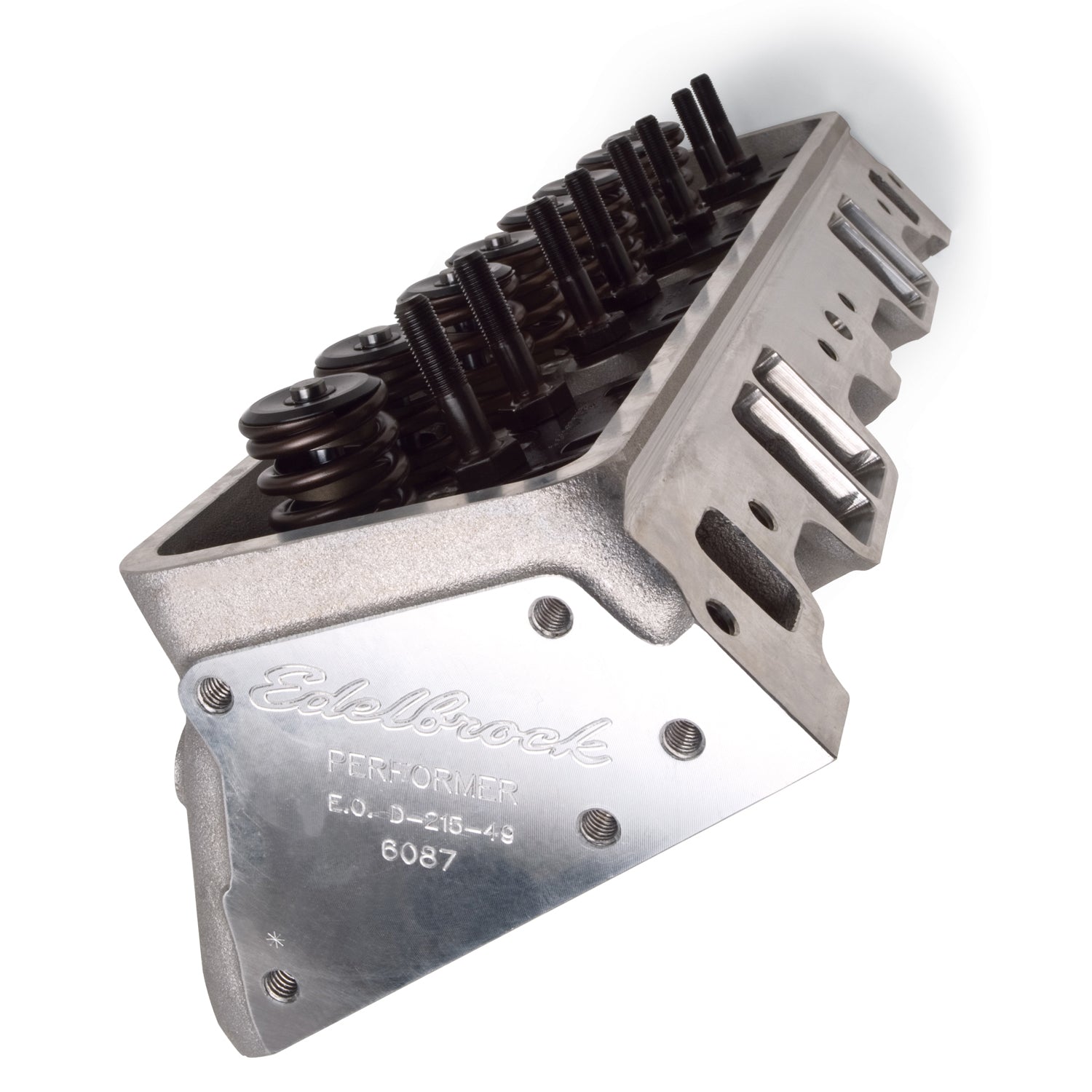

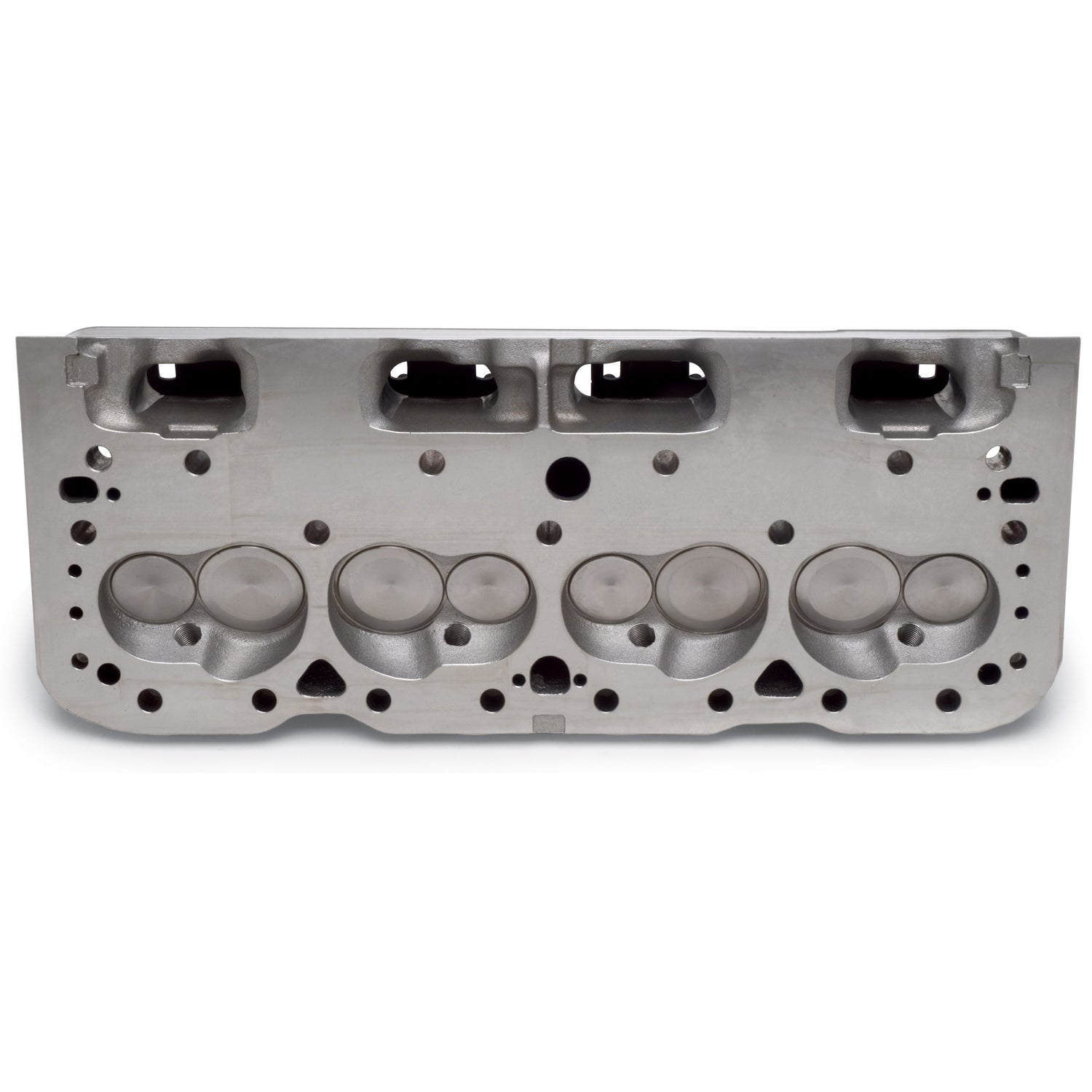

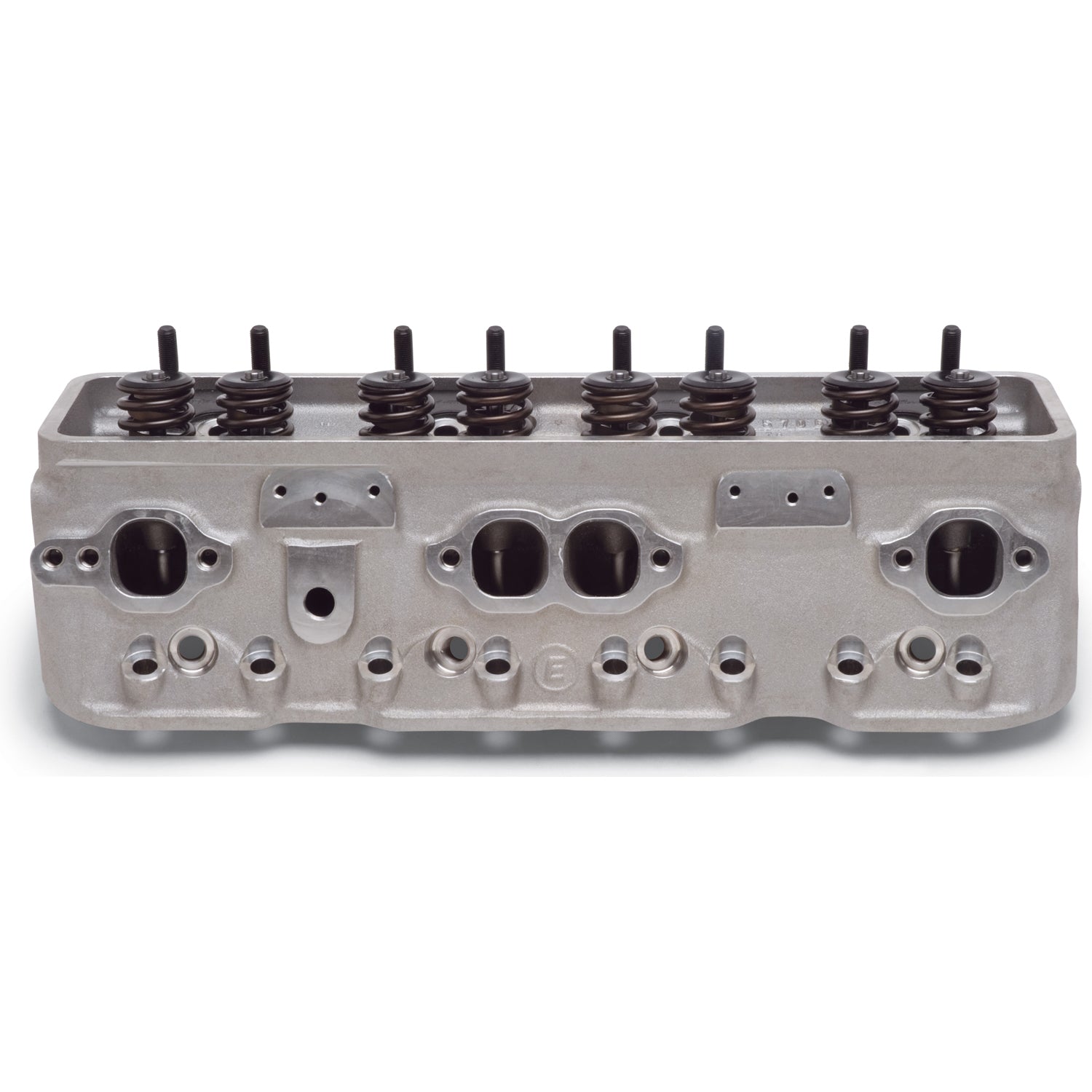

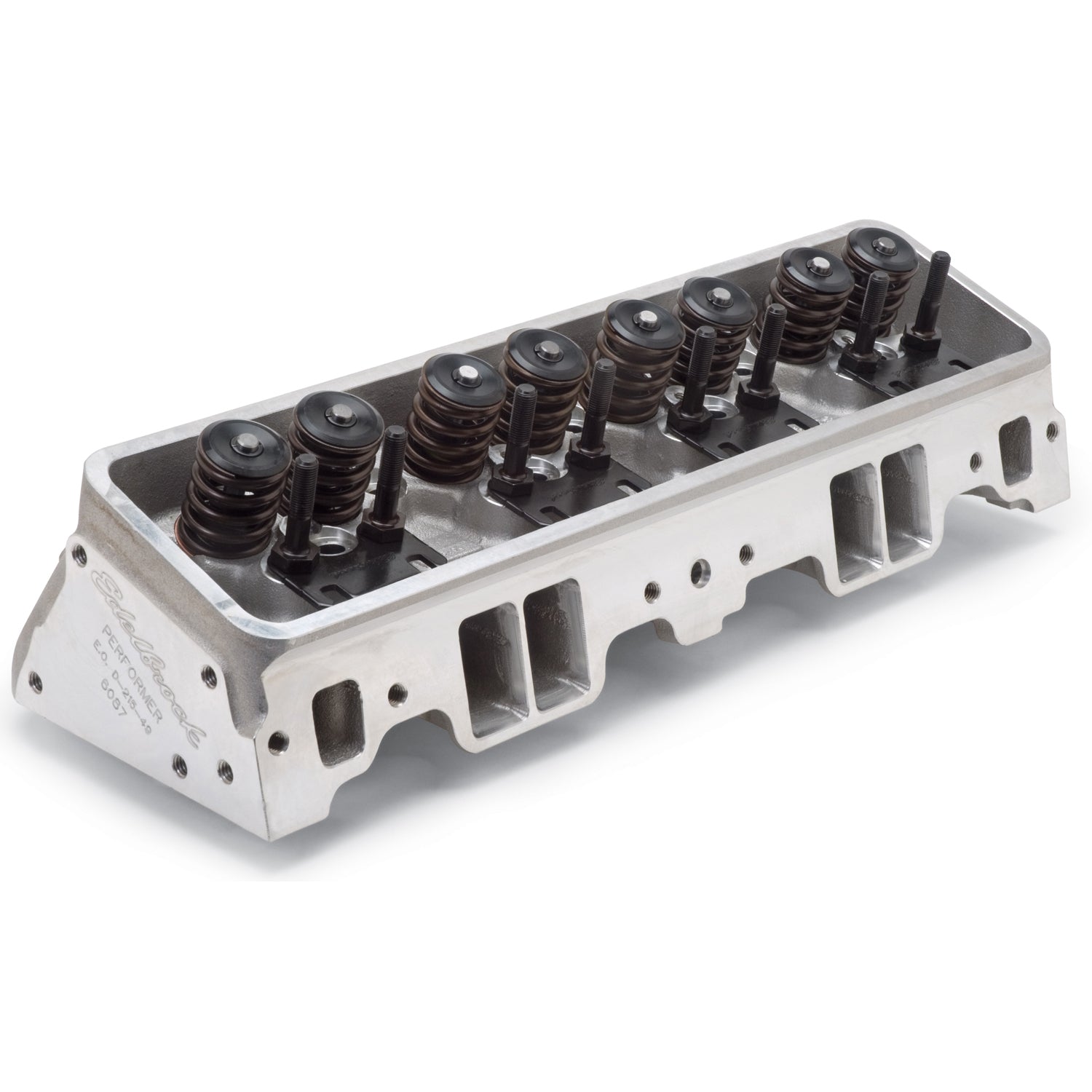

The Edelbrock #60879 Corvette center bolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90deg angle on all bolts. Spark plugs are angled like a stock O.E. head. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Edelbrock Engine Cylinder Head 60879
Specifications:
| EGR Port | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Construction Type | Complete |
| Exhaust Valve Diameter | 1.60 |
| Series | Performer |
| Family | Performer |
| Rotor Center Bore Inside Diameter | angled |
| Valve Spring Diameter | 1.46 |
| Quantity | Sold Individually |
| Horsepower | 250-425 |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Valve Included | Yes |
| Combustion Chamber Volume | 60 |
| Intake Valve Diameter | 2.02 |
| Valve Angle | 23 |
| Guide Plate Material | Hardened Steel |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Camshaft Type | Flat Tappet |
| Valve Springs Included | Yes |
| 9040 | D-215-94 |
| Exhaust Port Location | Standard |
| Grade Type | Performance |
| Valve Spring Maximum Lift | 0.575 |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Valve Stem Diameter | 0.3438 |
| Push Rod Diameter | (Suggested) 0.3125 |
| Deck Thickness | 0.625 |
| Rocker Arm Stud Diameter | 0.375 |
| CNC Ported | No |
| Material | Aluminum |
| Guide Plates Included | Yes |
| Exhaust Runner Volume | 65 |
| Intake Runner Volume | 165 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_LAB | Performer Small-Block Chevy Cylinder Head Hydraulic Flat Tappet |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | The Edelbrock #60879 Corvette center bolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with center bolt valve covers. |
| Description_MKT | The Edelbrock #60879 Corvette center bolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90deg angle on all bolts. Spark plugs are angled like a stock O.E. head. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs. |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_DEF | Engine Cylinder Head |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1987 | Chevrolet | Corvette | Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal | |
| 1988 | Chevrolet | Corvette | Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal | |
| 1989 | Chevrolet | Corvette | Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal | |
| 1990 | Chevrolet | Corvette | Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal | |
| 1991 | Chevrolet | Corvette | Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal,Complete; 165cc Intake/65cc Exh. Port; 250-425hp; Std. Intake Flange; Std. Exh. Port; Angled Plug; 60cc Chamber Vol.; Single; CARB E.O. D-215-49; Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Applications~ 50 State Legal |
