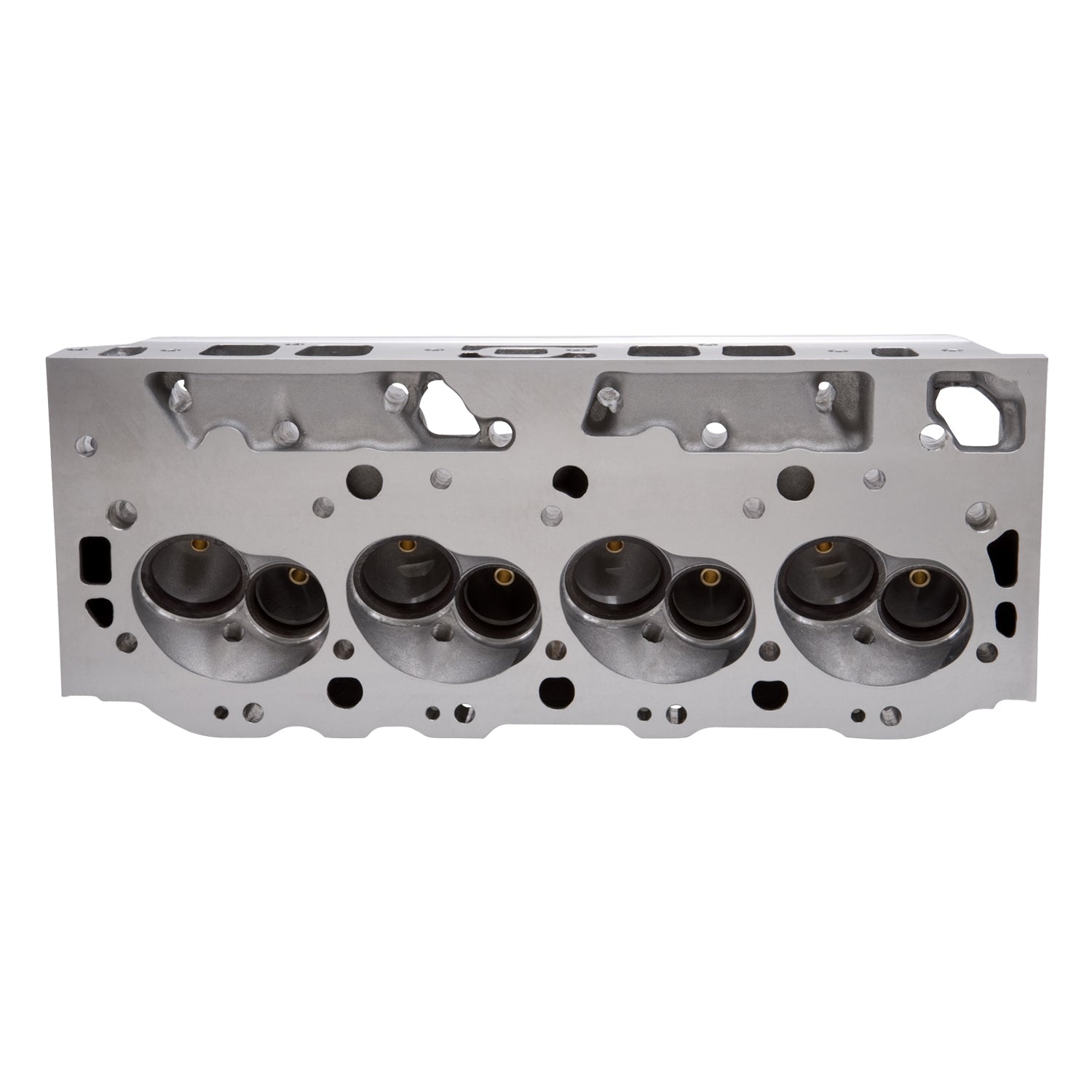

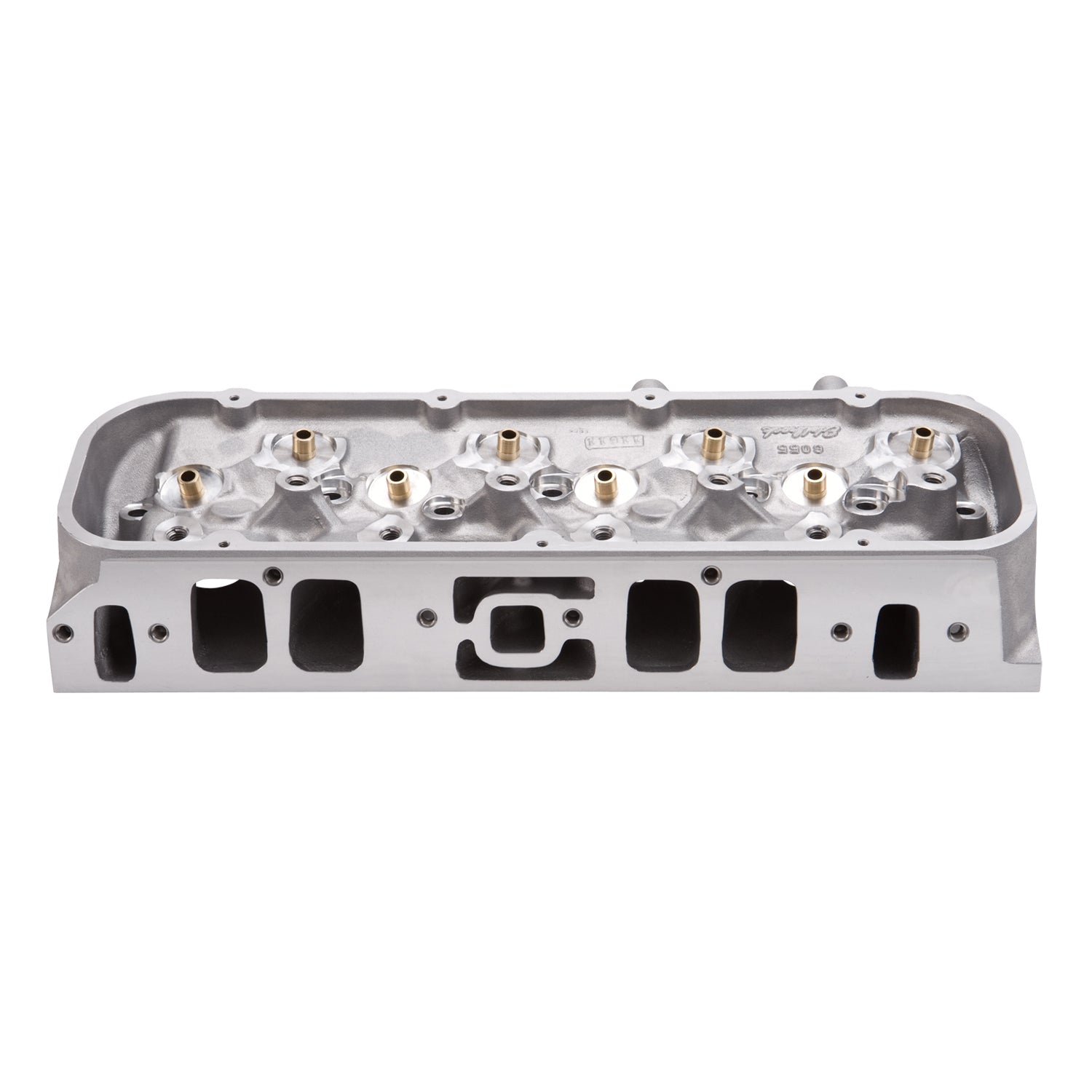

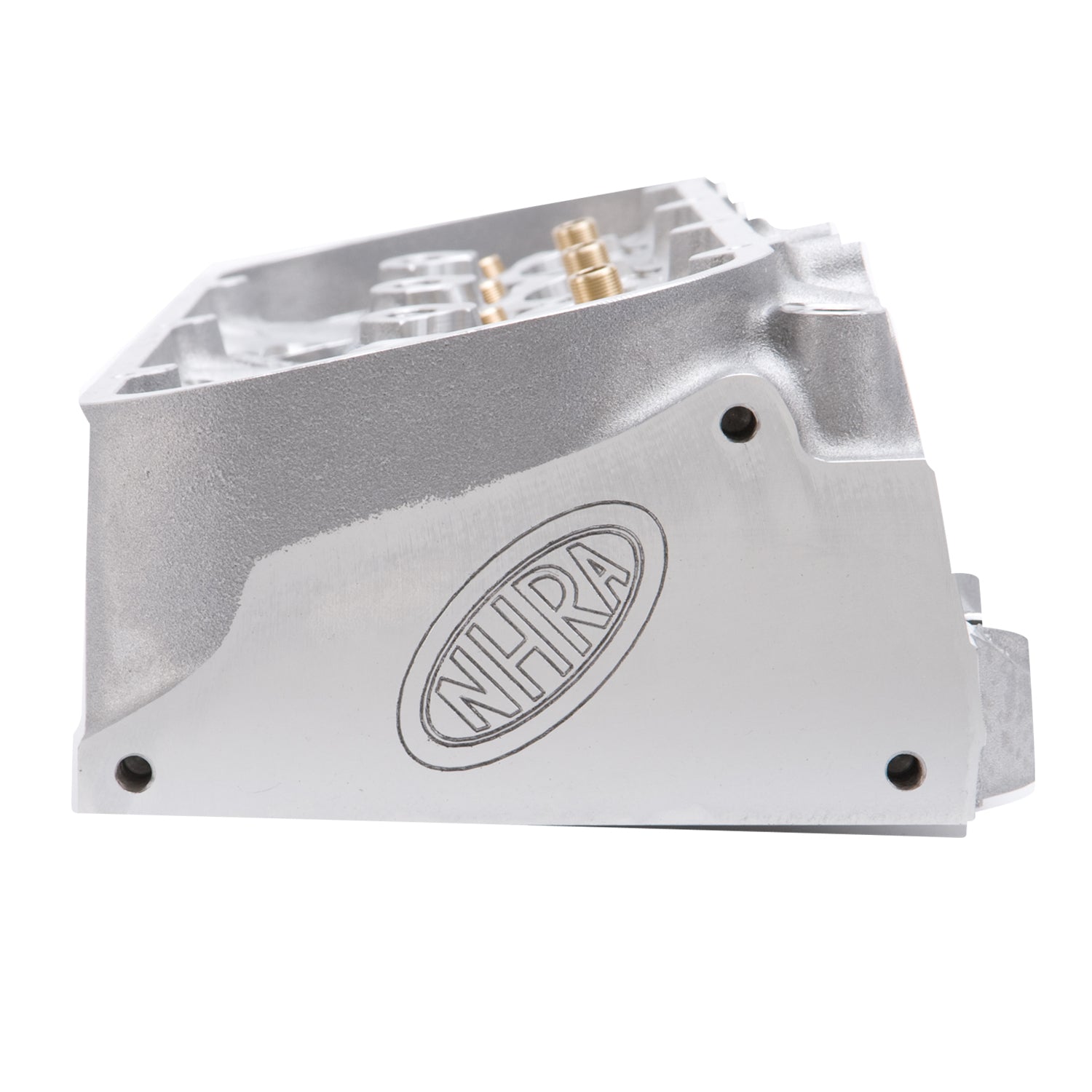

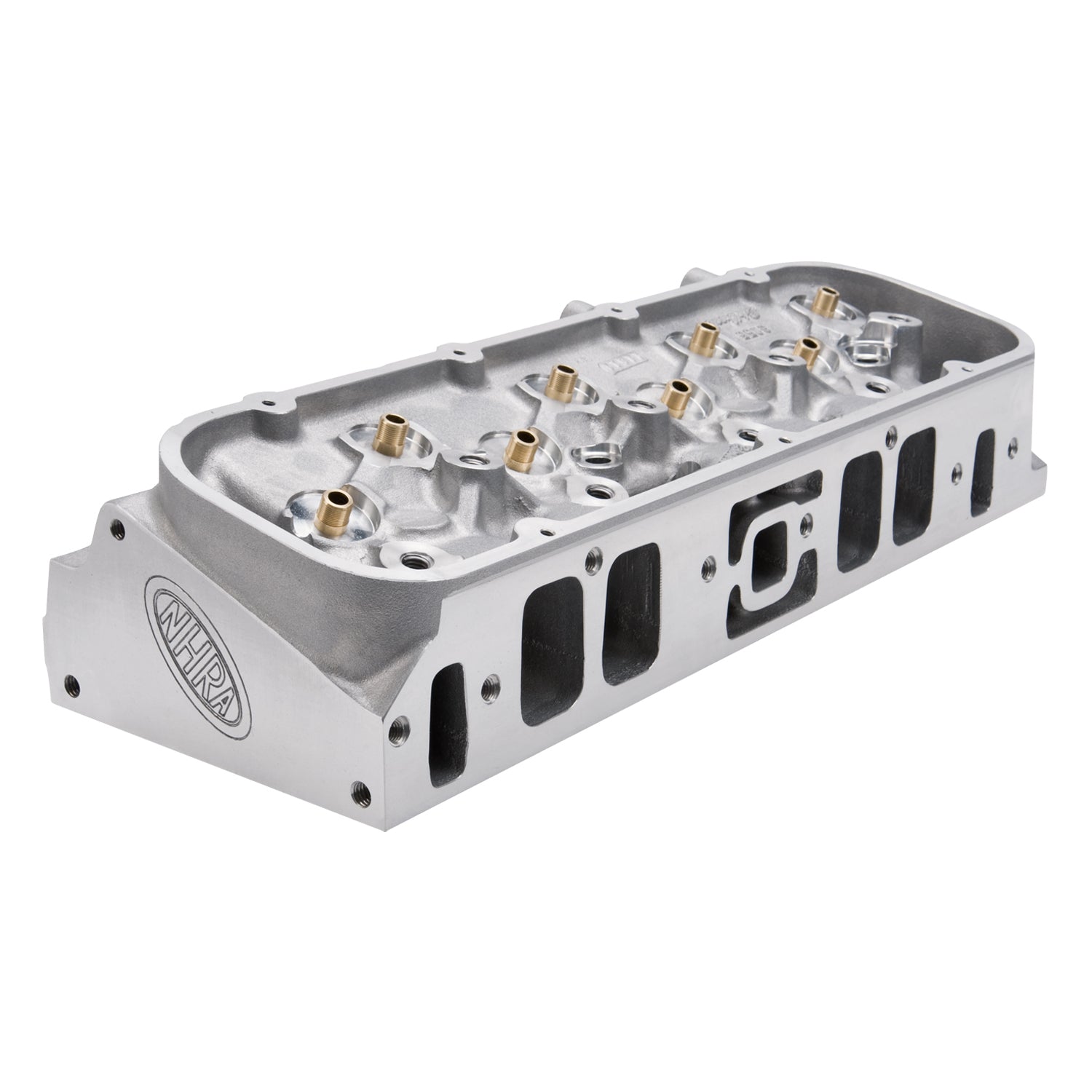

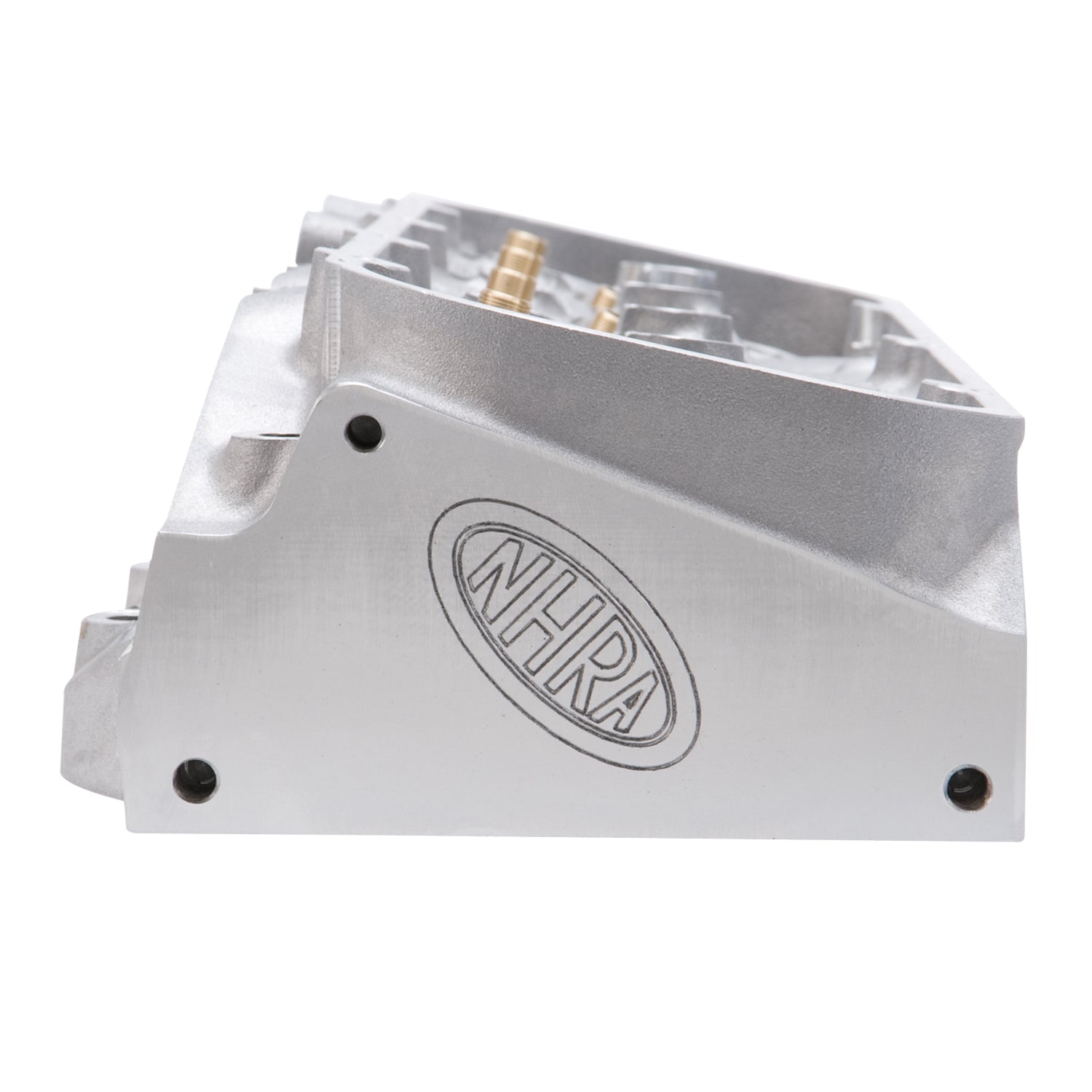

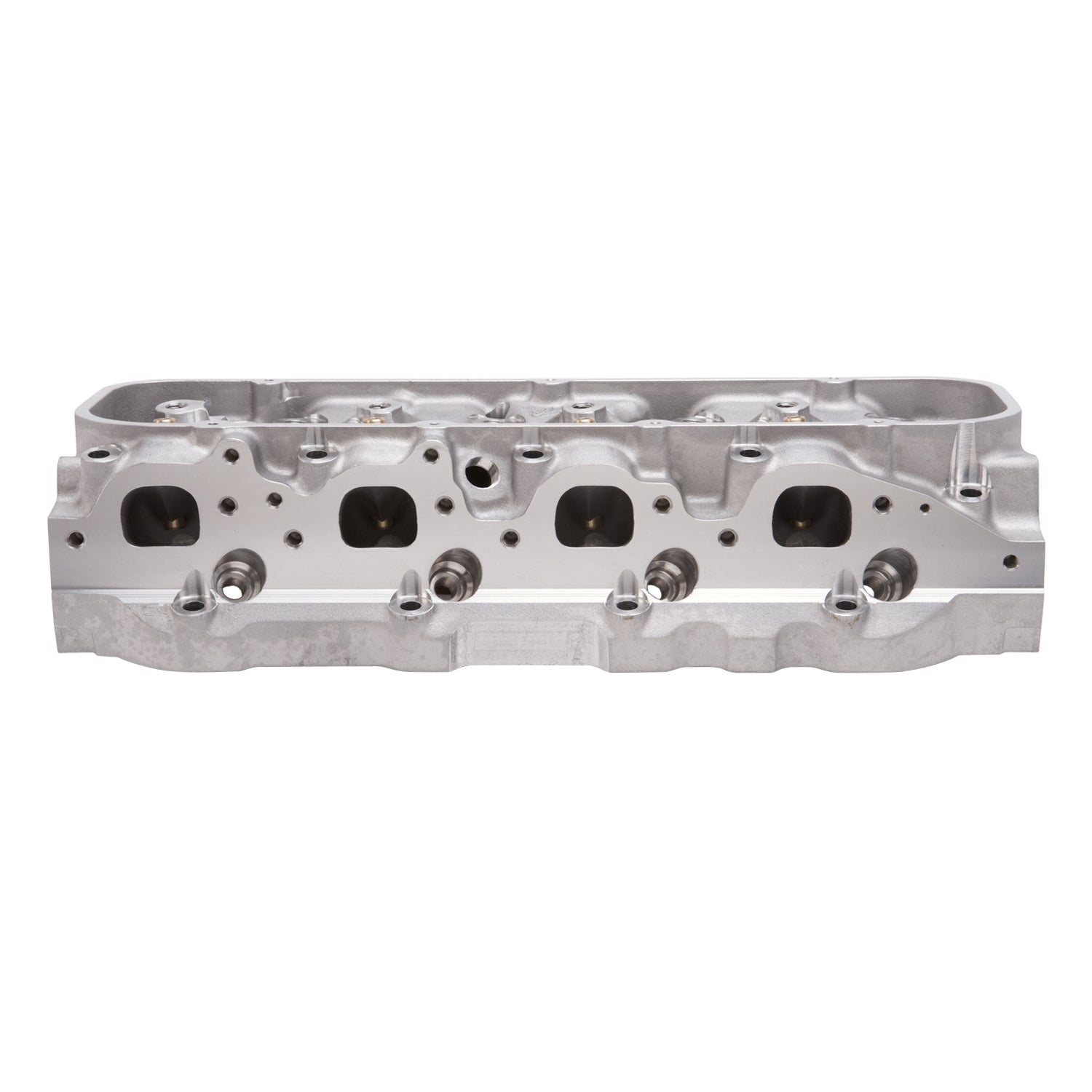

The Edelbrock #60547 Performer RPM Bare NHRA Stock/Super Stock Rectangle Port cylinder head is designed for Big-Block Chevy applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Edelbrock Engine Cylinder Head 60547
Specifications:
| Material | Aluminum |
| Deck Thickness | 0.5625 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Flange Type | Rectangle Intake |
| Valve Springs Included | No |
| Exhaust Runner Volume | 110 |
| Series | Performer RPM |
| Seat Material | Ductile Iron |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port | No |
| Quantity | Sold Individually |
| Valve Angle | 26 |
| Exhaust Port Location | Standard |
| Family | Performer RPM |
| Retainer Included | No |
| Valve Included | No |
| Intake Runner Volume | 315 |
| CNC Ported | No |
| Construction Type | Bare |
| Combustion Chamber Volume | 118 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | NHRA Big-Block Chevy Rectangular Port Cylinder Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_EXT | The Edelbrock #60547 Performer RPM Bare NHRA Stock/Super Stock Rectangle Port cylinder heads are designed for Big-Block Chevy applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. |
| Description_MKT | The Edelbrock #60547 Performer RPM Bare NHRA Stock/Super Stock Rectangle Port cylinder head is designed for Big-Block Chevy applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include! |
| Description_TRA | Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads. |
| Description_TRA | Use pistons designed for our heads. Match with Edelbrock head gasket sets. |
| Description_TRA | Designed for street/high-performance big-blocks operating from 2500-7000 rpm |
| Description_TRA | Specially designed ports for increased flow and velocity over standard big-block cylinder heads |
| Description_TRA | Highly-efficient 118cc open-style combustion chamber |
| Description_TRA | High-velocity 315cc long/300cc short intake ports |
| Description_TRA | Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight |
| Description_DEF | Engine Cylinder Head |
