The Edelbrock #60069 Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

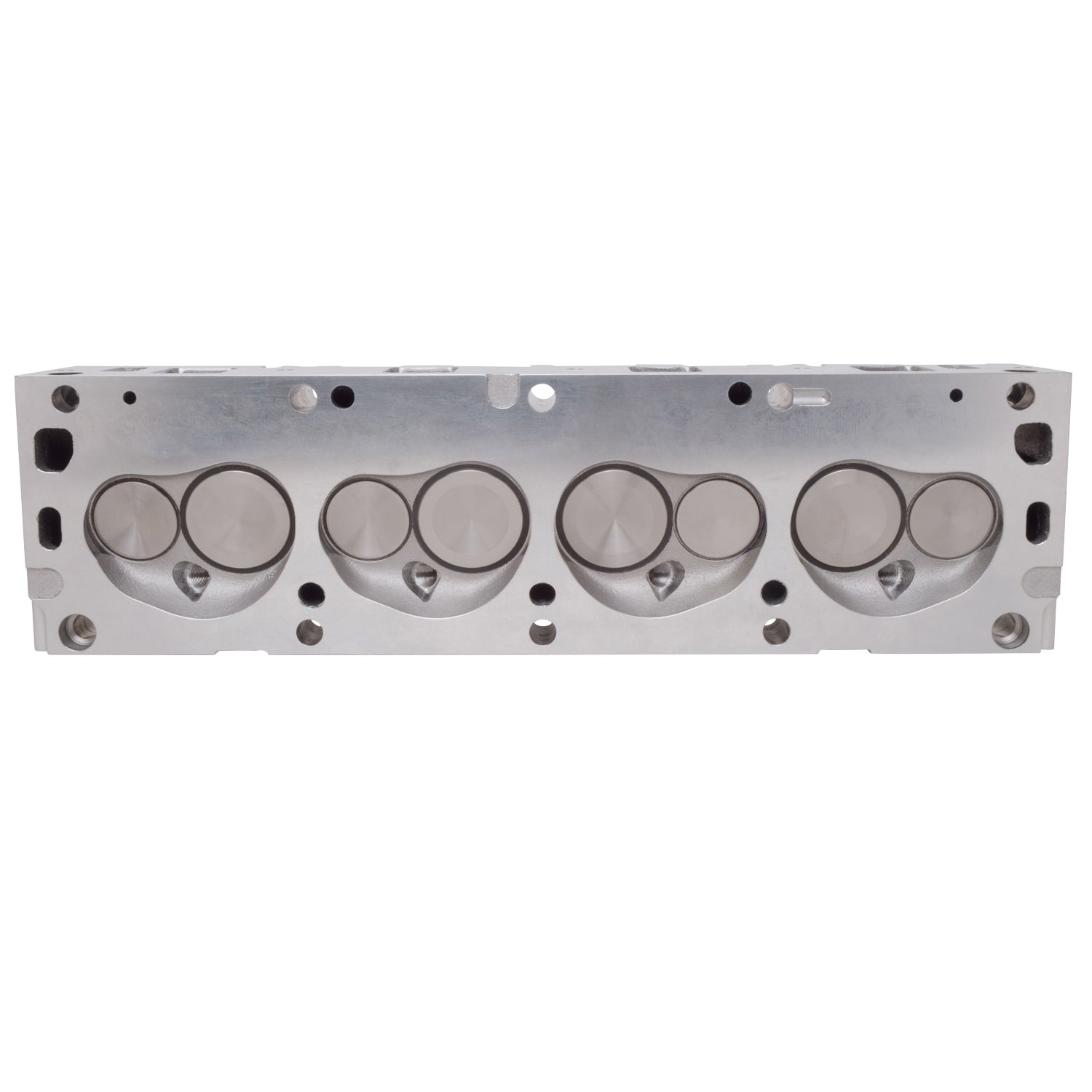

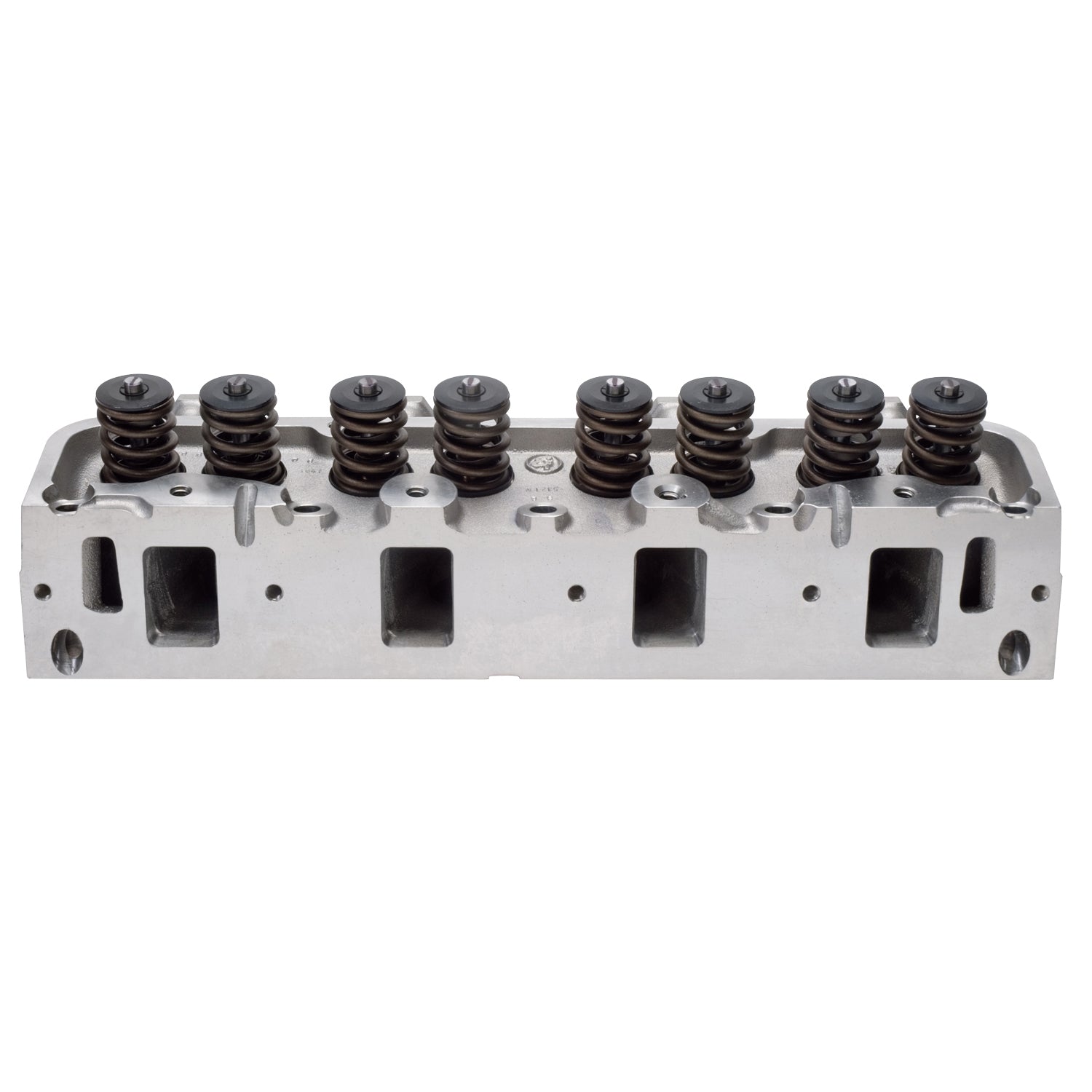

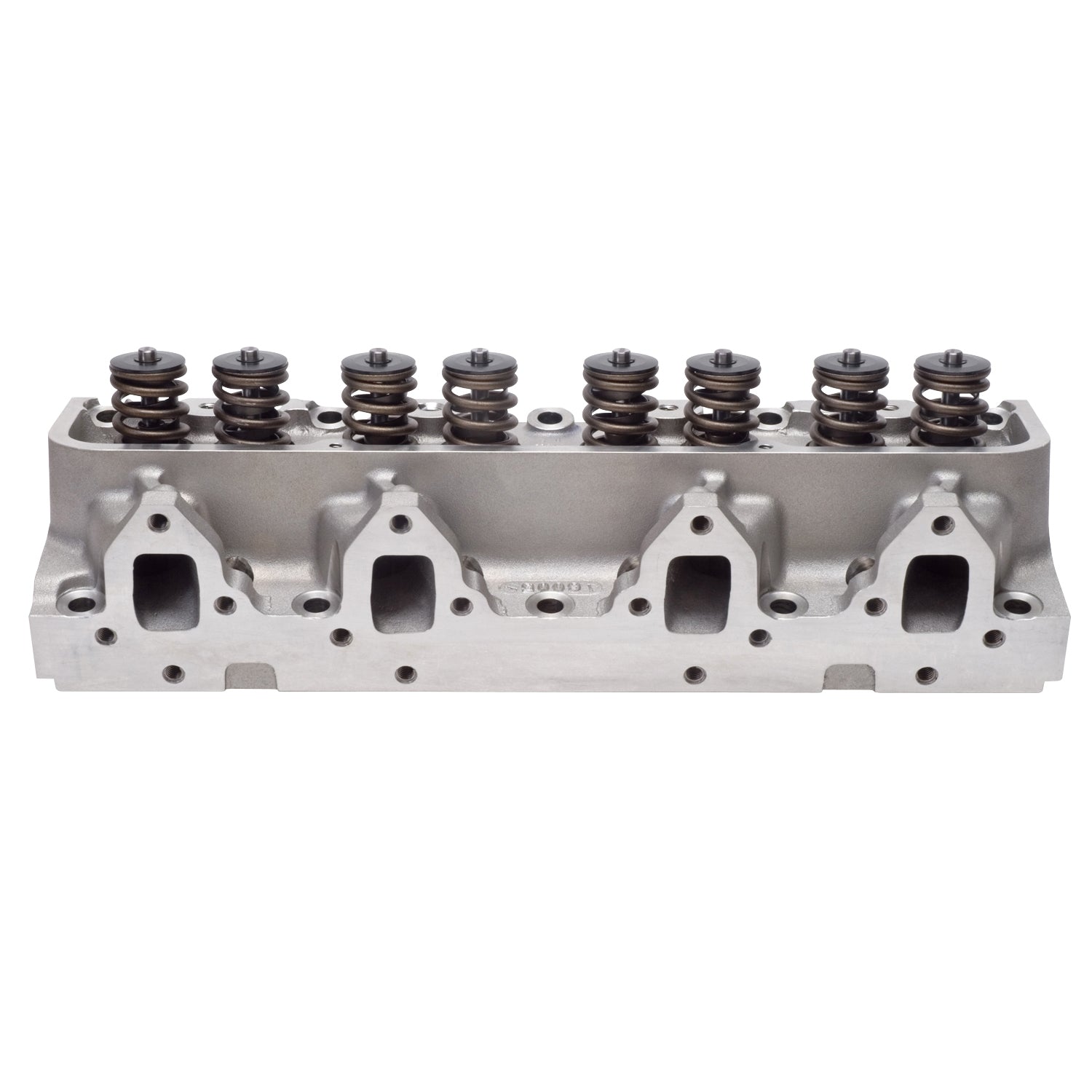

Edelbrock Engine Cylinder Head 60069
Specifications:
| Exhaust Port Location | Standard |
| Series | Performer RPM |
| Horsepower | 450-550 |
| Valve Spring Diameter | 1.55 |
| Seat Angle | Exhaust 45 deg/Intake 60 |
| Exhaust Runner Volume | 125 |
| Material | Aluminum |
| Grade Type | Performance |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Intake Valve Diameter | 2.09 |
| Exhaust Valve Diameter | 1.66 |
| EGR Port | No |
| Valve Springs Included | Yes |
| Seat Material | Ductile Iron |
| Guide Plates Included | No |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.375 |
| Retainer Included | Yes |
| Push Rod Diameter | 0.375 |
| Valve Included | Yes |
| Deck Thickness | 0.625 |
| CNC Ported | No |
| Camshaft Type | Flat Tappet |
| Intake Runner Volume | 170 |
| Valve Spring Maximum Lift | 0.600 |
| Family | Performer RPM |
| Construction Type | Complete |
| Combustion Chamber Volume | 72 |
| Valve Angle | 13 |
| Description_TRA | 428 Cobra Jet-sized valves promote excellent flow for streetable power |
| Description_TRA | Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | 390 GT exhaust will not fit. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8". |
| Description_DEF | Engine Cylinder Head |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock Ford FE Cylinder Head |
| Description_LAB | RPM Ford FE 390/428 Cylinder Head |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_EXT | The Edelbrock #60069 Performer RPM Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_MKT | The Edelbrock #60069 Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1968 | Ford | Country Sedan | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Country Squire | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Custom | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Custom 500 | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Fairlane | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | Fairlane | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1970 | Ford | Fairlane | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Galaxie 500 | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | GT40 | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | GT40 | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | LTD | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Mustang | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | Mustang | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1970 | Ford | Mustang | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Ranch Wagon | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Ranchero | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | Ranchero | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | Thunderbird | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Ford | Torino | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Ford | Torino | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1970 | Ford | Torino | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Mercury | Comet | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Mercury | Cougar | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Mercury | Cyclone | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | Mercury | Montego | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | Mercury | Montego | Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV),Complete; 450-550hp; Std. Exh. Port; 72cc Chamber Vol.; 2.09 Intake/1.66 in. Exh. Valves; Single; Legal For Use On Pre-Pollution Controlled Vehicles; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
