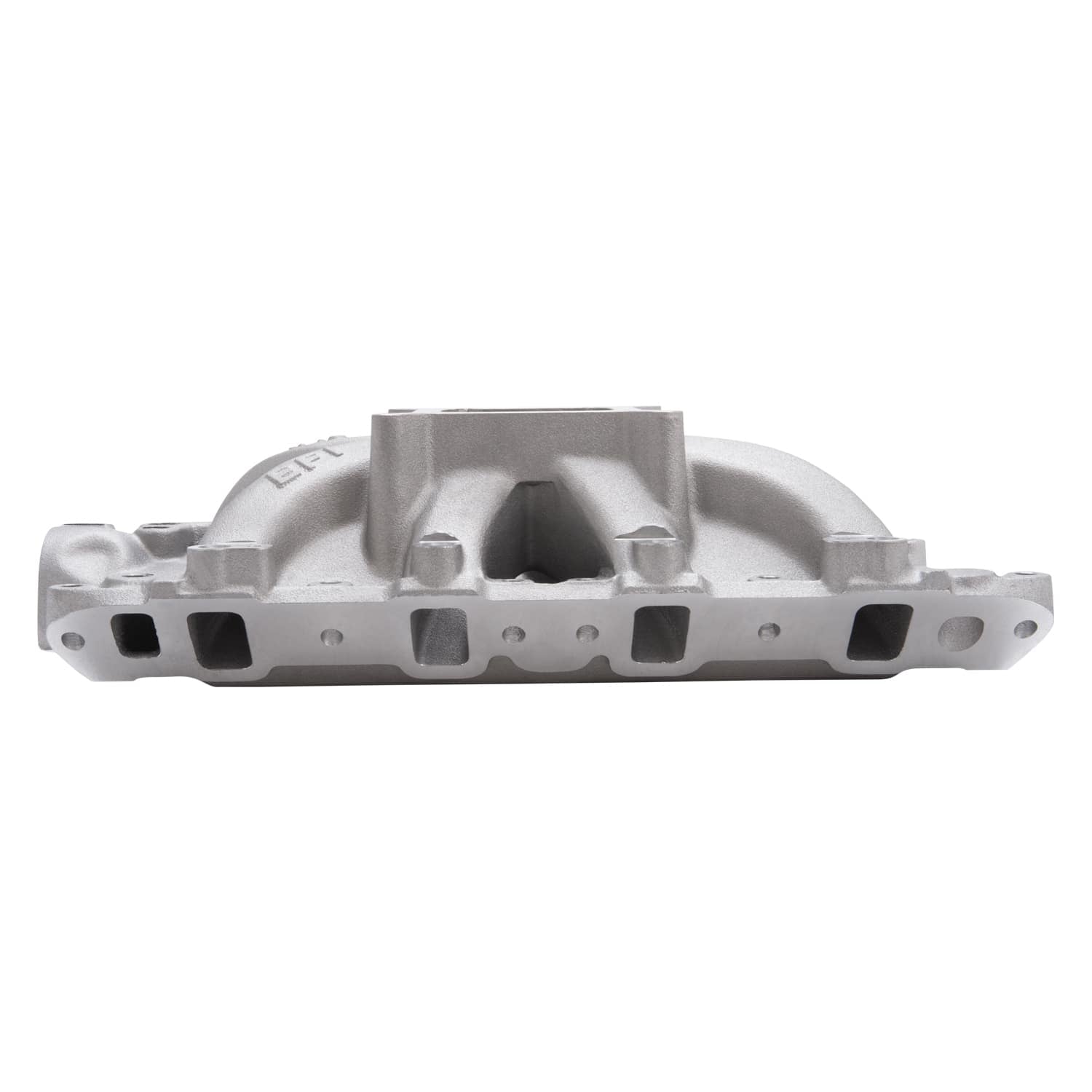

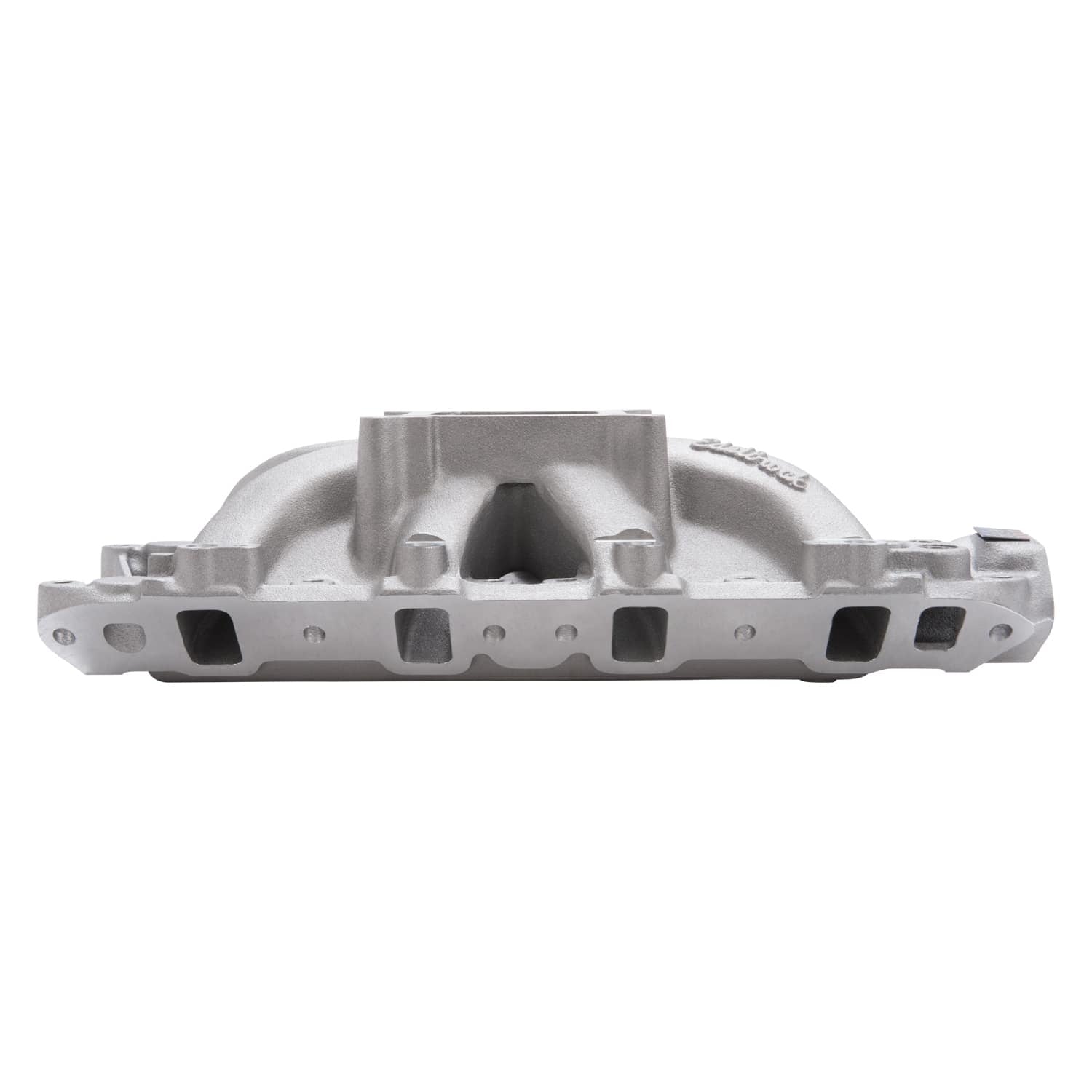

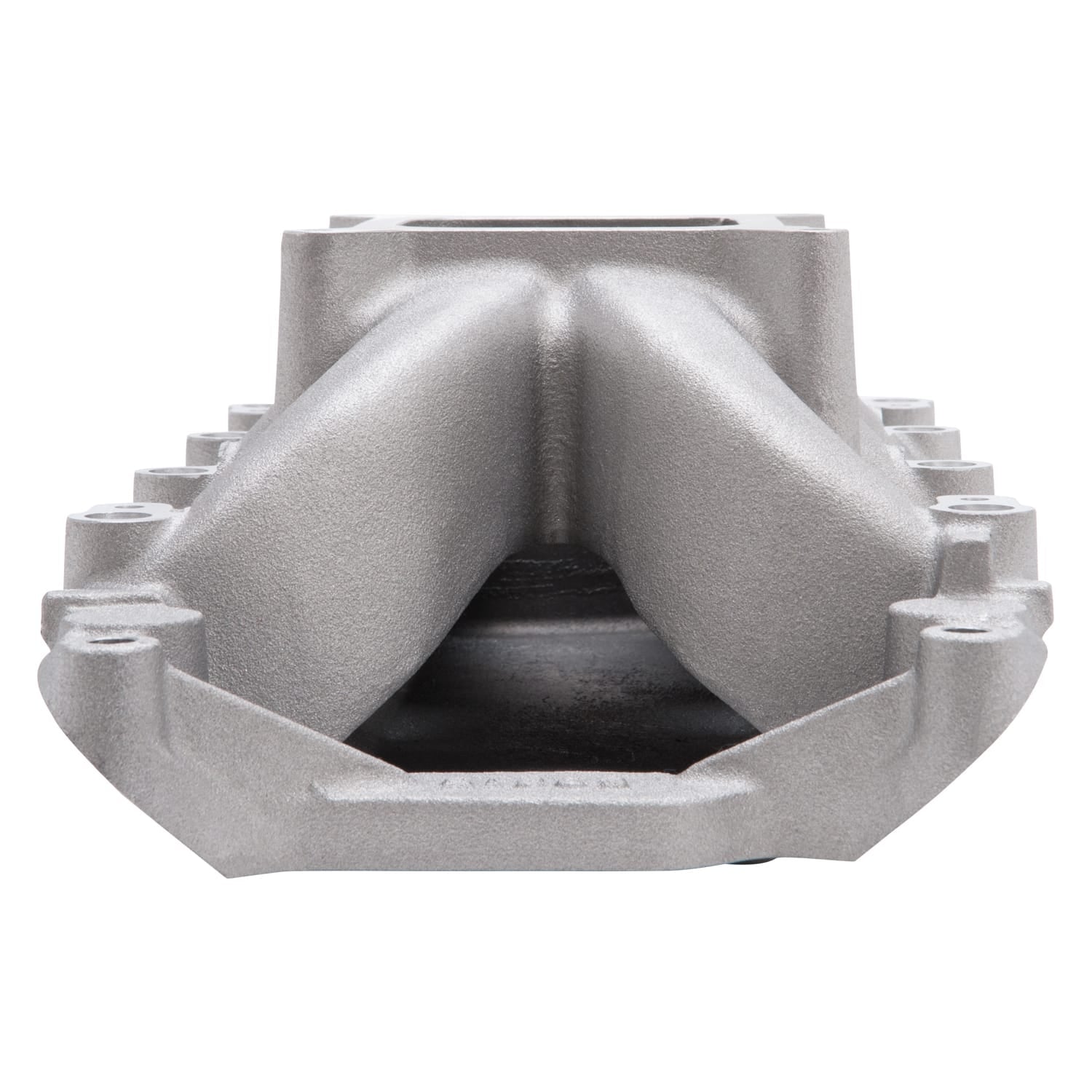

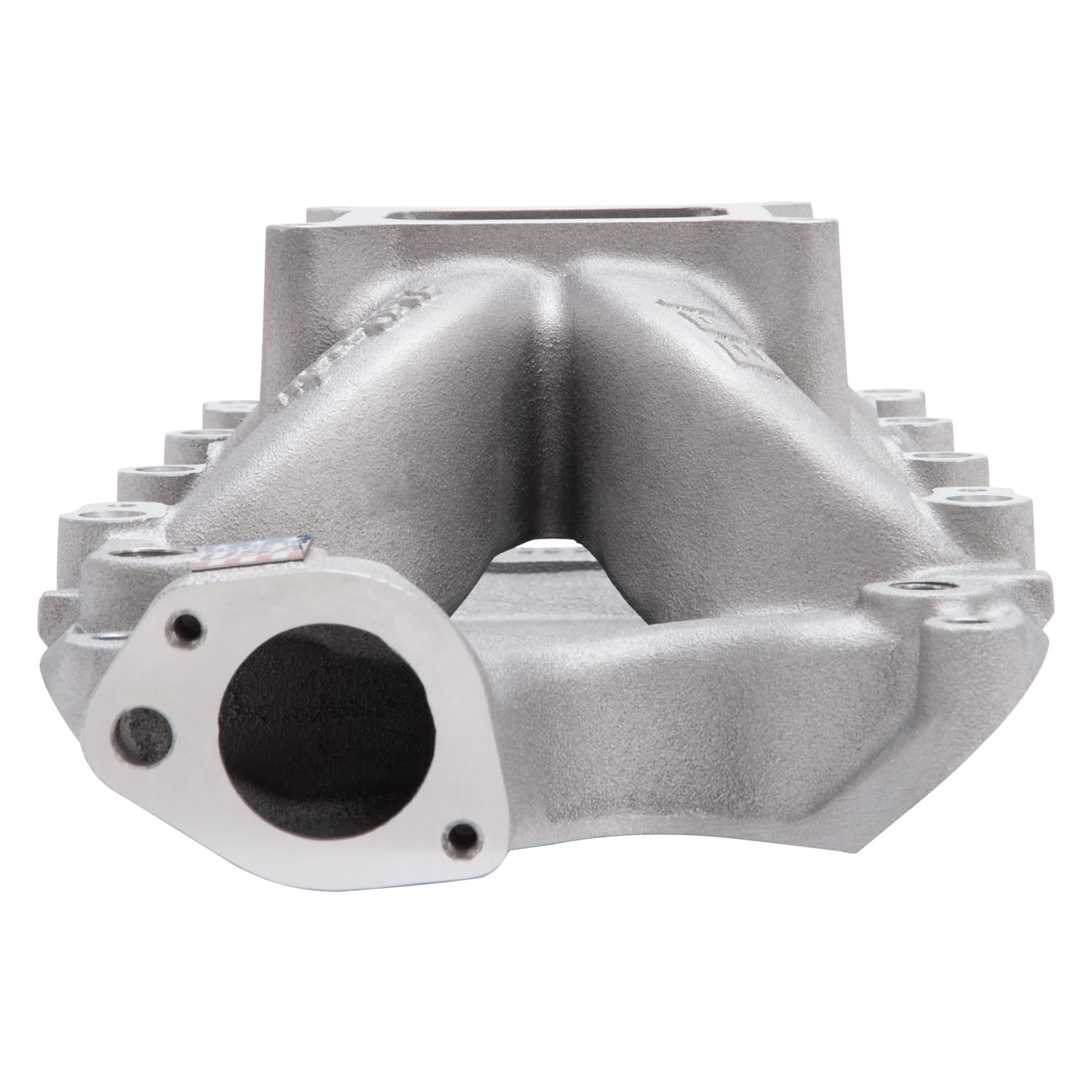

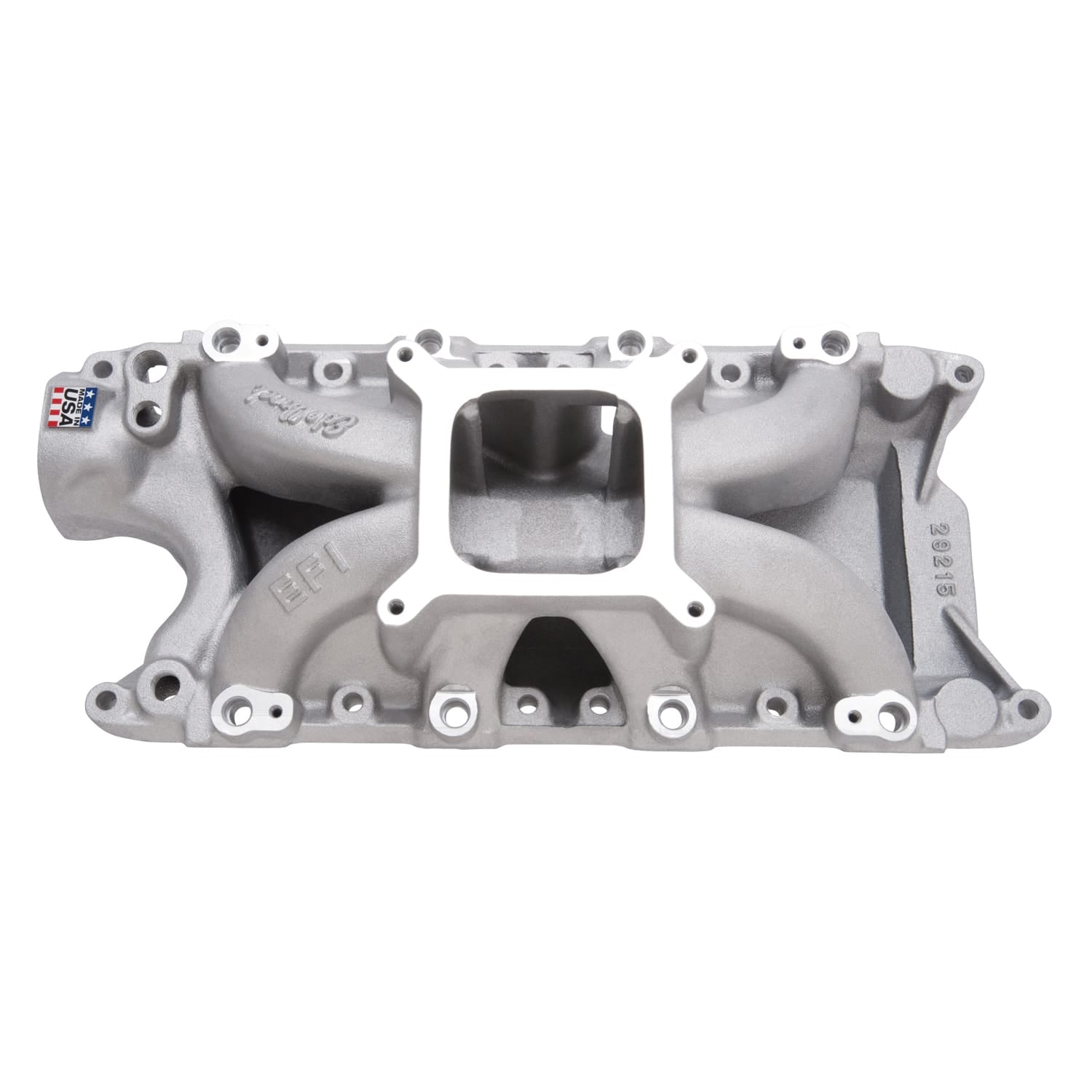

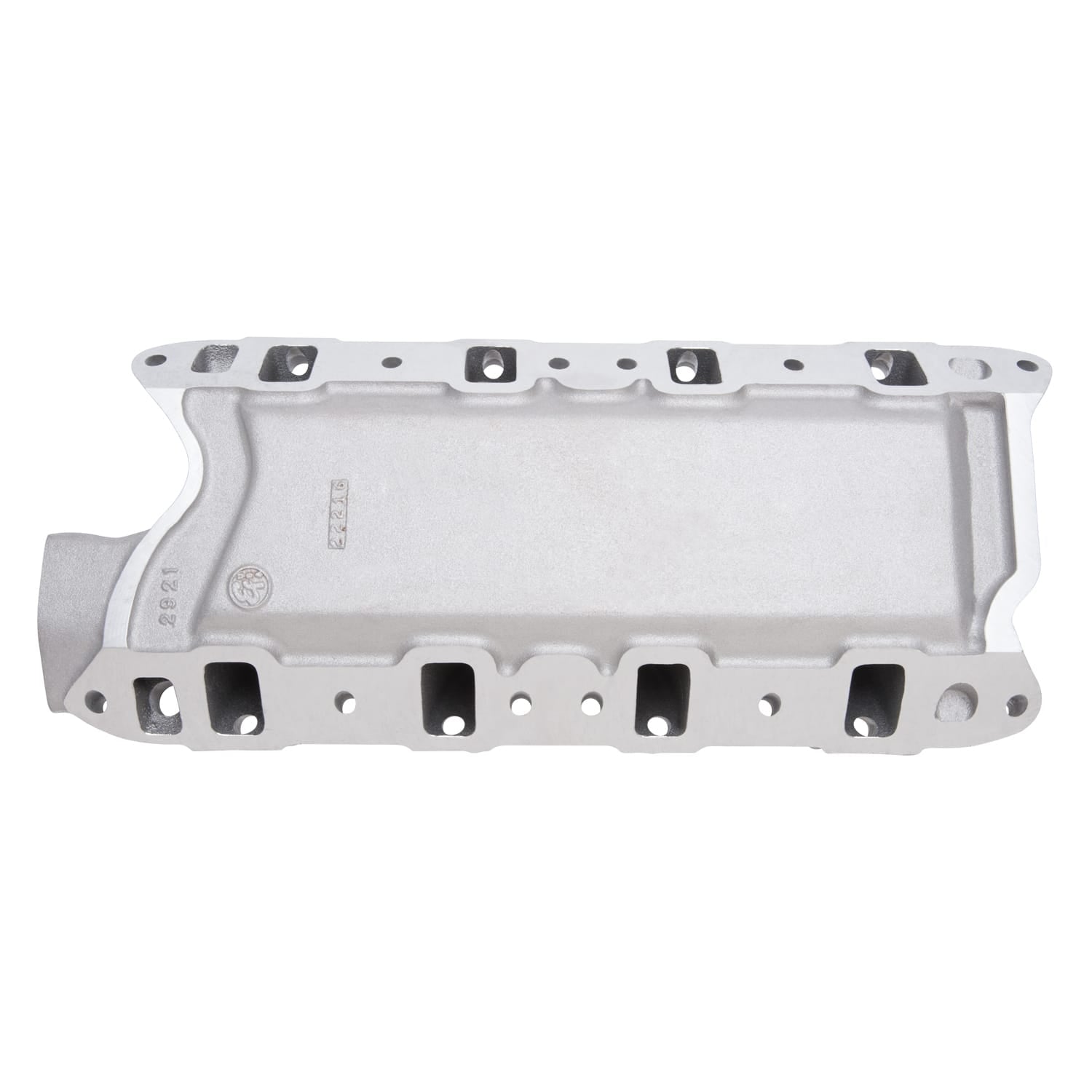

Edelbrock part #29215 Victor Jr. 302 EFI intake manifold is designed for use with Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. Victor Jr. EFI also features bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. The Edelbrock Victor Jr. #29215 EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Edelbrock Edelbrock Victor Jr. 302 EFI Intake Manifold for Ford 289-347 Small-Block V8 29215
Specifications:
| Finish | Satin |
| Front Maximum Height | 5.500 |
| Flange Type | 4150 |
| CNC Ported | No |
| Grade Type | Performance |
| Material | Aluminum |
| Rear Maximum Height | 5.500 |
| Vehicle Model | Ford |
| Single Or Dual Plane Type | Single |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 5.500 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Victor Jr Ford 8.2 Deck Intake |
| Description_LAB | Victor Jr. Small Block Ford 302 EFI Intake Manifold |
| Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_EXT | Edelbrock Victor Jr. 302 EFI Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_MKT | Edelbrock part #29215 Victor Jr. 302 EFI intake manifold is designed for use with Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. Victor Jr. EFI also features bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. The Edelbrock Victor Jr. #29215 EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 or Fel-Pro #1250 |
| Description_TRA | Manifold height: A-5.50", B-5.50" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
