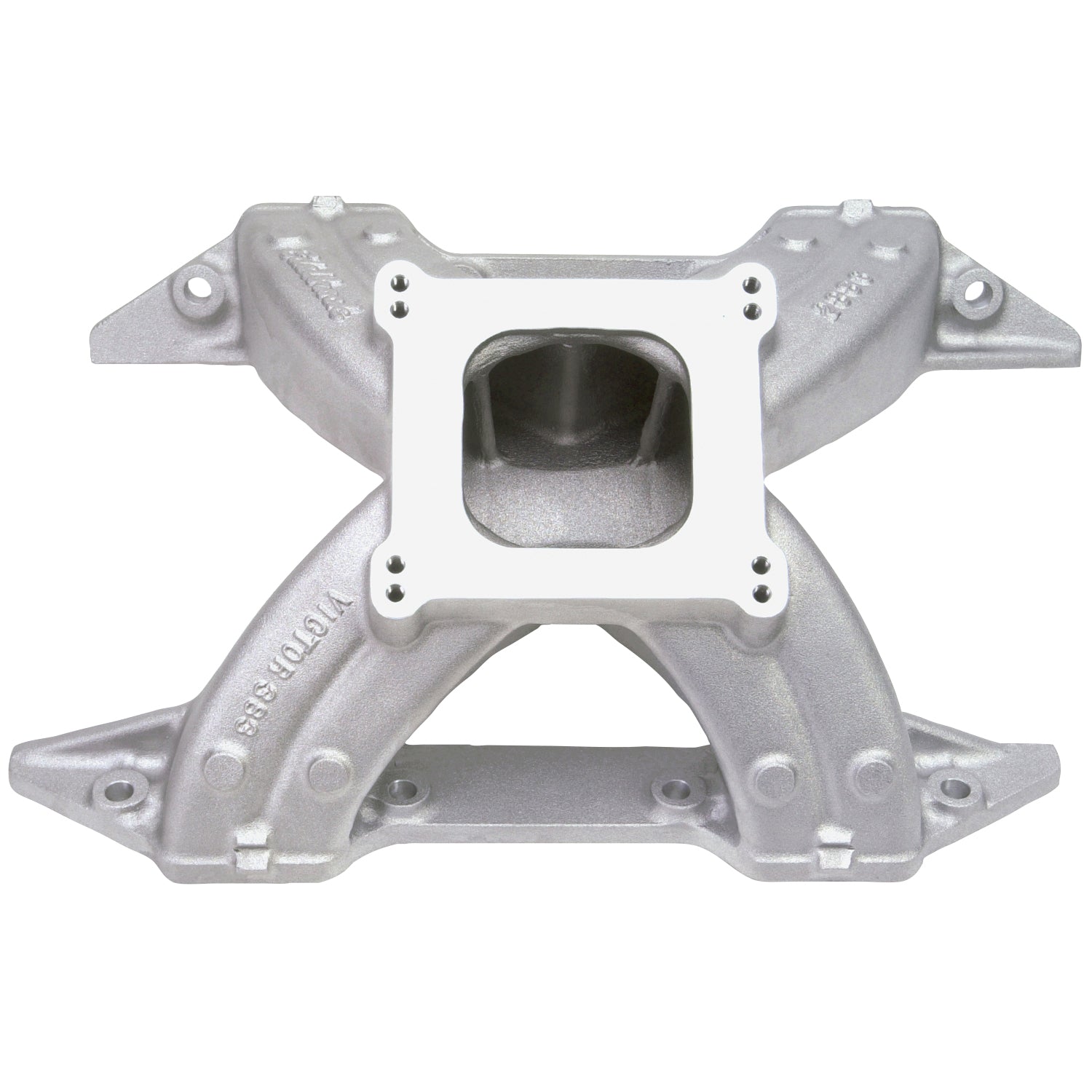

Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads.
Edelbrock Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8 2886
Specifications:
| Front Maximum Height | 6.130 |
| Series | Victor |
| Rear Maximum Height | 6.130 |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model | Chrysler |
| Gasket Or Seal Included | No |
| Center Maximum Height | 6.130 |
| EGR Port | No |
| Basic Operating RPM Range | 3500-7500 |
| Material | Aluminum |
| Finish | Satin |
| Flange Type | 4150 |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor 383 Chrysler Intake manifold |
| Description_LAB | Victor 383 Intake Manifold Chrysler B Block |
| Description_ASM | Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_EXT | Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8 |
| Description_MKT | Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. |
| Description_TRA | Recommended intake gasket: #7225. |
| Description_TRA | Manifold height: A-6.13", B-6.13" |
| Description_TRA | Port exit dimensions: 1.15" x 2.17" |
| Description_TRA | Carb recommendations: Use appropriate Racing carburetor |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
