*item may differ from images

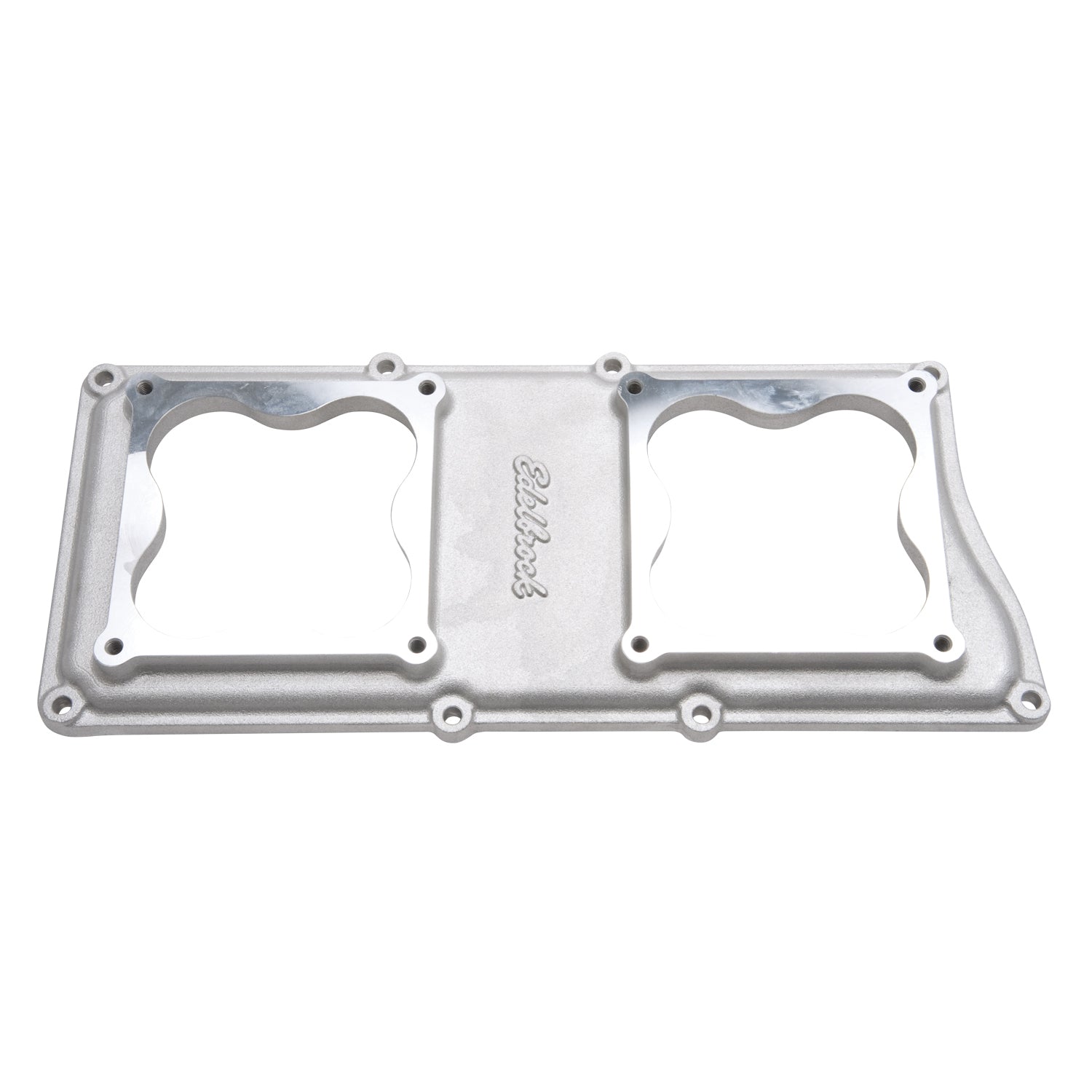

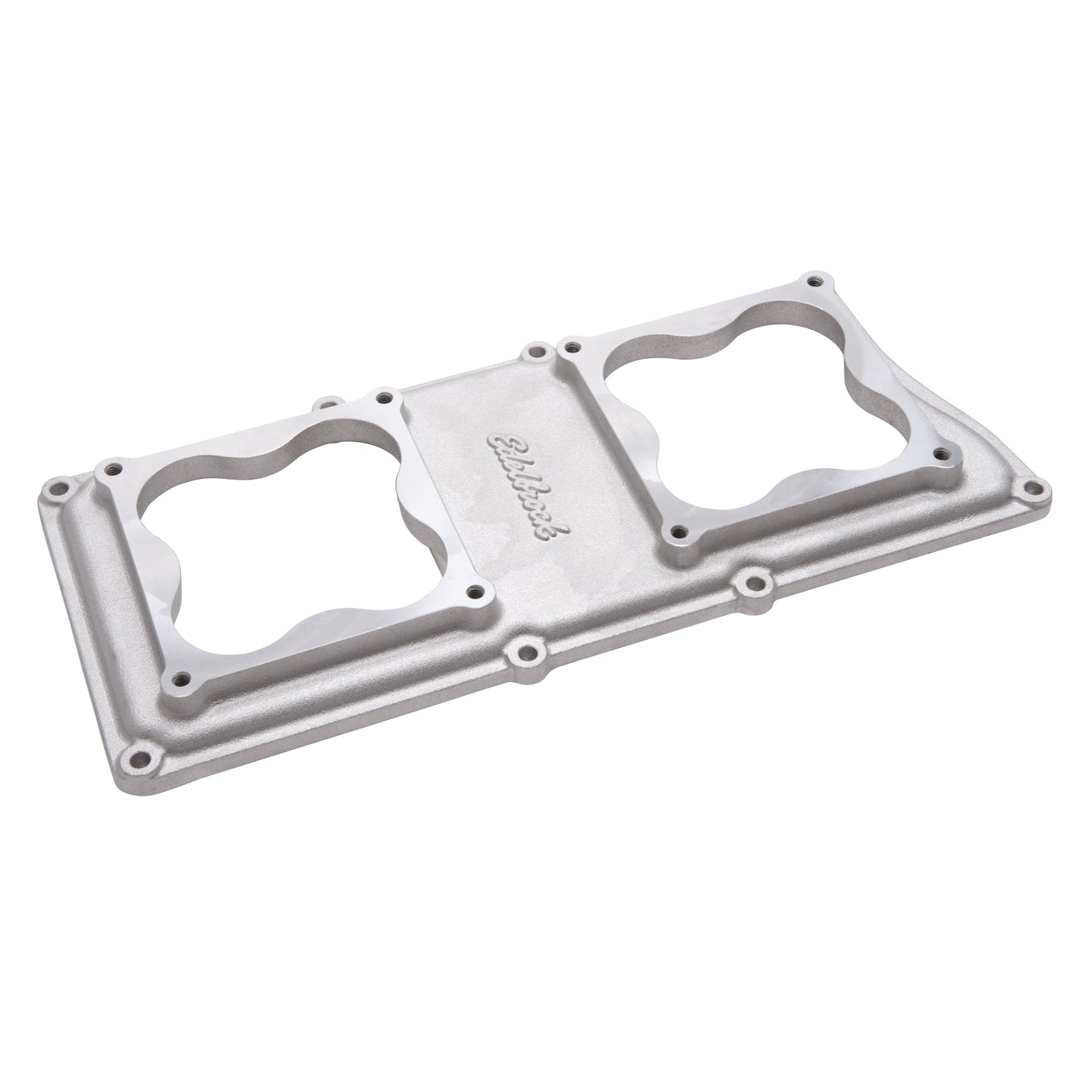

Edelbrock part #7086 Victor Tunnel Ram top is for use with 4500 series carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Edelbrock Edelbrock Tunnel Ram Top Only 2X4 4500 Intake Manifold Big Block Chevy 7086
Specifications:
| Basic Operating RPM Range | 4500-8500 |
| Rear Maximum Height | 0.010 |
| Series | Dual-Quad/Multi Carb |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Color | Satin |
| EGR Port | No |
| Flange Type | 4150 Dual-Quad |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| CNC Ported | No |
| Vehicle Model | Chevrolet |
| Center Maximum Height | 1.330 |
| Description_LAB | Tunnel Ram Big Block Chevy Top Only 2X4 4500 Intake |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_EXT | Edelbrock Tunnel Ram Top Only 2X4 4500 Intake Manifold Big Block Chevy |
| Description_MKT | Edelbrock part #7086 Victor Tunnel Ram top is for use with 4500 series carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_TRA | Fits Edelbrock #7085 or #70855 Chevy Big Block tunnel ram base manifolds |
| Description_TRA | Top ONLY |
| Description_TRA | For 4500 Series carb or throttle body. |
| Description_TRA | Gaskets and hardware Included |
| Description_TRA | EFI applications will require Edelbrock fuel rail kit #3659. |
| Description_TRA | Replacement top-to-bottom gasket, #7355, is available separately if needed. |
| Description_TRA | Use Edelbrock linkage kit #7077 for carbs |
| Description_TRA | Throttle bodies can be mounted in the traditional fore and aft position |
| Description_DEF | Engine Intake Manifold |
| Description_ABR | Intake Mnfld |
| Description_INV | Tunnel Ram Top Only 2X4 4500 Intake BBC |
