*item may differ from images
Edelbrock part #5091 Torker II 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's. They measure 8.75" across block. Manifold not equipped with EGR. Will not fit 1962-64 Max Wedge heads.

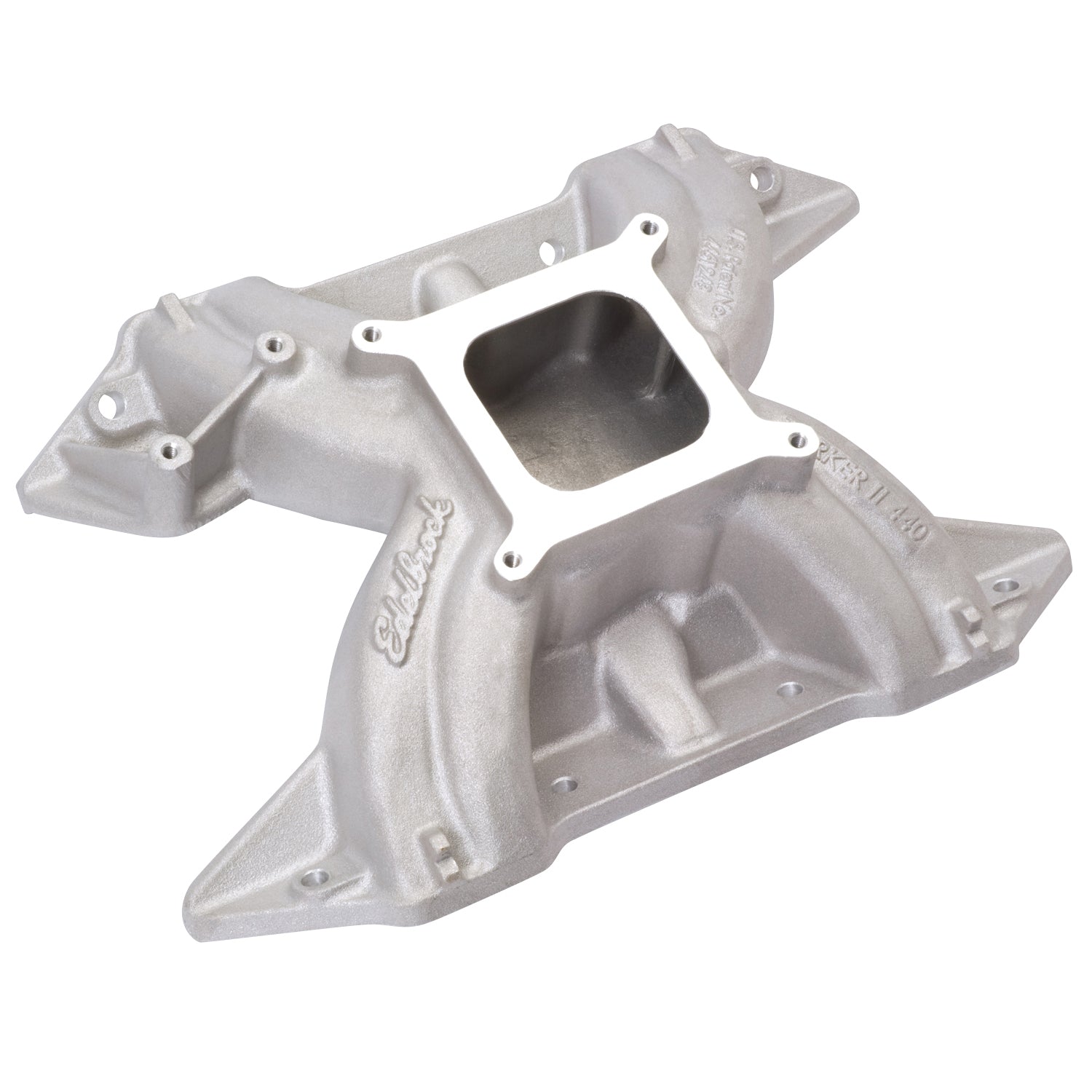

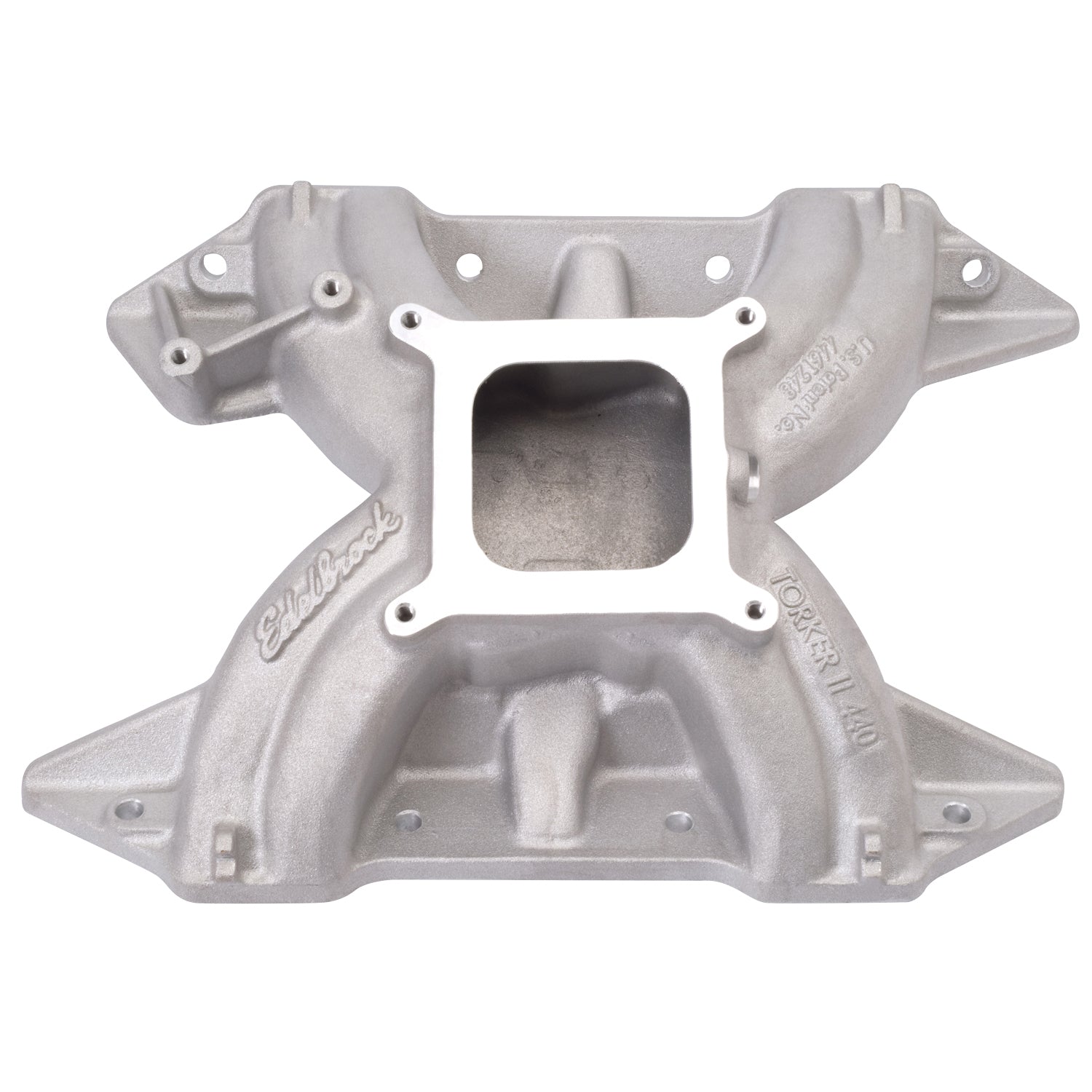

Edelbrock Edelbrock Torker II Intake Manifold for Chrysler 413-426-440 Big-Block V8 5091
Specifications:
| Center Maximum Height | 4.670 |
| Rear Maximum Height | 5.200 |
| Series | Torker/Torker II |
| Grade Type | Performance |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Color | Satin |
| Vehicle Model | Chrysler |
| EGR Port | No |
| Material | Aluminum |
| Basic Operating RPM Range | 2500-6500 |
| Single Or Dual Plane Type | Single |
| Flange Type | 4150 |
| Front Maximum Height | 4.150 |
| Gasket Or Seal Included | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Torker 2 Chrysler 440 Intake Manifold |
| Description_LAB | Torker II Chrysler Big Block RB Intake Manifold |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_EXT | Edelbrock Torker II Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_MKT | Edelbrock part #5091 Torker II 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's. They measure 8.75" across block. Manifold not equipped with EGR. Will not fit 1962-64 Max Wedge heads. |
| Description_TRA | Recommended intake gasket: #7225 |
| Description_TRA | Manifold height: A-4.15", B-5.20", measured to engine block |
| Description_TRA | Carb pad height: 4.67" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Port exit dimensions: 1.10" x 2.17" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
