*item may differ from images

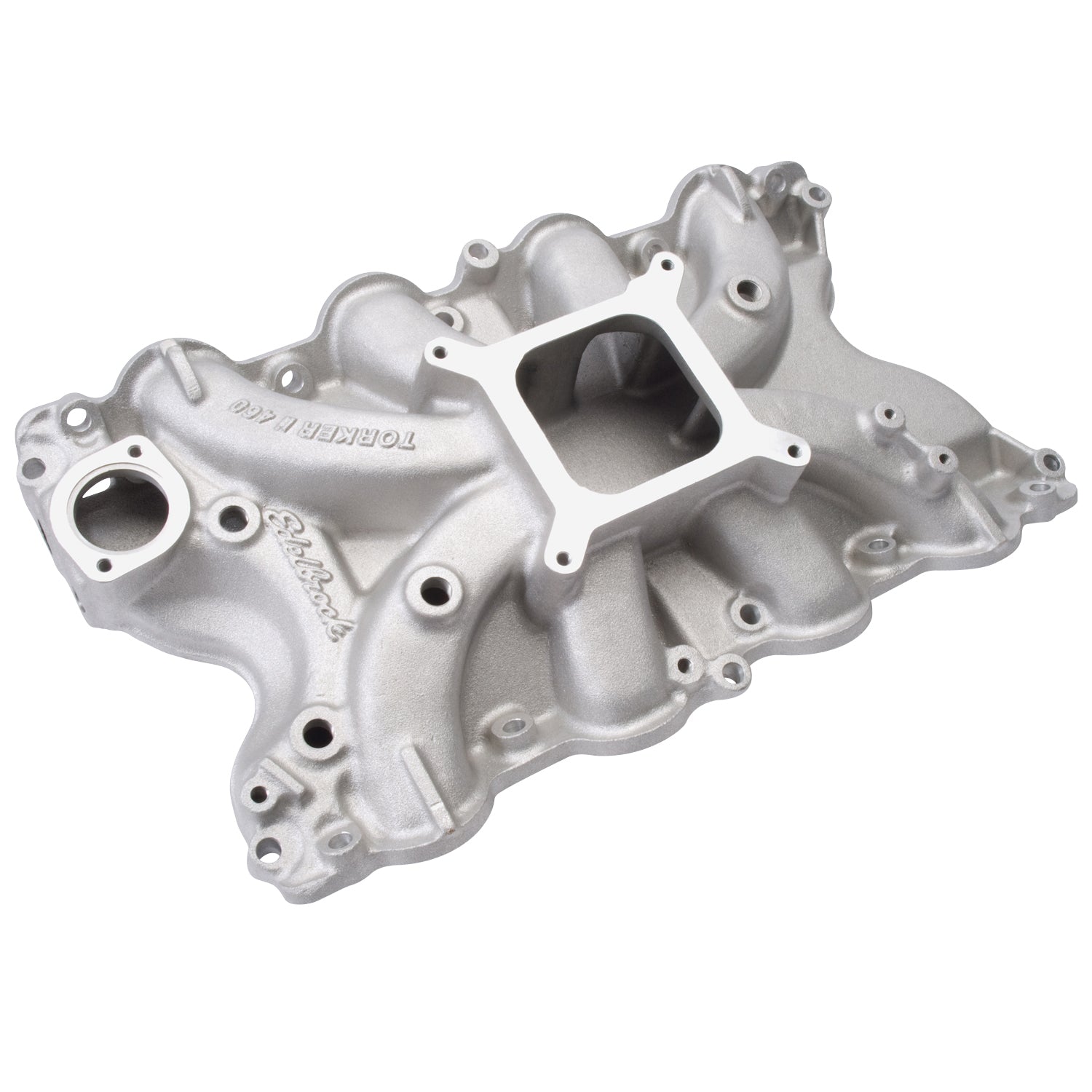

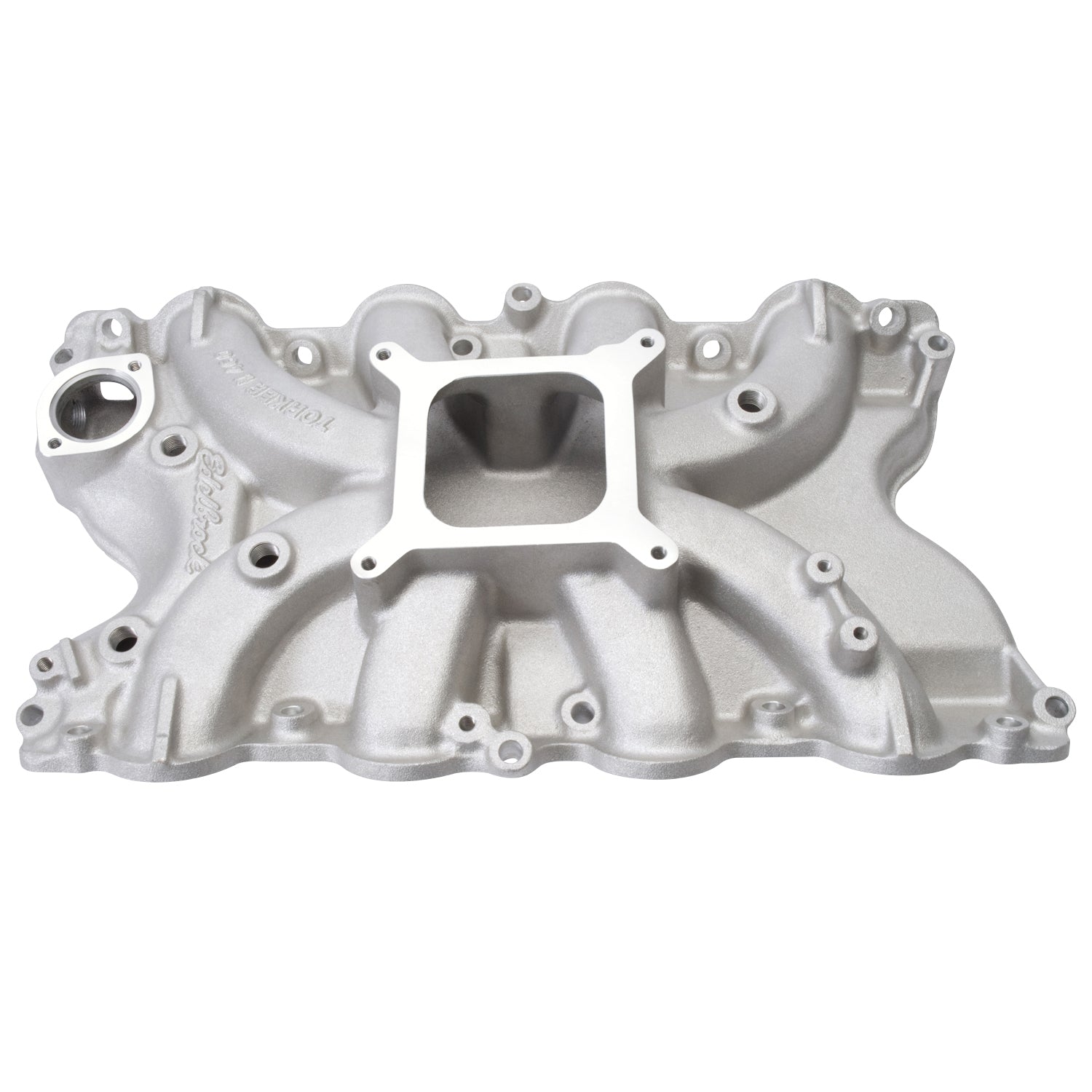

Edelbrock part #5056 Torker II 460 intake manifold is designed for 429/460 c.i.d. Ford V8's used in marine and high performance applications. Manifold not equipped with EGR. Will fit 429 Cobra-Jets. Manifold will not accept stock Motorcraft spread-bore carburetor. Will not fit 1988 and later models.
Edelbrock Edelbrock Torker II 460 Intake Manifold for Ford 429/460 Big-Block V8 5066
Specifications:
| Series | Torker/Torker II |
| Grade Type | Performance |
| Front Maximum Height | 3.500 |
| Center Maximum Height | 3.870 |
| Gasket Or Seal Included | No |
| Rear Maximum Height | 4.250 |
| Material | Aluminum |
| Color | Satin |
| Basic Operating RPM Range | 2500-6500 |
| Single Or Dual Plane Type | Single |
| Flange Type | 4150 |
| Vehicle Model | Ford |
| EGR Port | No |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Intake Mnfld |
| Description_INV | Torker 2 Ford 460 Intake Manifold |
| Description_LAB | Torker II 460 Big Block Ford Intake Manifold |
| Description_ASM | Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_EXT | Edelbrock Torker II 460 Intake Manifold for Ford 429/460 Big-Block V8 |
| Description_MKT | Edelbrock part #5056 Torker II 460 intake manifold is designed for 429/460 c.i.d. Ford V8's used in marine and high performance applications. Manifold not equipped with EGR. Will fit 429 Cobra-Jets. Manifold will not accept stock Motorcraft spread-bore carburetor. Will not fit 1988 and later models. |
| Description_TRA | Intake gasket: Edelbrock #7223 or Fel-Pro #1230/#1231 |
| Description_TRA | Manifold ht.: A-3.50", B-4.25" |
| Description_TRA | Carb pad height: 3.87" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. For automatic transmissions use #1483 and #1495 or #1844 |
| Description_TRA | Port exit dimensions: 1.75" x 2.10" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
