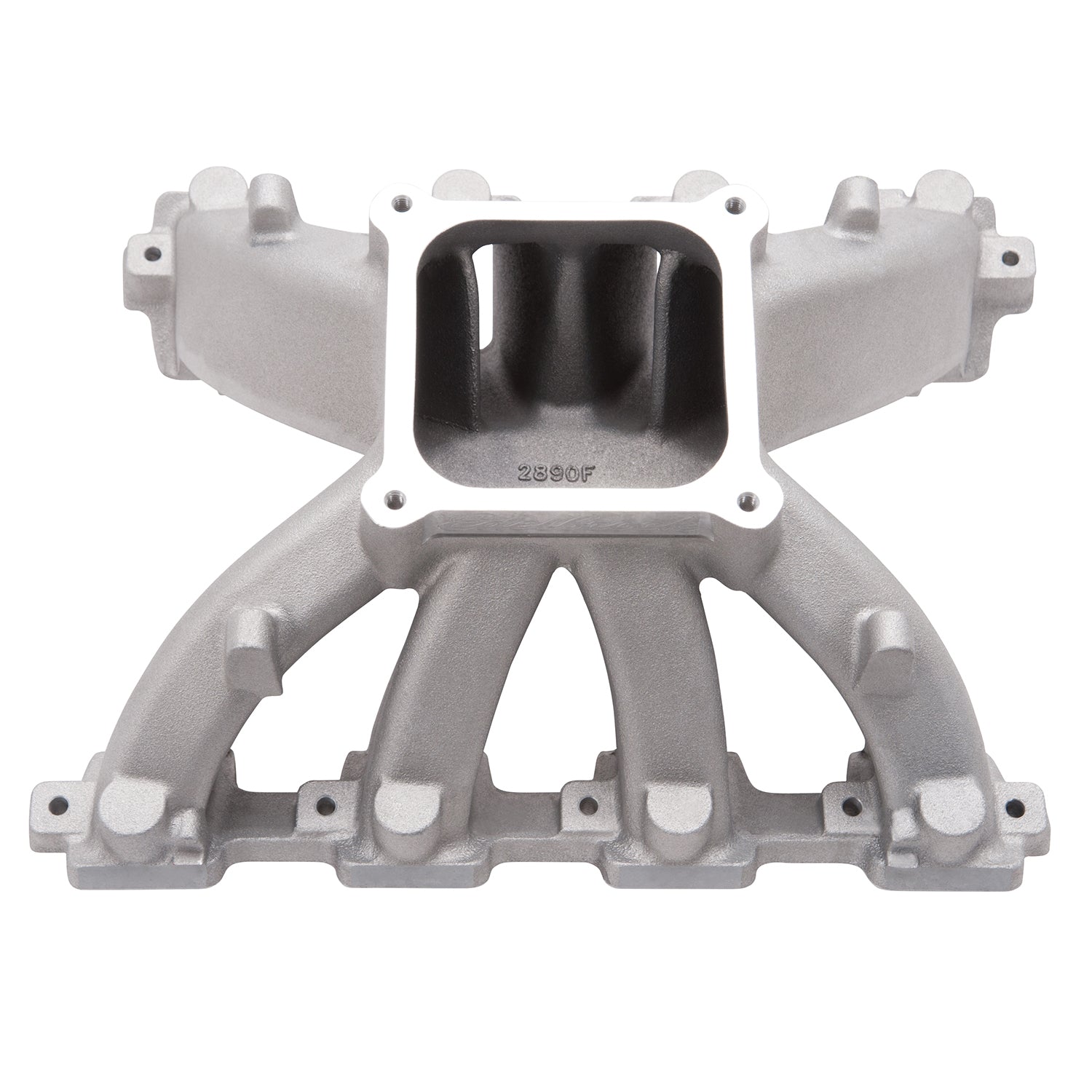

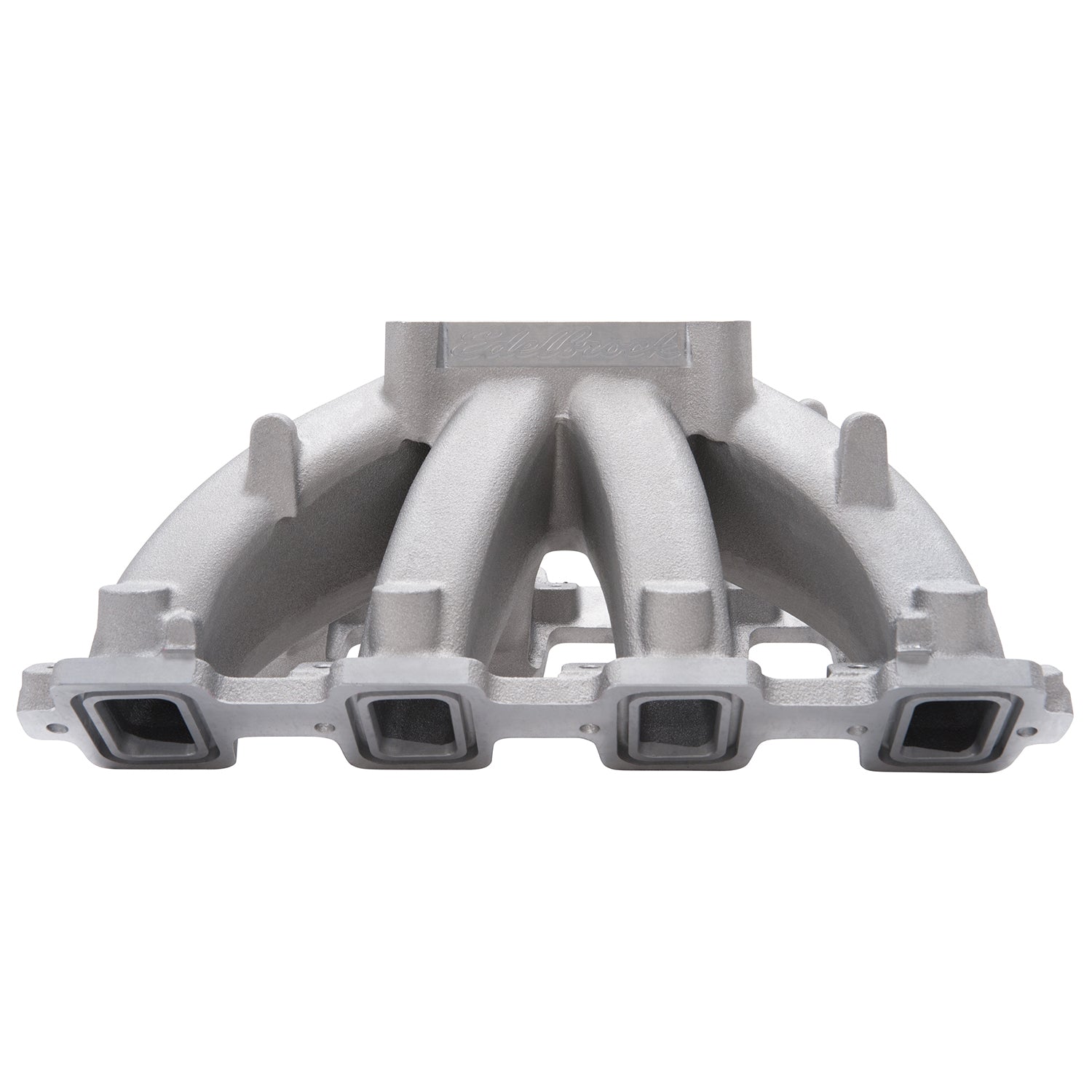

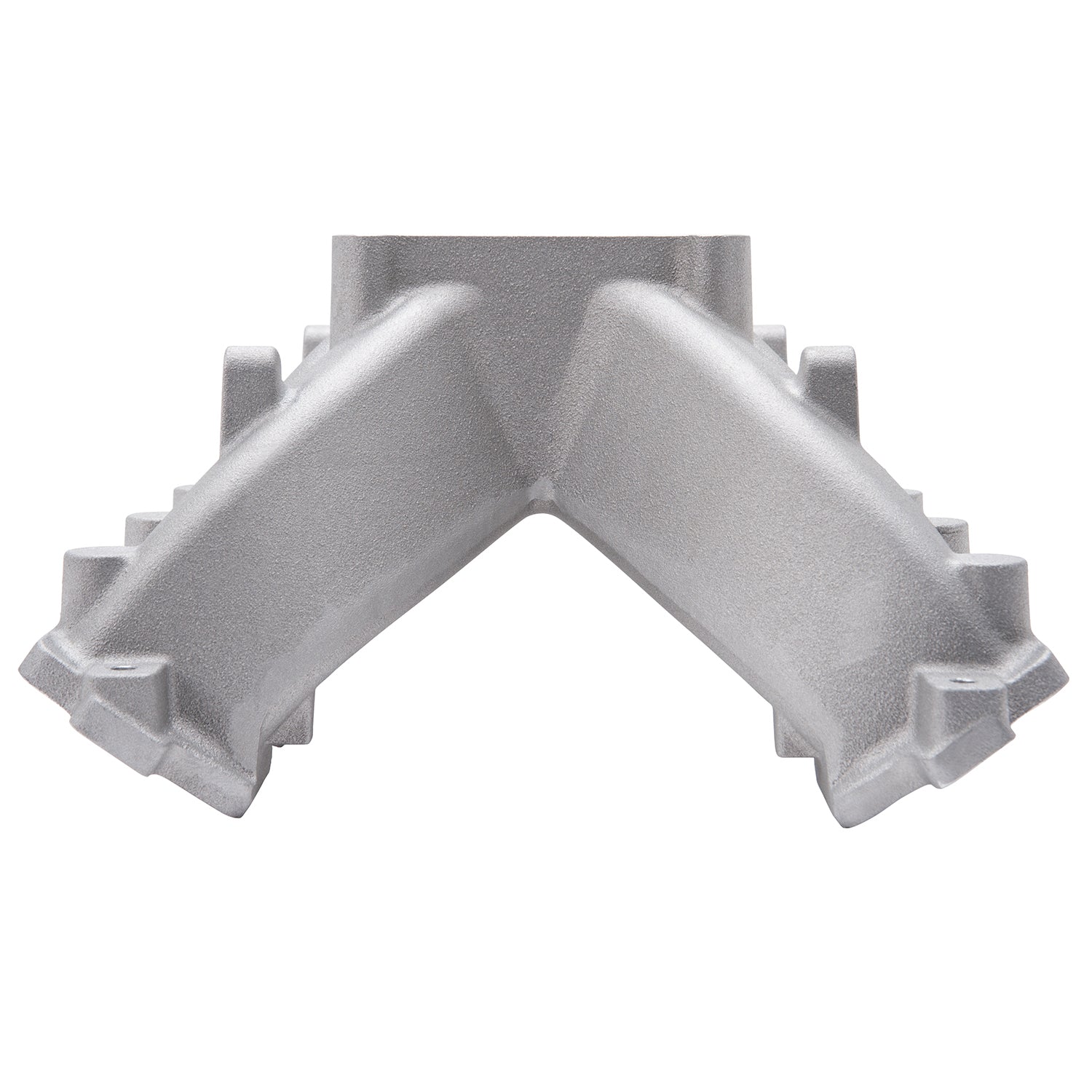

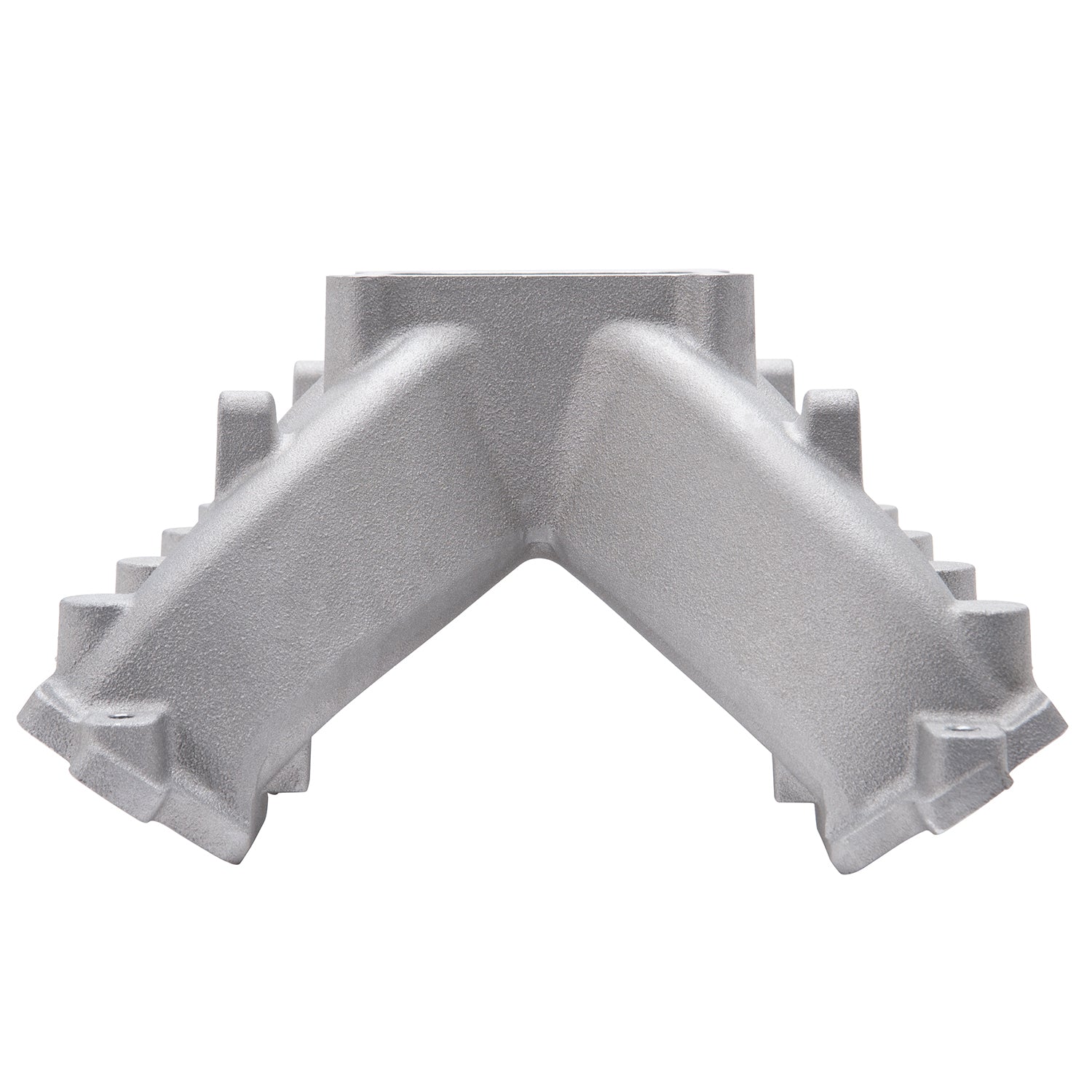

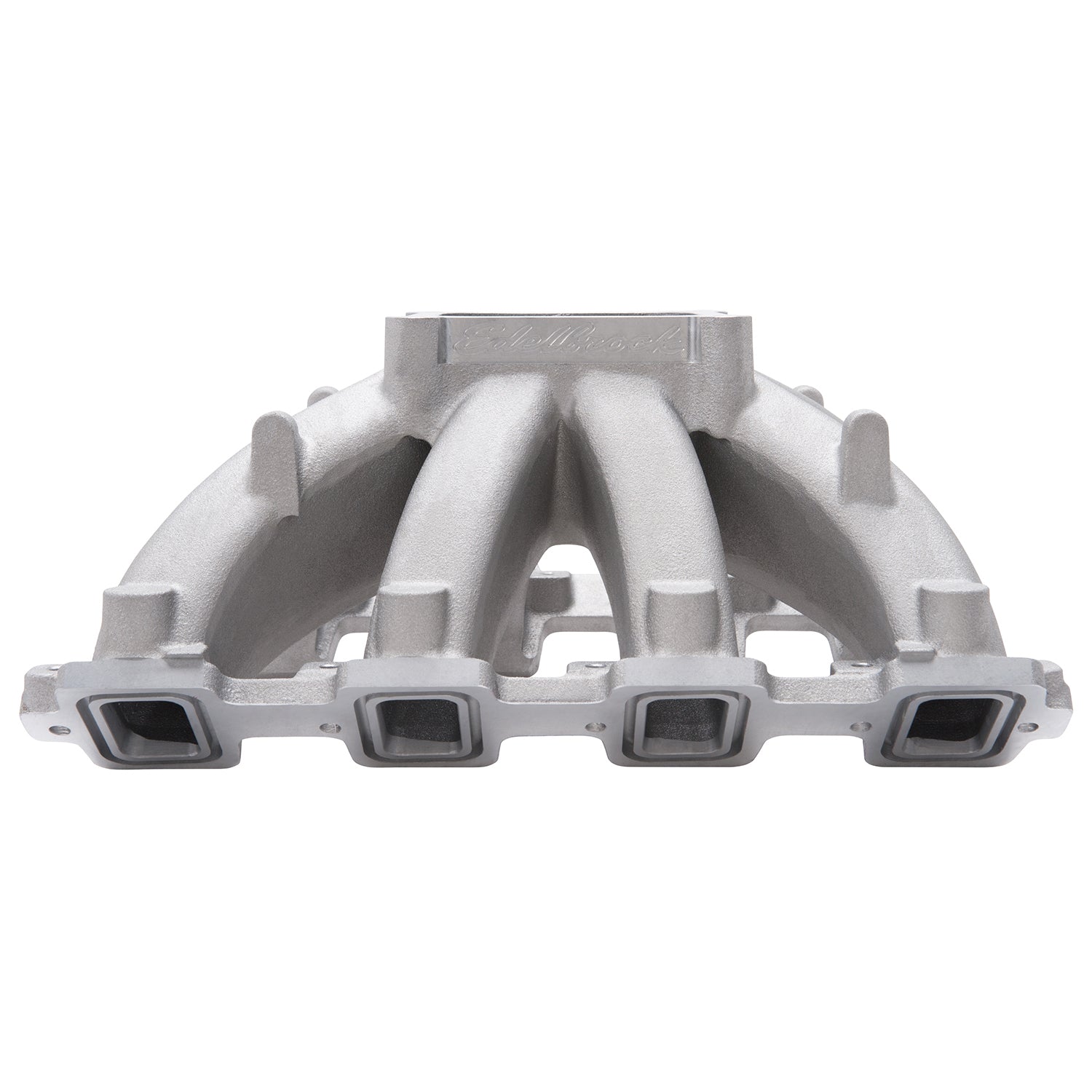

Edelbrock part #2890 Super Victor LS7 intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. The new Super Victor intake manifold #2890 4500 Series carburetors has an increased intake runner area and is capable of 800+ hp operating in the 3,500-8,000 rpm range. A carburetor mounted style throttle bracket is recommended.
Edelbrock Edelbrock Super Victor LS7 Dominator Flange Carburetor Intake Manifold 2890
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height | 8.420 |
| EGR Port | No |
| Finish | Satin |
| Grade Type | Performance |
| Rear Maximum Height | 8.420 |
| Material | Aluminum |
| Single Or Dual Plane Type | Single |
| Flange Type | 4500 |
| CNC Ported | No |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Gasket Or Seal Included | No |
| Center Maximum Height | 8.420 |
| Basic Operating RPM Range | 3500-8000 |
| Description_MKT | Edelbrock part #2890 Super Victor LS7 intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. The new Super Victor intake manifold #2890 4500 Series carburetors has an increased intake runner area and is capable of 800+ hp operating in the 3,500-8,000 rpm range. A carburetor mounted style throttle bracket is recommended. |
| Description_TRA | Recommended intake gasket: Edelbrock #9746, LS7 style individual port o-ring seals GM PN89017852 |
| Description_TRA | Uses standard intake Edelbrock bolt kit #8515 |
| Description_TRA | Manifold height: A-8.42, B-8.42" |
| Description_TRA | Carb pad height: 8.42" |
| Description_TRA | Carb height (CH) for this manifold is measured from the valley cover flange to the carb pad. |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor |
| Description_TRA | Port exit dimensions machine matched: 1.34" x 2.38" |
| Description_DEF | Engine Intake Manifold |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor LS7 Dominator Flange Carb |
| Description_LAB | Super Victor Small-Block Chevy LS7 Dominator Flange Carburetor Intake Manifold |
| Description_ASM | Chevrolet:Small-Block Gen IV LS7:427 (7.0L) |
| Description_EXT | Edelbrock Super Victor LS7 Dominator Flange Carburetor Intake Manifold |
