*item may differ from images

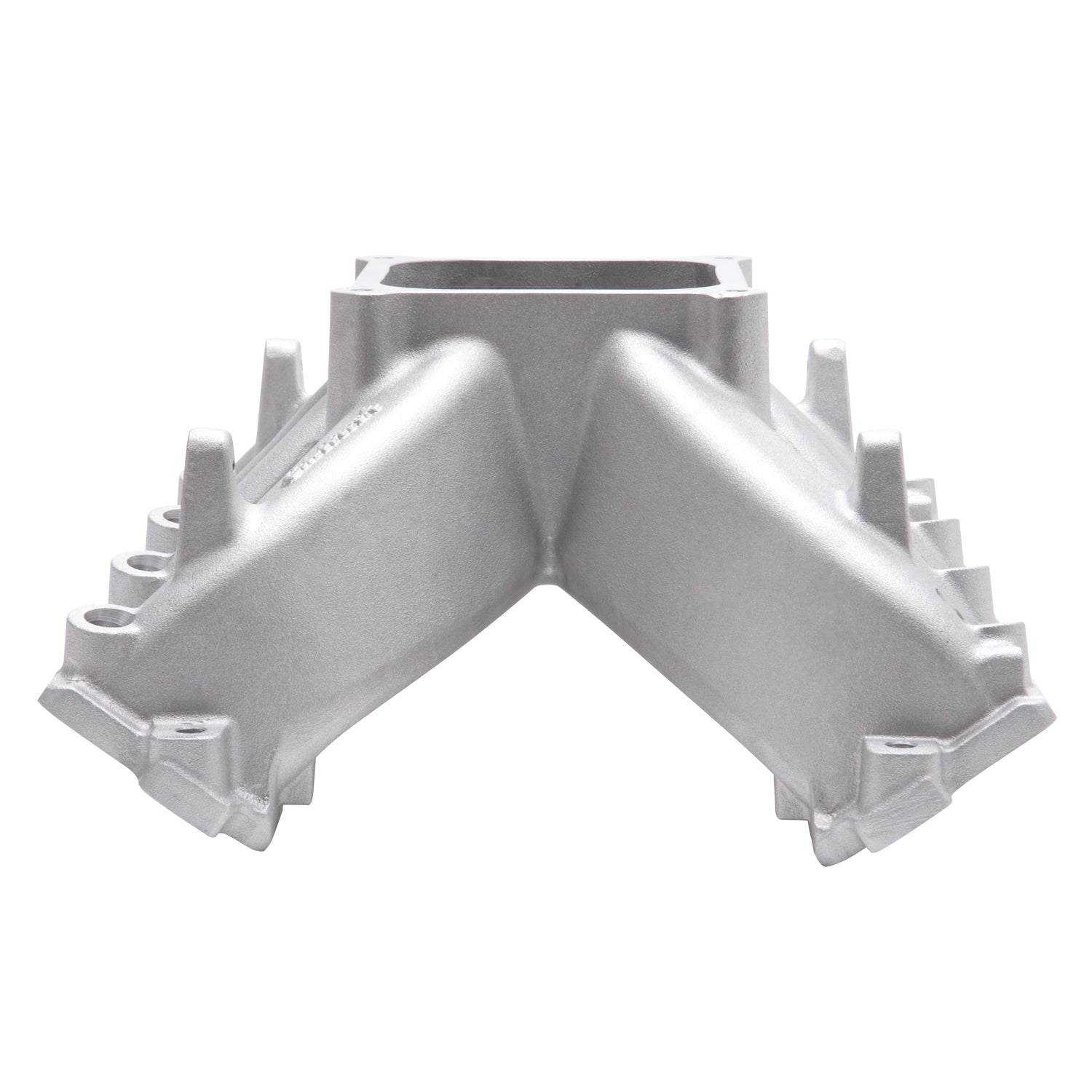

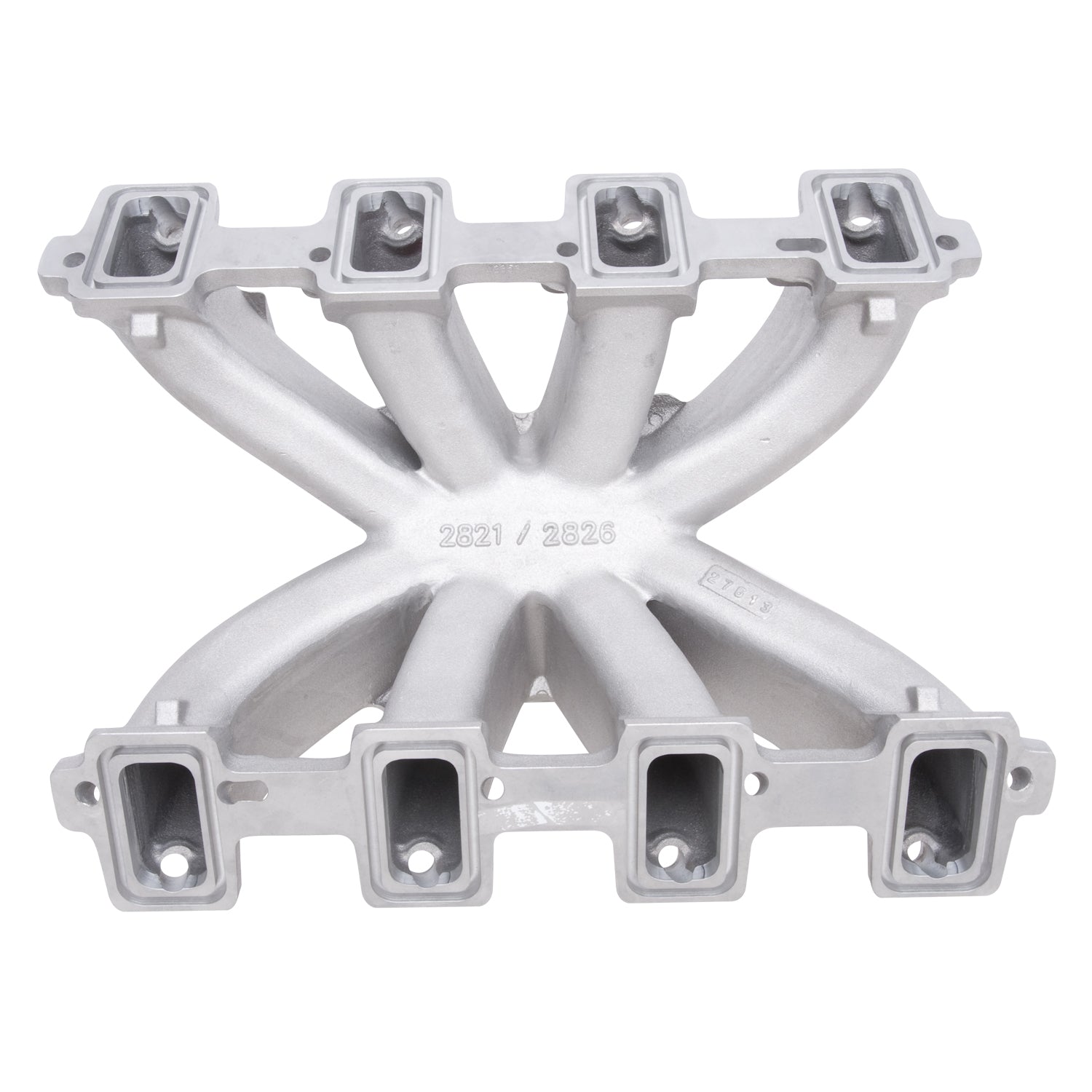

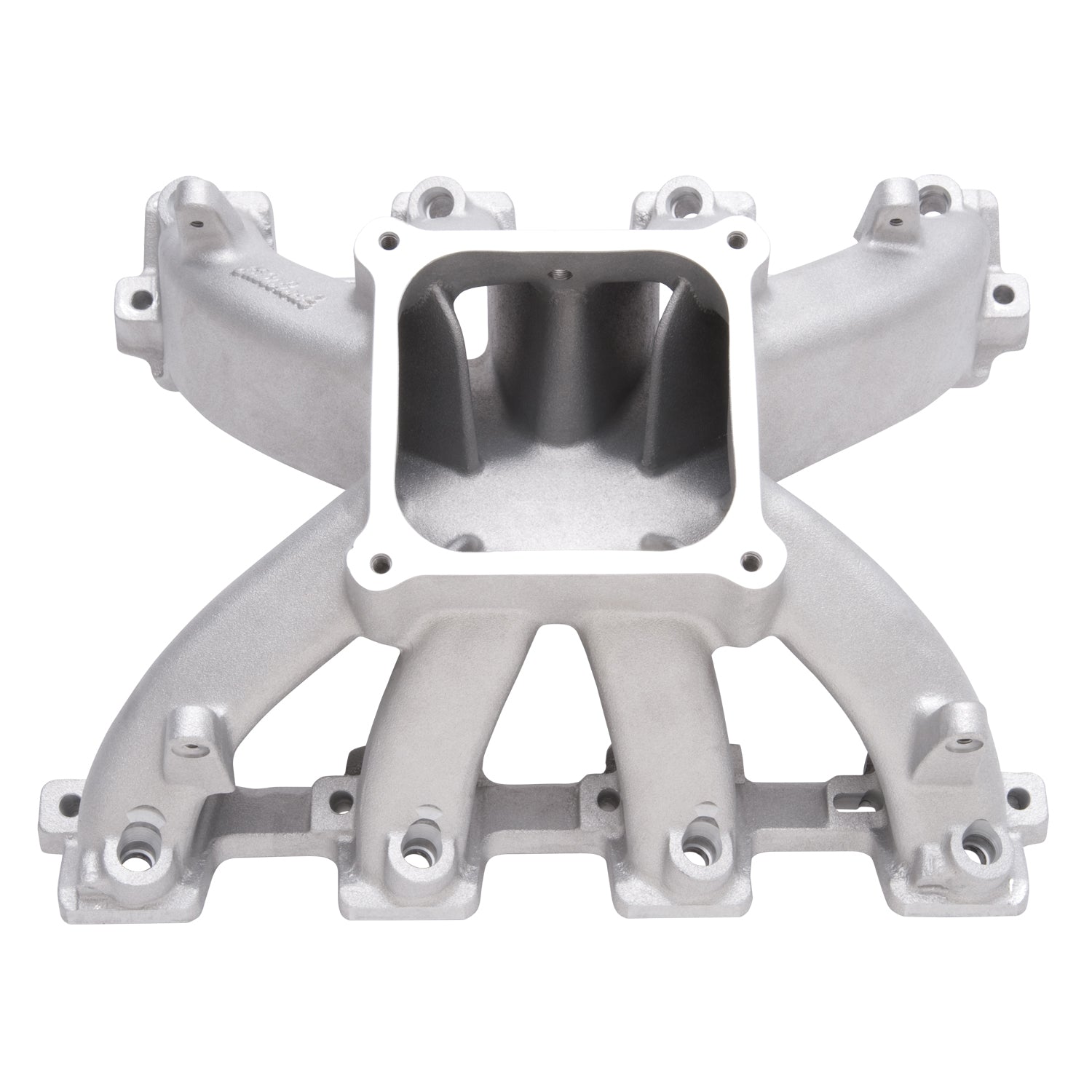

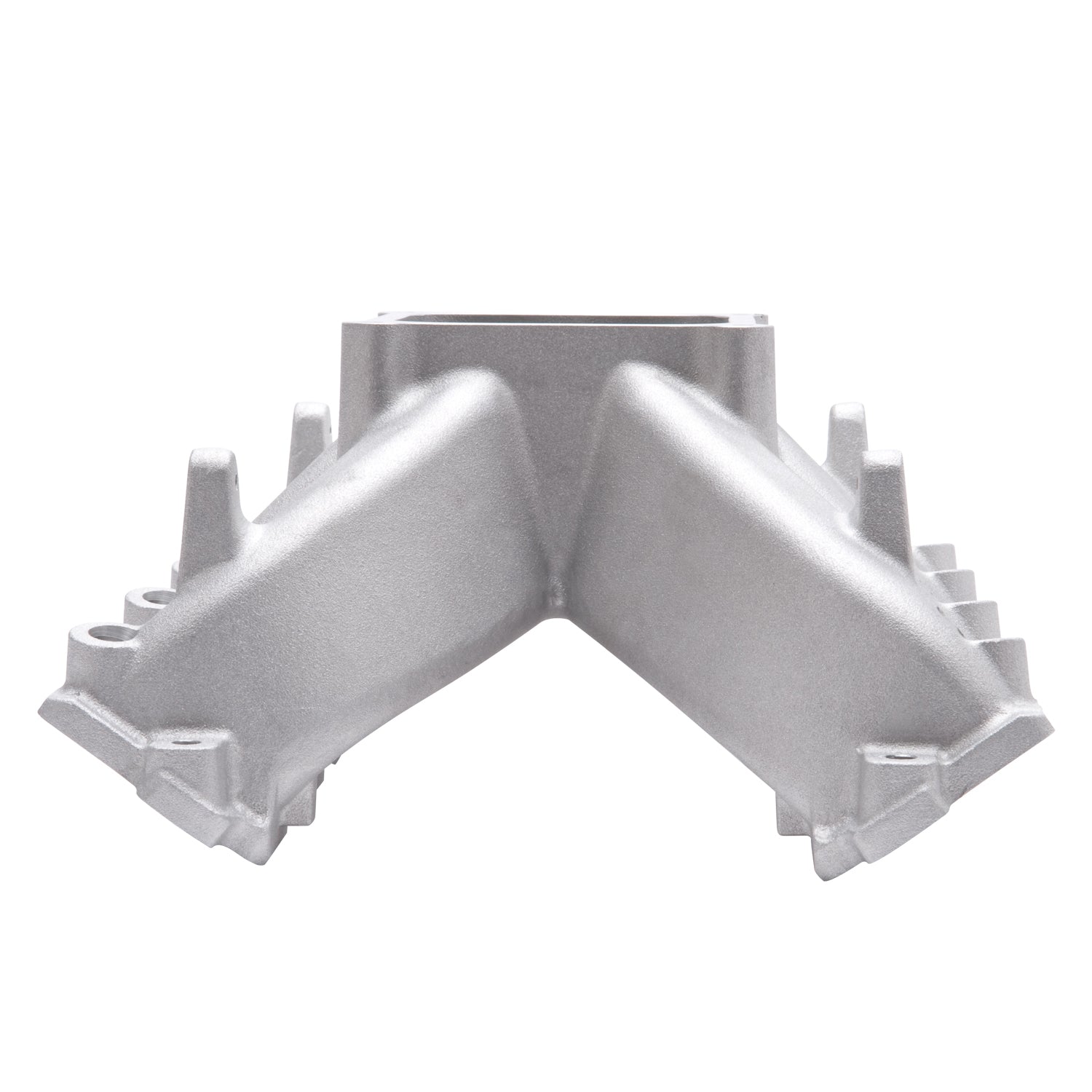

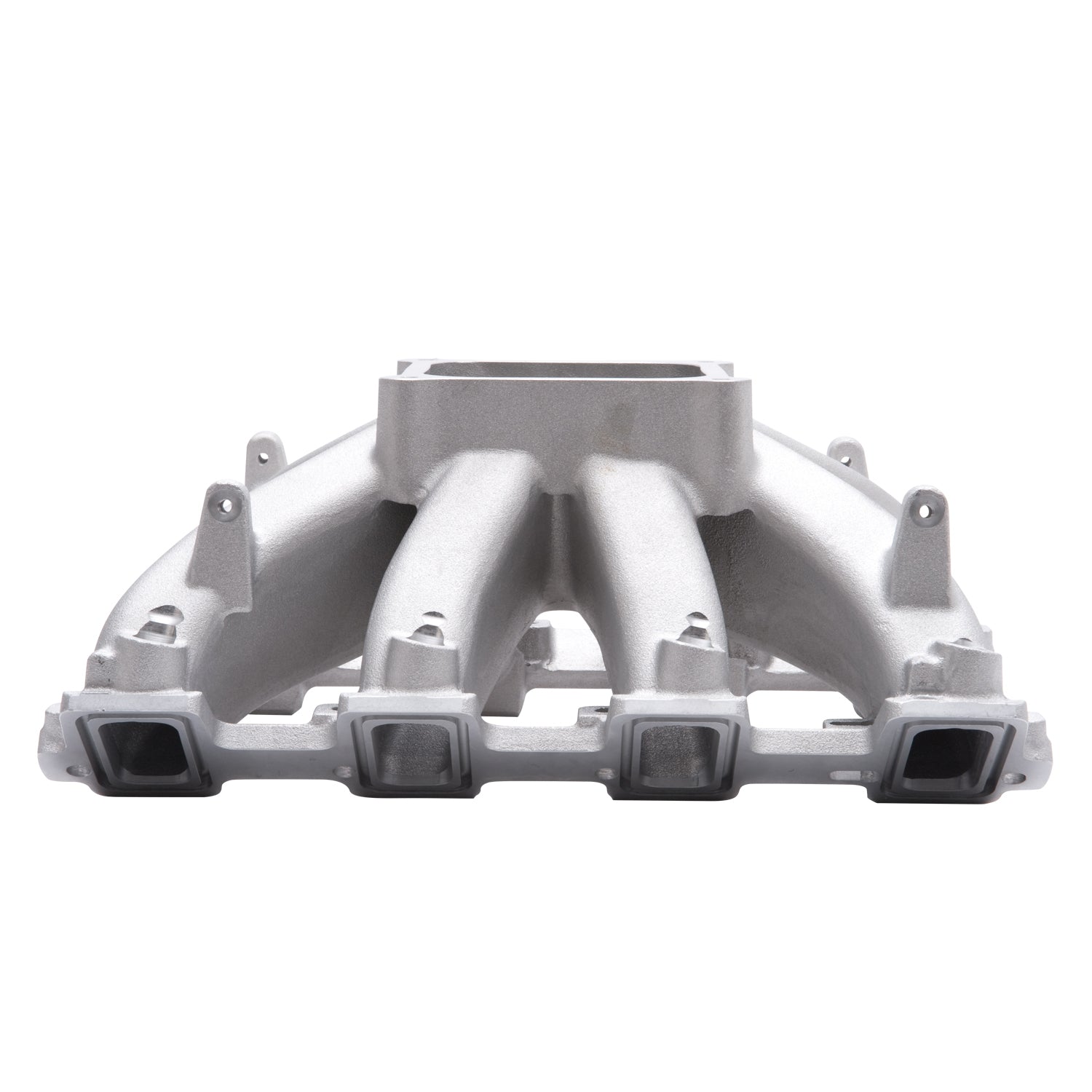

Edelbrock part #28215 Super Victor LS3 EFI intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4500 style EFI large displacement racing engine operating between 3,500 - 7,500 rpm. This Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28455 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. The manifold also features tapered runners for increased flow at high rpm. The Super Victor 4500 series manifolds can accommodate bores up 2.25". This Super Victor LS3 EFI intake manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended.
Edelbrock Edelbrock Super Victor LS3 EFI 4500 Style Intake Manifold for Gen IV LS3 28215
Specifications:
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Rear Maximum Height | 7.670 |
| Basic Operating RPM Range | 3500-7500 |
| Grade Type | Performance |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height | 7.670 |
| CNC Ported | No |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Single Or Dual Plane Type | Single |
| Flange Type | 4500 |
| Finish | Satin |
| Front Maximum Height | 7.670 |
| EGR Port | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Polished Super Victor LS3 Dominator Carb |
| Description_LAB | Super Victor Small Block Chevy LS3 EFI 4500 Intake Manifold |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_EXT | Edelbrock Super Victor LS3 EFI 4500 Style Intake Manifold for Gen IV LS3 |
| Description_MKT | Edelbrock part #28215 Super Victor LS3 EFI intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4500 style EFI large displacement racing engine operating between 3,500 - 7,500 rpm. This Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28455 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. The manifold also features tapered runners for increased flow at high rpm. The Super Victor 4500 series manifolds can accommodate bores up 2.25". This Super Victor LS3 EFI intake manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended. |
| Description_TRA | Use Edelbrock fuel rail kit #3655. |
| Description_TRA | Uses LS3/L76/LS92 style individual port o-ring seals GM PN19256623. |
| Description_TRA | Manifold height: A-7.67", B-7.67" |
| Description_TRA | Carb pad height: 7.67". Carb height (CH) for this manifold is measured from the valley cover flange to the carb pad. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 or #38883 |
| Description_TRA | Port exit dimensions machine matched: 1.27" x 2.58". |
| Description_TRA | A carburetor mounted style throttle bracket is recommended. |
| Description_DEF | Engine Intake Manifold |
