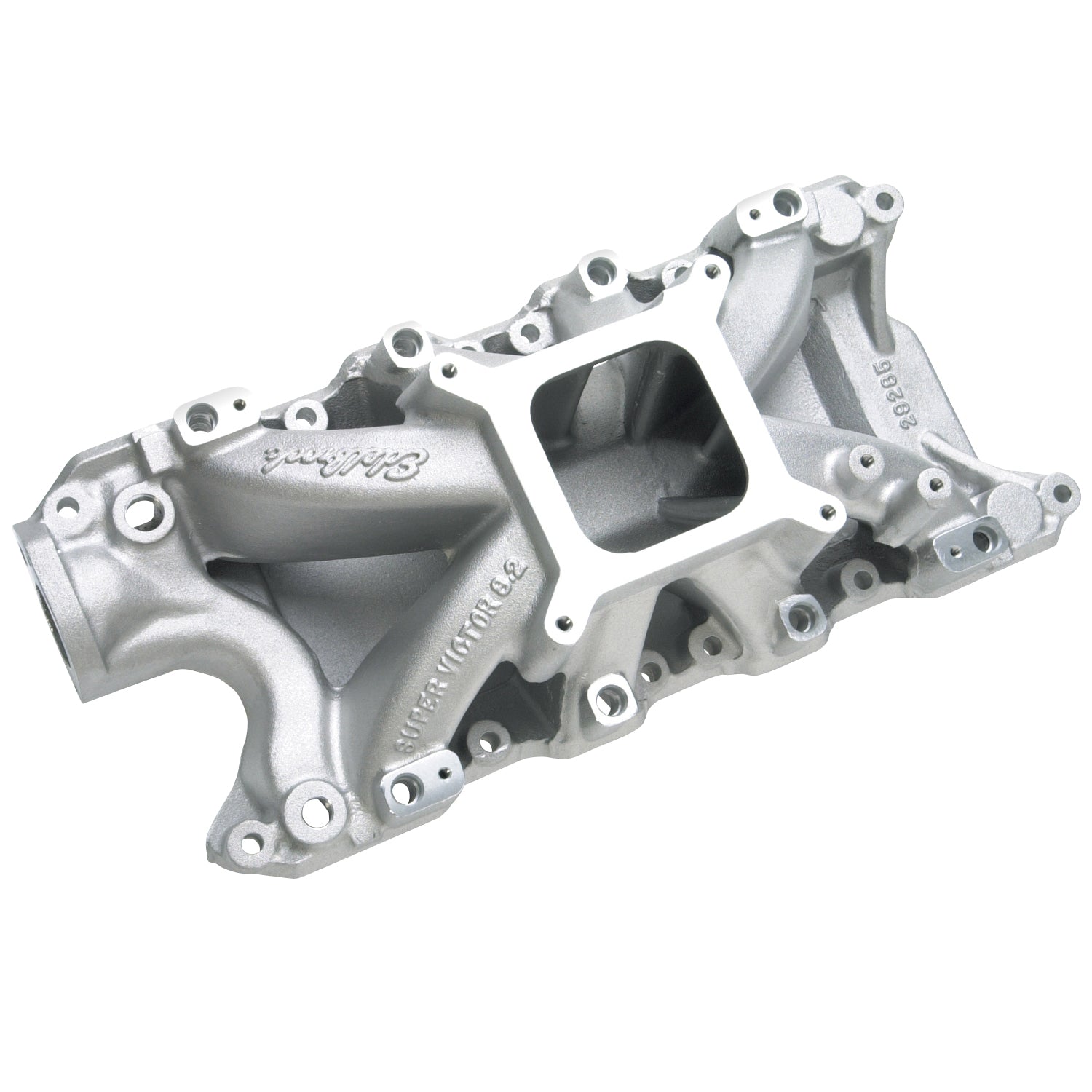

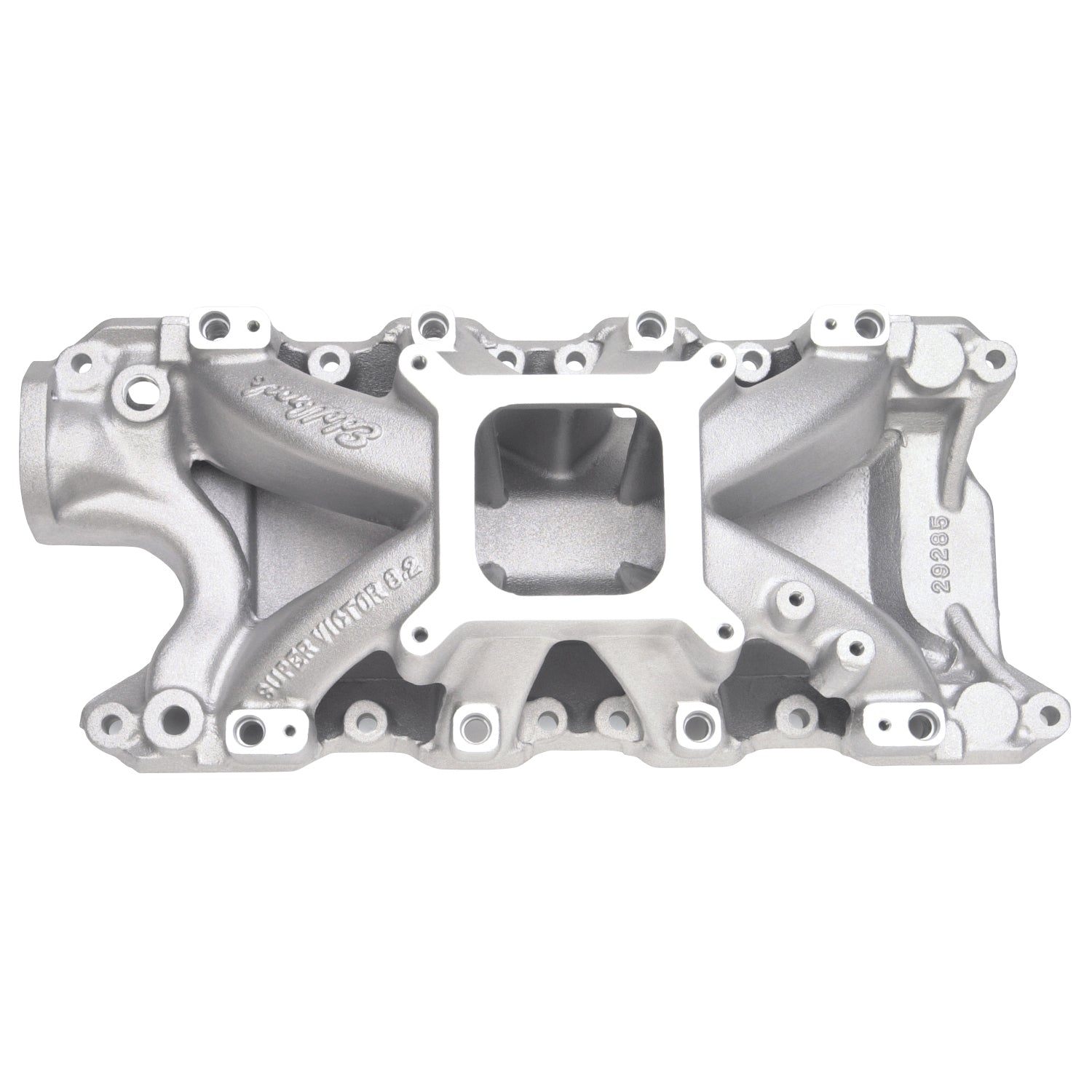

Edelbrock part #29285 Super Victor 8.2 EFI intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height and features a single-plane, high-rise intake design for maximum race-winning power. This intake manifold is ideal for use with large displacement drag racing engines. It delivers big power gains from 4500 to 8500 rpm and includes rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921.
Edelbrock Edelbrock Super Victor 8.2 EFI Intake Manifold for Ford 289-347 Small-Block V8 29285
Specifications:
| Gasket Or Seal Included | No |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Rear Maximum Height | 6.350 |
| Center Maximum Height | 6.350 |
| Finish | Satin |
| Flange Type | 4150 |
| CNC Ported | No |
| Vehicle Model | Ford |
| Basic Operating RPM Range | 4500-9000 |
| Front Maximum Height | 6.350 |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Super Victor 8.2 Deck intake Manfld |
| Description_LAB | Super Victor 8.2 Small Block Ford EFI Intake Manifold |
| Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_EXT | Edelbrock Super Victor 8.2 EFI Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_MKT | Edelbrock part #29285 Super Victor 8.2 EFI intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height and features a single-plane, high-rise intake design for maximum race-winning power. This intake manifold is ideal for use with large displacement drag racing engines. It delivers big power gains from 4500 to 8500 rpm and includes rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R |
| Description_TRA | Manifold height: A-6.35", B-6.35" |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V throttle body or #3849 EFI elbow and #3818 90mm throttle body. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
