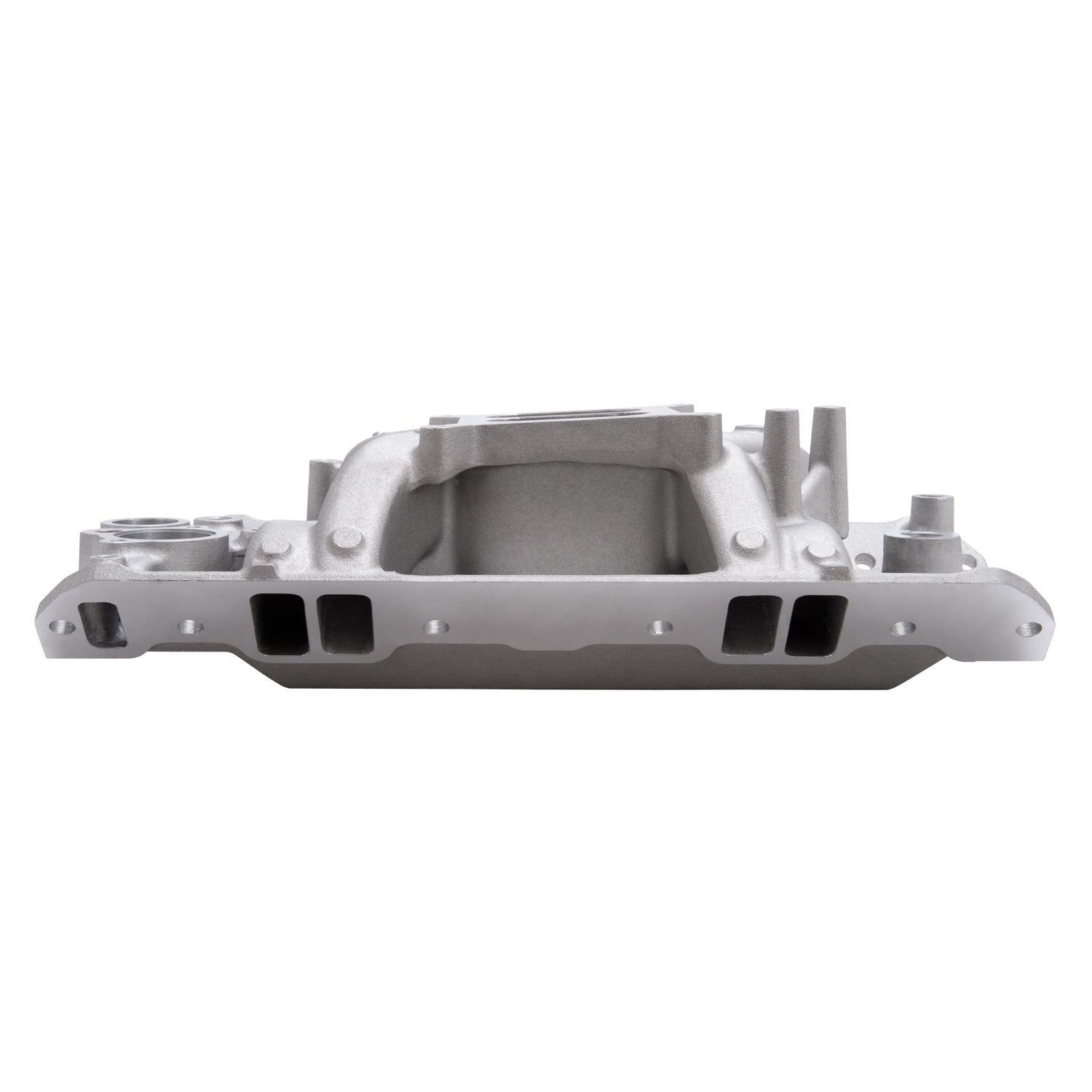

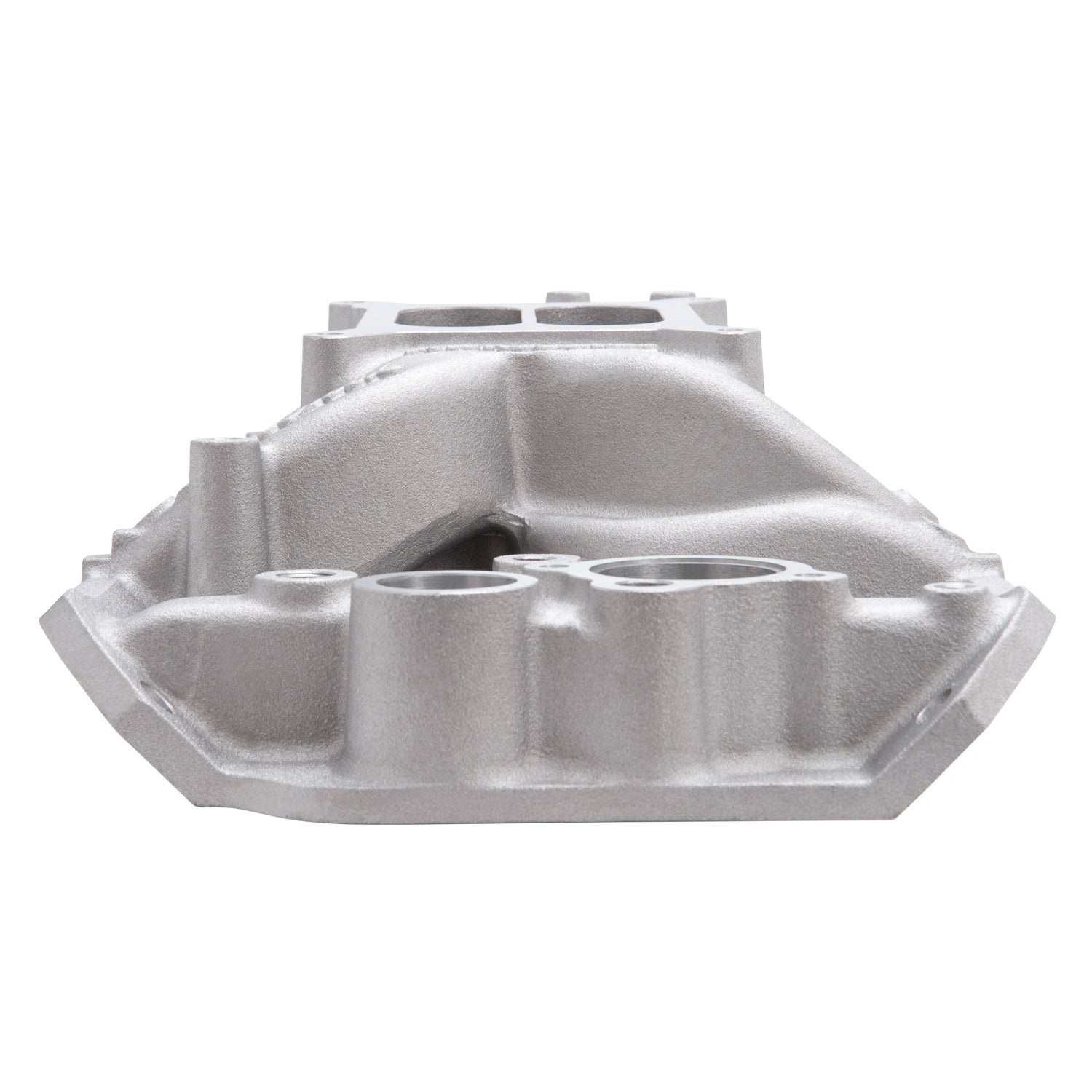

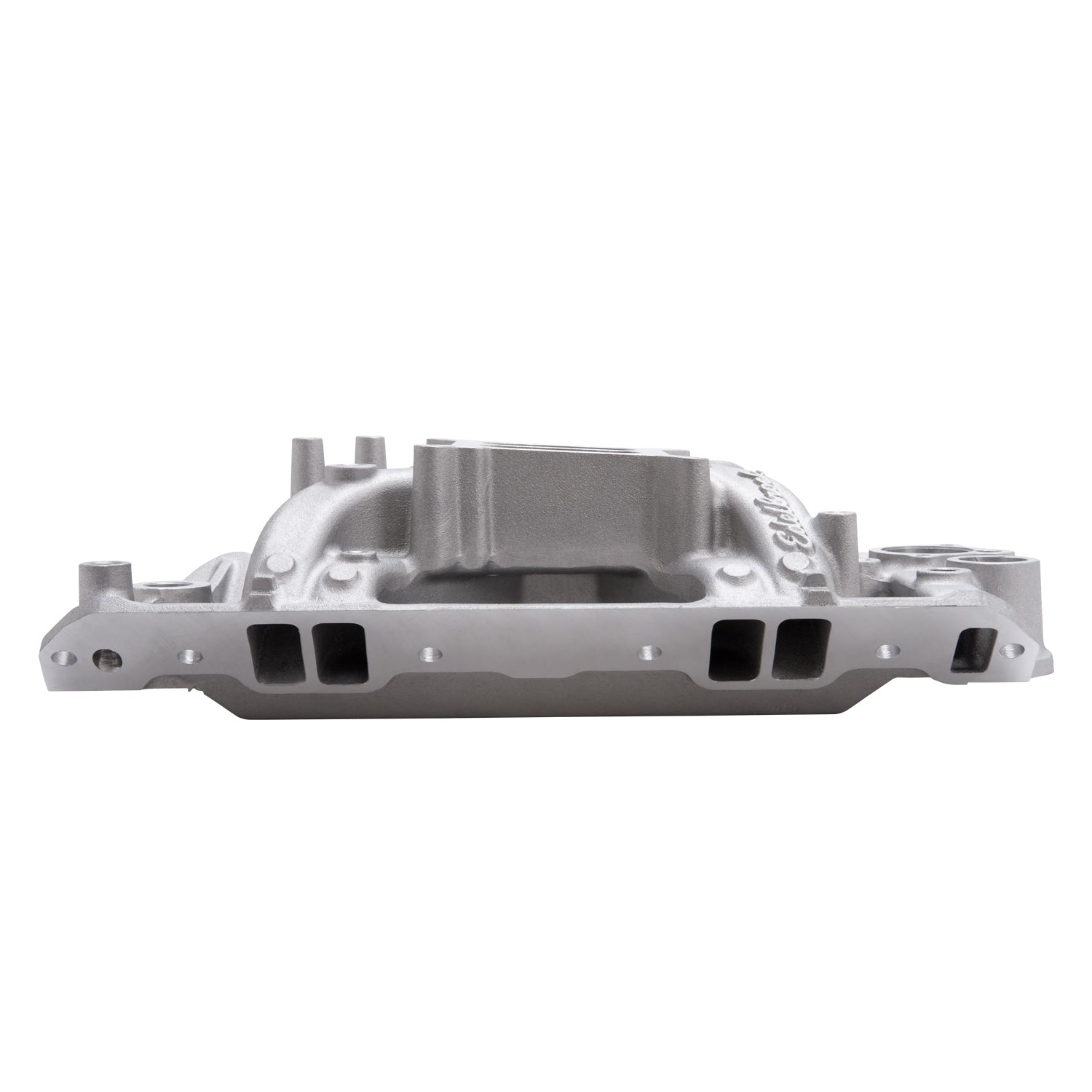

Edelbrock part #7530 RPM Air-Gap AMC intake manifold is designed for 1967-69 290-390 c.i.d. V8 applications. This RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.
Edelbrock Edelbrock RPM Air-Gap AMC Intake Manifold for AMC 304-360-401 Small-Block V8 7530
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port | No - For 1967-69 290-390 c.i.d. |
| Flange Type | 4150 |
| Basic Operating RPM Range | 1500-6500 |
| Grade Type | Performance |
| Center Maximum Height | 5.110 |
| CNC Ported | No |
| Vehicle Model | AMC/Jeep |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Front Maximum Height | 4.450 |
| Rear Maximum Height | 5.770 |
| Material | Aluminum |
| Finish | Satin |
| Gasket Or Seal Included | No |
| Description_ABR | Intake Mnfld |
| Description_INV | RPM AMC Air-Gap 1967-69 Intake Manifold |
| Description_LAB | RPM Air-Gap AMC 290/343/390 Intake Manifold |
| Description_ASM | AMC:-:290 (4.8L)-390 (6.4L) |
| Description_EXT | Edelbrock RPM Air-Gap AMC Intake Manifold for AMC 304-360-401 Small-Block V8 |
| Description_MKT | Edelbrock part #7530 RPM Air-Gap AMC intake manifold is designed for 1967-69 290-390 c.i.d. V8 applications. This RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover. |
| Description_TRA | Recommended intake gasket: Fel-Pro MS96011 |
| Description_TRA | Must use factory style metal valley tray |
| Description_TRA | Manifold height: A-4.45", B-5.77" |
| Description_TRA | Carb pad height: 5.11" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA | Port exit dimensions: 1.04" x 2.10" |
| Description_TRA | Edelbrock bracket #8034 required for 1979 and later vehicles |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1968 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Ambassador | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1967 | American Motors | Ambassador | 990 | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1967 | American Motors | Ambassador | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1967 | American Motors | Ambassador | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1968 | American Motors | American | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1967 | American Motors | American | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1967 | American Motors | American | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1968 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | AMX | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Javelin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1967 | American Motors | Marlin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1967 | American Motors | Marlin | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1969 | American Motors | Rambler | 440 | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rambler | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rambler | Hurst SC/Rambler | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rambler | Rogue | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1967 | American Motors | Rebel | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1967 | American Motors | Rebel | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) | |
| 1968 | American Motors | Rebel | 550 | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1968 | American Motors | Rebel | 550 | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rebel | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rebel | Base | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rebel | SST | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rebel | SST | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
| 1969 | American Motors | Rebel | SST | Non-EGR; 1500-6500; For 4 bbl Carbs; For Square-Bore Carbs; For Use On Pre-Pollution Controlled Vehicles (PPCV) |
