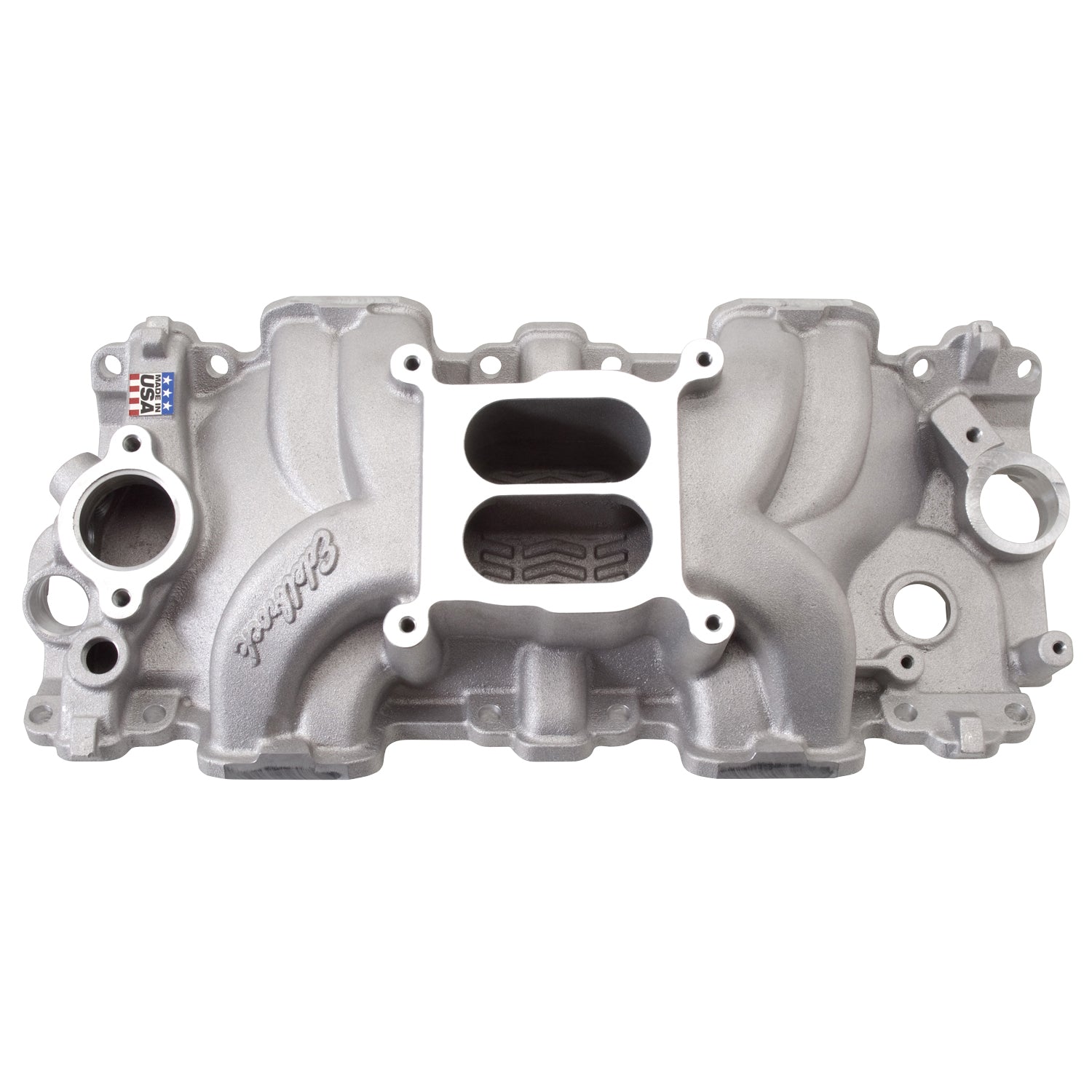

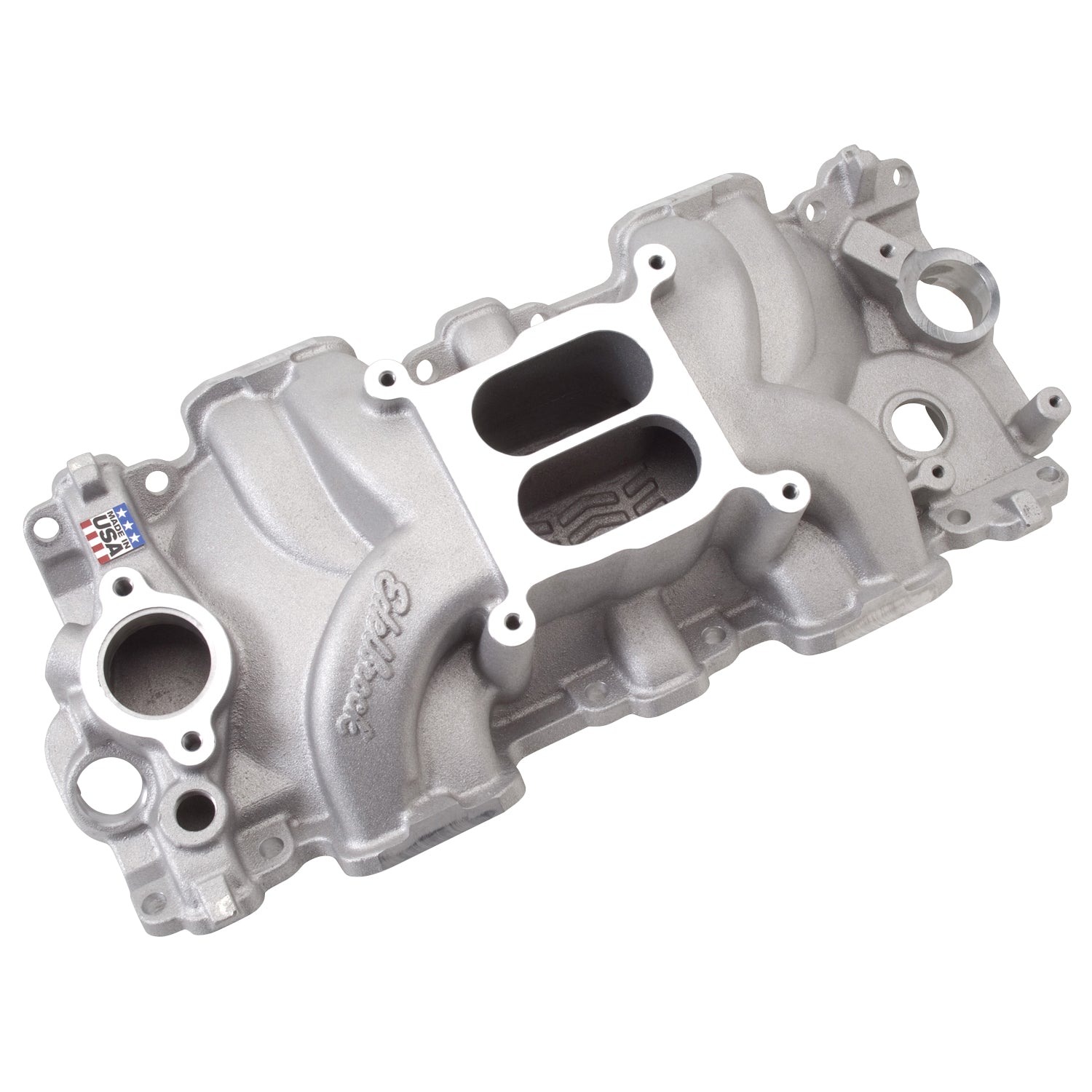

Edelbrock part #7158 Performer RPM small port intake manifold is designed to fit 1958-1965 Chevrolet 348/409 "W" big-block engines. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. For square-bore carburetors only.
Edelbrock Edelbrock Performer RPM Small Port Intake Manifold for Chevrolet W-Series 7158
Specifications:
| Front Maximum Height | 4.350 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Rear Maximum Height | 5.540 |
| CNC Ported | No |
| Basic Operating RPM Range | 1500-6500 |
| Material | Aluminum |
| Center Maximum Height | 4.940 |
| Flange Type | 4150 |
| Series | Performer RPM |
| Description_ABR | Intake Mnfld |
| Description_INV | RPM Dual Quad 409 SM Port Intake Manifld |
| Description_LAB | Performer RPM Big Block Chevy W-Engine Small Port Intake Manifold |
| Description_ASM | Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_EXT | Edelbrock Performer RPM Small Port Intake Manifold for Chevrolet W-Series |
| Description_MKT | Edelbrock part #7158 Performer RPM small port intake manifold is designed to fit 1958-1965 Chevrolet 348/409 "W" big-block engines. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. For square-bore carburetors only. |
| Description_TRA | Recommended intake gasket: Edelbrock #7242 or Fel-Pro MS9459B |
| Description_TRA | Port exit dimensions: 2.06" x 1.16" |
| Description_TRA | Manifold Dimensions: A-4.35", B-5.54" |
| Description_TRA | Carb pad height: 4.62" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA | Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_DEF | Engine Intake Manifold |
